TOP quality 100w CO2 laser engraving machine
Zhongcan Technology Co.,Ltd. is a high development manufacture engaged in research , development , production and service of CO2 Laser Engraver , Laser Cutting Machine , Fiber laser Marking Machine covering the line of arts and crafts processing , advertising , signs , University education ,medical industry , clothing processing , building models , wood furniture ,acrylic cutting , image carving and other industries .Based on China CCPIT and China Business Bureau support , we won lots of awards in exporting and Technological innovation . Our Company was founded in the year of 2012 , has more than 100 employees , and factory area over 2000 square.As a Leader of China B2B , B2C , our products are sold out to America , Europe,Middle East and South Asia.We have many agents and warehouses . Let us cooperate together , to work out best solutions for you to expand your business
|
Model
|
ZC-DK-CO2
|
|
Laser Type
|
CO2 sealed laser tube,water-cooled 10.6um
|
|
Laser Power
|
60W/80W/100W/130W/150W/180
|
|
Marking Area
|
1300*900mm 51inch*35inch
|
|
Engraving speed
|
0-60000mm/min / 0-2362in/min
|
|
Cutting Speed
|
0-30000mm/min / 0-1181in/min
|
|
Repetition Precision
|
0.001mm
|
|
Laser Source
|
Reci/Yongli
|
|
Total Power
|
220V±10% /50HZ 110V±10%//60HZ
|
|
Supported Windows
|
All Windows
|
|
Supported Format
|
PLT/AI/DXF/BMP/DST/DWG/LAS
|
|
Min. shaping character
|
Letter 1.0 x 1.0mm
|
|
Highest Scanning Precision:
|
2500DPI
|
|
Machine size
|
1850*1310*1140mm 72.8*51.5*44.8inch
|
|
package size
|
2000*1470*1330mm 78.7*57.8*44.8inch
|
|
Net Weight /Gross weight
|
380KGS/500KGS
|
|
Optional part
|
Up and down table, rotary attachment, red light pointer, auto focus system
|

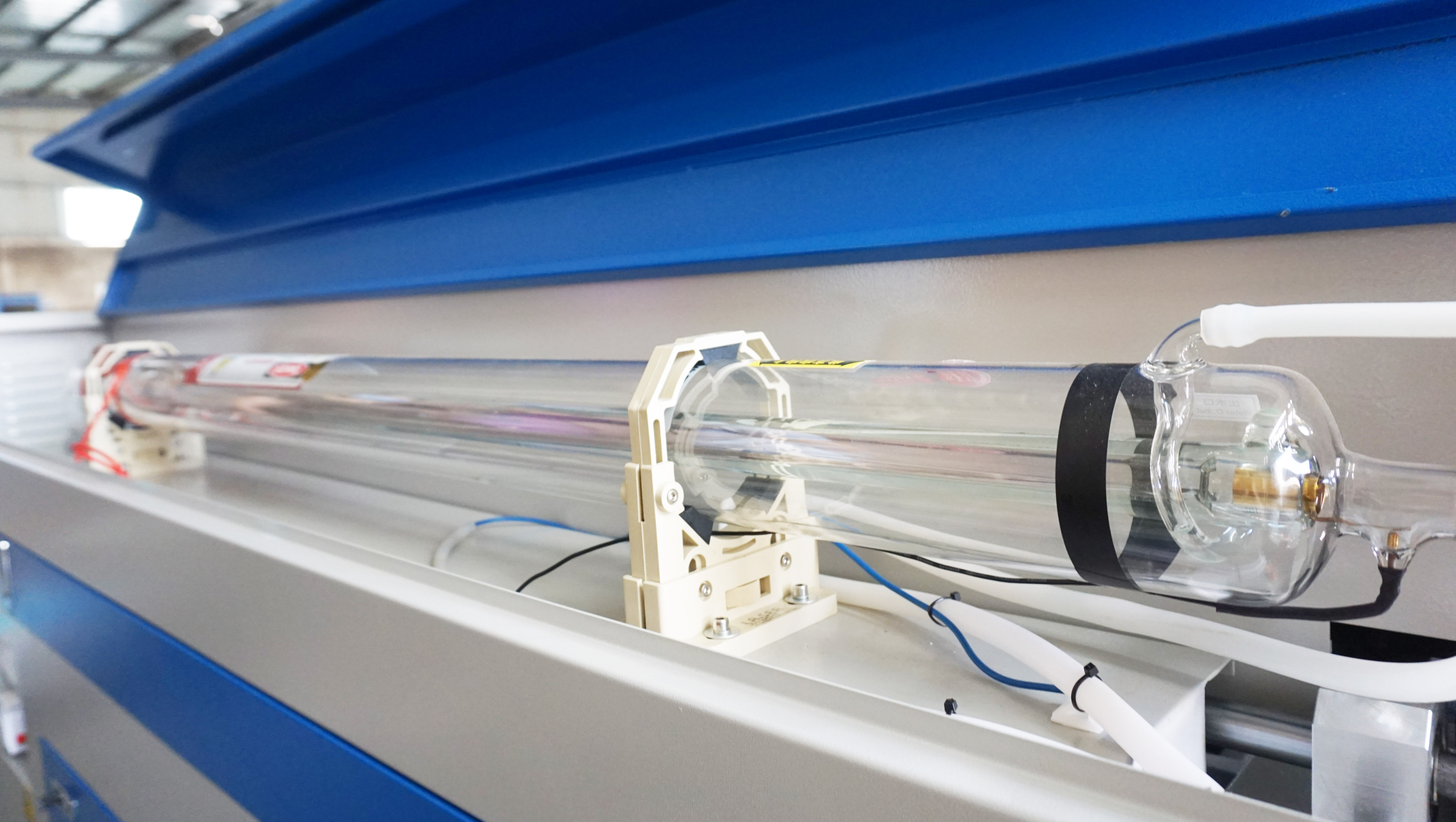

Adopt the new high-efficiency CO2 laser tube of RECI, the 100W CO2 laser tube can reach a peak of 122W. The laser beam is more stable and the life of the laser tube can exceed 10,000 hours.

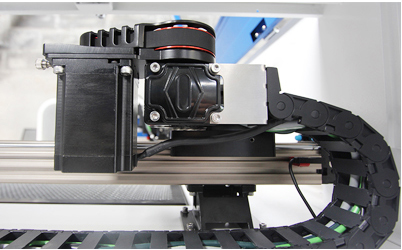

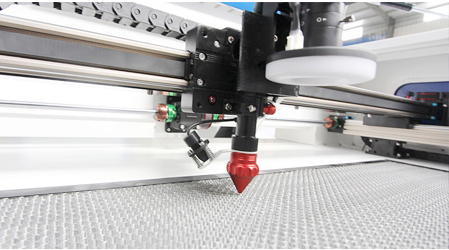

02 Adjustable Laser Head
Taiwan Hiwin square guide rails are made of high-strength special steel to ensure that the laser machine does not deform continuously for a long time. Improve laser engraving and cutting accuracy and extend the working life of the machine.
Laser tube Power cord Data line Focal length ruler Tobacco tube Encryption lock Chimney Focal length ruler Toolbox/CD (software/tutorial/instruction)
