Guaranteed 100% Factory Sale Brand New ISUZU ELF 5m³ Sewage Suction Truck
Sewer suction truck (also called sewage sucking truck, sewage cleaning truck, truck mounted sewage vacuum cleaner, vacuum cleaner truck, vacuum suction tanker, vacuum waste collection truck, sewage suction truck, sewage vacuum truck, waste vacuum tanker, sewer truck, cesspit emptier, gully emptier etc.)
It is used to collect, transport and discharge liquid such as dirty water, sludge, septic, crude oil, and solid stuff such as small stones, bricks as well. It is suitable for cleaning the sewer, cesspit, cesspool, gully, etc. It is widely used in environment and sanitation field.
Our CLW sewage vacuum tank capacity ranges from 3,000 litres to 20,000 litres…..
Vehicle Parameters
| Sewer Suction Truck ISUZU ( 5,000 litres) | ||
| General | Vehicle Brand | CLW |
| Chassis Brand | ISUZU | |
| Overall Dimension | 5900 x 1900 x 2400 mm | |
| GVW / Kerb Weight | 7,300 kg / 3,620 kg | |
| Cab | Cab Capacity | 2 persons seat |
| Air Conditioner | Air conditioner equipped | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU, 4JB1CN | |
| Power | 98 HP / 72 kw | |
| Displacement | 2771 ml | |
| Emission Standard | Euro IV | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | ISUZU gear box, no overhaul within 500,000km | |
| Wheelbase/No. of axle | 3360 mm / 2 | |
| Tyre Specification | 7.00R16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 100 km/h | |
| Paint | Metallic paint | |
| Superstructure | Vacuum Tank Capacity | 4,000 litres |
| Tank Material | Carbon steel | |
| Suction Head | 6 m | |
| Vacuum Pump | High efficiency, vacuum rare up to 93%, quick suction and discharge | |
| Suction Hose | High quality, wire strength hose | |
| Install vacuum Pump drive by engine through PTO, hydraulic system, multi-way valve, pressure gauges, water-gas separator, oil-gas separator, oil tank reservoir, level inspection window and suction hose. | ||
| Rear door can be hydraulic opened for complete discharge of solid stuff. | ||
| All other standard accessories: Tool kit, English manual…… | ||
| Optional |
1. Tank material could be mild steel, stainless steel… 2. Italy vacuum pump is available. |
|
Vehicle Features
---- Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically.
---- Adopt EU vacuum pump (Italy brand) or equivalent China top brand double vacuum pumps, super powerful, highly efficient.
---- Pump can be operated by a hydraulic motor or by an auxiliary engine.

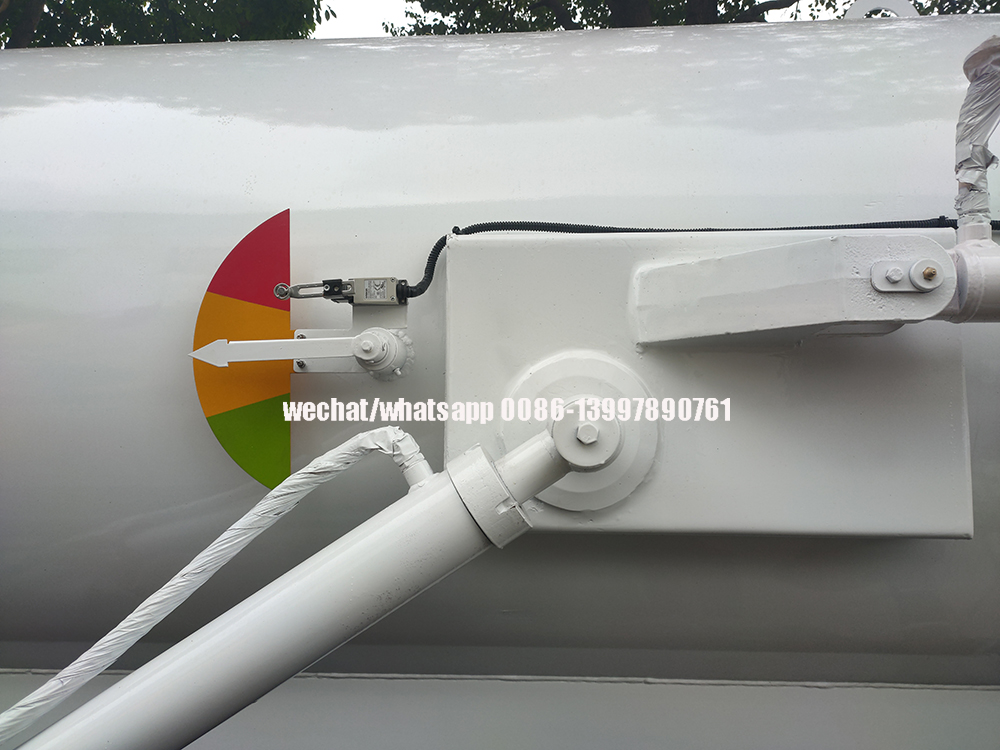

---- Overfill system with music horn is equipped, preventing the vacuum pump damage from sewage water into vacuum pump when the tank is full.
---- Nice shape, rational structure, durable and long service life.
Vehicle Images

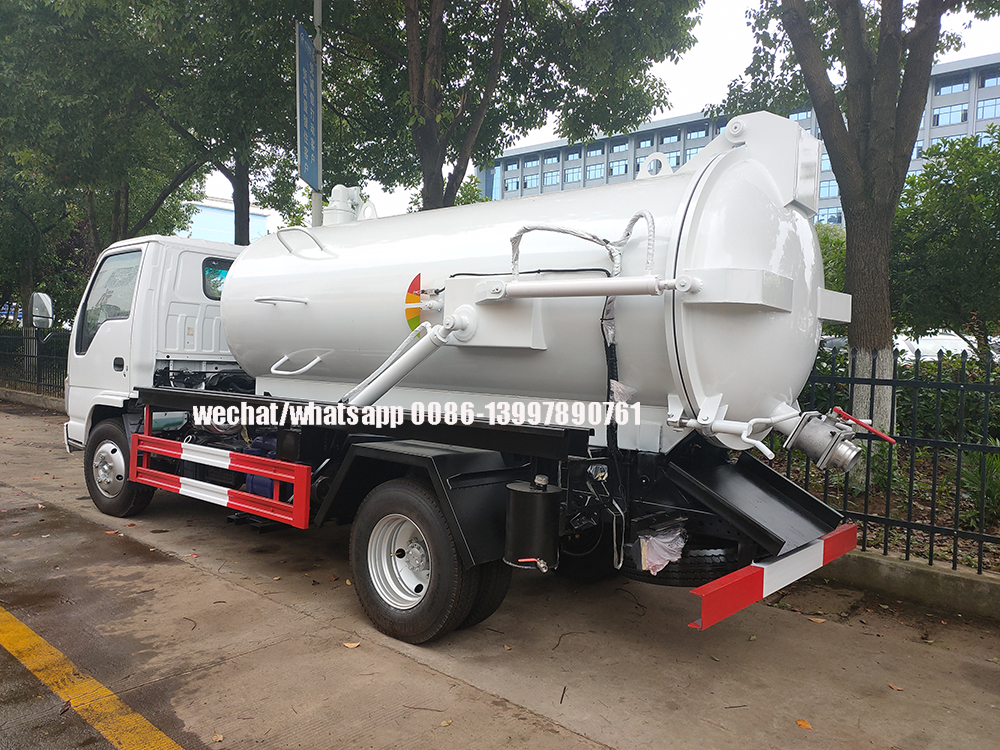

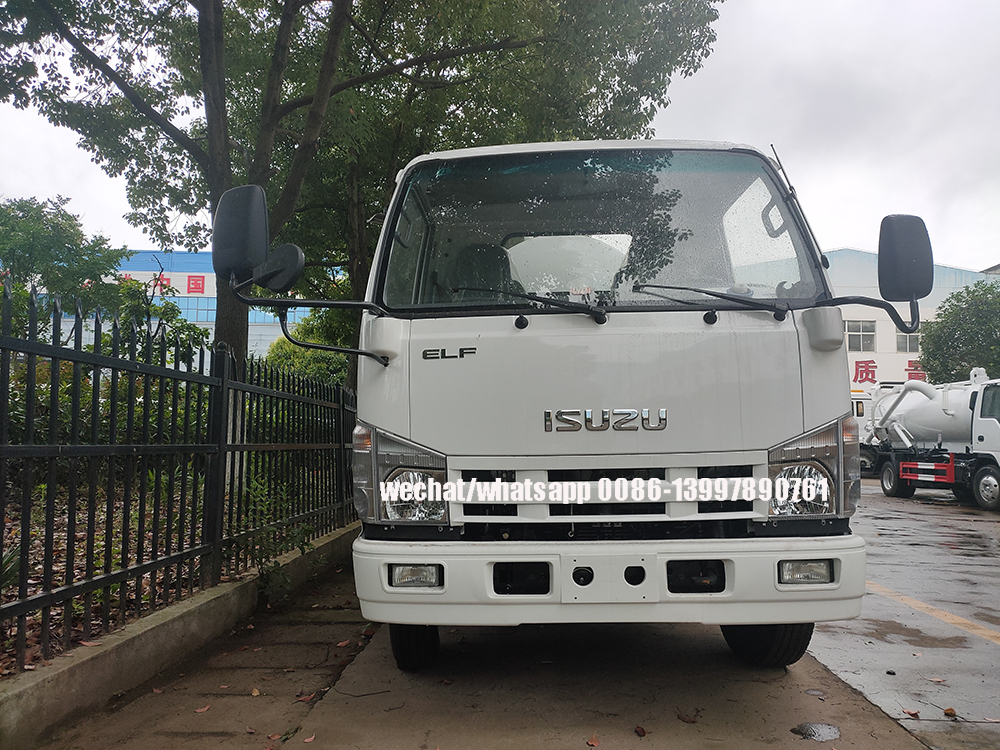

ISUZU ELF 5m³ Sewage Suction Truck Image 1

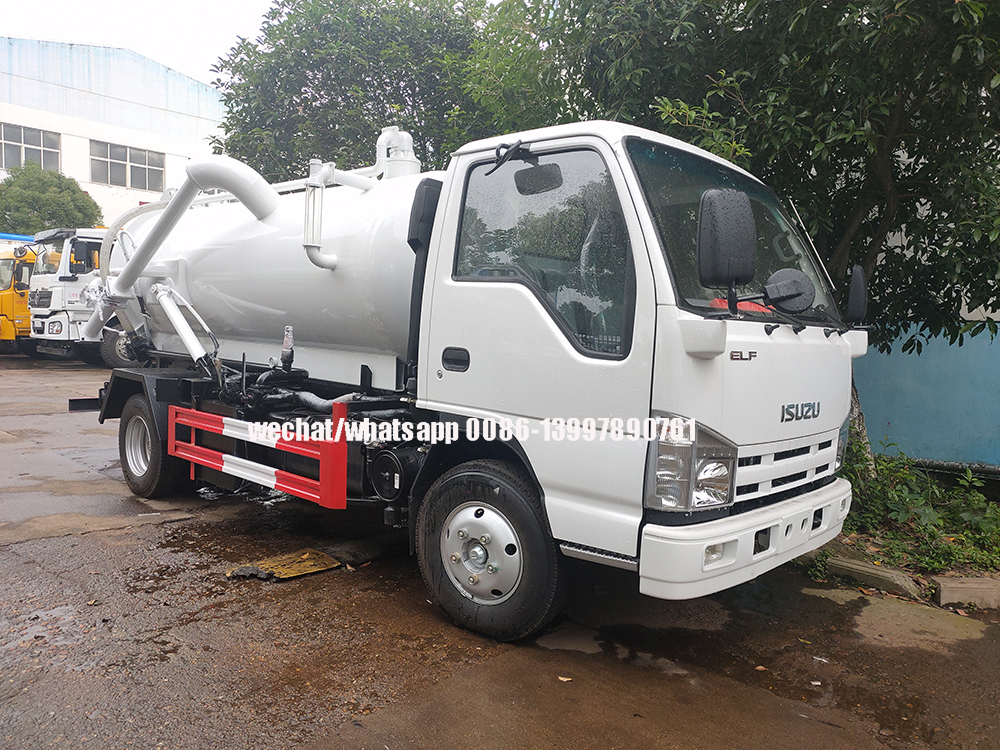

ISUZU ELF 5m³ Sewage Suction Truck Image 2
ISUZU ELF 5m³ Sewage Suction Truck Image 3

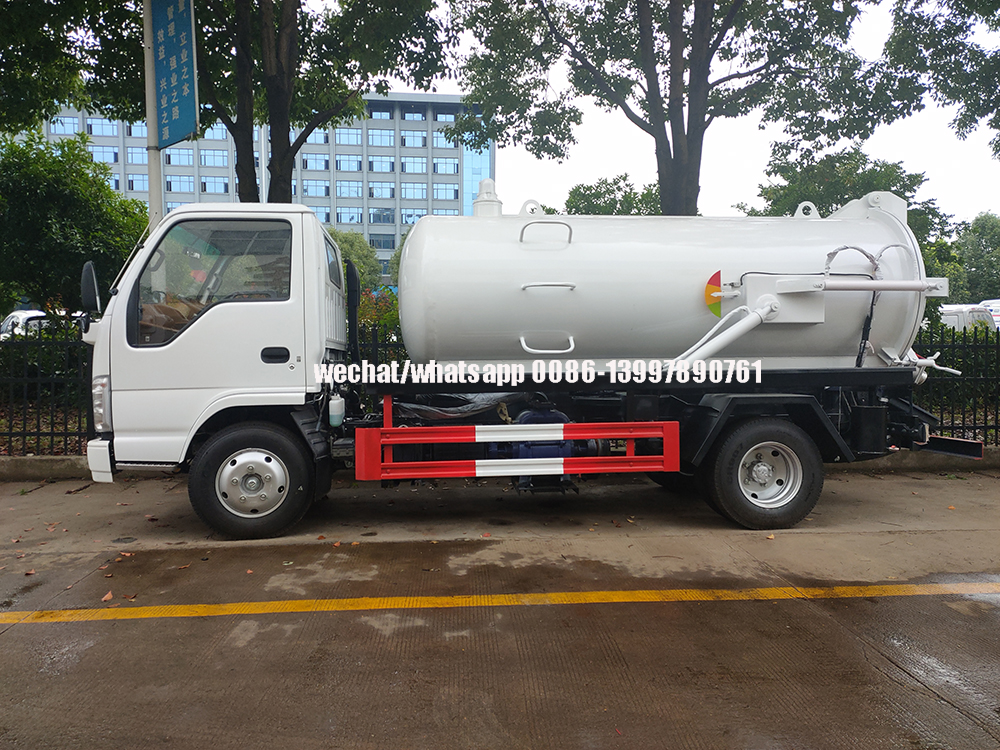

ISUZU ELF 5m³ Sewage Suction Truck Image 4

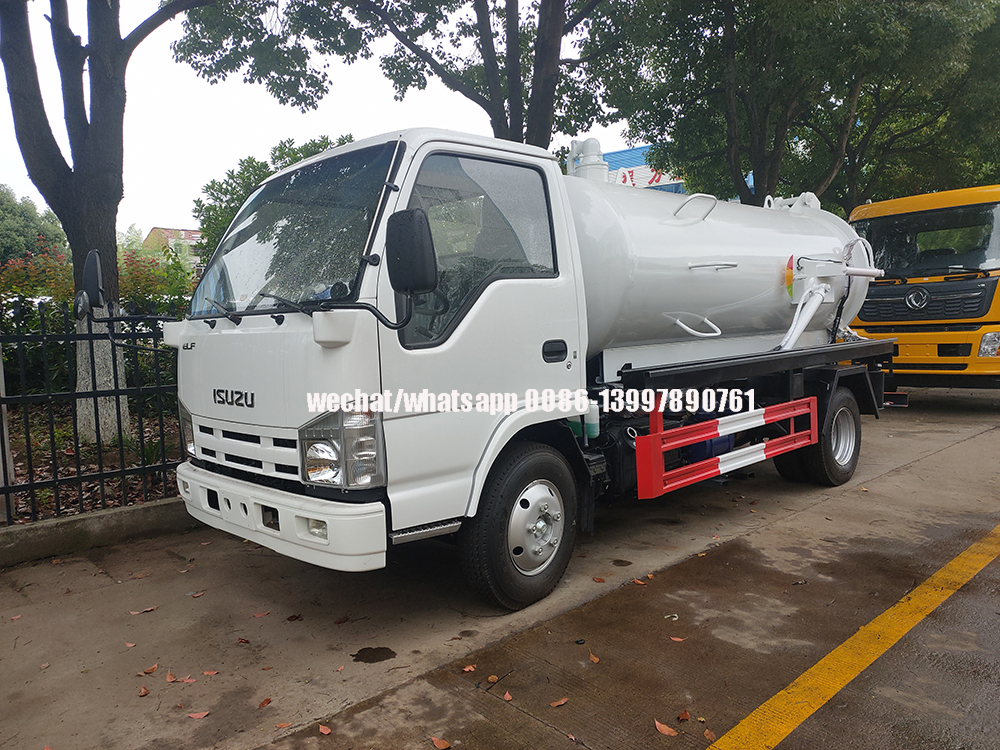

ISUZU ELF 5m³ Sewage Suction Truck Image 5

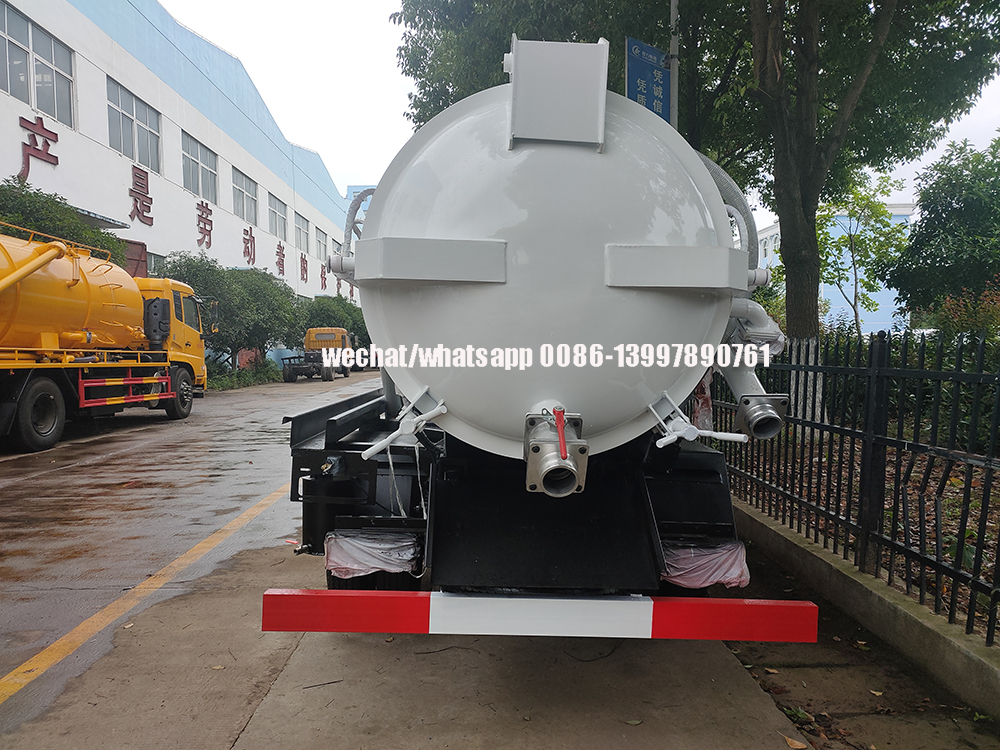

ISUZU ELF 5m³ Sewage Suction Truck Image 6

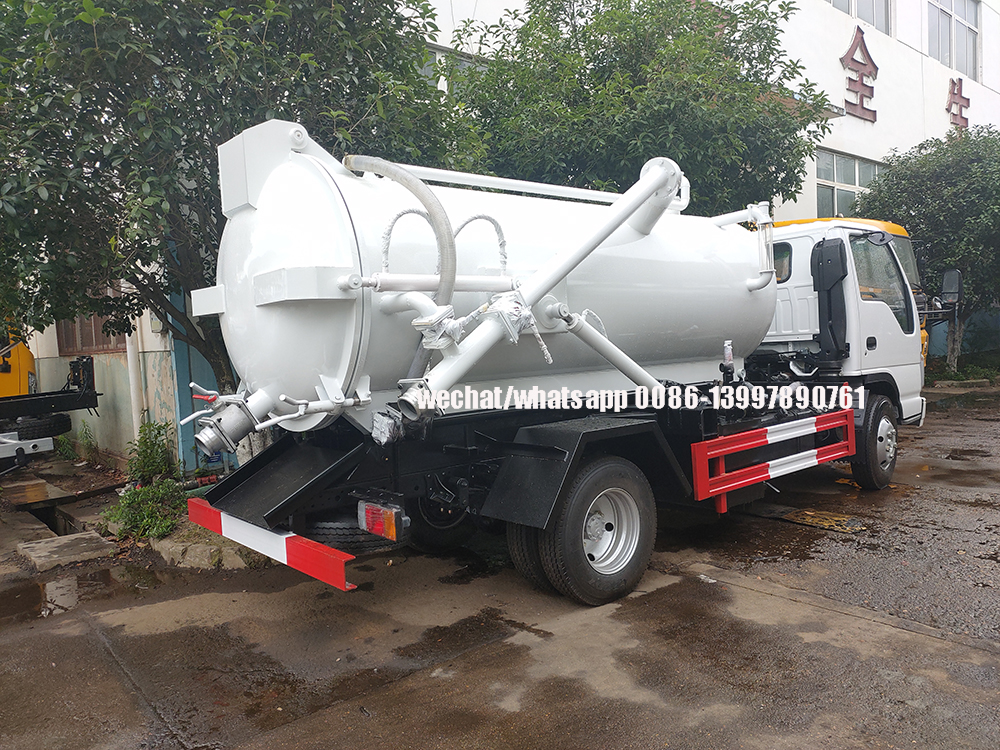

ISUZU ELF 5m³ Sewage Suction Truck Image 7
ISUZU ELF 5m³ Sewage Suction Truck Image 8
Cooperation Partner
We are professional special purpose vehicles manufacturer and exporter in china, we produce and sale trucks such as cargo truck, water truck, cargo truck, fire fighting truck, ambulance, waste collection trucks, road wrecker, car carrier, truck mounted crane, dump truck, oil transport truck, semi trailer, etc..
Welcome to contact us for more information of the ISUZU ELF 5m³ Sewage Suction Truck at any time.
