PRODUCT OVERVIEW: PCAC-J5-EU22/400-Residential EV Charger
PCDC-WZ2-EU30/1k is a cutting-edge DC EV charger designed to provide fast and efficient charging solutions for electric vehicles (EVs). With a power output of 30kW and a wide voltage range, this Level 3 electric car charger is ideal for EV charging stations and fast charge stations, offering quick and reliable charging for EV owners.
Key Features:
High Power Output: With a 30kW output rating, this DC charger can deliver fast and efficient charging for a wide range of EVs.
Flexible Installation: PCDC-WZ2-EU30/1k can be wall-mounted or installed as a standalone charging station, offering versatile installation options.
Advanced Communication: Equipped with a 7" touch screen and multiple communication interfaces, including RJ45, 4G, and Wi-Fi, it supports OCPP 1.6J and 2.0.1J protocols for remote monitoring and control.
Safety First: The charger incorporates multiple safety features, including overcurrent protection, overvoltage protection, undervoltage protection, short circuit protection, over-temperature protection, missing diode detection, and emergency stop functionality.
User-Friendly: It supports various charging methods, such as card swipe, QR code scanning, and VIN code input, making it convenient for users.
Durable Build: With an IP54 and IK10 protection rating, this charger can withstand outdoor conditions and provide reliable performance.
Energy Efficient: PCDC-WZ2-EU30/1k is designed to be energy-efficient, with a power conversion efficiency of ≥95%.
Applications:
This fast EV charger is suitable for a wide range of applications, including electric vehicle charging solutions, DC charging stations, and EV recharge stations. It can be used in on-grid and off-grid setups, making it a versatile choice for various environments.
Specifications:
Output Rating: 30kW
Output Voltage: DC200~1000V
Output Current: 0-100A
Power Conversion Efficiency: ≥95%
Connector Options: 1×CCS2 Cable
Cable Length: 5m
Input Voltage: 3-phase 400VAC±10%
Frequency: 50Hz
Power Factor: >0.99
Wiring: 3P+N+PE
Display: 7" Touch Screen
Communication: RJ45, 4G, Wi-Fi
Communication Protocol: OCPP 1.6J, 2.0.1J
Safety Features: Overcurrent, Overvoltage, Undervoltage, Short Circuit, Over Temperature Protections, Missing Diode, Emergency Stop
RCD: RCD Type A
Surge Protection: 20kA
Power Measurement Accuracy: ±1%
Access Control: App/RFID
RFID: ISO/IEC 14443A/B
Safety Compliance: CE, CB
Other Functions: OTA

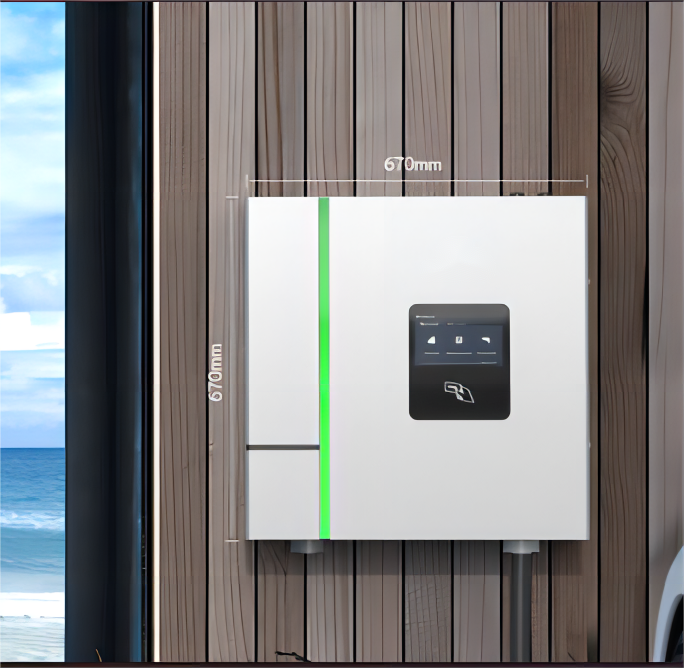

Dimensions: 670mm×217mm×670mm
Net Weight: 60kg
Protection Degrees: IP54, IK10
Operating Temperature: -30℃～55℃ (full power), 55℃～75℃ (limit power)
Storage Temperature: -40℃～70℃
Power Cooling: Forced-air-cooled
Working/Storage Humidity: ≤95%
Altitude: ≤2000m
Noise: ≤65dB
Mounting Options: Mounting Bracket, Wall Mount
OEM Customize Options: Logo, Nameplate, User Manual, Length of Charging Cable
Elevate your EV charging infrastructure with the PCDC-WZ2-EU30/1k, offering fast and efficient charging solutions for electric vehicles. Its advanced features, robust build, and versatile applications make it an ideal choice for the future of EV charging.
solution caters to your diverse needs.
