Product details

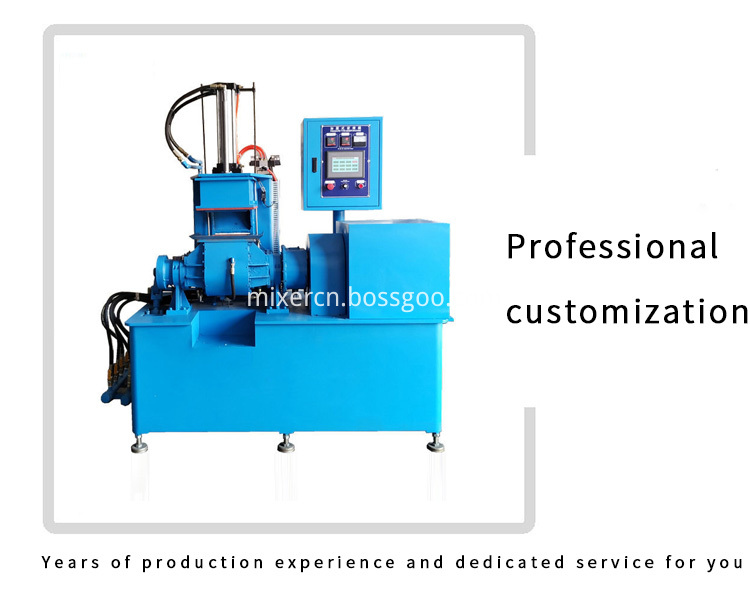

5L Small Internal Mixer Silicone Gel Water Cooling Internal Mixer Pressure Reversing Internal Mixer Closed Internal Mixer

ZG-5L Laboratory Small Electric Water Cooled Mixer

5ld

1. Volume of mixing chamber: 5L
2. Main motor: Adopting AC motor with a power of 11 kW
3. The axis and blades of the mixing shaft are made of alloy steel
4. The bearing seat is made of ZG20 steel, and the bearing is made of roller bearings
5. Feeding device This mechanical design is a front feeding device, and the pressure can be adjusted according to the user's specified pneumatic valve
6. The side end of the mixing shaft of the leak proof device adopts a mechanical shaft seal for tightening, and the leak proof structure has been awarded a certificate
Pressure cap device
7. The pressure cap is made of alloy steel, and pressure is applied to the raw materials during the mixing operation. The air cylinder is used for vertical lifting and lowering movements
Unloading device
8. Hydraulic tilting discharge of structural mixing chamber
9. Tilting angle 110 °~135 °
10. Tilting power: hydraulic tipping bucket
11. Volume: (W × D × H) 2250 * 950 * 2380MM
12. Weight: 2980KG
Its main products Small open mill, Small internal mixer, Small tablet press, small vulcanization machine, Small extruder, and various customized laboratory mixer rubber and plastic mechanical equipment.
Our company's products are as follows:
Small open mill: 2 inches, 3 inches, 4 inches, 6 inches, 7 inches, 8 inches, 9 inches, 10 inches, 12 inches, 14 inches, and 16 inches laboratory mixer functions include electric heating, water cooling, oil heating, integrated cooling and heating, automatic rubber flipping machine, rubber mixing machine, plastic mixing machine, and mixer

Small internal mixer: 0.05L0.1L0.2L0.3L0.5L1L2L3L5L8L10L15L20L25L35L Internal mixer desktop, pressurized, flipped, open close, clutch, closed, electrically heated water cooled laboratory internal mixer, vacuum internal mixer, metal ceramic powder internal mixer, internal mixer granulator integrated machine

Small tablet press: 5T10T20T25T30T50T65T100T150T200T300T single layer, double layer, four column, with safety door, upper layer heating and lower layer water cooling, one layer electric heating and water cooling integrated, electric heating, water cooling, oil heating, hydraulic system, manual, semi-automatic, pneumatic, fully automatic laboratory small tablet press, hot pressing molding machine, rubber and plastic molding machine.

Small vulcanizing machine: 5T10T20T25T30T50T65T100T150T200T single layer, double layer, four column, with safety door, electric heating, water cooling, oil heating, hydraulic system, pneumatic, manual, semi-automatic, fully automatic flat vulcanizing machine, vacuum vulcanizing machine.

Small extruder: screw diameter 15mm 20mm 25mm 30mm 35mm 40mm 45mm single screw extruder, double screw extruder, rubber extruder, plastic extruder, small granulator and other rubber refining equipment and extrusion equipment, with complete models and can be designed and manufactured according to customer requirements. Contact Mr. Huang for detailed product inquiries.

Specifications and technical features of the internal mixer:
In the past, the working capacity of the mixing chamber and the active rotor speed were used to represent it; The total capacity of the mixing chamber is now represented by the speed of the active rotor.

The specification representation of domestic internal mixer:
XM-250/20
X represents rubber, M represents mixer, 250 represents total capacity of mixer, and 20 represents rotor speed
X (S) M-75/35x70
X represents rubber, S represents plastic, M represents internal mixer, 75 represents total capacity of internal mixer, dual speed (35 and 70 rpm)
