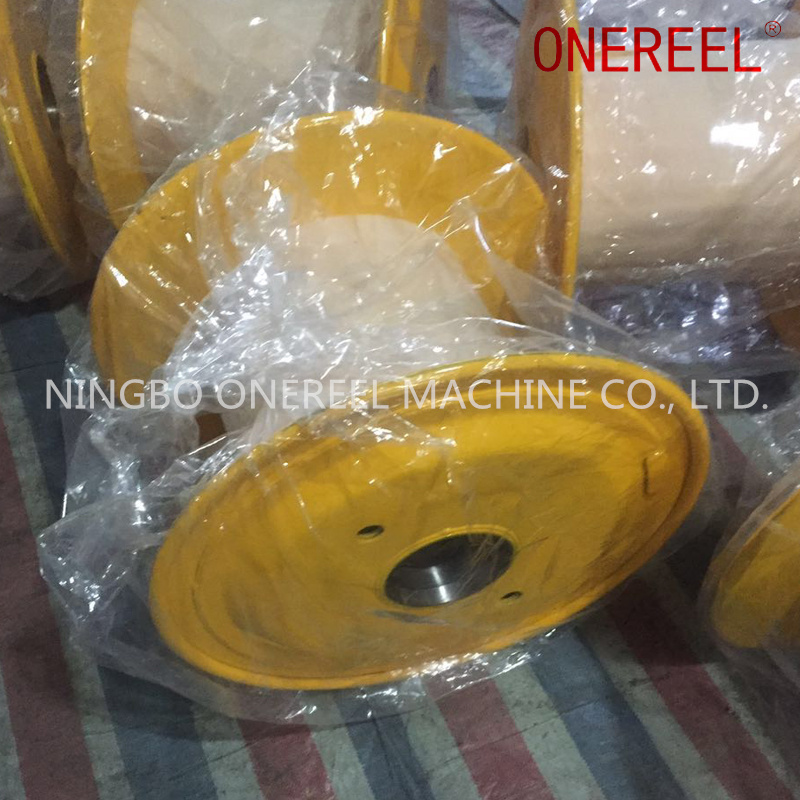

500mm Modle Widely-used Steel Cable Spool
In accordance with GB4004-83, JB/T7600.3-94 and DlN46395 standards, the product is made of common carbon steel Q235 thick plate through assembly and welding, and machine finishing. The product has high rigidity of bobbin and high precision. Through dynamic test, the product has stable operation at high speed, and can be used for high-speed drawing-wire machine and wire stranding machine.
Technical Specification
| Serial Number | Specification Model | Lateral Plate Diameter D1 | Major Diameter D2 | Axle Hole Diameter D4 | Carrying Hole Diameter D5 | Center Distance E of Axle Hole and Carrying Hole | External Width L1 | Internal Width L2 |
| 1 | 400 | 400 |
224/250 280 |
125/127 | 28 | 100 |
265 300 |
224 250 |
| 2 | 500 | 500 |
280/315 355 |
125/127 | 28 | 100 |
300 375 |
250 315 |
| 3 | 560 | 560 |
315/355 400 |
125/127 | 28 | 100 |
355 425 |
280 355 |
| 4 | 630 | 630 |
355/400 450 |
125/127 | 28 | 100 |
375 475 |
315 400 |
| 5 | 710 | 710 |
400/450 500 |
250 | 40 | 170 |
425 530 |
355 450 |
| 6 | 800 | 800 |
450/500 560 |
250 | 40 | 170 |
475 600 |
400 500 |
| 7 | 1000 | 1000 |
560/630 710 |
250 | 50 | 250 | 750 | 630 |
| 8 | 1250 | 1250 |
710/800 900 |
250 | 50 | 250 | 950 | 800 |
Product Description
ONEREEL is specialized in the design and manufacture Steel Wire Spools, Plastic Wire Spools, Stainless Steel Spools, Warp Knitting Beam, Cable Drum Stand, Corrugated Wire Spool, Collapsible Cable Reel, Customer Spool, Aluminum Spool, Punching Wire Spool, Skeleton Cable Reel, Pulley Block, Hose Reel, Nylon Spool, Yarn Bobbin, and Flat Wire Spool in the industry since 1991. All of our customer spool and wire carrier are engineered and manufactured in our 120,000 square foot state-of-the-art manufacturing plant located in Ningbo, Zhejiang.
Customer Visit

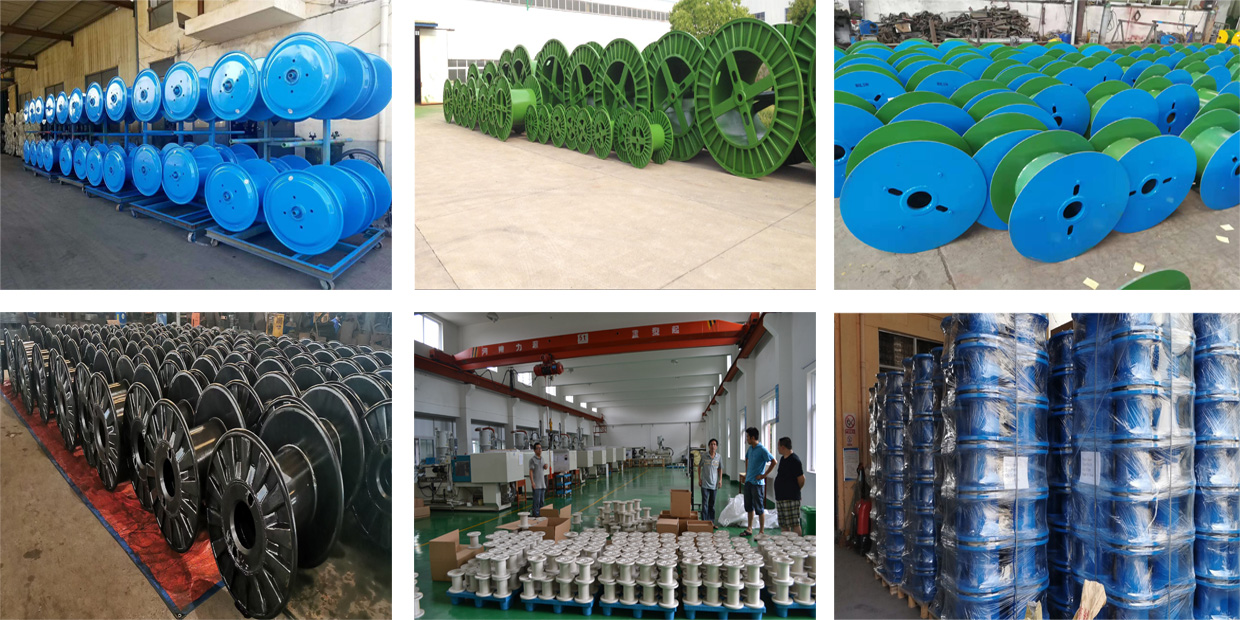

Factory Exhibition
Packing&Shipping
Certification Authority
FAQ
Q: Can I get samples?
A: According to spool model and material, we will advise.
Q: How long is the sample LEAD TIME?
A: For existing samples, it takes 2-3 days. If no stock, we will advise lead time.
Q: Can you develop new products?
A: Yes, we have new products developing ability and we are good at developing new mold.
Q: How much is the freight charge?
A: It depends on spool package volume, if small quantity, volume and urgent goods,
we may advise FEDEX or other couriers' charge for your check.
If volume bigger and by seaway suitable, we provide FOB or CIF price to you.
Q: What format of the file do you need if I want my own design?
A: We have our own mound workshop and can provide spool or other plastic product developing and injection service.
