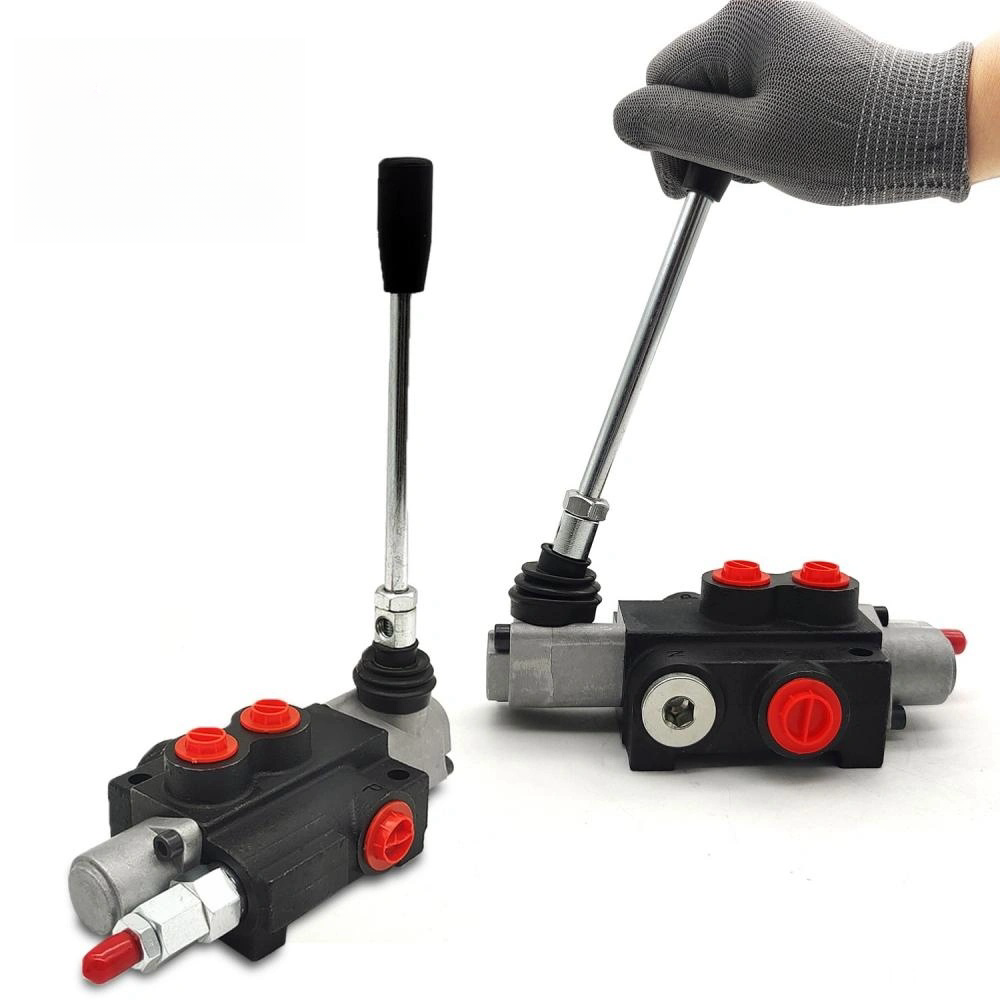

P40 Hydraulic Monoblock Directional Control Valves can be equipped with Pressure Relief Valve and Hydraulic Check Valve according to customers' requirements. The relief valve can adjust the pressure and the one-way valve can prevent the oil flowing backwards. reversing.
The valve slide valve function has A,O, P, Y and so on, may arbitrarily combine, the reversing handle has two kinds of installation forms, facilitates the different directions the operation, this valve USES the parallel or the series oil circuit, the design has the pressure to send the outlet to connect with other hydraulic pressure components to provide the power source. Through the special design sealing way, causes the valve sealing performance to be remarkable. The valve is widely used in forklift, sanitation vehicles, small loader and other construction machinery hydraulic system.
Model P40 Dimensional Data
Character:
1. P40 series valves with middle-high pressure monoblock construction is developed based on Europetechnology.
2. Inner check valve.The check valve inside the valve body is to insure the hydraulic oil not to beretumed.
3. Inner relief valve:The relief valve inside the valve body is able to adjust the hydraulic system working pressure.
4. Oil Way:Parallel circuit,power beyond option.
5. Control Way:Manual control,pneumatic control,hydraulic and electric control for optional.
6. Valve construction:monoblock construction,1-7 levers.
7. Spool Function:O,Y,P.A.
8. Option;Hyoraulic lock is available on A and B port.
9. Available with manual,pneumatic control,electric and pneumatic control,hydraulic and electric control and etc.
