EPE foam mattress making machine

EPE foam mattress making machine

2 year ago

44 0

Laizhou Jinlida Machinery Co.,Ltd

 2 year year

Product details

Product description

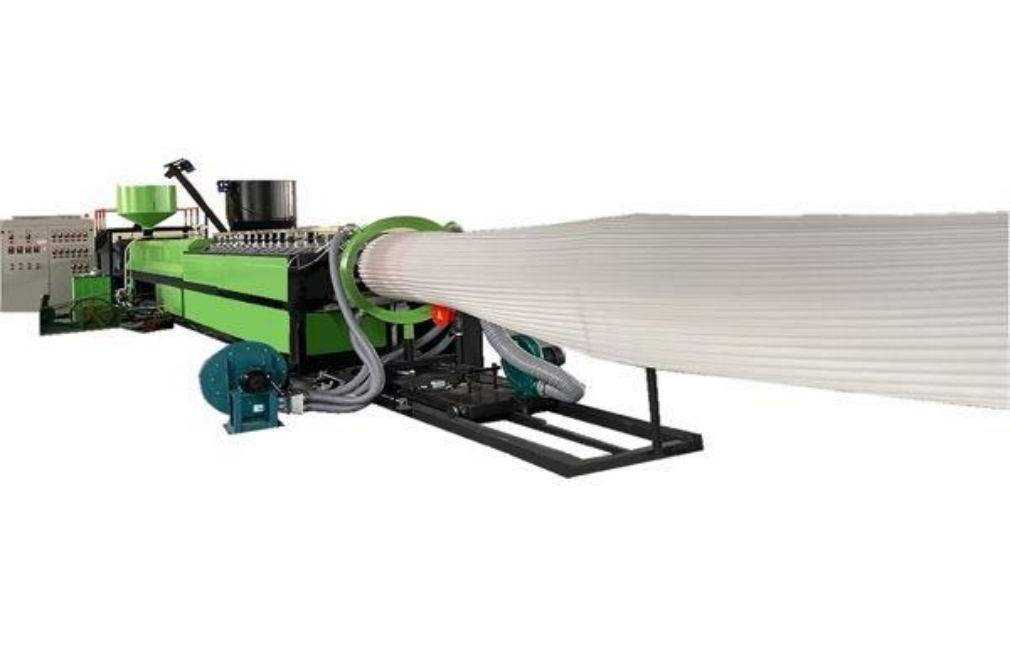

Epe foam manufacturing line is a production line used to produce EPE foam products. EPE foam is a kind of light, soft and durable material with good cushioning and heat insulation properties, which is widely used in packaging, protection, sound insulation and other fields.

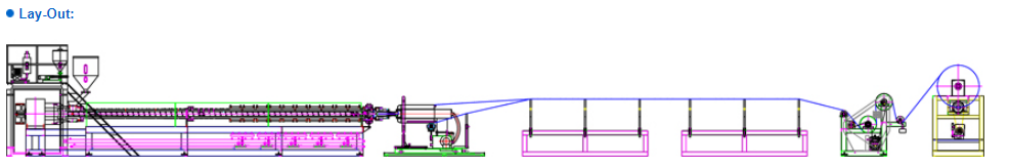

The epe foam manufacturing line consists of the following main components:

1. EPE foam extruder: This machine is used to extrude EPE raw materials into foam sheets. It uses a special extrusion technology to extrude the melted EPE particles into a plate shape, and then solidify them through a cooling device.
2. Cutting machine: This machine is used to cut foam sheets into the required size and shape. The cutting machine can be automatically or manually adjusted according to the requirements of the product to achieve production of different sizes and shapes.
3. Heat sealing machine: This machine is used to heat seal the cut foam plates to make EPE products of different shapes. The heat sealing machine heats the edges of foam sheets together through heating and pressure to form a sealed edge.
4. Cooling device: This device is used for rapid cooling and curing of EPE products after heat sealing, to ensure the stability of their shape and performance.
5. Conveying system: This system is used to transport the produced EPE products from one machine to another, in order to achieve continuous production.

The epe foam manufacturing line has the following advantages:

1. Efficient production: This production line adopts automation technology and high-speed production equipment, which can achieve

efficient production, improve production capacity and product quality.

2. Flexibility: The production line can be adjusted and changed according to different product requirements to produce EPE products of different sizes and shapes.
3. Energy conservation: The production line adopts energy-saving design and equipment to reduce energy consumption and production costs.
4. Easy to operate: The production line adopts an intelligent control system, which is simple and convenient to operate, reducing the complexity of manual operations.

In a word, epe foam manufacturing line is an efficient, flexible and energy-saving production line, which can meet the needs of different industries for EPE foam products.

And if you have epe foam machine,such as EPE Foam Sheet Extrusion Making Line,you can make all kinds of different width and thickness of EPE foam sheet rolls,and after that,you can use hot oil laminating machine or Laminating Extrusion Machine to laminate all kinds of materials with EPE foam rolls.And if you want to get thicker epe foams,you can use PE Bonding Machine to bond many layers of epe foams togather,the pe bonding machine have two types,one is Vertical Bonding Machine and another is Horizontal Bonding Machine,you can choose as your requirement.

mattress foam making machine

Model	Sheet Width	Thickness	Capacity	Screw Diameter	Installed Power	Dimension	Weight
EPE-75	850-1200mm	0.3-2mm	25-50kg/h	75mm	50kW	20x4x3m	5 tons
EPE-90	850-1500mm	0.3-5mm	60-90kg/h	90mm	80kW	22x4x3m	7.5 tons
EPE-105	850-2700mm	0.3-6mm	80-120kg/h	105mm	95kW	25x4x3m	8.5 tons
EPE-120	900-4000mm	0.5-7mm	120-180kg/h	120mm	115kW	27x4x3m	9.5 tons
EPE-135	900-4000mm	1-10mm	170-240kg/h	135mm	145kW	35x4x3m	10.5 tons
EPE-150	900-4000mm	2.5-12mm	250-300kg/h	150mm	270kW	38x7x3m	11 tons
EPE-180	1000-4000mm	3-14mm	300-400kg/h	180mm	310kW	41x7x3m	13 tons
EPE-200	1000-4000mm	3-18mm	400-550kg/h	200mm	400kW	42x7x3m	15 tons
EPE-220	1000-4000mm	4-22mm	600-700kg/h	220mm	450kW	45x7x3m	18 tons
EPE-250	1000-4000mm	4-25mm	700-800kg/h	250mm	510kW	50x7x3m	22 tons
Note	If you don’t know how to choose a machine model, please tell us your requirement of sheet, we can help you.

Expanded Polyethylene foam making machine
