New 12 inch small open mixer Rubber mixer Water cooled rubber mixer Open type rubber mixer

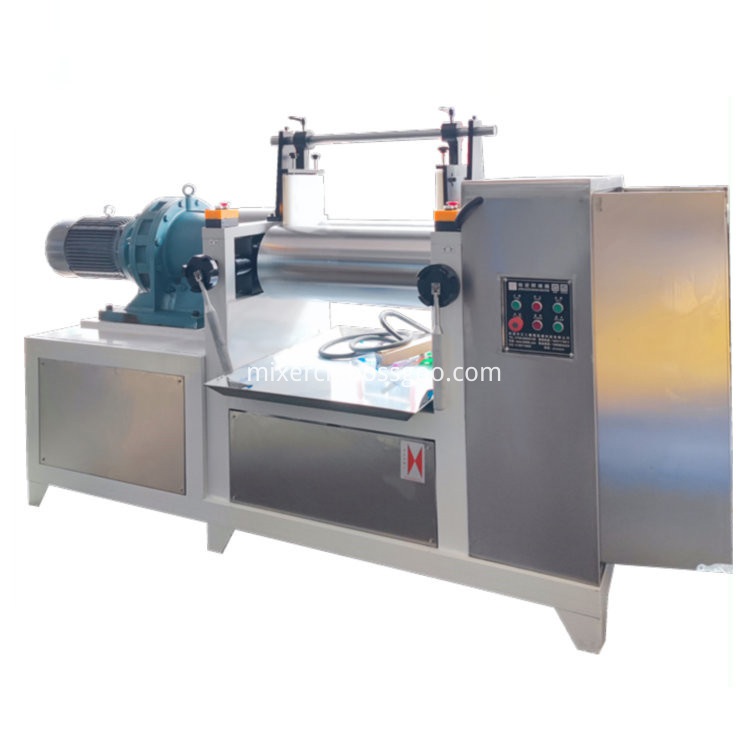

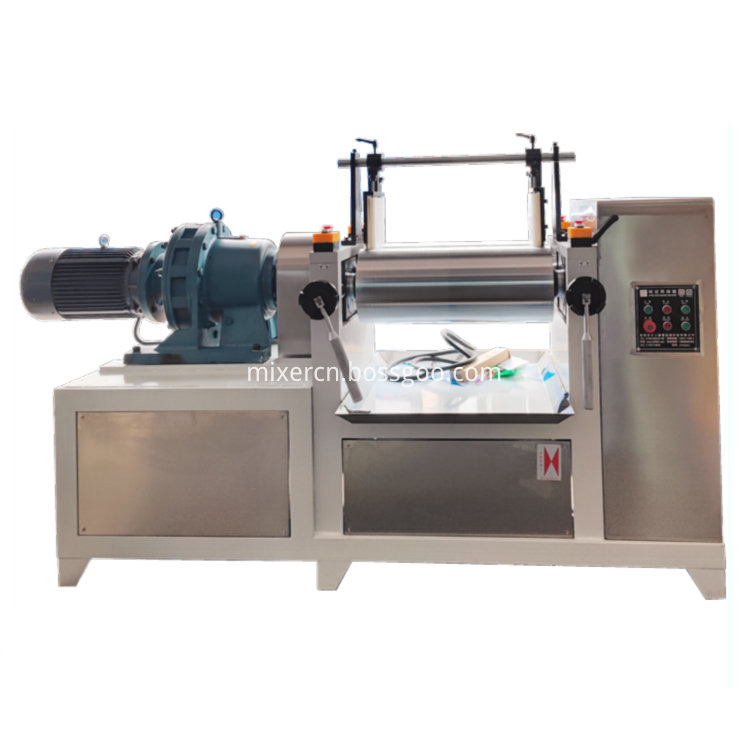

ZG-300L 12 inch water-cooled open mixer (stainless steel shell, motor connected)
Characteristics and Usage: The main function is to ensure that the product meets the quality and color requirements of customers. In order to meet customer requirements, the experimental results and their ratios are then used in the production line. This machine is a device that mixes the experimental raw materials and additives evenly.
A12 Inch Open Mill1

12 inch laboratory mixer function: special customized stainless steel chassis. Roller speed: constant speed, function: separate water

cooling. Capacity: 25kg. Drum size: ф 300mm × L720mm roller material: High hardness surface with hard chromium plating treatment, non sticking, non delamination. Motor: 15KW

Dongguan Zhenggong Electromechanical Equipment Technology Co., Ltd. was founded in 1988 in Dongguan, Guangdong. Its main products Small open mill, Small internal mixer, Small tablet press, small vulcanization machine, Small extruder, and various customized laboratory mixer rubber and plastic mechanical equipment. Established the Taiwan Joint Venture Business License in 2009, after more than 30 years of research and development and creation. It has been located in Houjie Town, Dongguan City, Chinese Mainland Province, mainland China.

Small open mill: 2 inches, 3 inches, 4 inches, 6 inches, 7 inches, 8 inches, 9 inches, 10 inches, 12 inches, 14 inches, and 16 inches

laboratory mixer functions include electric heating, water cooling, oil heating, integrated cooling and heating, automatic rubber flipping

machine, rubber mixing machine, plastic mixing machine, and mixer

Small internal mixer: 0.05L0.1L0.2L0.3L0.5L1L2L3L5L8L10L15L20L25L35L Internal mixer desktop, pressurized, flipped, open close, clutch,closed, electrically heated water cooled laboratory internal mixer, vacuum internal mixer, metal ceramic powder internal mixer, internal mixer granulator integrated machine

When the internal mixer is working, the two rotors rotate relative to each other, clamping the material from the feeding port into the roller gap and being squeezed and sheared by the rotor. After passing through the roller gap and touching the lower top bolt sharp edge, it is divided into two parts, and then returns to the top of the roller gap along the gap between the front and rear chamber walls and the rotor.

During the flow around the rotor, the material is subjected to shear and friction effects everywhere, causing a sharp increase in the

temperature of the rubber material and a decrease in viscosity. This increases the wettability of the rubber on the surface of the compounding agent, allowing the rubber to come into full contact with the surface of the compounding agent. The compounding agent block passes through the gap between the rotor and the rotor, the gap between the rotor and the upper and lower top bolts, and the gap between the

inner wall of the mixing chamber along with the rubber material. It is sheared and broken, surrounded by stretched and deformed rubber, and stabilized in a broken state. At the same time, the convex ribs on the rotor cause the rubber material to move along the axial direction of

the rotor, playing a stirring and mixing role, ensuring that the mixture is evenly mixed in the rubber material.
