Product details

Product Description

Accessories-Relay/Contactor:EVH100

The "contactor 100Amp 12V~1500V magnetic relays High voltage" is a versatile and powerful electrical device that plays a crucial role in various industries. Designed to handle high currents of up to 100A, this contactor ensures efficient power transmission and control. With its wide operating voltage range from 12V to an impressive 1500V, this magnetic relay can be used in diverse applications, ranging from automotive systems to industrial machinery. Its ability to withstand high voltages makes it suitable for use in both low and high-power circuits

Specification

item	value
Voltage	Other
Rated Current	Other
Warranty	1Years
Brand Name	ALQ
Place of Origin	China
	Jiangsu
Car Make	Electric vehicles Lithium-ion battery pack
Model Number	EVH100
Rated load voltage Ue	12-1500Vdc
Rated load current Ie	100Amp
Rated voltage of coil Us	12Vdc or 24Vdc
Weight approximately	370g
Contact resistance initial	Typical value0.2Milliohm
Electrical life	DC450V 10000 second DC750V 1000 second

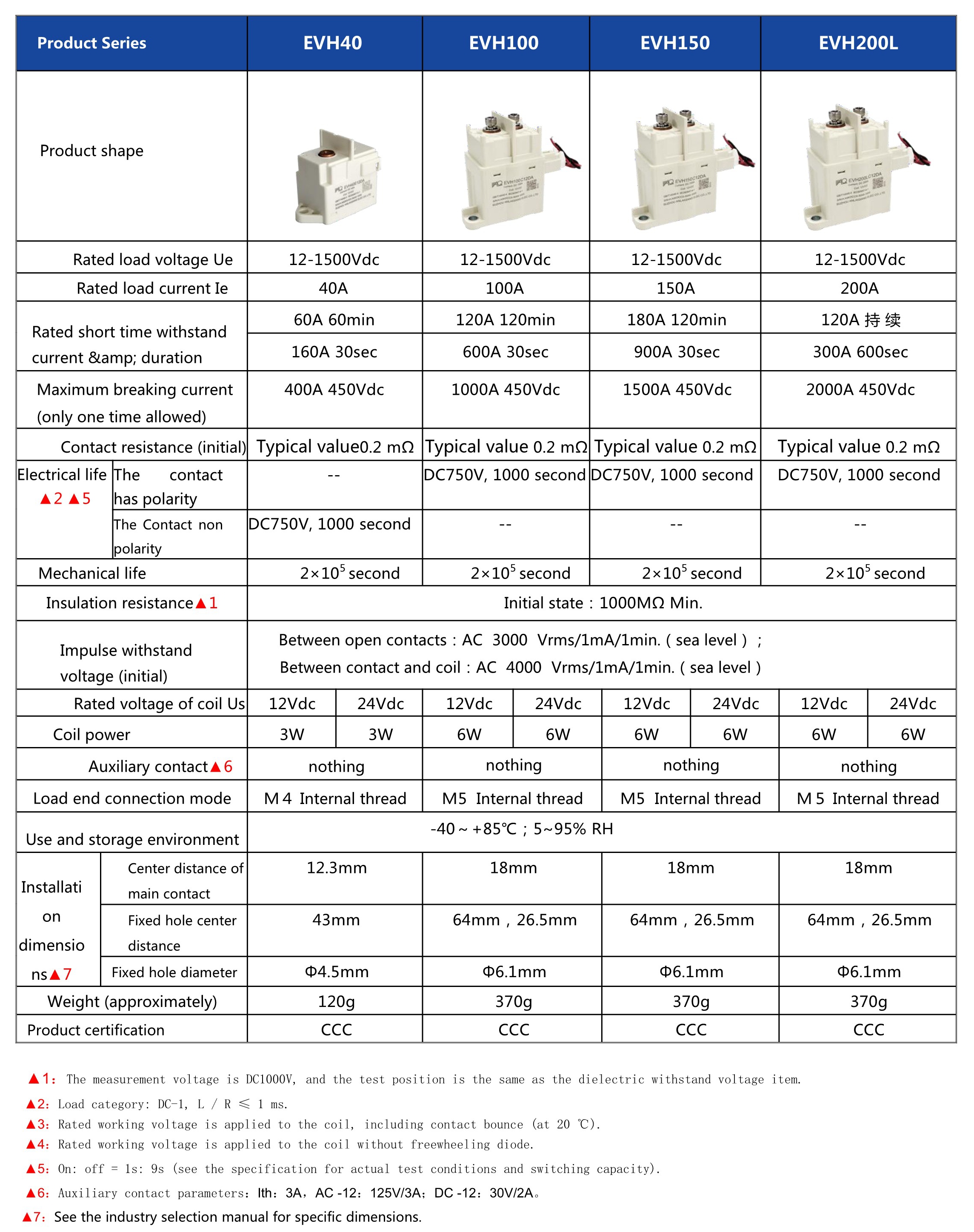

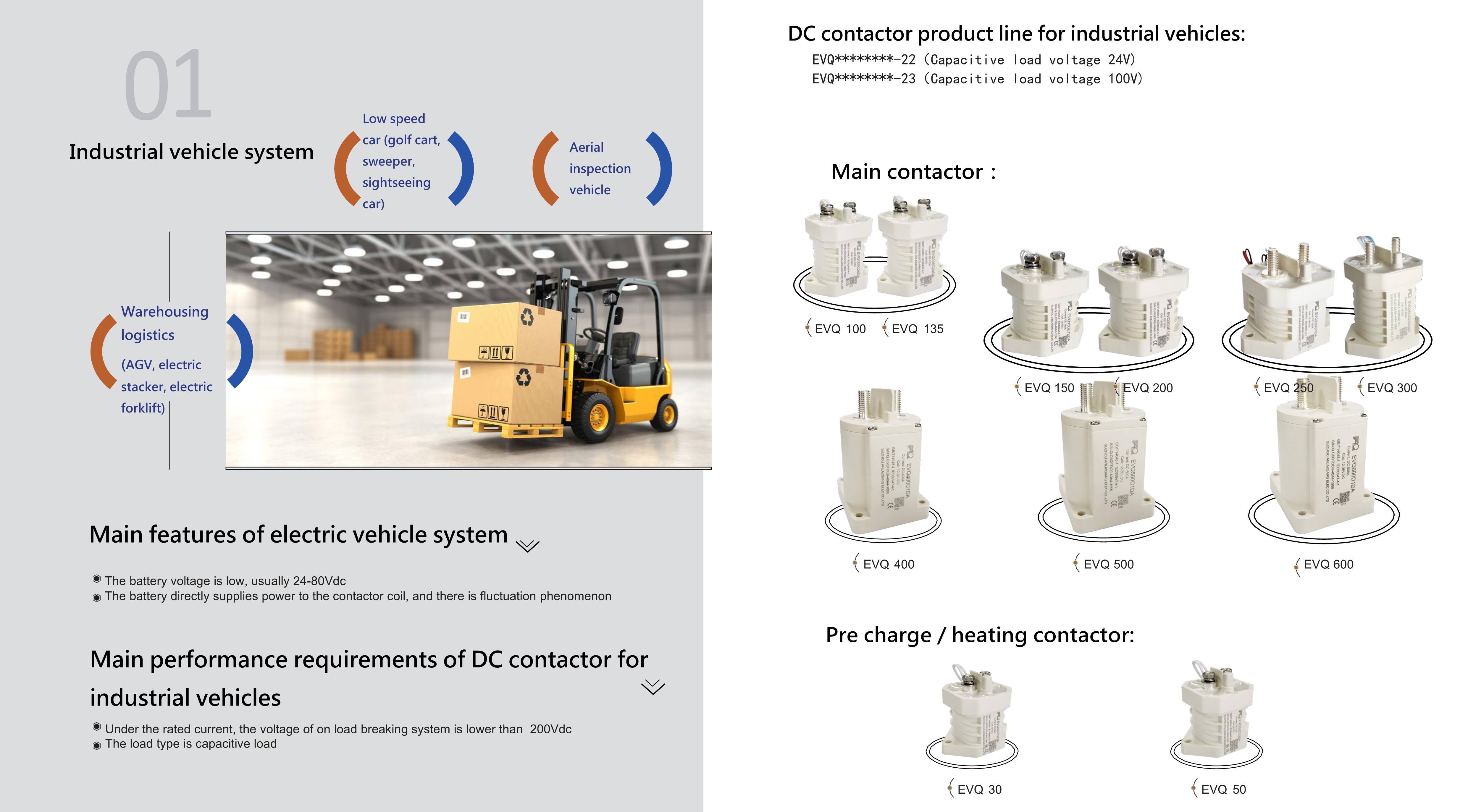

High voltage DC contactor selection table

High-voltage DC relays are widely used in new energy electric vehicles, lithium-ion battery packs, industrial vehicles, forklifts,
fast charging stations, and solar photovoltaic energy storage systems. The products have passed CE UL CCC certification, reliable
quality, long service life, and help you increase the life of your products.

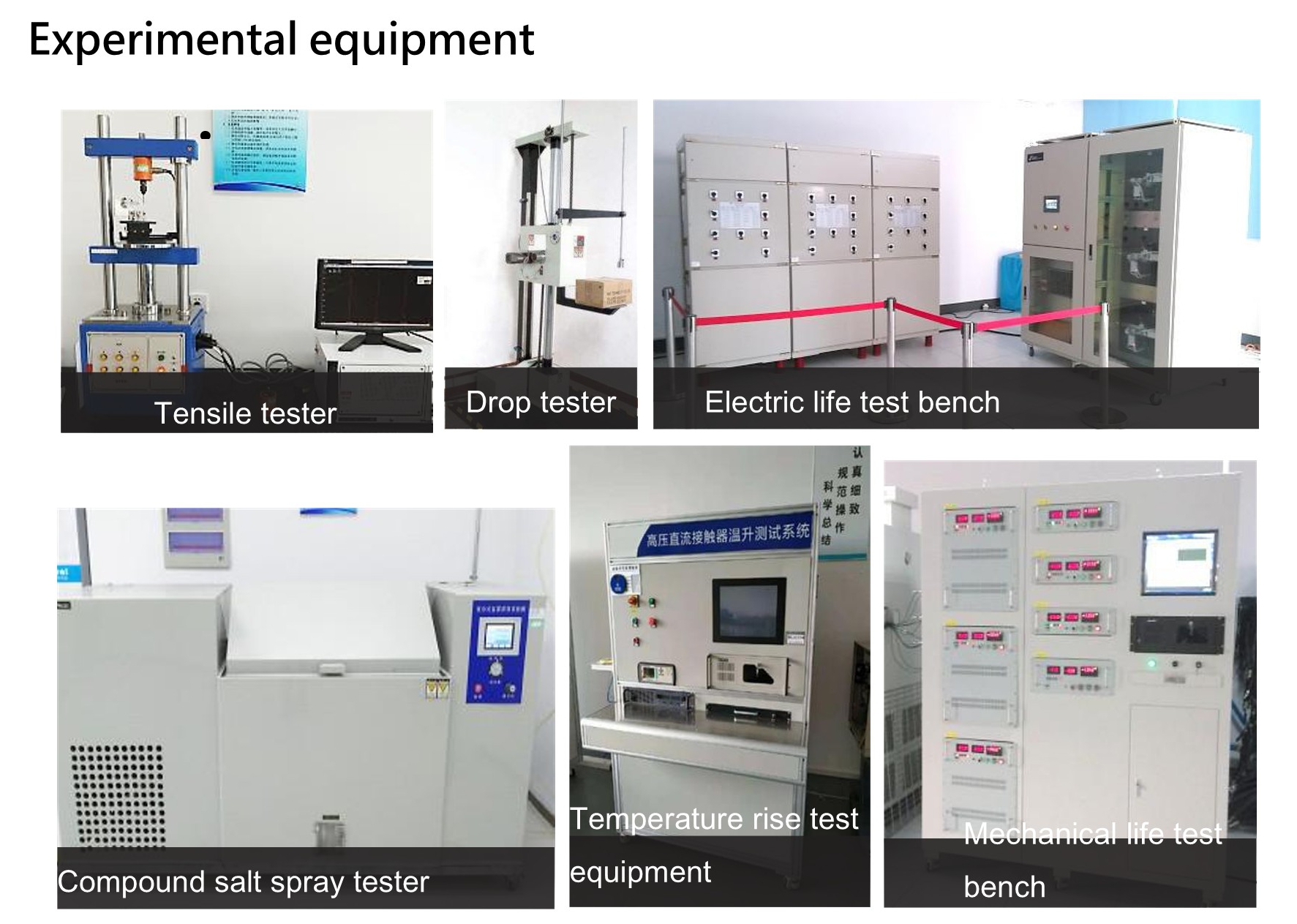

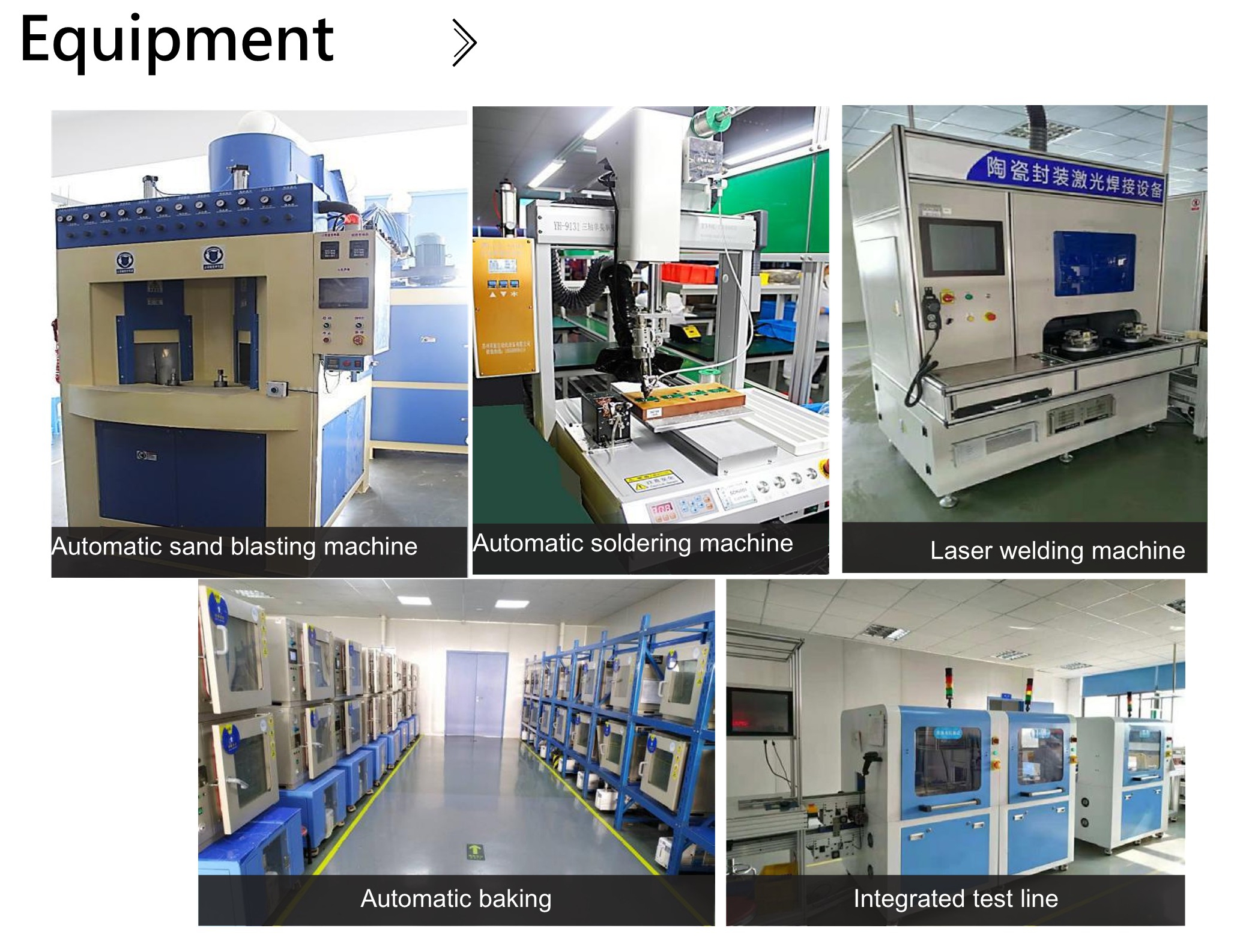

Product qualification and equipment display

Company Profie

BEIAN is a high-tech green energy enterprise that provides customized solutions and products for lithium batteries, energy storage

lithium batteries and lithium battery power systems for global users.

At present, BEIAN has formed strategic partnerships with many well-known enterprises at home and abroad.

The products are widely used in Electric Scooter, Household energy storage, Solar energy storage, UPS, electric forklift, marine,
etc.
