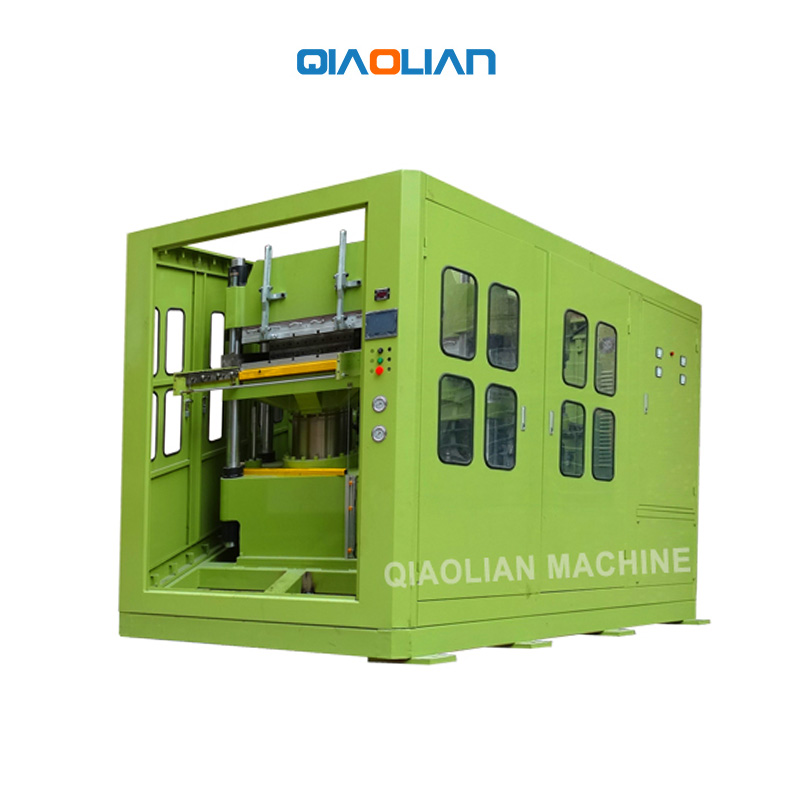

Thermoplastic Material Heat Press as Thermoplastic Molding Machine
Aiming at the secondary forming of thermoplastic ABS/PP/PA fiber sheet.According to the requirement of thermoplastic forming process, the equipment provides the principle of rapid uniform heating and low temperature setting to realize energy saving and high efficiency mass production.
Qiao Lian Large Heat Press Application:
Lightweight automotive accessories, aviation seats, new energy battery cover and shell, automotive decorative parts, 3C electrical products shell, etc.
Technical parameters：
| Type | SHM-560 | SHM-600 | SHM-750 | SHM-1000 | SHM-1500 |
| Heating plate size (mm) | 560*560 | 600*600 | 750*1000 | 1000*1250 | 1000*1500 |
| Clamping Force (T) | 100T-500T | ||||
| Stroke (mm) | 250-300 | 250-300 | 250-300 | 250-300 | 250-300 |
| Power (KW) | 5.5/7.5 | 5.5/7.5 | 7.5/11 | 7.5/11 | 7.5/11 |
| Control System | PLC+HMI | PLC+HMI | PLC+HMI | PLC+HMI | PLC+HMI |
| Remarks | Panel size can be customized |
|
|||
*We reserve the right to change any design and specification without ontice.
