Product Description

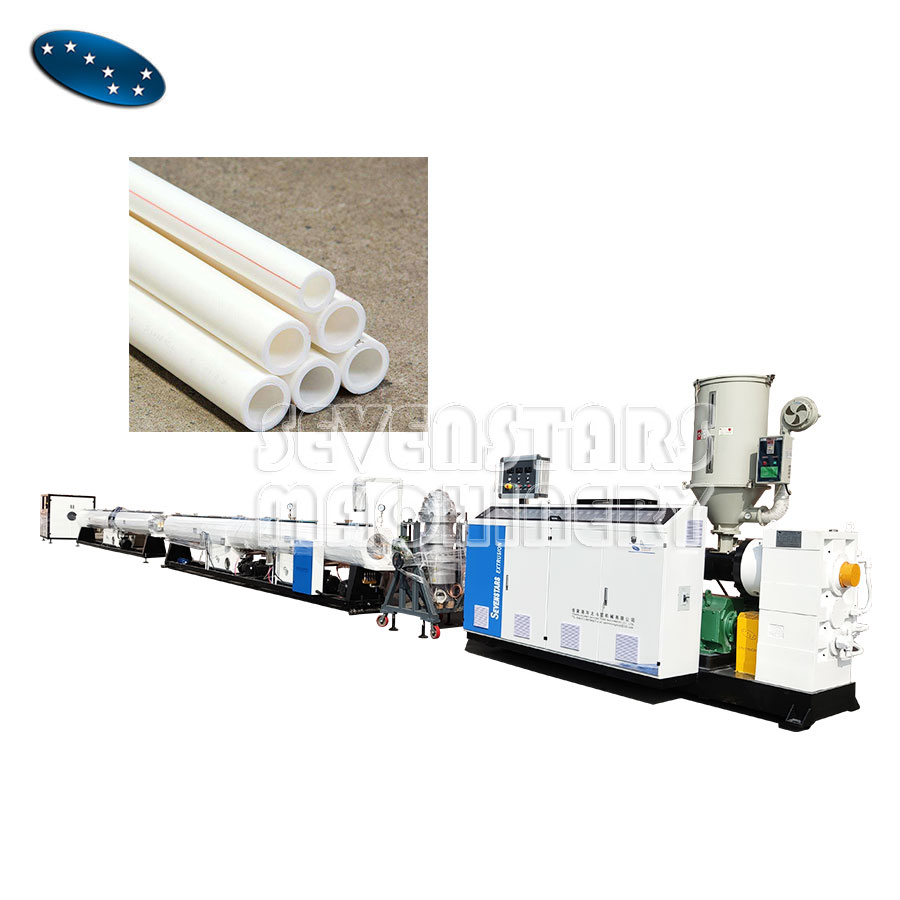

PE series plastic pipe production line is mainly used for producing pipe of water supply and drainage in the field of agriculture and construction cable etc.
This machine consists of vacuum calibration tank, haul off unit,cutting unit,stacker etc .
The single screw extruder and haul off unit apply famous A/C frequency conversion speed regulation device,both vacum pump and driving motor apply famous brand .
The haul-off unit includes two-claw type,three-claw type,four-claw type,six-claw type,eight-claw type,ten-claw type,twelve-claw type etc.
Dust free cutting machine ,saw blade cutting machine or planetary cutting machine can be applied,the property of machine group is reliable.
The production efficiency is high with special device,it can produce inner wall spiral pipe ,inner wall hollow pipe ,and core layer foam pipe.It can also produce PP,PE,ABS,PPR,PEX,Silicon core pipe etc .
The planetary cutting machine is controlled automatically with computer,it has such advantages of simple operation,reliable performance etc.It has reached international advanced level.
Plastic pipe making machine
(1) Single-Screw Extruder
(2) Mould
(3) Vacuum calibration and cooling tank
(4) Water cooling tank
(5) Tractor
(6) Cutter
(7)PVC pipe belling machine
(8) Stacker
(9)Plastic auxiliary machinery:PVC mixer,pipe shredder,plastic crusher ,plastic pulverizer
Technical parameter
|
Model/Item
|
Pipe range
|
Extruder
|
Max.output
|
Motor power
|
Total power
|
|
PE-63
|
16-63mm
|
SJ65/33 SJ25-25
|
120-180kg/h
|
45KW
|
110 KW
|
|
PE-110
|
16-110mm
|
SJ65/33 SJ25-25
|
150-200 kg/h
|
55 KW
|
130 KW
|
|
PE-160
|
50-160mm
|
SJ75/33 SJ25-25
|
150-220 kg/h
|
75 KW
|
150 KW
|
|
PE-250
|
75-250mm
|
SJ75/33 SJ25-25
|
280-350 kg/h
|
90 KW
|
280 KW
|
|
PE-315
|
110-315mm
|
SJ90/33 SJ25-25
|
250-350 kg/h
|
132 KW
|
350 KW
|
|
PE-450
|
160-450mm
|
SJ90/33 SJ25-25
|
350-450 kg/h
|
160 KW
|
400 KW
|
|
PE-630
|
315-630mm
|
SJ120/33 SJ25-25
|
550-850 kg/h
|
200 KW
|
550 KW
|
|
PE-800
|
450-800mm
|
SJ150/33 SJ25-25
|
800-1300kg/h
|
250 KW
|
750 KW
|
Plastic pipe making machine
This production line also can be used in PP pipe extrusion line/PPR pipe extrusion line.
Detailed images

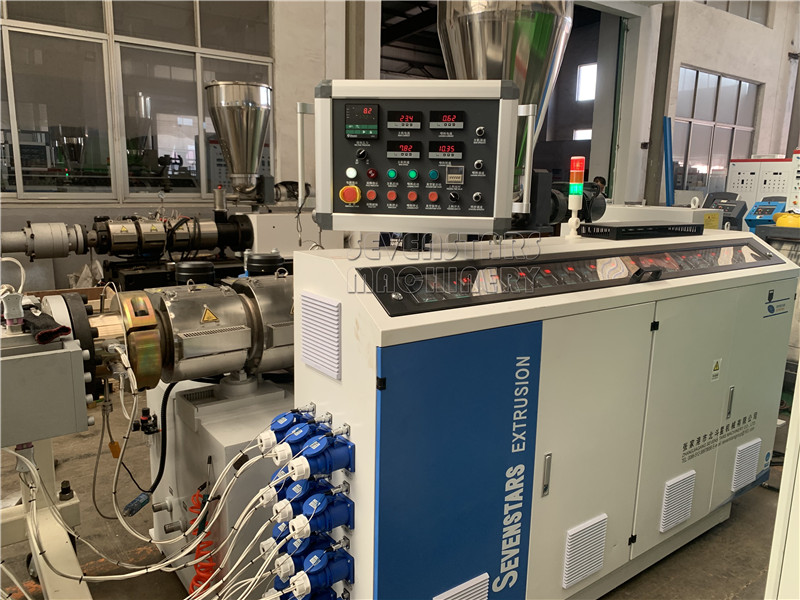

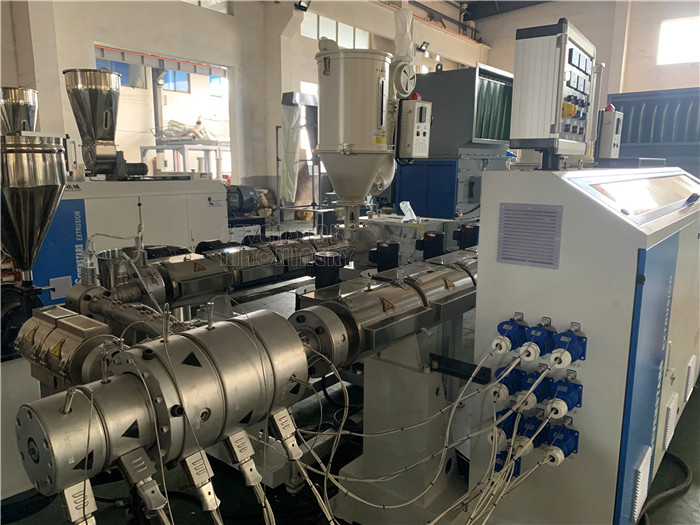

Extruder machine
MOULD

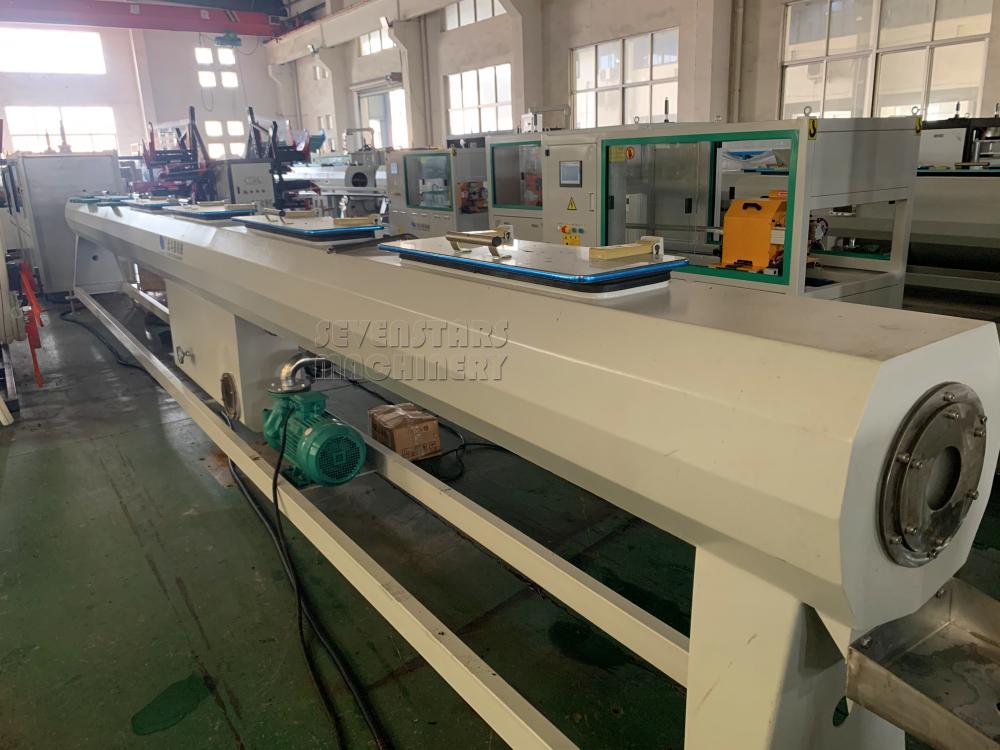

Vaccum calibration tank

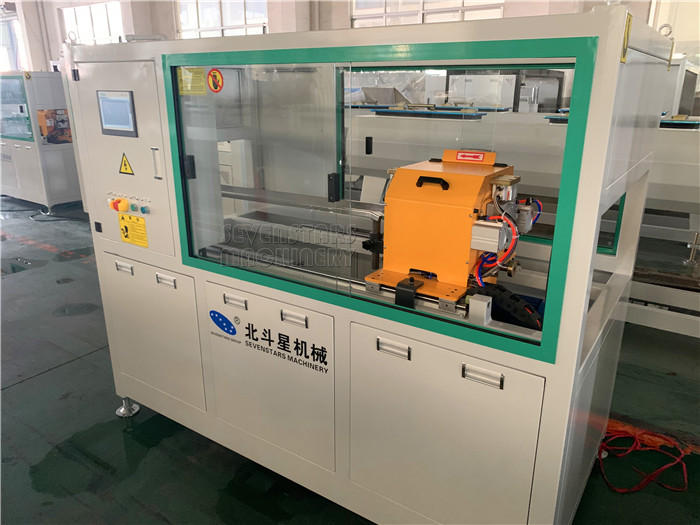

Hauiling off and cutting machine

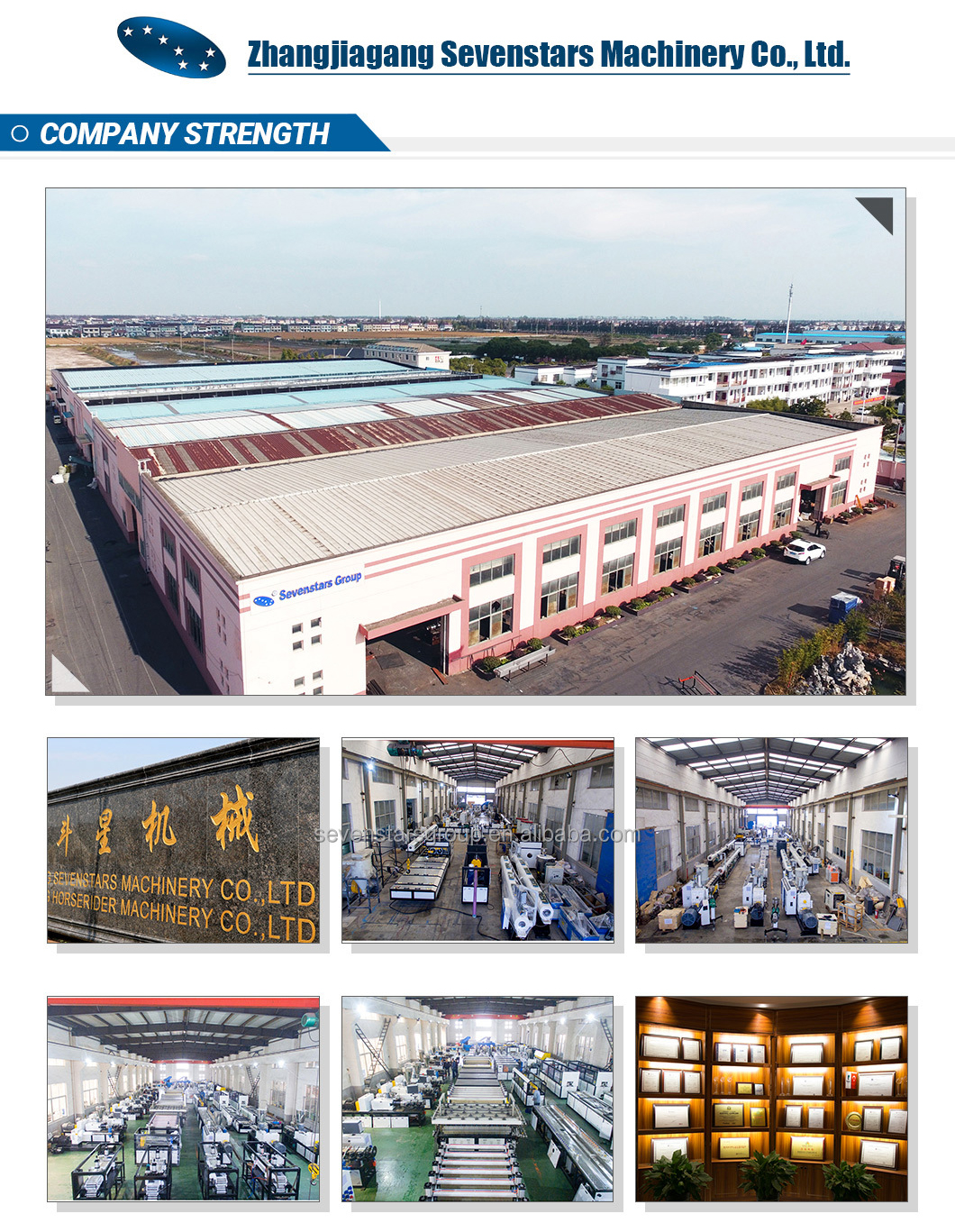

Company profile
Zhangjiagang Sevenstars Machinery Co., Ltd. is a group company. We devote ourselves to the development, research and production of plastic machines and liquid food and beverage packing and filling machines. For plastic machines, our main products include:
