Product details

1. Description: Honed tube is a kind of smooth bore steel tube used to manufacture hydraulic cylinder barrels that is the core part of a piece of hydraulic cylinder.

2. Commodity: Cold drawn steel tube for hydraulic cylinder honed pipe

3. Size range: 40mm*30mm-580mm*500mm

4. Available steel grade:

EN 10305-1	E195, E235, E355, C35E, C45E, E410, E470, S355J2, S355J2G3, 25CrMo4, 34CrMo4, 42CrMo4
DIN 2391-2	ST37, ST44, ST52
ASTM A519	1010, 1020, 1026, 1045, 1518, 1524, 1541, 4130, 4140, 4145, 4340, 8620
JIS	STKM 13A, STKM 13B, STKM 13C
GB	Q345B, 25Mn, 16Mn, Q345D, Q345E, 20#, 45#, 20CrMo, 25CrMo, 30CrMo, 35CrMo, 42CrMo

5. Manufacture method: Cold rolled, hydraulic cold drawn, hot rolled+deep hole boring

6. Delivery condition:

BK	BKW	BKS	GBK	NBK	Q+T
+C	+LC	+SR	+A	+N	Q+T
Cold rolled	Cold drawn	Stress relieved	Annealed	Normalized	Quenched+Tempered

7. Bore treatment: Honing, skiving&roller burnishing

8. Bore roughness control: Ra0.25um max or Ra0, 35um max for honed tubes, Ra0.25um max for skived&roller burnished tubes.

9. End finish: Plain ends with square cuts, free of burrs for honed tubes. Little bevelled ends for skived&roller burnished tubes.

10. Standard export packing: In bundles tied with steel strips. Int&ext oil coating. End plastic caps. External packing by PVC bags and knit bags.

11. Customized packing and marking can be provided upon request.

12. Difference between honed tube and skived&roller burnished tube: In hydraulic cylinder industry, there are 2 solutions for bore treatment: Honing, and skiving&roller burnishing. Honing or skiving&roller burnishing leads to different internal surface image, but both ensure good roughness.

Hydraulic Cylinder Honing Tube
Inside Dia (mm)	ID Tolerance (mm)				WT Tolerance (mm)
Inside Dia (mm)	H7	H8	H9	H10	WT Tolerance (mm)
≤30	+0.021/0	+0.033/0	+0.052/0	+0.084/0	±7.5% >210mm ±10%
30 - ≤50	+0.025/0	+0.039/0	+0.062/0	+0.100/0
50 - ≤80	+0.030/0	+0.046/0	+0.074/0	+0.120/0
80 - ≤120	+0.035/0	+0.054/0	+0.087/0	+0.140/0
120 - ≤180	+0.040/0	+0.063/0	+0.100/0	+0.160/0
180 - ≤250	+0.046/0	+0.072/0	+0.115/0	+0.185/0
250 - ≤315	+0.052/0	+0.081/0	+0.130/0	+0.210/0
315 - ≤700	+0.057/0	+0.089/0	+0.140/0	+0.230/0

Steel Grade	Chemical Composition %
	C	Si	Mn	P	S	Al
	C	Si	Mn	≤		≥
20#	0.17-0.24	0.17-0.37	0.35-0.65	0.035	0.035	/
45#	0.42-0.50	0.17-0.37	0.50-0.80	0.035	0.035	/
Q345B	≤0.2	≤0.5	1.00-1.60	0.03	0.03	/
Q345D	≤0.2	≤0.5	1.00-1.60	0.03	0.03	0.015
25Mn	0.22-0.29	0.17-0.37	0.70-1.00	0.035	0.035	/
27SiMn	0.24-0.32	1.10-1.40	1.10-1.40	0.035	0.035	/
ST52	≤0.22	≤0.55	≤1.6	0.025	0.025	/
SAE1026	0.22-0.28	0.15-0.35	0.60-0.90	0.04	0.05	/

Delivery Condition	Cold Finished (hard) (BK)		Cold Drawn and Stress-relieved (BK+S)
Steel Grade	Tensile Strength (Mpa)	Elongation (%)	Tensile Strength (Mpa)	Yield Strength (Mpa)	Elongation (%)
20#	≥550	≥8	≥520	≥375	≥15
45#	≥640	≥5	≥600	≥520	≥10
16Mn	≥640	≥5	≥600	≥520	≥14
25Mn	≥640	≥5	≥600	≥510	≥15
27SiMn	≥800	≥5	≥760	≥610	≥10
ST52	≥640	≥5	≥600	≥520	≥14
SAE1026	≥640	≥5	≥600	≥510	≥15

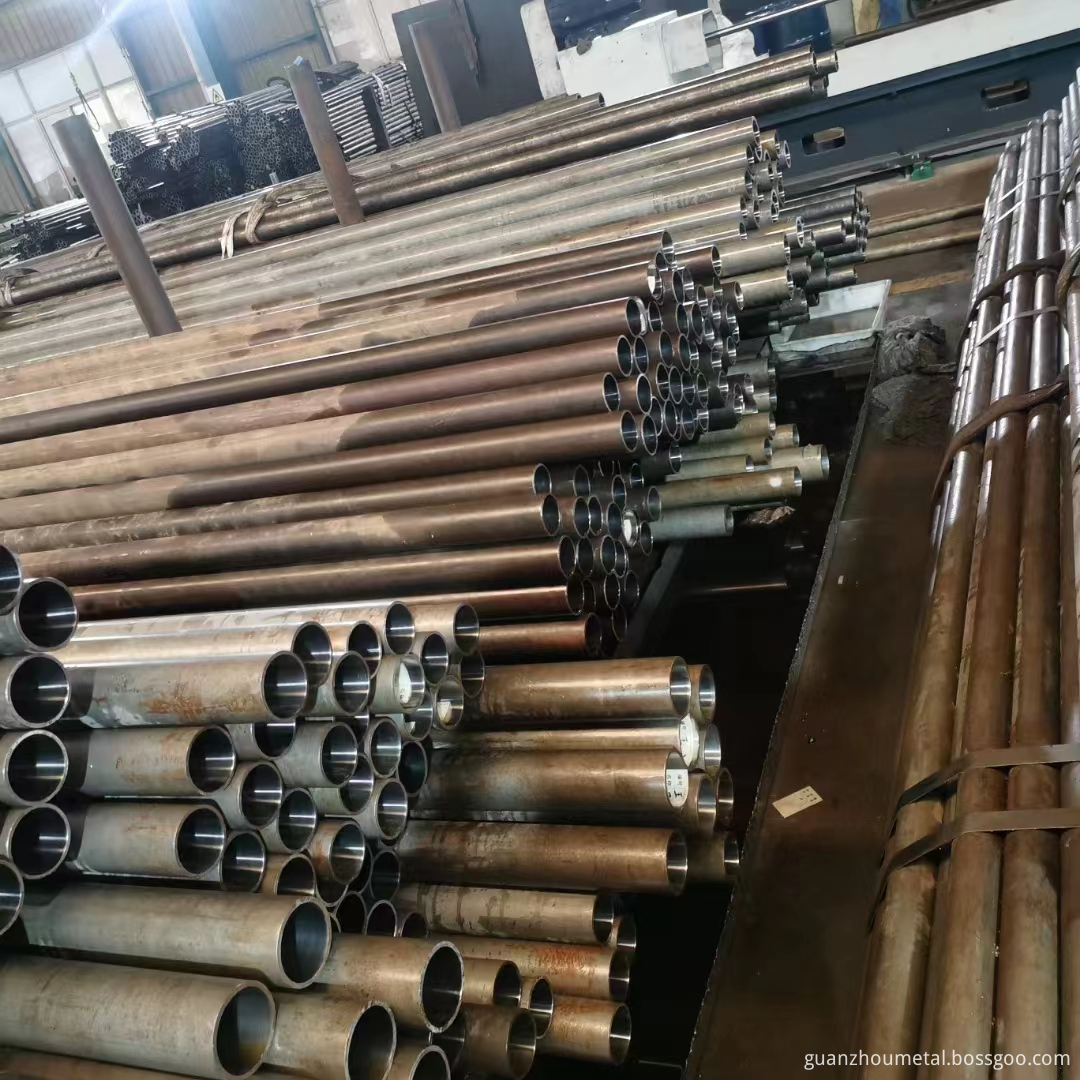

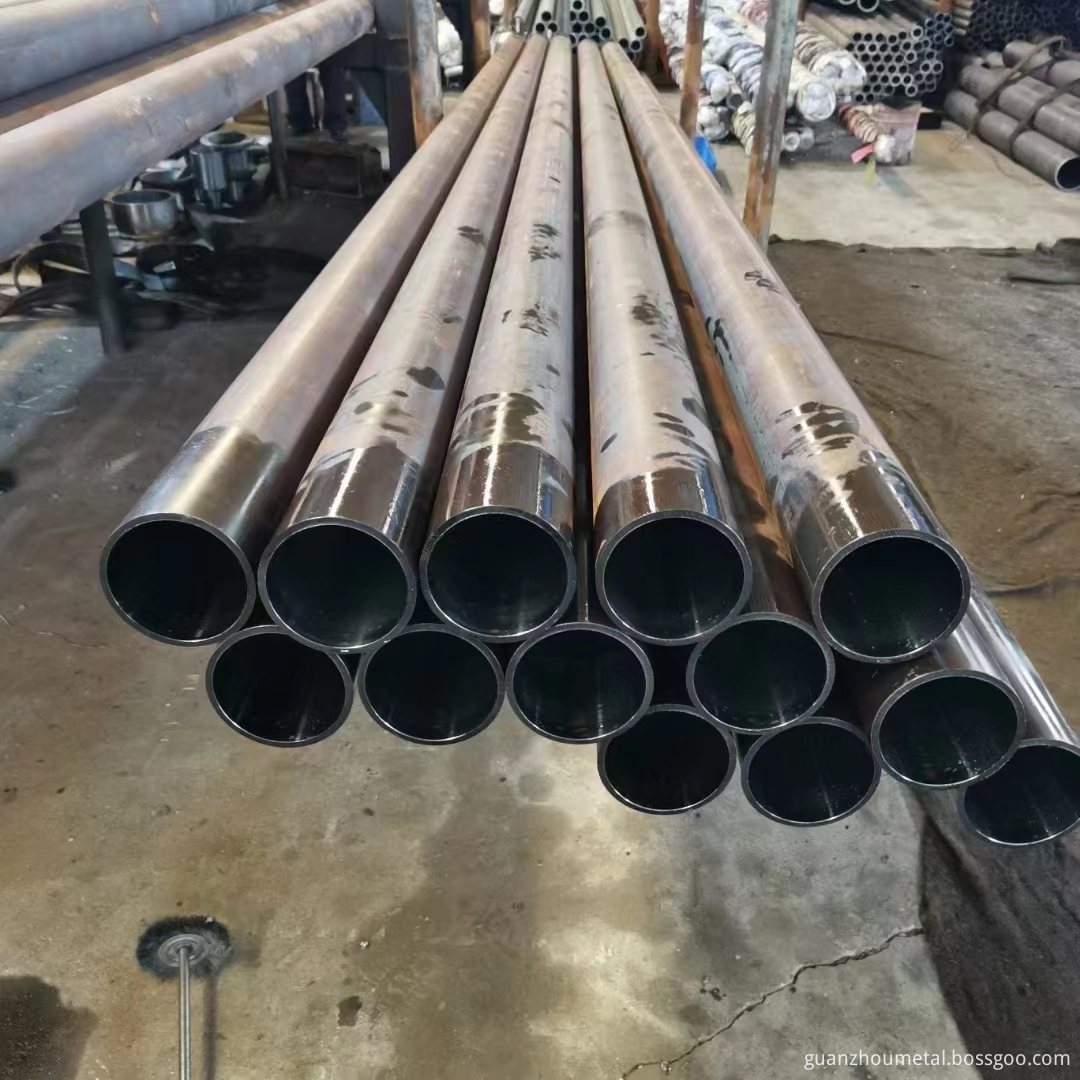

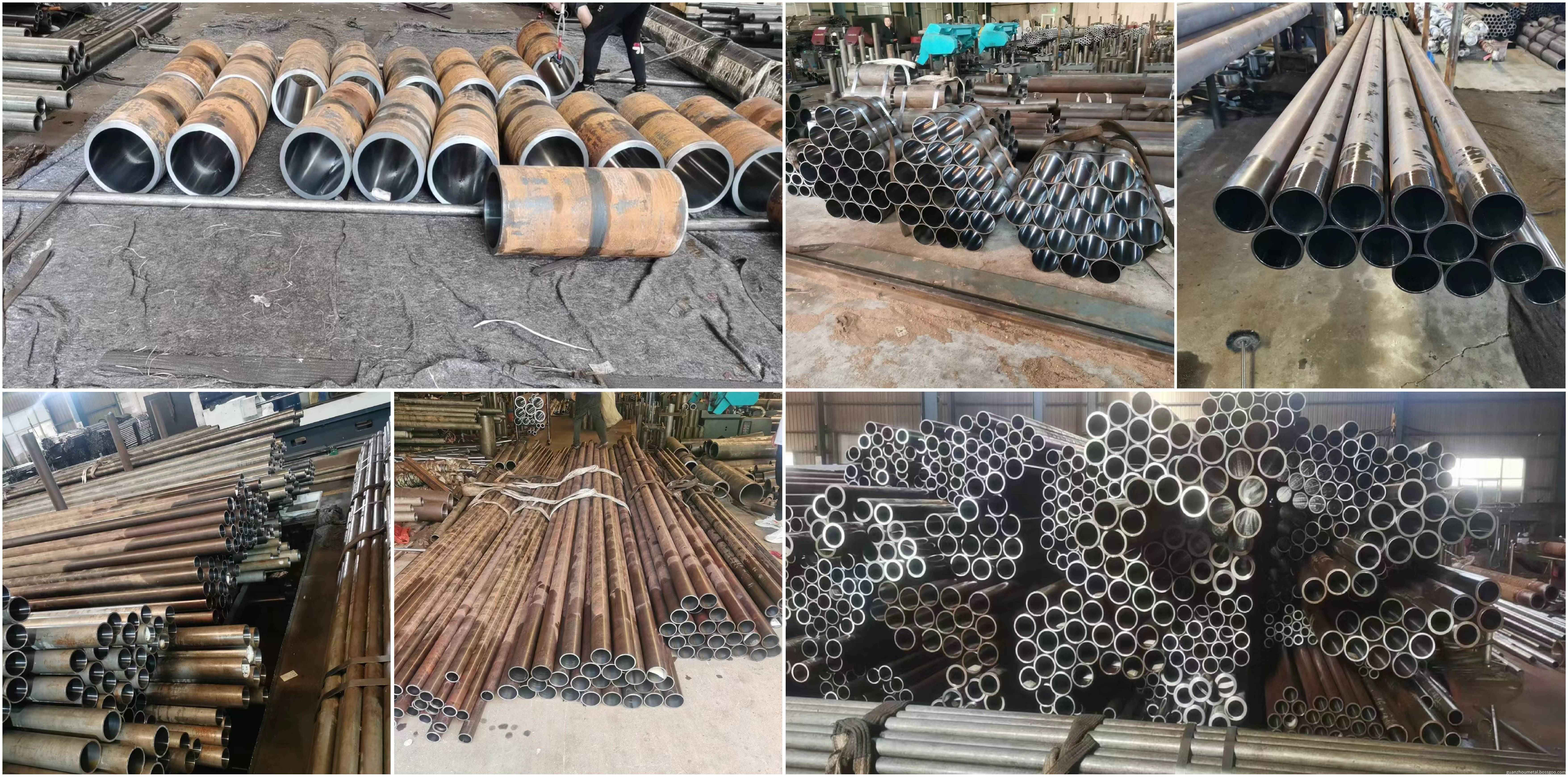

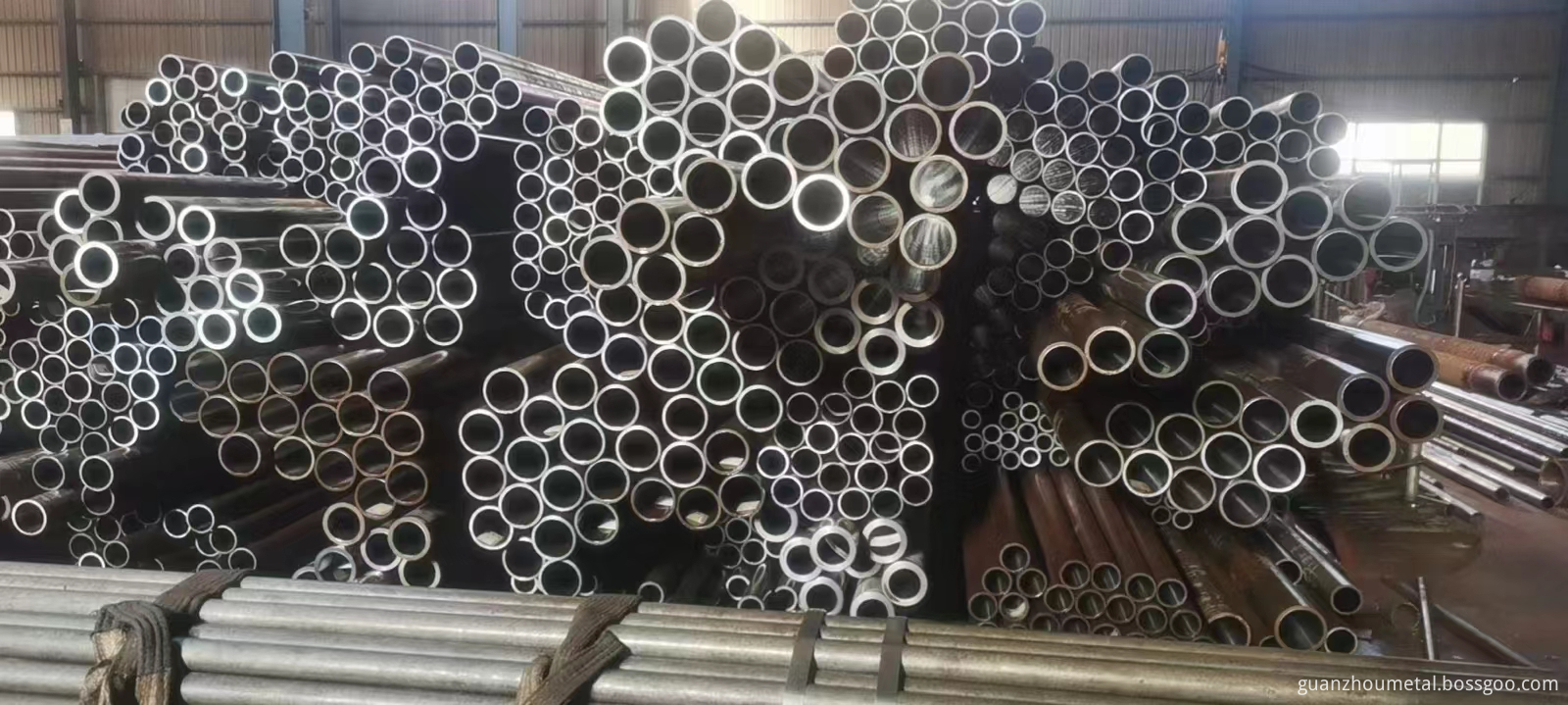

Honed Tube
