Product details

Tungsten alloy darts are a type of dart that is made from a high-density metal called tungsten. Tungsten is a very dense metal, which means that it is heavier than other metals of the same size. This makes tungsten alloy darts much more accurate than other types of darts, as they are less affected by wind resistance and other factors that can cause them to veer off course. Additionally, tungsten alloy darts are much stronger and more durable than other types of darts, which means that they can withstand more wear and tear over time. Overall, tungsten alloy darts are a popular choice among serious dart players who are looking for the highest level of accuracy and performance in their game.

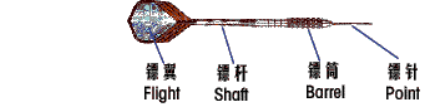

Dart is made up by point, barrel, shaft and flight these four parts.

28fc381f3dc90d7114ddeb13dc6eb2e

As we know, the barrel forms the main part of a dart, which is key factor of determining weight and quality of dart. Nowadays, tungsten-based heavy alloy billet is widely used as the standard barrel material, for it has a specific gravity of 19.3(20℃), making it a very dense material with small volume. Besides, it has superior wearing resistance, well machinability, etc.

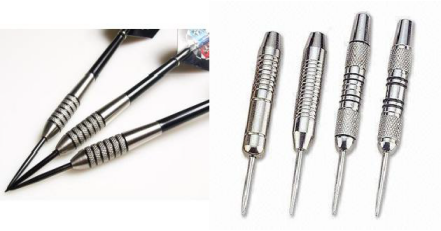

Tungsten heavy alloy darts for sport

Today's standard material for barrel is tungsten heavy alloy. For its special properties, nowadays tungsten is widely applied to make darts replacing brass. Because of technical difficulties with manufacturing, a 100% tungsten dart is not available. All "tungsten" darts you can buy are in fact made of tungsten heavy alloys.

We could supply tungsten heavy alloy billets by various sizes and contents, popularly 70~90% tungsten is used for making both soft-tip and steel tip barrels, ranging from 14~18 gram and 18~40 gram respectively, and sometimes, 65% and 95~97% tungsten are offered following customers’ specific request.

Billet Size [Ø(+0.05)×(+1.0)mm]			Content of W (%)
			65	70	80	85	90	95
			Density (+/-0.25g/cc)
			13.2	13.9	15.4	16	16.9	18
No.	inch	mm	Weight (+/-0.50g/pc)
1	Ø1/4×1.7	Ø6.35×43.2	18.04	19	21.05	21.87	23.1	24.61
2	Ø1/4×1.8	Ø6.35×45.7	19.09	20.1	22.27	23.14	24.44	26.03
3	Ø1/4×1.9	Ø6.35×48.3	20.18	21.25	23.54	24.46	25.83	27.51
4	Ø1/4×2.00	Ø6.35×50.8	21.22	22.35	24.76	25.72	27.17	28.94
5	Ø1/4×2.15	Ø6.35×54.6	22.81	24.02	26.61	27.65	29.2	31.1
6	Ø0.265×1.7	Ø6.73×43.2	20.27	21.34	23.46	24.57	25.95	27.64
7	Ø0.265×1.8	Ø6.73×45.7	21.46	22.58	25.01	25.99	27.45	29.24
8	Ø0.265×1.9	Ø6.73×48.3	22.66	23.86	26.44	27.47	29.01	30.9
9	Ø0.265×2.00	Ø6.73×50.8	23.83	25.1	27.81	28.89	30.51	32.5
10	Ø0.265×2.15	Ø6.73×54.6	25.62	26.97	29.89	31.05	32.8	34.93
11	Ø9/32×1.6	Ø7.15×40.7	21.55	22.7	25.15	26.13	27.6	29.39
12	Ø9/32×1.7	Ø7.15×43.2	22.88	24.09	26.69	27.73	29.29	31.2
13	Ø9/32×1.8	Ø7.15×45.7	24.2	25.49	28.24	29.34	30.99	33.01
14	Ø9/32×1.9	Ø7.15×48.3	25.58	26.94	29.84	31.01	32.75	34.88
15	Ø9/32×2.00	Ø7.15×50.8	26.9	28.33	31.39	32.61	34.45	36.69
16	Ø9/32×2.15	Ø7.15×54.6	28.92	30.45	33.74	35.05	37.02	39.43
17	Ø5/16×1.6	Ø7.94×40.7	26.58	27.99	31.01	32.22	34.04	36.25
18	Ø5/16×1.7	Ø7.94×43.2	28.22	29.71	32.92	34.2	36.13	38.48
19	Ø5/16×1.8	Ø7.94×45.7	29.85	31.43	34.82	36.18	38.22	40.7
20	Ø5/16×1.9	Ø7.94×48.3	31.55	33.22	36.81	38.24	40.39	43.02
21	Ø5/16×2.00	Ø7.94×50.8	33.18	34.94	38.71	40.22	42.48	45.25
22	Ø11/32×1.4	Ø8.74×35.6	28.17	29.67	32.87	34.15	36.07	38.42
23	Ø11/32×1.6	Ø8.74×40.7	32.21	33.92	37.58	39.04	41.24	43.92
24	Ø11/32×1.8	Ø8.74×45.7	36.17	38.09	42.2	43.84	46.31	49.32
25	Ø11/32×2.00	Ø8.74×50.8	40.2	42.34	46.91	48.73	51.48	54.83
