ADVANTAGES:
1. High resolution: With a pixel pitch of 5mm, the screen provides a high level of detail and clarity, ensuring that the content displayed is sharp and vibrant.
6. Easy installation and maintenance: The P5 Outdoor LED screen is designed for easy installation and maintenance. It features a modular design, allowing for quick and hassle-free assembly. Additionally, individual LED modules can be easily replaced if any issues arise, minimizing downtime.
Our company have 13 years experience of led display and stage lights, our company mainly produce Indoor Rental Led Display, Outdoor Rental Led Display, Led Billboard Display,Advertising Led Display, Led Poster Screen, Transparent Led Display... In additional, we also produce stage lights, such as beam lights, moving head lights, laser lights and Led wash moving head light and son on...
Product Specifications:
|
Model
|
P5
|
|
Module size(mm)
|
320x160
|
|
Module resolution (dot)
|
64x32 |
|
Scanning
|
1/8S
|
|
SMD
|
1G1R1B
|
|
Maintenance
|
Front/Back
|
|
Installation
|
Hanging/streching
|
|
Cabinet size(mm)
|
960x960mm
|
|
Density(dot/m²)
|
10000
|
|
Brightness(cd/m²)
|
6500 |
|
Max. Power Consumption（w）
|
800
|
|
Average Power Consumption（w）
|
400
|
|
Cabinet weight (kg)
|
25kg
|
|
Cabinet material
|
Die Casting Aluminum Cabinet
|
|
IP rate
|
IP31/IP65
|
|
Grayscale
|
10000:1
|
|
Refresh rate(hz)
|
1920-3840
|
|
Frame change frequency
|
50/60hz
|
|
Horizontal viewing angle
|
>140°
|
|
Vertical viewing angle
|
>140°
|
|
Best viewing distance
|
>5m
|
|
Input Voltage
|
AC110V - AC220V
|
|
Module Max. current
|
6.0-7.5
|
|
Temperature-operating
|
﹣10℃～60℃
|
|
Humidity-operating
|
10%～90%
|
|
Life span (H)
|
≥100,000
|
|
MTBF (H)
|
>10,000
|

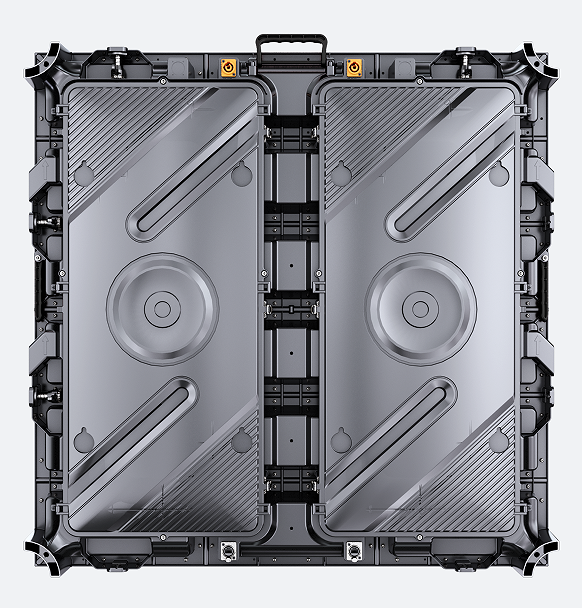

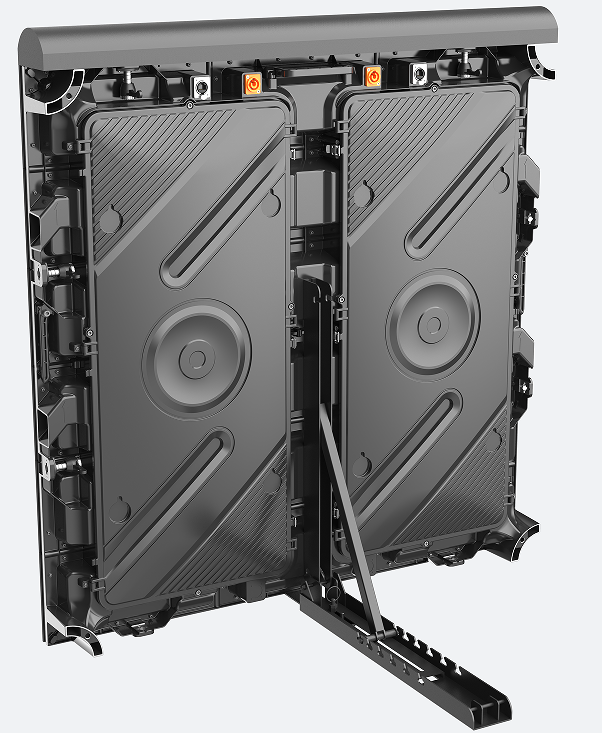

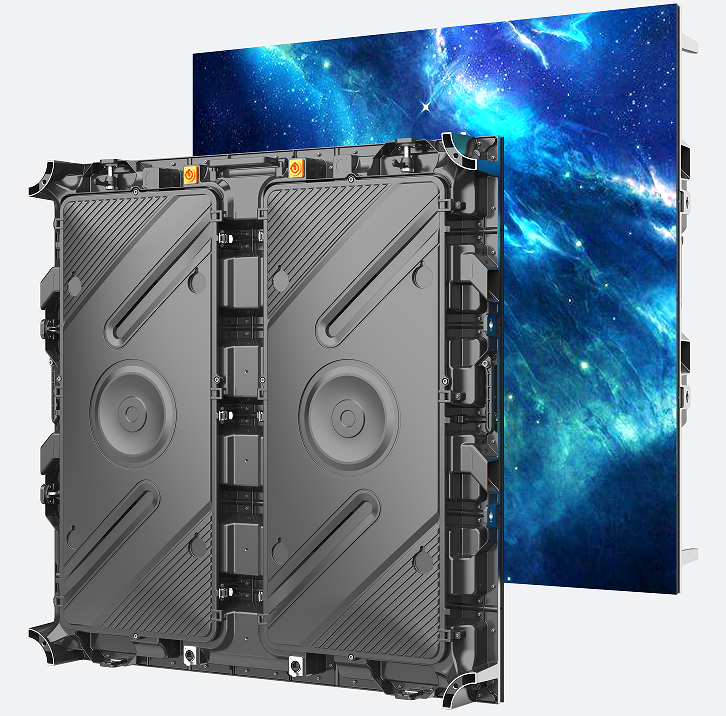

Details Image:
* Nova MSD 300 sending card and Nova mrv208-1 receiving card
* Cabinet size:960x960mm
* Kinglight/Nationstar LED Lamp, Refresh rate:7680hz
* High brightness up to 6500cd/sq.m, even in the sunlight conditions can see clear, but low power consumption to save the electric power cost.
* High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.
* Passed the TÜV,FCC,ROHS,CE cetification.
If you are interested in the product, contact 2bvideo.com for more information for more information
