HT802 Series Waterproof IP68 High Current Toggle Switches for Electric Lift

YESWITCH HT802 Series toggle switches are military standards, specifications for sealed toggle switches. Quality construction features include a bonded seal between the toggle lever and bushing, and between the cover and case.
The robust design of the IP68 toggle Switch is well-suited for many military, aerospace and other demanding applications where reliability is essential. The waterproof toggle switch applications include environments where the panels are subjected to mechanical shock, vibration, and temperature extremes as well as environments with dust, splashing or hose-directed water.
The High Current Toggle Switch offer a variety of circuitry and pole options to easily integrate into a number of applications. A long history in military and aerospace applications has shown the toggle switches provides reliable performance with long operating life under the toughest conditions.

SPECIFICATIONS：

CONTACT RESISTANCE: 20m0(Max)
INSULATION RESISTANCE: 100VDC-100MQ.(Min)
DIELECTRIC STRENGTH: 1500VAC-1MINUTE
MECHANICAL LIFE CYCLE: 100,000 CYCLES
OPERATING TEMPERATURE: -40 ~+ 85 Degree
FRONT SEAL: IP 68.

RATING:

RESISTIVE LOAD: 15A 125/250VAC，15A 28VDC.
INDUCTIVE LOAD:15A 28VDC.

MATERIAL:

ACTUATOR: COPPER ALLOY
HOUSING:NYLON (UL94V-0)
BUSHING:ZINC ALLOY
TERMINAL:COPPER ALLOY
CONTACT:COPPER ALLOY
O-RING:SILICONE RUBBER
SHEEL:STAINLESS STELL

Feature:

Copper Alloy contact for increased application flexibility
High strength for durability in tough conditions
Temperature resistant materials to enhance performance in challenging environments

APPLICATION：

Industrial machinery and equipment, military and commercial aviation, construction equipment, test instruments, agricultural machinery, process control, medical instrumentation.

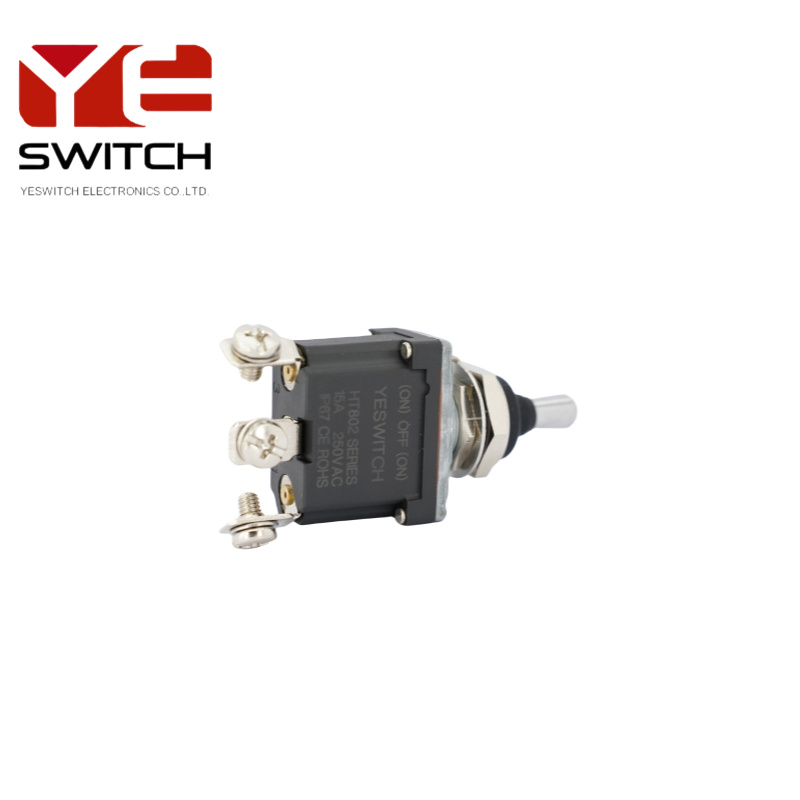

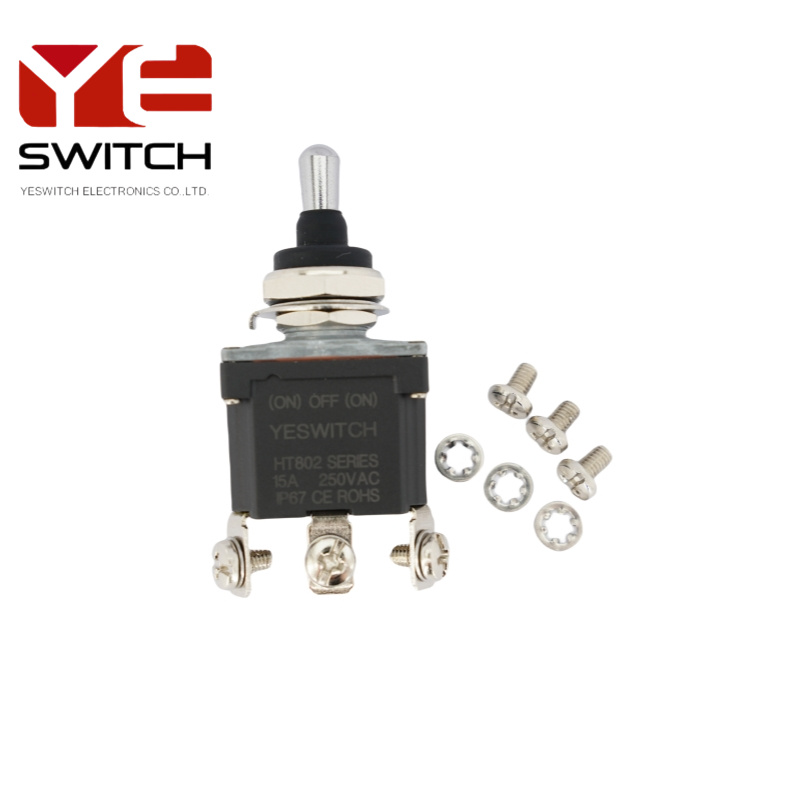

Toggle Switch 2 Toggle Switch 3 Toggle Switch1

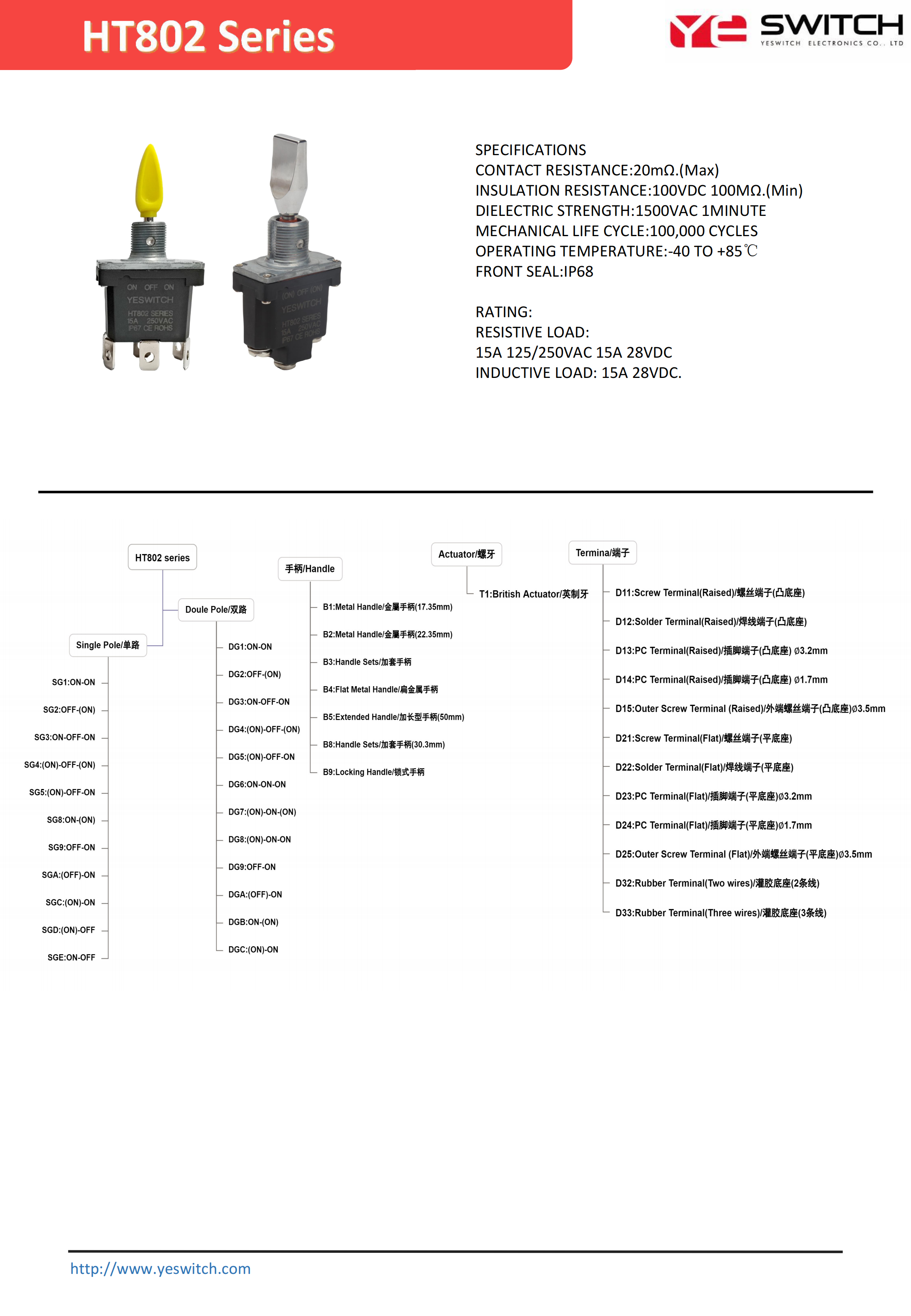

HT802 Series_00
