Ordering Code
CP96SD B 32×100 - C
Model Mounting Bore x Stroke Air Cushion
CP96S B: Basic
CP96SD ( With Mangnet ) L: Axial foot
F:Rod Flange
G: Head Flange
D: Double Clevis
Specifications
| Bore size (mm) | 32 | 40 | 50 | 63 | 80 | 100 |
| Action | Double acting type | |||||
| Fuild | Air(filtered through 40μ filter element) | |||||
| Operating pressure | 0.1~0.9Mpa(1-9kgf/cm²) | |||||
| Proof pressure | 1.35Mpa(13.5kgf/cm²) | |||||
| Ambient & fluid temperature | -5~70℃ | |||||
| Cushion | Air cushion | |||||
| Port size | 1/8'' | 1/4'' | 3/8'' | 1/2'' | ||
| Body Material | Aluminum alloy | |||||
| Auto switch | D-Z73/CS1-E | |||||
Stroke
Pneumatic Cylinder Pipe
|
Bore size (mm) |
Standard stroke(mm) |
Max.std stroke (mm) |
Max stroke (mm) |
| 32 | 25 50 75 100 125 150 175 200 250 300 350 400 450 500 | 1000 | 2000 |
| 40 | 25 50 75 100 125 150 175 200 250 300 350 400 450 500 600 700 800 | 1200 | 2000 |
| 50 | 25 50 75 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
| 63 | 25 50 75 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
| 80 | 25 50 75 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000 |
1500 |
2000 |
| 100 | 25 50 75 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |

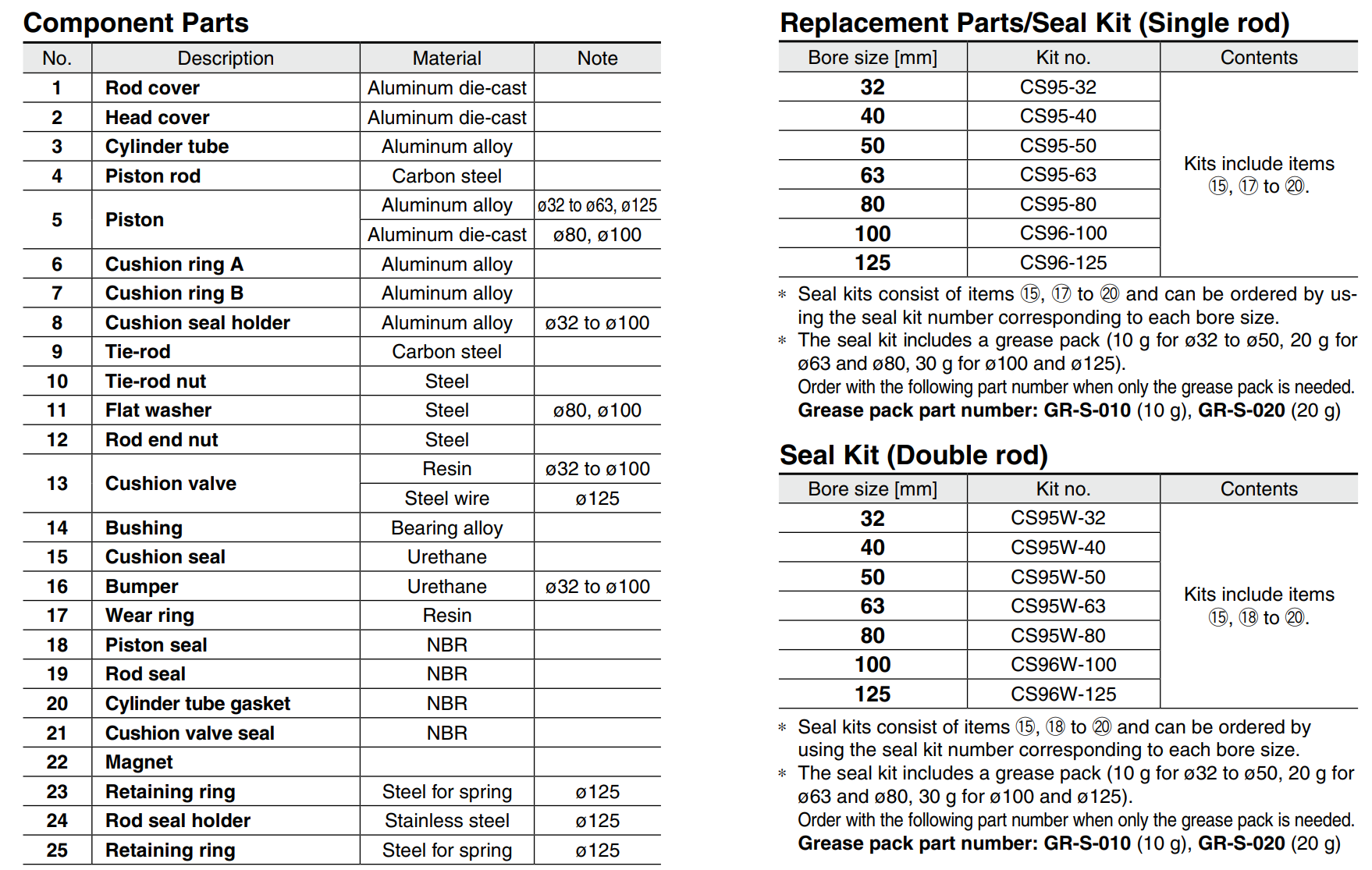

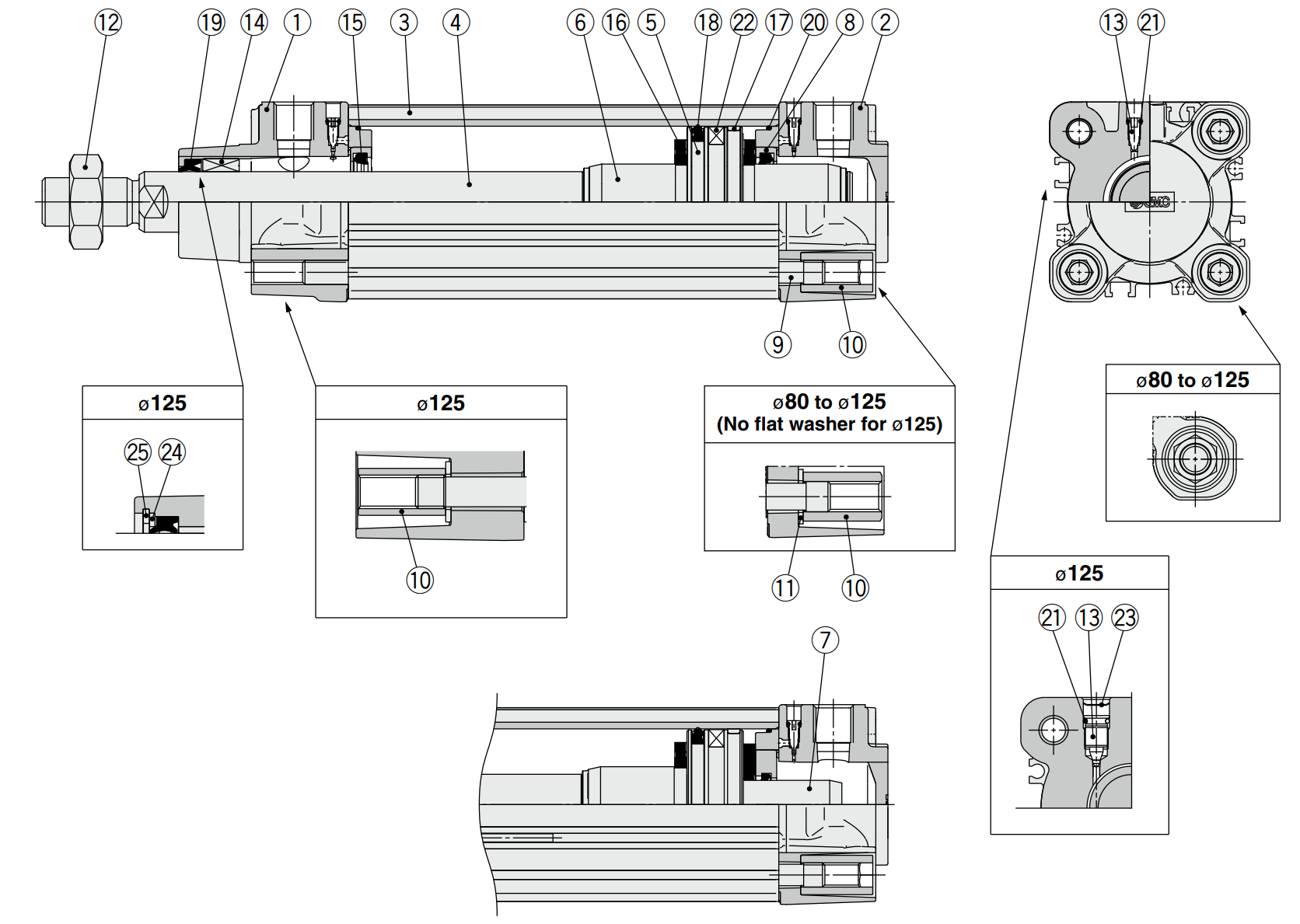

Construction
This aluminum alloy pneumatic cylinder is composed of Pneumatic Cylinder Barrel, end cap, piston, piston rod, and various sealing accessories.
Our factory specializes in producing various Pneumatic Cylinder Tubes, with various specifications available in stock. Our products have higher accuracy than our peers and rank among the top five in China. We have been supplying internationally renowned cylinder brands for a long time.
If you are interested in the product, contact 2bvideo.com for more information for more information
