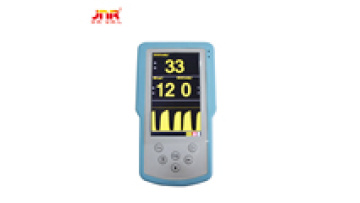

Portable Real-time ETCO2 Monitoring Capnography

Ambulance Portable Real-time ETCO2 Monitoring Capnography

Product Description

Features

1

Monitors EtCO2, Respiration Rate, display real-time Capnogram within 15 seconds

2

Pocketsize design fits to pre-hospital, Emergency, Anesthesiology and Respiration

3

Large numeric display visible from five meters away

4

24 hours graphic trend can be stored and reviewed

5

Data management for export and printout via the supplied USB cable

6

Lithium battery with 6 hours working time and 4 hours charging time

7

Routine calibration not required

8

Standard accessories: Bumper, Carry case, Adult/PED adapter, Neonate adapter

Technical Specifications

EtCO2

Method: Non-dispersive Infrared Spectroscopy
Range: 0-150mmHg or 0 - 20kPa
Accuracy: ±2mmHg, range from 0-40mmHg
±5%, range from 41-70mmHg
±8%, range from 71-100mmHg
Update time: Every breath
Warm up time：<15 seconds
Memory：24 hours with trend and numeric

Respiration Rate

Range: 3 - 150 rpm
Accuracy: ±1% or ±1 rpm whichever is greater
Memory: 24 hours with trend and numeric
Sensor: Adapter for intubated patient

Airway Adapter

Adult/Pediatric, Neonate
Dead space: 5 ml (adult/pediatric)
1 ml (neonate)

Power

AC input: 100V - 240V, 50Hz/60 Hz
Power consumption: 5W
Battery：Lithium battery (3.7V, 1400mAh)
Charging time: 4 hours
Operating time: 6 hours

Environment

Operating temperature: 5 to 40℃
Operating atmospheric pressure: 86 - 106 kPa
Operating humidity:30% - 75%
Storage temperature: -20 to +55℃
Storage humidity: <93%
Storage atmospheric pressure: 50 - 120 kPa

Physical Data

Dimension: 38(W) x 42(H) x 44(D) mm
Weight: 80g includes battery and adapter

Language

English/ Spanish/ Dutch/ Italian/ French/ Deutsch

Packing&Shipping

Package:
Pack with standard cartons to promise the intact of the goods during shipment.

Shipping:
Deliver by air or by express or by sea,the delivery time is around 7-15days after receiving the payment,it is depends on the order exactly.

Company Introduction

Jiangsu Anesthesia Medical is now one of the biggest and most competitive medical supplier based in Nanjing city of Jiangsu province cooperated with his parent’s company Beijing anesthesia medical which is manufacturer for medical equipment ,medical disposable home care products over 10 years .We are supplying to different medical items like patient monitors,pulse oximeters,blood pressure monitor ,ECG machine, infusion pump ,syringe pump,ultrasound machine ,Fetal doppler,Capnography,Central venous catheter ,Hemodialysis catheter ,Blood pressure transducer Disposable infusion pump ,Et tube ,Spinal needle,foley catheter….Cardiac catheters like Guiding catheter ,Angio catheter and so on to more 30 countries.
In last three years ,we have been exporting more than 6 millions USD to our clients with good quality items and good delivery time .We have been cooperating with 50 qualified manufacturers in china with CE and FDA approved besides our own manufacturing factories .We also can accept OEM and ODM business from all clients In next few years ,we aim at supplying more and more quality medical products with best price to our clients from different countries.

Our Services & Strength

1. Offer 24 hours on-line service;
2. Offer OEM & ODM serttomized logo, package, any of your i dea we can help to design;
3. Professional manufacturer with more than 12 years experience;
4. High qulaity, reasonable & competitive price, delievery on time;
5. CE & ISO certification.

Exhibition

FAQ

1. who are we?
We are based in Jiangsu, China, start from 2017,sell to Africa(30.00%),Southeast Asia(15.00%),South America(10.00%),South Asia(10.00%),Mid East(9.00%),Central America(5.00%),Eastern Asia(5.00%),Northern Europe(4.00%),Southern Europe(3.00%),Oceania(3.00%),Eastern Europe(2.00%),North America(2.00%),Western Europe(2.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Medical Equipment,Home Care Products,Anesthesia Disposables,Cardiovascular Products,Urinary Products

4. why should you buy from us not from other suppliers?
Jiangsu Anesthesia Medical is one of the biggest and most competitive medical supplier,we have been cooperating with 50 qualified manufacturers in china with CE and FDA approved besides our own factories,we also can accept OEM and ODM business.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Features
1	Monitors EtCO2, Respiration Rate, display real-time Capnogram within 15 seconds
2	Pocketsize design fits to pre-hospital, Emergency, Anesthesiology and Respiration
3	Large numeric display visible from five meters away
4	24 hours graphic trend can be stored and reviewed
5	Data management for export and printout via the supplied USB cable
6	Lithium battery with 6 hours working time and 4 hours charging time
7	Routine calibration not required
8	Standard accessories: Bumper, Carry case, Adult/PED adapter, Neonate adapter

Technical Specifications
EtCO2	Method: Non-dispersive Infrared Spectroscopy Range: 0-150mmHg or 0 - 20kPa Accuracy: ±2mmHg, range from 0-40mmHg ±5%, range from 41-70mmHg ±8%, range from 71-100mmHg Update time: Every breath Warm up time：<15 seconds Memory：24 hours with trend and numeric
Respiration Rate	Range: 3 - 150 rpm Accuracy: ±1% or ±1 rpm whichever is greater Memory: 24 hours with trend and numeric Sensor: Adapter for intubated patient
Airway Adapter	Adult/Pediatric, Neonate Dead space: 5 ml (adult/pediatric) 1 ml (neonate)
Power	AC input: 100V - 240V, 50Hz/60 Hz Power consumption: 5W Battery：Lithium battery (3.7V, 1400mAh) Charging time: 4 hours Operating time: 6 hours
Environment	Operating temperature: 5 to 40℃ Operating atmospheric pressure: 86 - 106 kPa Operating humidity:30% - 75% Storage temperature: -20 to +55℃ Storage humidity: <93% Storage atmospheric pressure: 50 - 120 kPa
Physical Data	Dimension: 38(W) x 42(H) x 44(D) mm Weight: 80g includes battery and adapter
Language	English/ Spanish/ Dutch/ Italian/ French/ Deutsch
