Product details

5ton 6ton mini excavator with swing boom closed cabin

crawler excavator have different models ,middle type excavator have 6ton ,8ton ,13ton ,and heavy model have 15ton to 36ton .

This 6ton crawler excavator is our hot sale model ,it is new updated quality .With Yanmar engine .

The power up to 44.4kw

.It also can customized with the swing boom function .Our main market is European North America countries etc .

Now at the year -end of 2023,all of the products are in big sales promotions .

we still havre the excavator spare parts ,loader spare parts ,road roller parts together shipping .

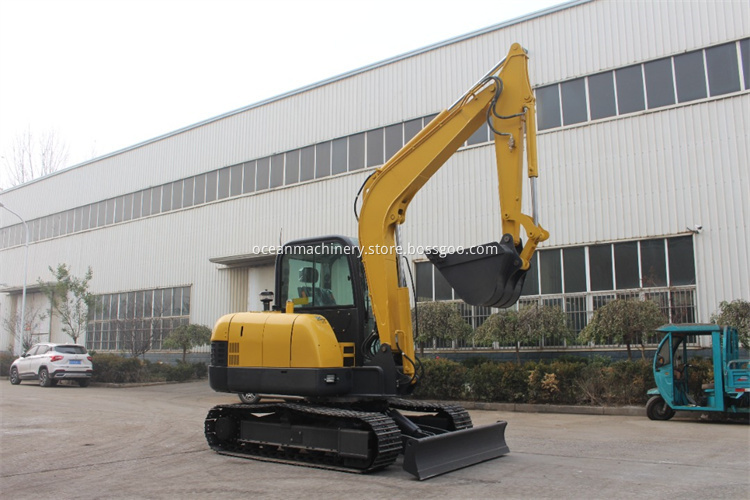

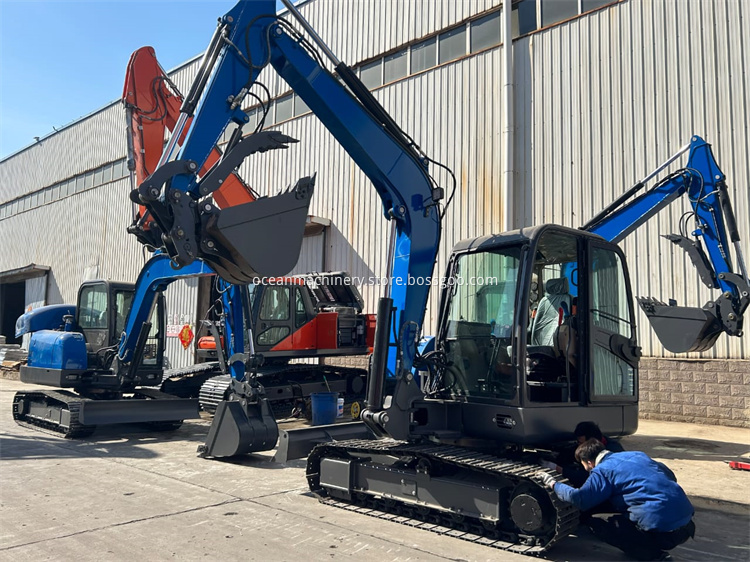

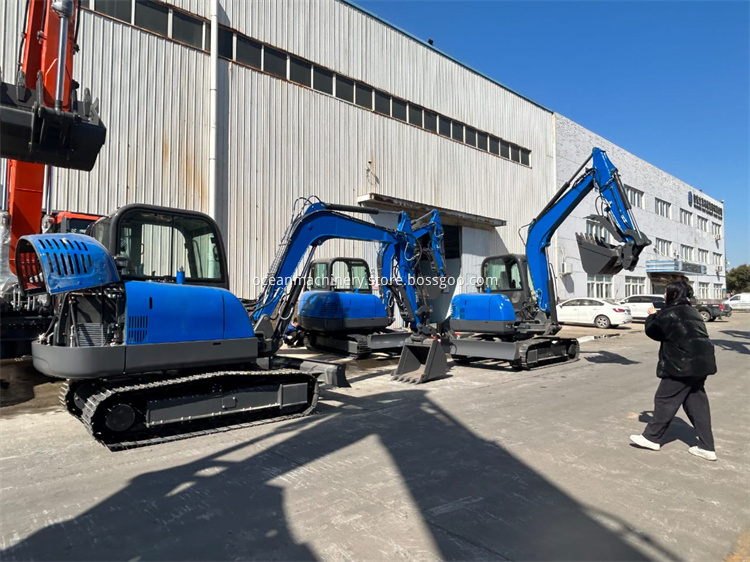

Photos reference :

excavator (1)

excavator (3)

excavator (4)

excavator (6)

Parameters :

Model				OCE60（Germany series）
Bucket capacity			m³	0.22
total weight			kg	6000
oil tank capacity			L	100
items	name	items	unite
1	engine	engine brand		yanmar 4TNV98
		Max power	kw/rpm	46.3/2200
		Torque/speed	Nm/rpm
		Fuel consumption	L/kwh
		Air intake		Self -suck
		Fuel system working method		Directly injector
		Emission Standards		Eur III
2	Chassis	Drive method		Hydraulic system
3	Main pump	brand		HP5V76
		rated pressure	Mpa	28
		flow	L/min	160
4	Swing motor	brand		inLine HM5X27
		Working pressure	MPa	20.6
5	walking motor	brand		FTM07VC
		working pressure	MPa	32
6	Main control valve	brand		HVSE-12
		rated flow	L/min	120
		Brake type		Hydraulic
7	Hydraulic oil	Number and usage	L	HM046/75
8	Undercarriage	track link type		三齿
		track shoe width	㎜	400
		track shoe numbers	piece	every side 40
		ground pressure	KPa	33.5
		Track roller numbers	piece	every side 5
9	Performance parameters	Gradeability	degree	35
		walking speed （km/h）		2.2/4.2
		Maximum excavation high	mm	5750
		Maximum unloading height	mm	3980
		Maximum excavation depth	mm	3860
		Maximum excavation trail	mm	6170
		Division tap power	kN	30.5
		Bucket digging force	kN	42
		traction	kN	55
		swing speed	r/min	9.5
