Explosion-proof Image Type Automatic Fire Monitors
Performance characteristics:
● The non-contact fire detection method fills the gap in fire detection in outdoor open space explosion environments, and the active visual alarm method realizes all-round fire detection without blind spots in the fire prevention area, and is integrated with the security monitoring system;● The entire gun body parts are assembled using the casting process after precision machining. The fire monitors using the casting process have high consistency, the inner wall of the gun body is smooth, the pressure loss is small, and the overall performance of the fire monitor is good;
Maintenance of intelligent fire water cannon
1.Cleaning：Regularly clean the dust，dirt and oil stains on the surface of the water monitor. You can wipe it with a damp cloth or clean it with detergent,but avoid using corrosive or abrasive detergents
2. Lubrication: Regularly lubricate key parts of the water monitor, such as rotating parts, valves and connections. Use appropriate lubricant and avoid using too much lubricant, which can cause clogs or leaks.
Technical parameters:
|
Specifications |
ZDMS0. 8/20S-RS50/Ex |
ZDMS0.8/30S-RS55/Ex (RS55DT/Ex) |
ZDMS0. 8/40S-RS60/Ex (RS60DT/Ex) |
ZDMS0. 8/50S-RS65/Ex (RS65DT/Ex) |
|
Rated working pressure (MPa) |
0.8 |
0.8 |
0.8 |
0.8 |
|
Maximum working pressure (MPa) |
1.6 |
1.6 |
1.6 |
1.6 |
|
Rated flow (L/s) |
20 |
30 | 40 | 50 |
|
Maximum protection radius (m) |
50 |
50 |
55 |
55 |
|
Jet radius (m) |
56 |
62 | 67 | 73 |
|
Monitoring radius (m) |
80 |
80 |
80 |
80 |
|
Positioning time(s) |
≤60 |
≤60 |
≤60 |
≤60 |
|
Horizontal rotation angle (°) |
360 |
360 |
360 |
360 |
|
Minimum range of pitch angle (°) |
-90~+30 |
-90~+30 |
-90~+30 |
-90~+30 |
|
Connection size |
Universal type: DN100, Network type: DN80 |
|||
|
Installation method |
Hoisting/sitting installation |
|||
|
Voltage/power consumption |
AC220V/Monitor: 1W, Scan: 60w |
|||
|
Communication method |
RS485 bus system |
|||
|
Jet pattern |
Column or mist | |||
| Camera clarity |
700 lines analog HD or 1080P digital HD |
|||

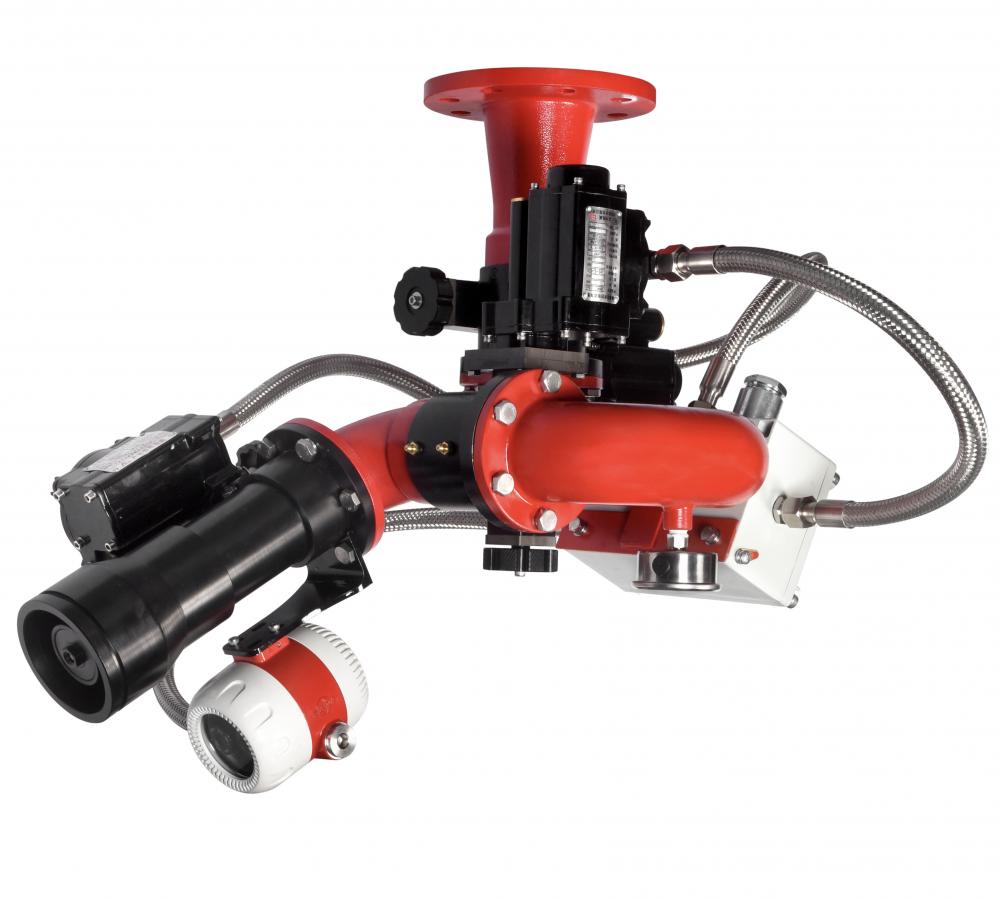

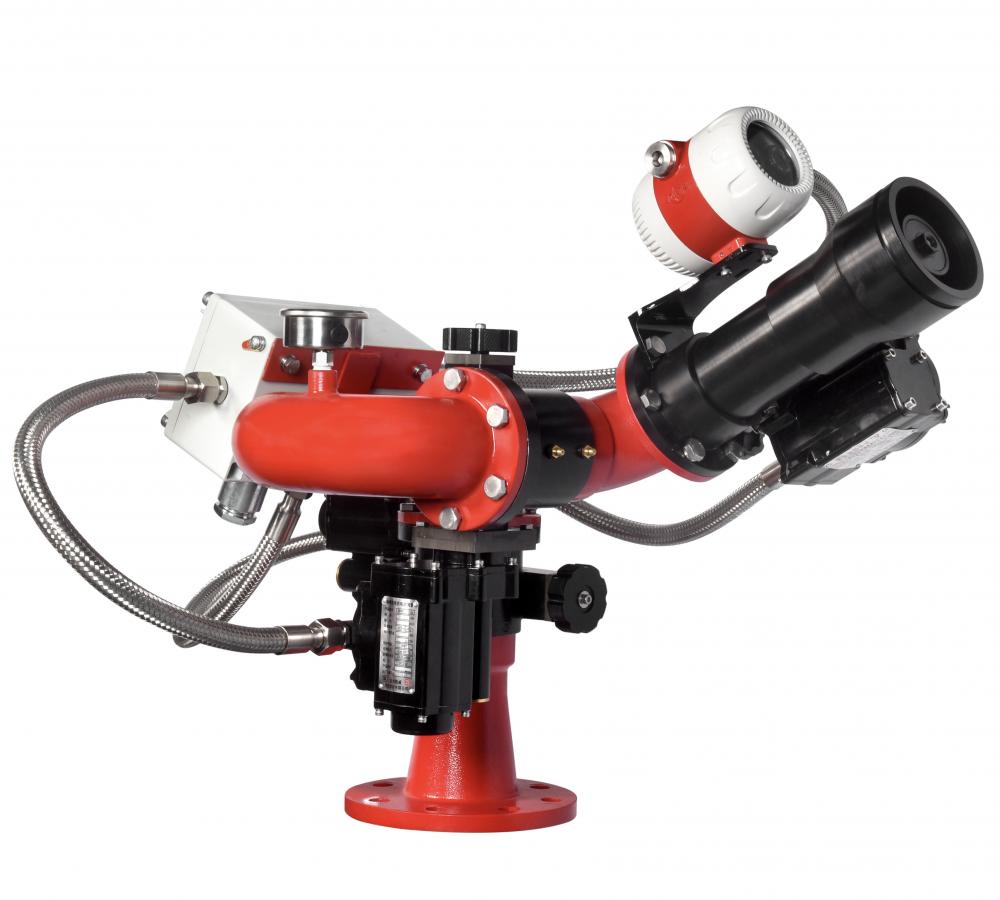

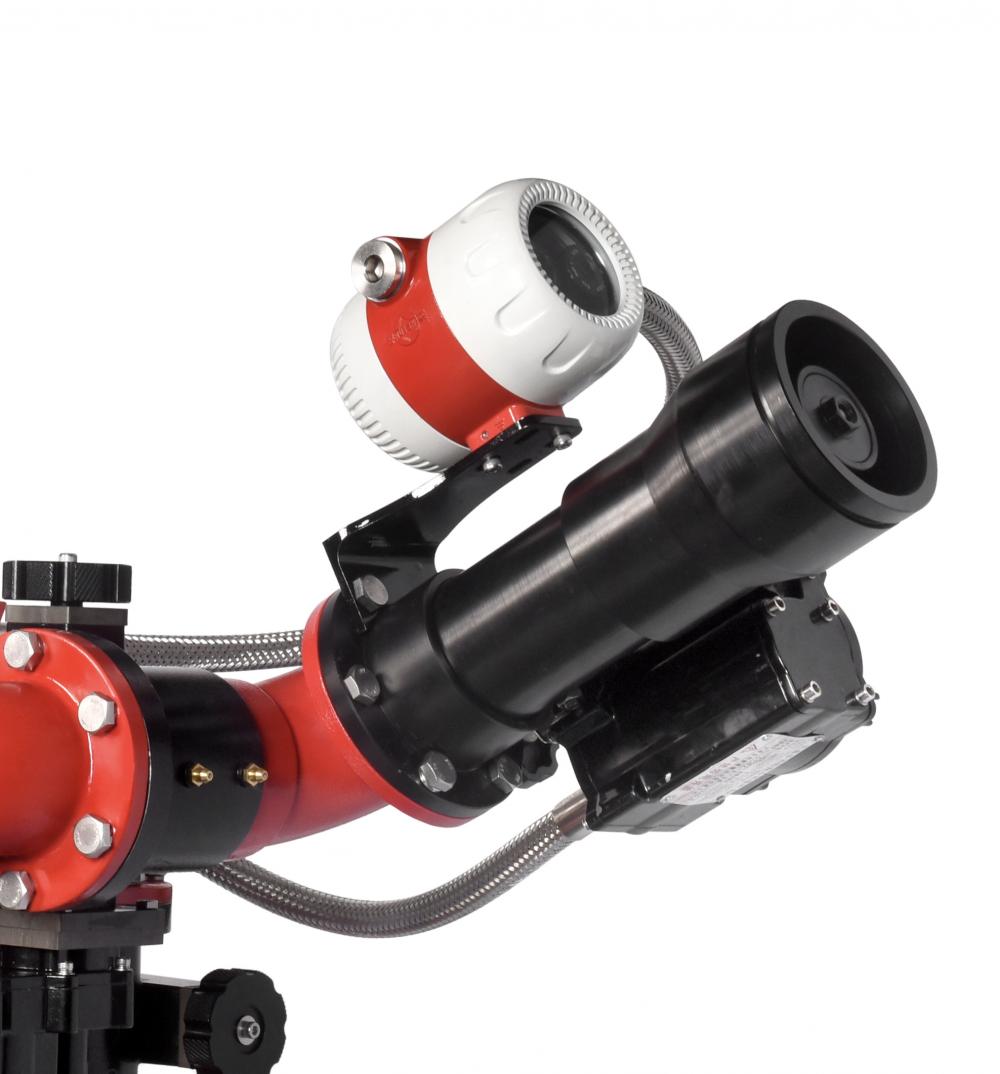

Detailed pictures：
