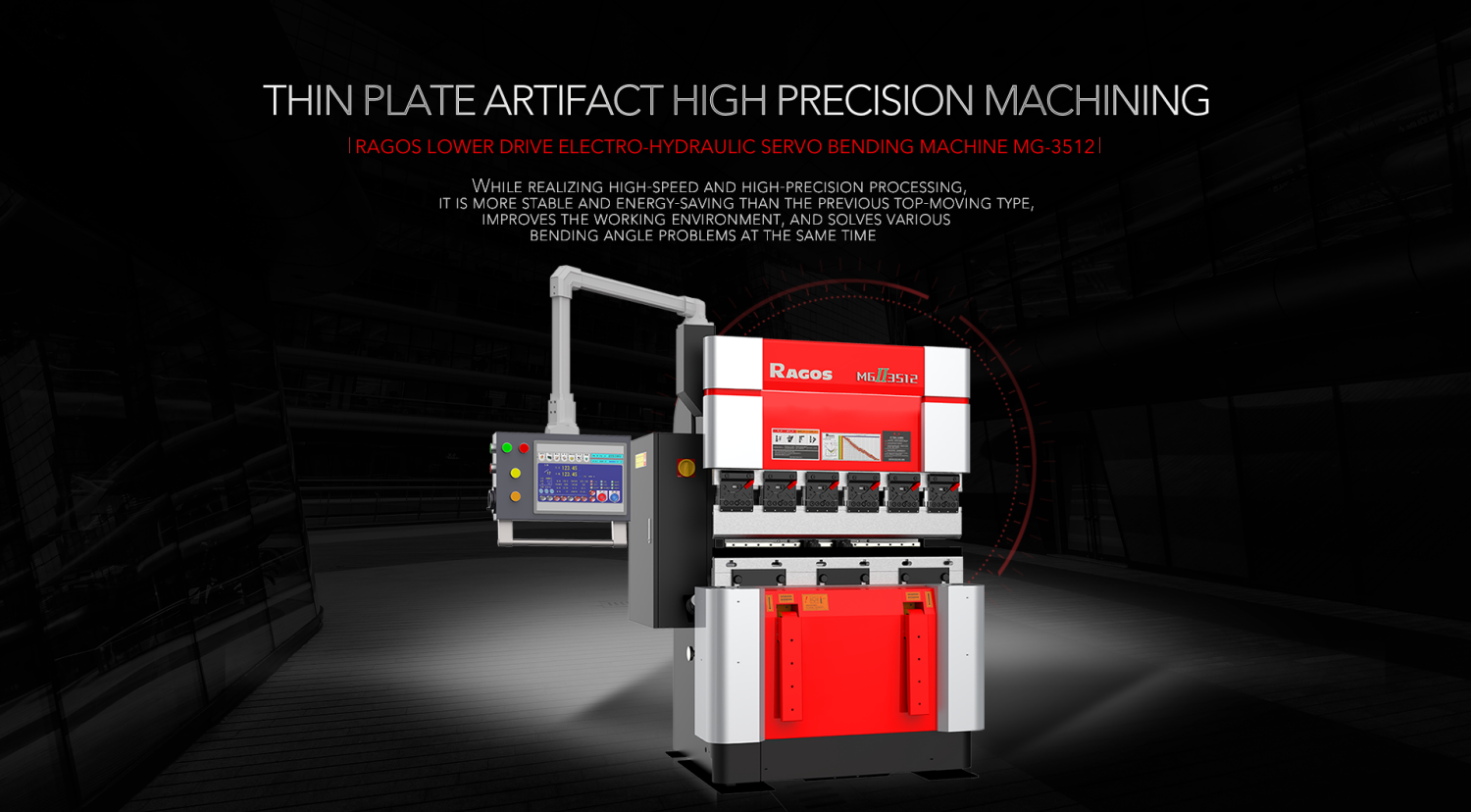

• MG 3512 Up-stroke press brake machine Nominal pressure:35 tons The 1200mm bending length accommodates long sheets of metal up to the maximum specified width.

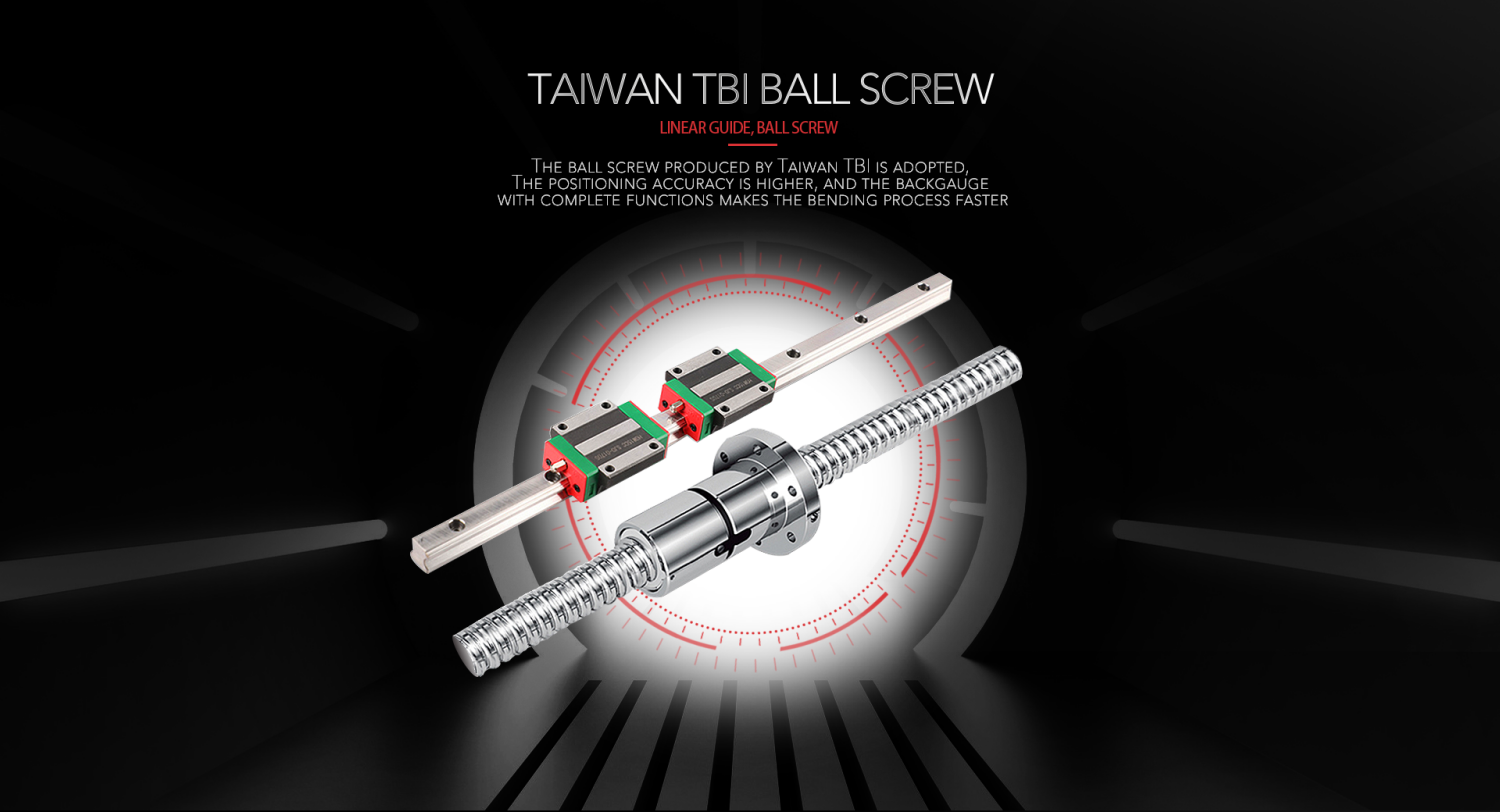

• The high precision and repeatability of ±0.02mm is achieved through features like linear guide rails for smooth ram movement and advanced CNC controls for accurate programmable bending. This level of precision is suitable for applications with tight tolerances.
• The unique driving method of the up-stroke press brake machine makes the up-stroke CNC bending machine faster than the traditional CNC down-stroke press brake machine and is very suitable for processing thin metals and small sheet metal product.
• The touch screen interface provides a user-friendly experience for operators. Common functions like bend program selection, start/stop, and emergency stop are easily accessible. This reduces training time and errors.
• The independently developed CNC controller MiniNC9 has the same functions as the Japanese AMADANC9. Customers who have used the AMADARG2 bending machine can easily operate our machine.

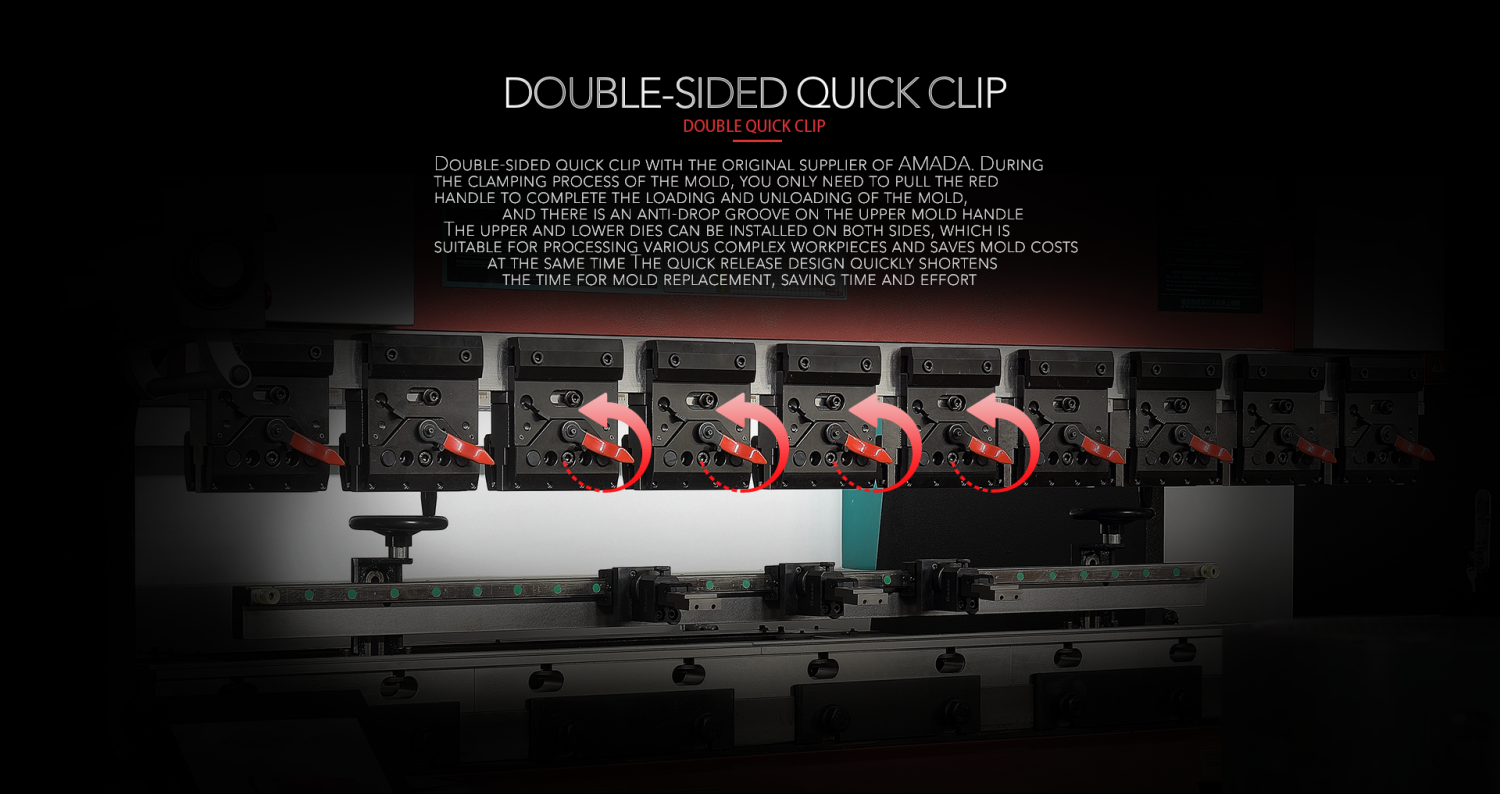

• The standard AMADA-style double-sided quick clamp allows users to easily change punch tools. If you have used AMADA machines, you can install the clamps on the original machine to the RAGOS bending machine.
Technical Specifications
- Bending Capacity: 35 tons
- Bending Length: 1200mm (3.9 ft)
- Bending Tolerance: ±0.05 mm

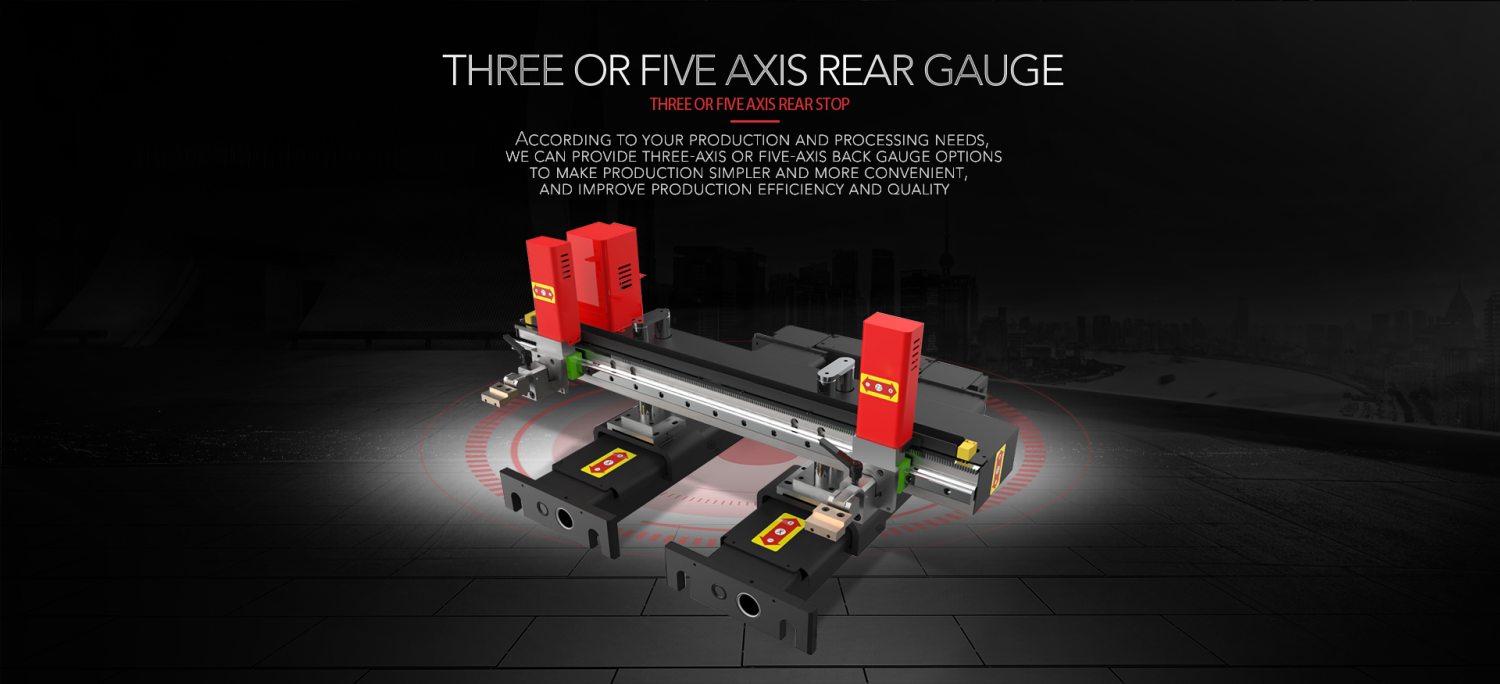

- Backgauge Travel: X and R axis；5 aixs for optional
- Weight: Approximately 4,500 kg (9,920 lbs)
- Dimensions: (L x W x H) 1465x 1200 x1960 mm
Enhance your production capabilities with our 35-Ton 1.2 Meter Downstroke Press Brake – a powerful, precise, and reliable solution for all your metal bending needs.
