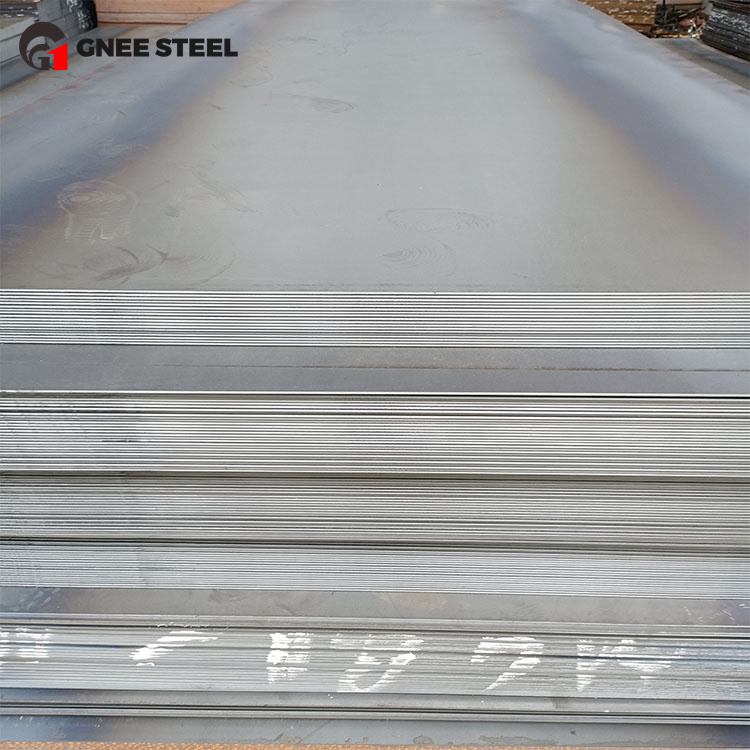

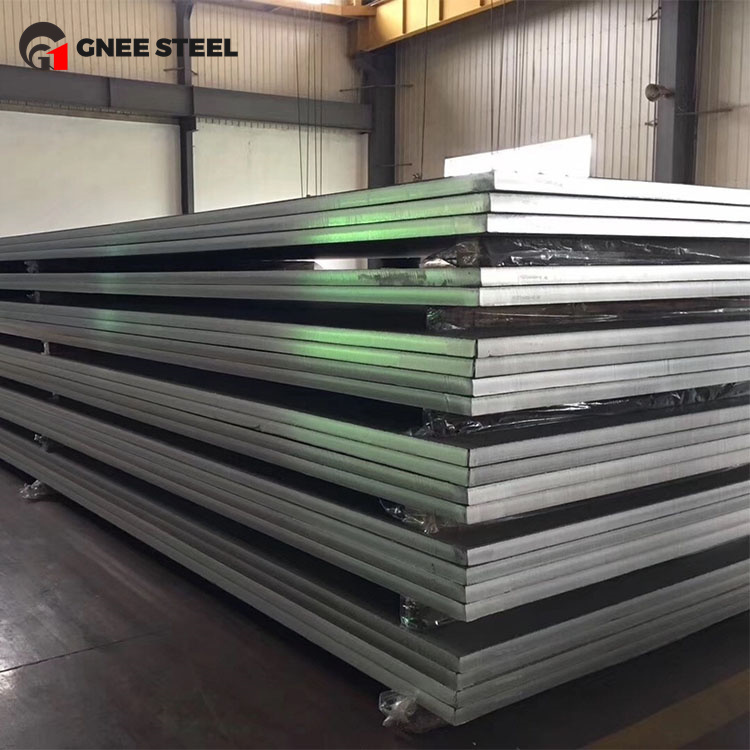

ABS Shipbuilding Steel Plate
General strength marine steel is divided into four levels: A, B, C, and D. Its yield strength (not less than 235 N/mm^2) and tensile strength (400-520 N/mm^)2, but in different Under certain temperature conditions, the impact energy is different. According to the minimum yield strength of high-strength ship plates, they are divided into four grades: A, D, E, and F.
ABS shipbuilding plate chemical composition:
| ABS | |||||
|---|---|---|---|---|---|
| Grade | T: 8-600MM | ABS A | ABS B | ABS D | ABS E |
| Chemical Composition % ≤ | C | 0.21 | 0.21 | 0.21 | 0.18 |
| Mn(≥) | 2.5*C | 0.80 | 0.60 | 0.70 | |
| P | 0.035 | 0.035 | 0.035 | 0.035 | |
| S | 0.035 | 0.035 | 0.035 | 0.035 | |
| Si | 0.50 | 0.35 | 0.10-0.35 |
0.10-0.35 |
|
| ABS | |||||
|---|---|---|---|---|---|
| Grade | T: 8-600MM | ABS A | ABS B | ABS D | ABS E |
| Mechanical Property ≥ | Yield Strength(Mpa) | 235 | 235 | 235 | 235 |
| Tensile Strength(Mpa) | 400-520 | 400-520 | 400-520 | 400-520 | |
| Impacting Test temperature(℃) | 20 | 0 | -20 | -40 | |
| Mark | AB/A | AB/B | AB/D |
AB/E |
|
Detailed introduction of ABS ship plate:
The yield strength of A32, D32, E32 and F32 is not less than 315N/mm^2, and the tensile strength is 440~570N/mm^2. A, D, E and F indicate that it can be 0° and -20° respectively. Impact toughness of -40° and -60° can be achieved;
A36,D36,E36,F36 have a yield strength of 355 N/mm^2 or more and a tensile strength of 490-620 N/mm^2. A, D, E, and F can be indicated can be 0° and -20° respectively. The impact toughness can be up to -40°C to -60°C;
A40,D40,E40 and F40 have a yield strength of over 390 N/mm^2 and a tensile strength of 510-660 N/mm^2. A, D, E and F can be indicated at 0°C and -20°C respectively. Good impact toughness at -40°C, -60°C.
We can provide customized services. We can customize ABS Shipbuilding Steel Plate, NM400 NM450 NM500 Steel Plate, Corten A Steel Plate and other products according to your needs. If you have any needs, please contact us.
