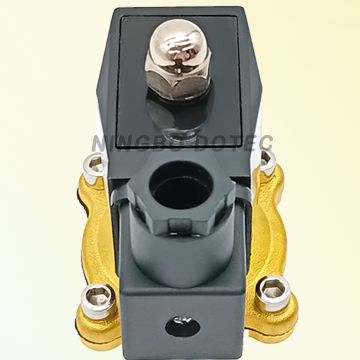

The 2W160-15S diaphragm waterproof solenoid valve is more popular valve for many conditions, especially in water treatment system, such in garden irrigation controls. It is diaphragm direct acting type, G1/2", voltage 110V, working temperature range: -5~80℃, high quality normally closed IP65 square coil solenoid valve. It is renowned for its exceptional performance and extensive range of applications, widespread use in various gases and liquids, such as air, water, oil, gas.
Brass valve body
The body of 2W160-15S is made of solid brass and has a thick wall for longer service life. Continuous operation is not easy to burn, more safe and reliable.
Stable Solenoid coil
The stable coil enables good heat dissipation, good insulation performance. This coil will not burn out esily during operation.
Wide application

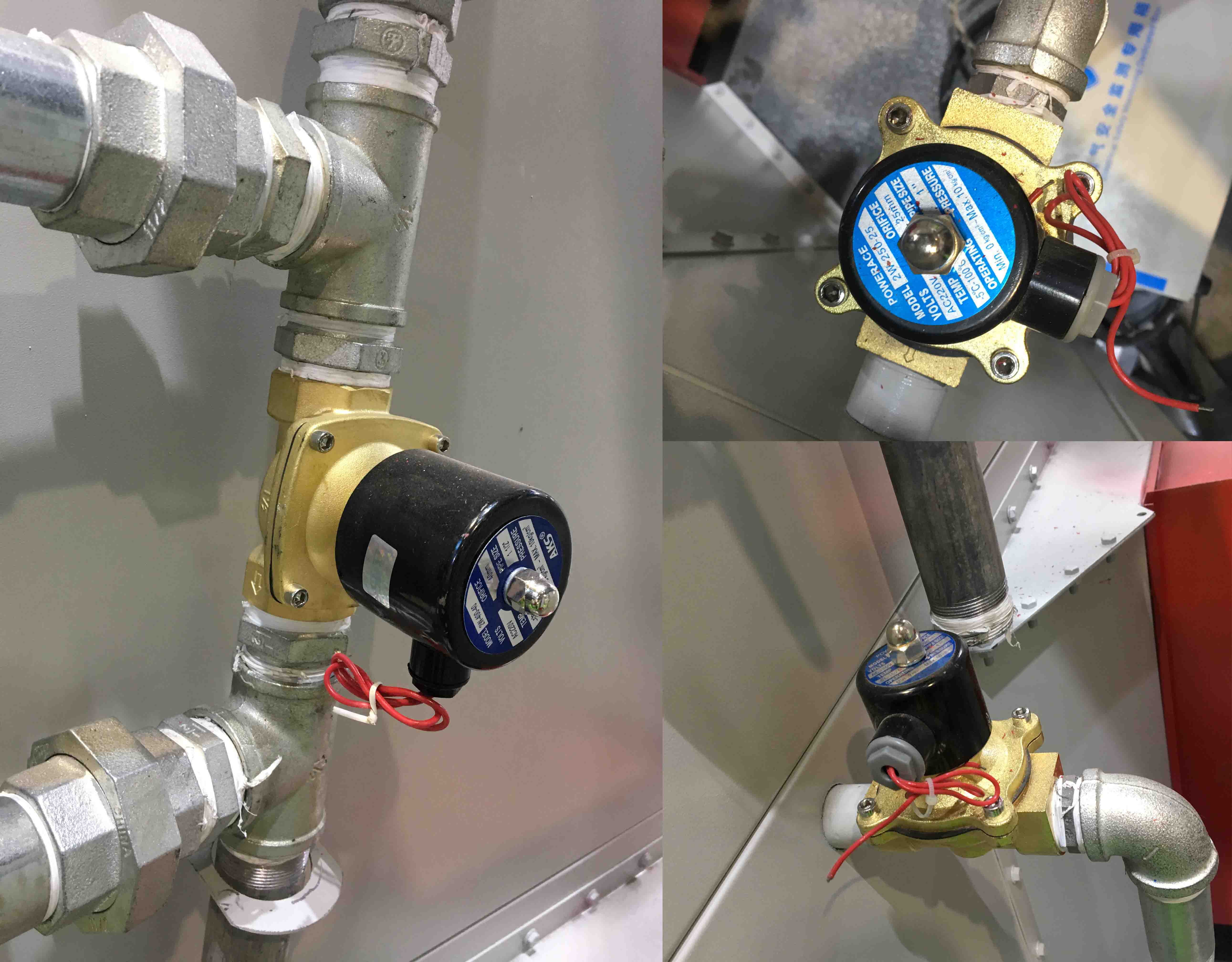

Industrial usage, household usage, can be used for air control, liquid control, irrigation control.
Pay Attention:
◆ Please check whether the product is intact before use
◆ Please confirm that the installation conditions are in accordance with the specifications
◆ Please use in a stable environment
◆ Pay attention to clean up dust and other things that affect operation
|
Specification |
|||||||||||||
|
Model |
2W160-10S |
2W160-15S |
2W200-20S |
2W250-25S |
2W350-35S |
2W400-40S |
2W500-50S |
||||||
|
Working Medium |
Air, Water, Oil, Gas |
||||||||||||
|
Operation |
Direct Acting 2/2 Way |
||||||||||||
|
Acting Type |
Normal Closed Type |
||||||||||||
|
Port Size |
3/8 '' |
1/2 '' |
3/4'' |
1 '' |
1 1/4'' |
1 1/2 '' |
2 '' |
||||||
|
Material |
Brass |
||||||||||||
|
Working Pressure |
Air: 0~7Mpa; Water: 0~5Mpa; Oil: 0~5Mpa; Gas: 0~7Mpa |
||||||||||||
|
Orifice Size |
16 |
20 |
25 |
35 |
40 |
50 |
|||||||
|
CV Value |
4.8 |
4.8 |
4.8 |
12 |
24 |
29 |
48 |
||||||
|
Voltage |
DC12V; DC24V; AC24V; AC110V; AC220V; AC380V |
||||||||||||
|
Fluid Viscosity |
20 CST Below |
||||||||||||
|
Voltage Range |
±10% |
||||||||||||
|
Material for sealing |
NBR, EPDM, VITON |
||||||||||||
|
Operation Temperature |
NBR: -5~80℃; EPDM: -5~120℃; VITON: -10~150℃; SI: -15~150℃ |
||||||||||||

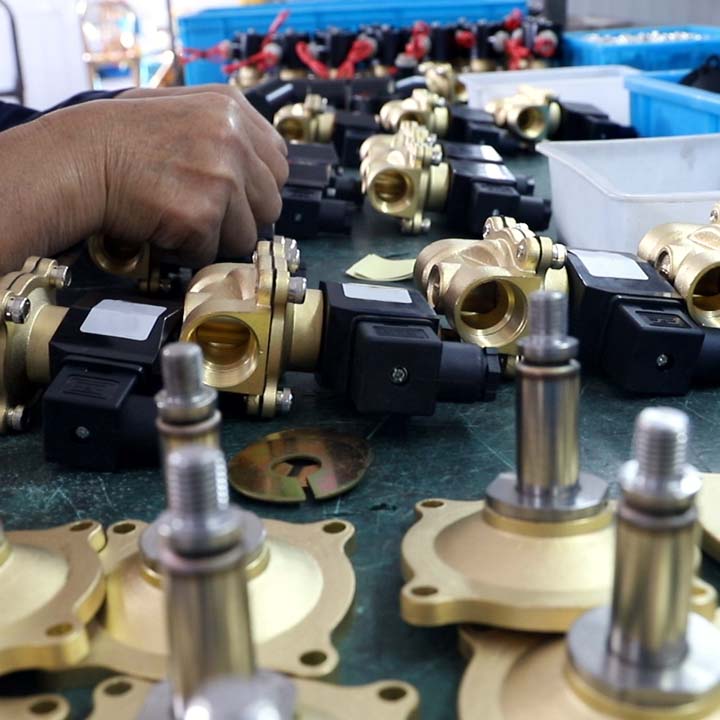

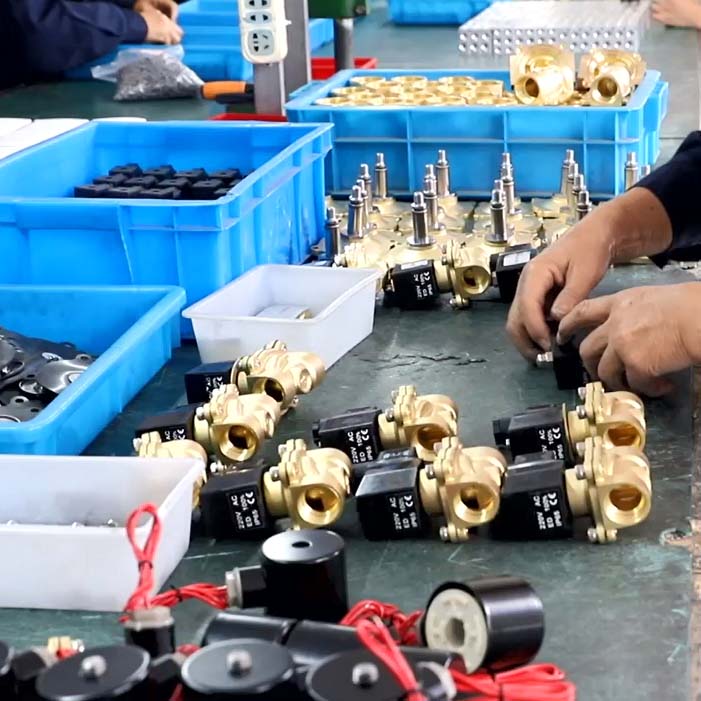

Ningbo DOTEC Automation Co., Ltd. works on manufacturing solenoid valve and is committed to providing customers with high quality products and services. We focus on customer needs to provide you with the best service, fast response, let us make fluid control applications more widely, more intelligent.
◆ Committed to providing high quality products and services
