CHANGLONGXING SCIENCE AND TECHNOLOGY（INTL）CO.,LTD

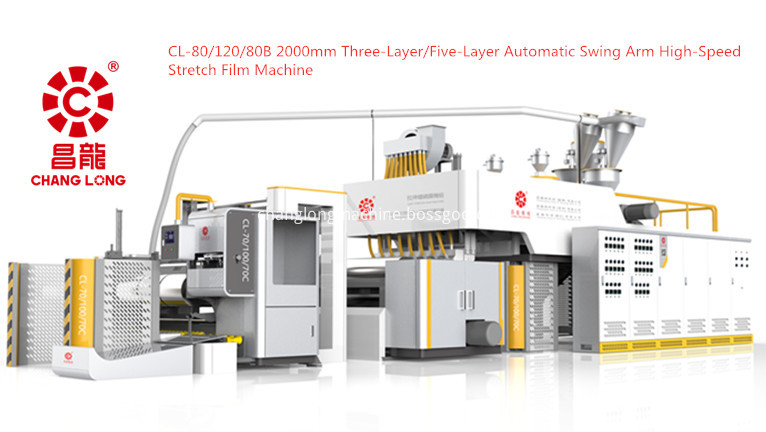

3/5-Layer Automatic Swing Arm High-Speed Stretch Film Machine
CL-80/120/80B
Product Description：
Model: CL-80/120/80B
Width of Die Head: 2350mm Width of Film: 2000mm
Thickness of Film: 0.01-0.05mm Structure of Film Layers: A/B/C or A/C/B/C/A
Liner Speed of Machinery: 200m/min Max Extrusion Capacity:560kg/h
Max Rewind Diameter: 400mm Screw Diameter: 80/120/80mm
L/D Ratio of Screw: 30:1 Motor Power of Main Machine: 45/110/45kw
Total Weight: 26.8T Overall Dimensions(L*W*H): 4.5*6.6*5m
1、Self-developed vacuum rapid suction side automatic recovery device, ultra-quiet, not easy to block the material, not easy to break the edge, to ensure that the production is not limited by the winding speed limit, designed for the high-speed machine recycling edge stability high recovery rate.
3、A fenced staircase is installed around the unit, which is user-friendly and convenient for operators to check the condition of the machine at any time.

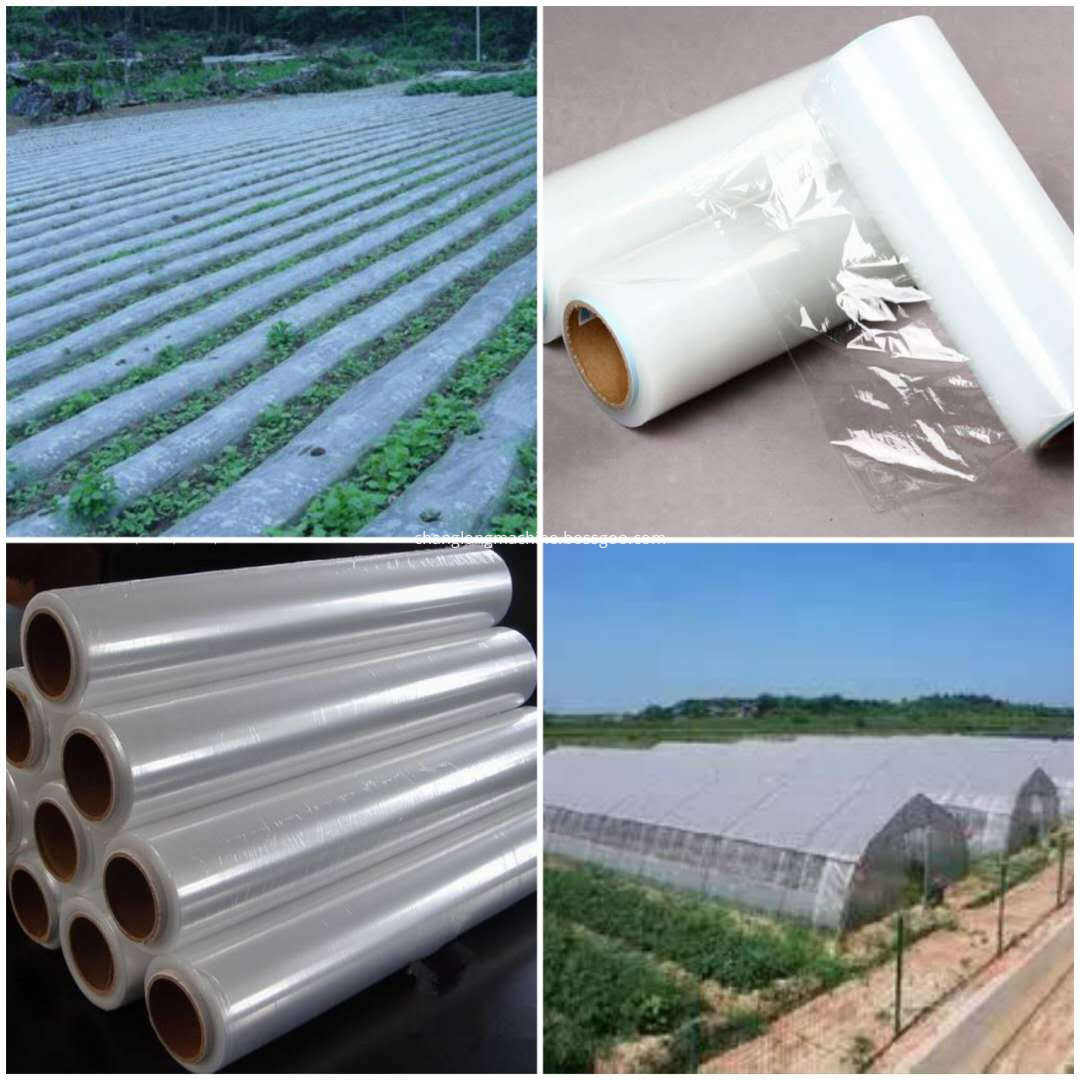

Application
Exhibitions
Seller provides the simple pearl wool with film package & wooden motherboard.
Our professional engineering team is constitutive of excellent technical staff. We can provide perfect after-sales service in time, give a good technical training to ensure the product in best state perennially.
We will respond to customer`s service requests and complaint in the shortest possible time, give a clear reply and solution to deal with in time. At the same time, we sum up customer`s complaint and proposal in order to inherit our advantages, correct our inadequate. We will commit to improve our services quality, so that our customers will be most satisfied.
We offer warranty on product quality and lifelong maintenance services.
