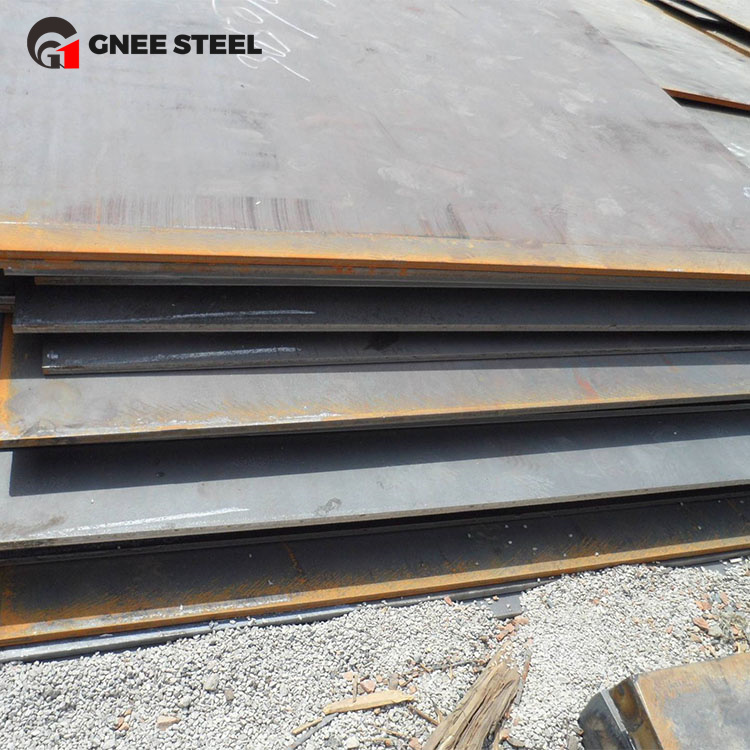

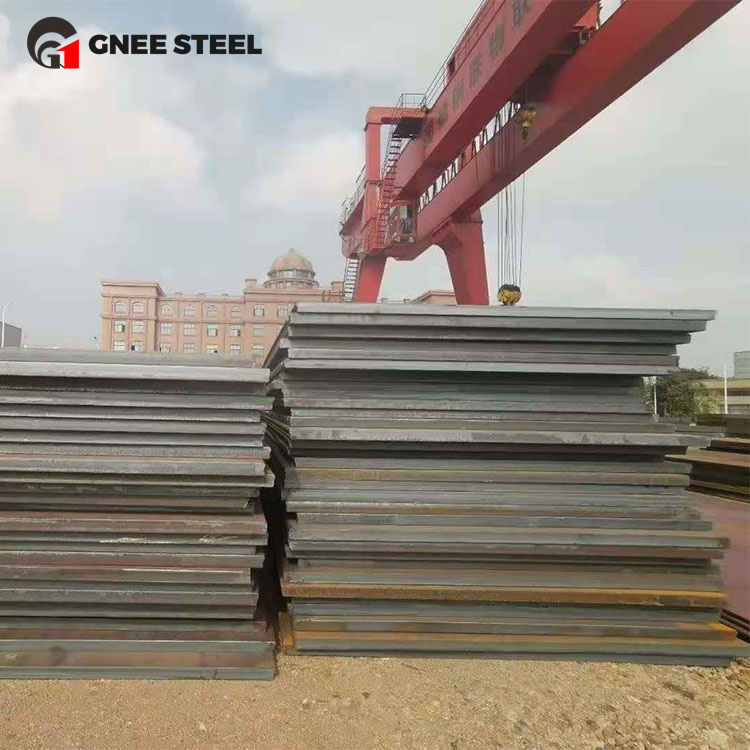

ASTM A36 Carbon Steel Plate
ASTM A36 steel sheet is the most widely used hot rolled steel product. Being a variety of carbon structural steel products, its corresponding products are round bars, angles and steel profiles such as H-beams, I-beams, angles and channels. ASTM A36 hot rolled sheet has a rough surface of the final product and is easy to further process such as machining.
A36 steel plate chemical composition:
| Element | Content |
|---|---|
| Carbon, C | 0.25 - 0.290 % |
| Copper, Cu | 0.20 % |
| Iron, Fe | 98.0 % |
| Manganese, Mn | 1.03 % |
| Phosphorous, P | 0.040 % |
| Silicon, Si | 0.280 % |
| Sulfur, S |
0.050 % |
A36 carbon steel plate mechanical property:
| Mechanical Properties | Metric | Imperial |
|---|---|---|
| Tensile Strength, Ultimate | 400 - 550 MPa | 58000 - 79800 psi |
| Tensile Strength, Yield | 250 MPa | 36300 psi |
| Elongation at Break (in 200 mm) | 20.0 % | 20.0 % |
| Elongation at Break (in 50 mm) | 23.0 % | 23.0 % |
| Modulus of Elasticity | 200 GPa | 29000 ksi |
| Bulk Modulus (typical for steel) | 140 GPa | 20300 ksi |
| Poissons Ratio | 0.260 | 0.260 |
| Shear Modulus | 79.3 GPa |
11500 ksi |
ASTM A36 is subjected to the following processes:
We can provide customized services. We can customize A283 A283M Structural Steel Plate, 35NiCr6 High Alloy Steel Plate, A871 Gr60 weather resistant steel Plate and other products according to your needs. If you have any needs, please contact us.
