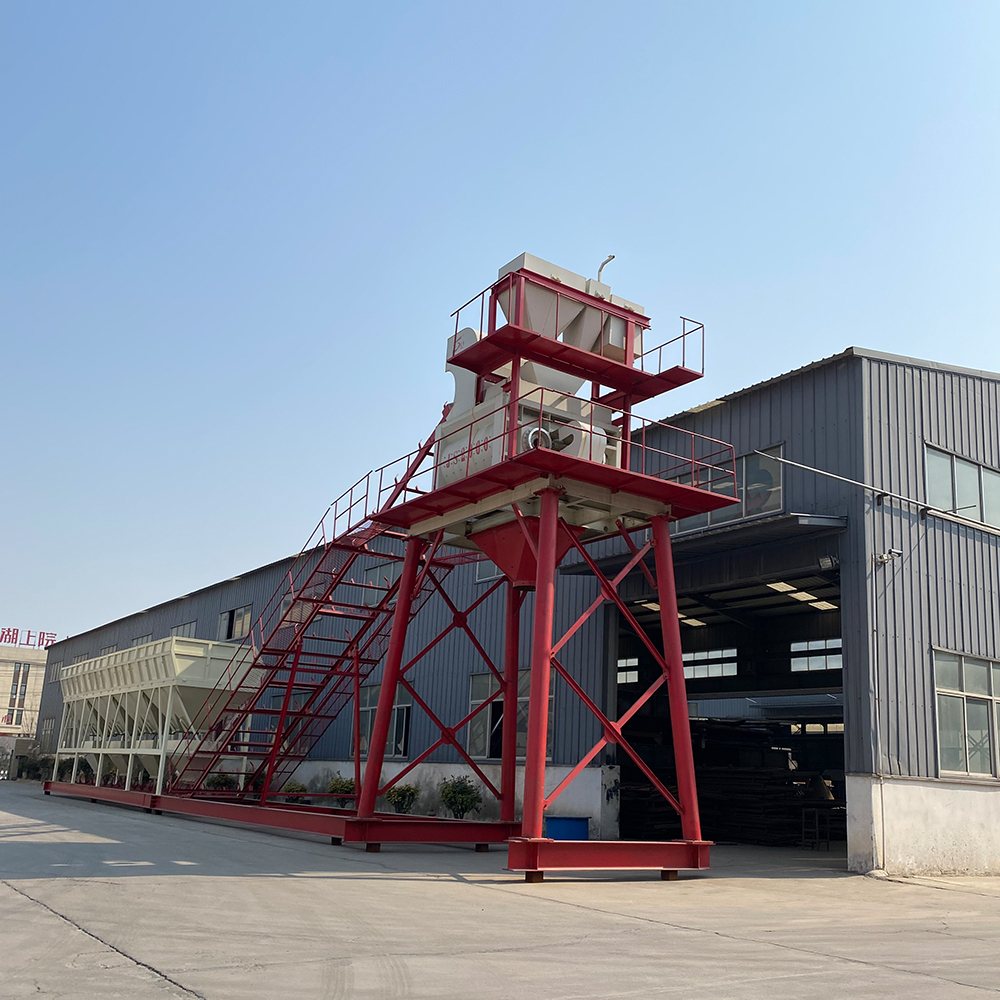

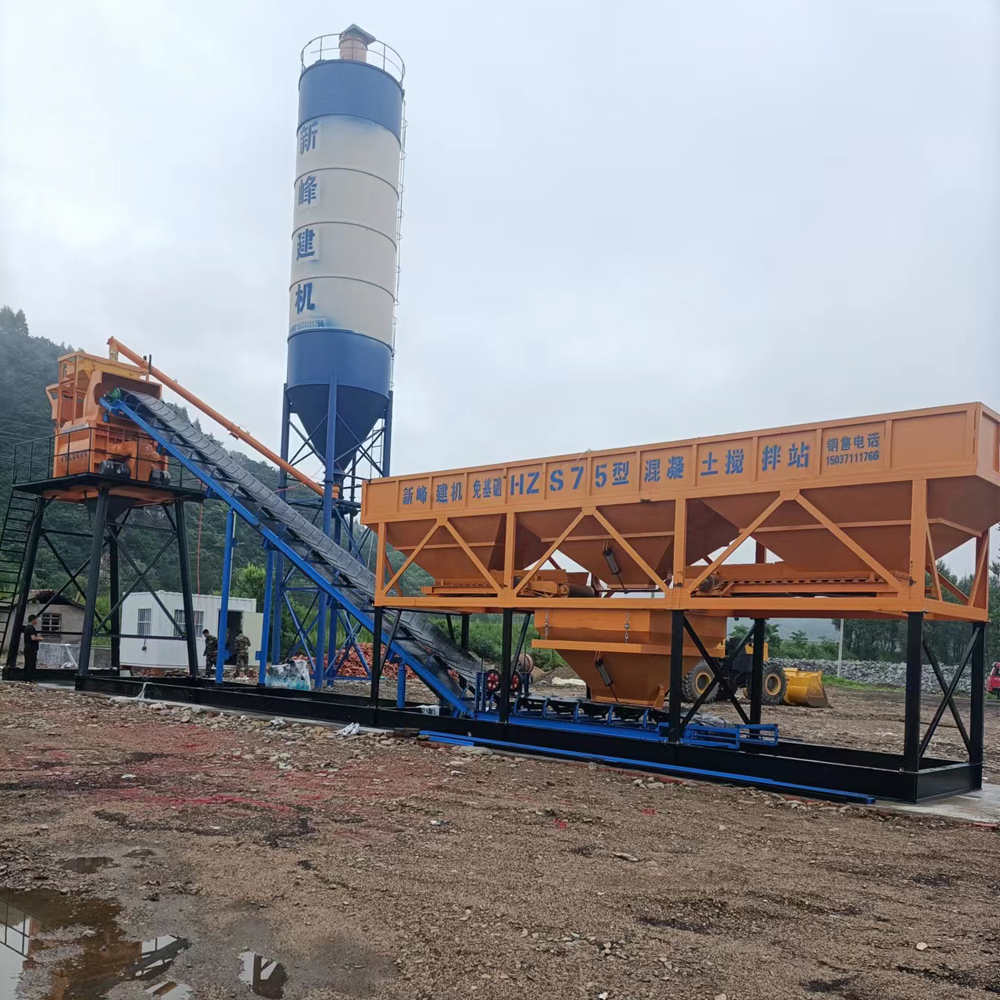

Free Foundation High Quality Mobile Concrete Batching Plant
Foundation free concrete batching plants is a kind of production equipment with superior performance. It not only requires no foundation and is easy to install, but also is easy to transport and dismantle. Meanwhile, its control system is advanced and the operation is easy to learn. The appearance of foundationless concrete batching plants provides a better choice for the construction of highway and bridge, hydropower projects and other projects, and also makes a positive contribution to environmental protection.
The control system of foundation free concrete batching plant is very advanced. It has a high-end program image and easy-to-learn operation, which can effectively adjust the relevant control parameters. In addition, it can also view the production data storage related to the equipment at any time and print it in the form of various reports. The control system has a variety of choices and can be equipped with multiple languages, which is convenient for users from different countries and regions.
|
Model |
HZS25 |
HZS35 |
HZS60 |
HZS90 |
HZS120 |
HZS180 |
|
|
Global parameter |
Max productivity (m3/h) |
25 |
35 |
60 |
90 |
120 |
180 |
|
Discharging height(m) |
1.5-3.8 |
1.6-3.8 |
3.8 |
3.8 |
4 |
4 |
|
|
Working cycle time(s) |
72 |
72 |
60 |
60 |
60 |
60 |
|
|
Mixer |
Model |
JS500 |
JS750 |
JS1000 |
JS1500 |
JS2000 |
JS3000 |
|
Batcher |
Model |
PLD800 |
PLD1200 |
PLD1600 |
PLD2400 |
PLD3200 |
PLD4800 |
|
Pneumatic system |
Air compressor |
1.0–7 |
1.0–7 |
1.5–7 |
1.8–7 |
1.8–7 |
1.8–7 |
|
Discharge pressure(MPa) |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
|
|
Displacement (m3/min) |
1.67 |
1.67 |
1.67 |
1.67 |
1.67 |
1.67 |
|
|
Motor power |
5.5 |
5.5 |
7.5 |
11 |
11×2 |
11×2 |
|
|
Measurement system |
Aggregate weighing accuracy |
±2% |
±2% |
±2% |
±2% |
±2% |
±2% |
|
Cement weighing accuracy |
±1% |
±1% |
±1% |
±1% |
±1% |
±1% |
|
|
Water weighing accuracy |
±1% |
±1% |
±1% |
±1% |
±1% |
±1% |
|
|
Additive weighing accuracy |
±1% |
±1% |
±1% |
±1% |
±1% |
±1% |
|
If you are interested in the product, contact 2bvideo.com for more information for more information
