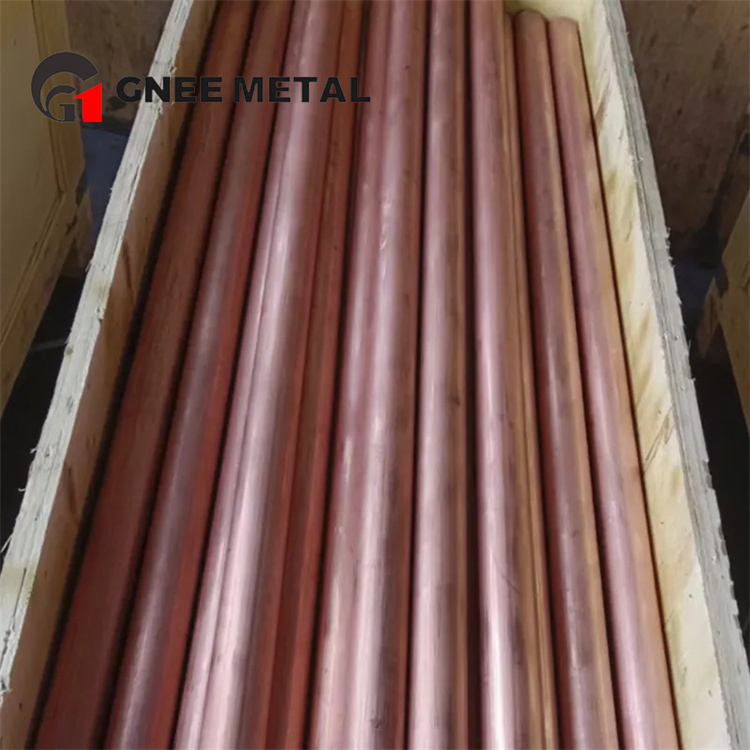

C11000 Copper Alloys is made from a high purity copper alloy steel pipe with excellent electrical and thermal conductivity, good corrosion resistance and high ductility. Its excellent electrical conductivity makes this copper ideal for medical devices, electronic equipment, automotive applications, wires, printed circuit boards, and telecommunications equipment.
| Standard | ASTM B111 / ASTM B75 / ASTM B280 / ASTM B68 / ASME SB111 / ASME SB75 / ASME SB280 / ASME SB68 |
| Material | c11000 c12200 tp2 h70 |
| Outer Diameter(OD) | 4mm-150mm |
| Wall Thickness | 0.25mm-8mm |
| Length | 1 meter-6 meter or as required |
| Types | Seamless Pipes, Pipe / Light Drawn Pipe / Light Annealed Pipe / Bright Pipe / Annealed Pipe, Annealed Pipe, Full Annealed Pipe, Hard Drawn Pipes |
| Application |
1. Pancake Coil for ACR, General Engineering Applications 2. LWC Coil for ACR, General Engineering Applications 3. Straight Copper Pipe for ACR and Refrigeration 4. Inner-grooved copper Pipe for ACR and Refrigeration 5. Copper Pipe for Transportation System of water, gas and oil 6. Semi-finished Copper Pipe for industrial applications |
Mechanical Property Of Brass H70 TP2 Alloy Steel Pipe
| Temper | Sect. Size | Cold Work | Type Min | Temp | Tensile Strength |
YS 0.05% UL |
YS 0.02% Offset |
YS 0.005% Offset |
Elong. |
RH B |
RH C |
RH F |
RH 30T |
VH 500 |
BH 500 |
BH 3000 |
Shear Strgth |
Fatigue Strgth |
Izod Impact Strgth |
| - | in. | % | - | F | ksi | ksi | ksi | ksi | % | B | C | F | 30T | 500 | 500 | 3000 | ksi | ksi | ft-lb |
| - | mm. | - | - | C | MPa | MPa | MPa | MPa | - | - | - | - | - | - | - | - | MPa | MPa | J |
| OS050 | 12.7 | 0 | TYP | 20 | 221 | 69 | - | - | 50 | - | - | 40 | - | - | - | - | 152 | - | 0 |
| OS050 | 0.06 | 68 | 32 | 10 | - | - | - | - | - | - | - | - | - | - | 22 | - | |||
| OS050 | 1.65 | 0 | TYP | 20 | 221 | 69 | - | - | 45 | - | - | 40 | - | - | - | - | 152 | - | 0 |
| OS025 | 0.06 | 68 | 34 | 11 | - | - | - | - | - | - | - | - | - | - | 23 | - | |||
| OS025 | 1.65 | 0 | TYP | 20 | 234 | 76 | - | - | 45 | - | - | 45 | - | - | - | - | 159 | - | 0 |
| H70 | 0.06 | 68 | 55 | 50 | - | - | - | - | - | - | - | - | - | - | 29 | - | |||
| H70 | 1.65 | 40 | TYP | 20 | 379 | 345 | - | - | 8 | 60 | - | 95 | 63 | - | - | - | 200 | - | 0 |
| TP2 | 0.06 | 68 | 40 | 32 | - | - | - | - | - | - | - | - | - | - | 26 | - | |||
| TP2 | 1.65 | 15 | TYP | 20 | 276 | 221 | - | - | 25 | 35 | - | 77 | 45 | - | - | - | 179 | - | 0 |
Copper C11000 Inner Grooved Copper Seamless Steel Pipe Physical Property
| Product Property | US Customary | Metric |
| Coefficient of Thermal Expansion | 9.4 . 10 6? per å¡F (68-212 F) | 16.9 . 10 6? per å¡C (20-100 C) |
| Coefficient of Thermal Expansion | 9.6 . 10 6? per å¡F (68-392 F) | 17.3 . 10 6? per å¡C (20-200 C) |
| Coefficient of Thermal Expansion | 9.8 . 10 6? per å¡F (68-572 F) | 17.6 . 10 6? per å¡C (20-300 C) |
| Density | 0.322 lb/in3 @ 68 F | 8.91 gm/cm3 @ 20 C |
| Electrical Conductivity | 101%IACS @ 68 F | 0.591 MegaSiemens/cm @ 20 C |
| Electrical Resistivity | 10.3 ohms-cmil/ft @ 68 F | 1.71 microhm-cm @ 20 C |
| Melting Point Liquid US | 1981 F | 1083 C |
| Melting Point Solid US | 1949 F | 1065 C |
| Modulas of Elasticity in Tension | 17000 ksi | 117000 MPa |
| Modulas of Rigidity | 6400 ksi | 44130 MPa |
| Specific Gravity | 8.91 | 8.91 |
| Specific Heat Capacity | 0.092 Btu/lb/å¡F at 68 F | 393.5 J/kg . å¡K at 293 K |
| Thermal Conductivity | 226.0 Btu . ft/(hr . Ft2 . å¡F) at 68 F | 391.1W/m . å¡K at 20 C |
If you are interested in the product, contact 2bvideo.com for more information for more information
