shantui bulldozer gearbox assembly

2 year ago
40 0
Product details

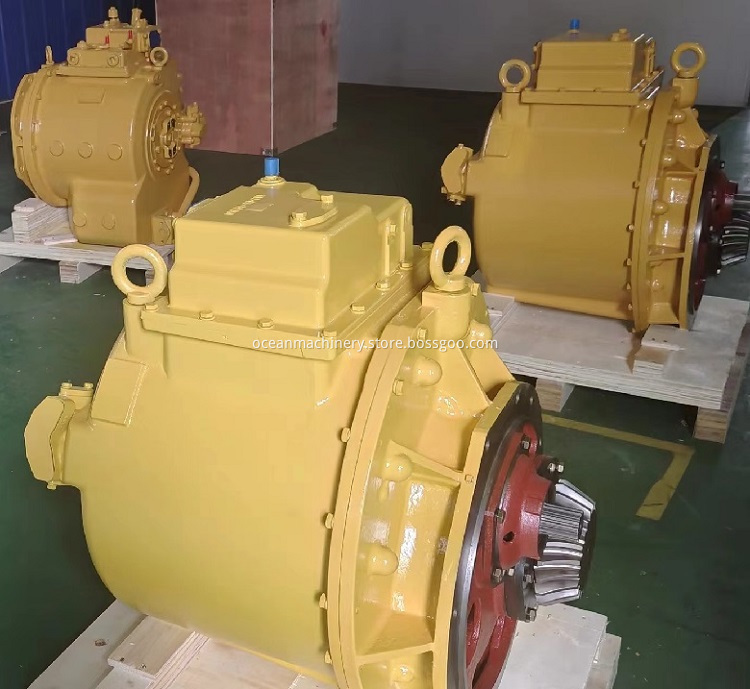

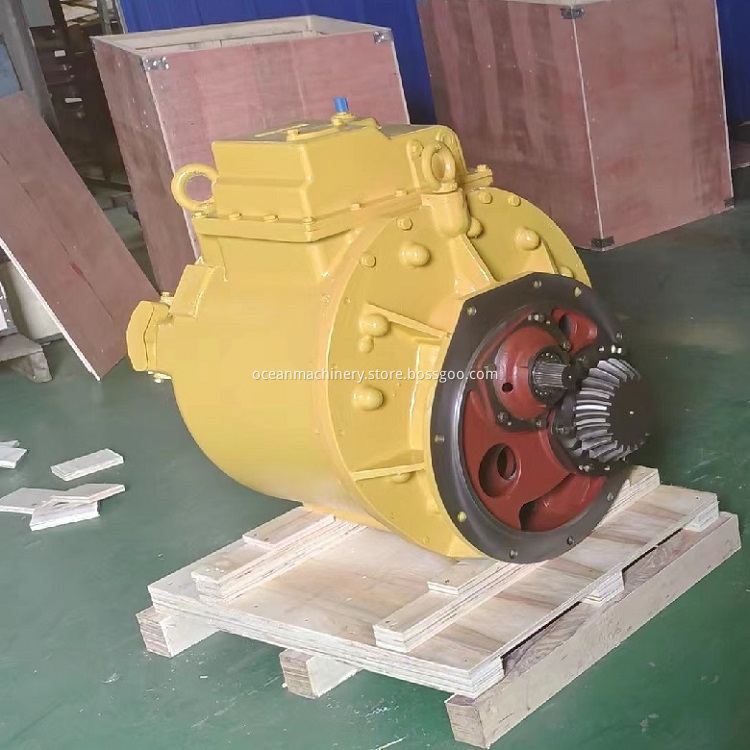

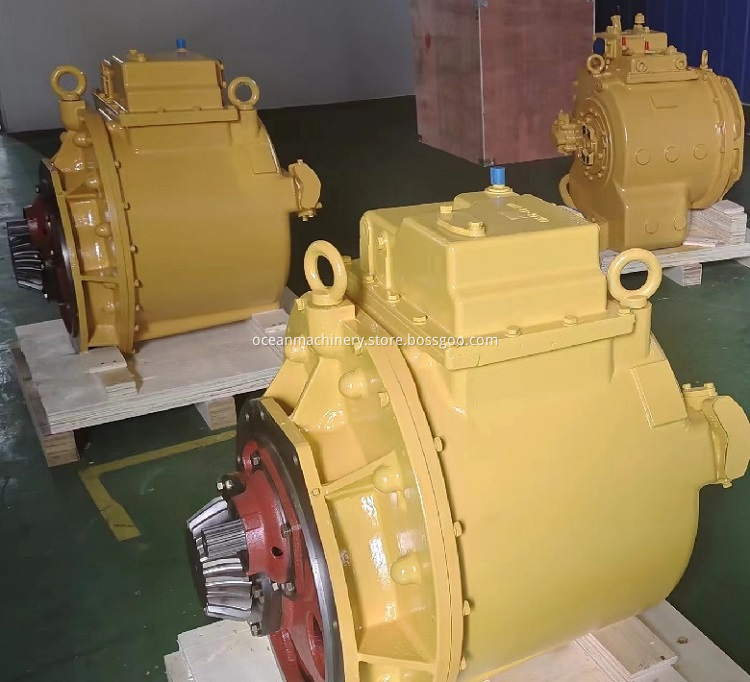

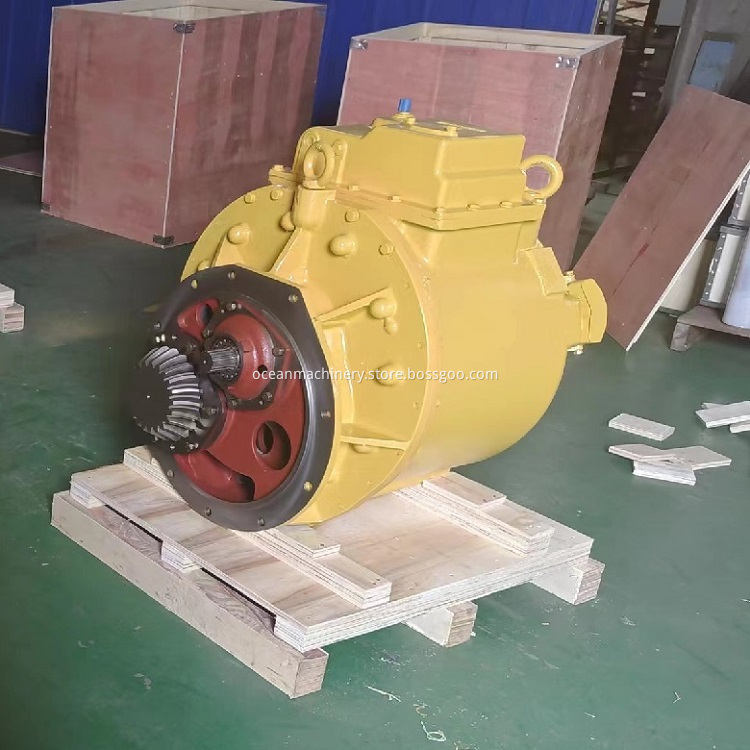

Shantui SD22 bulldozer gearbox assembly 154-15-31000 gearbox parts

1705889645151

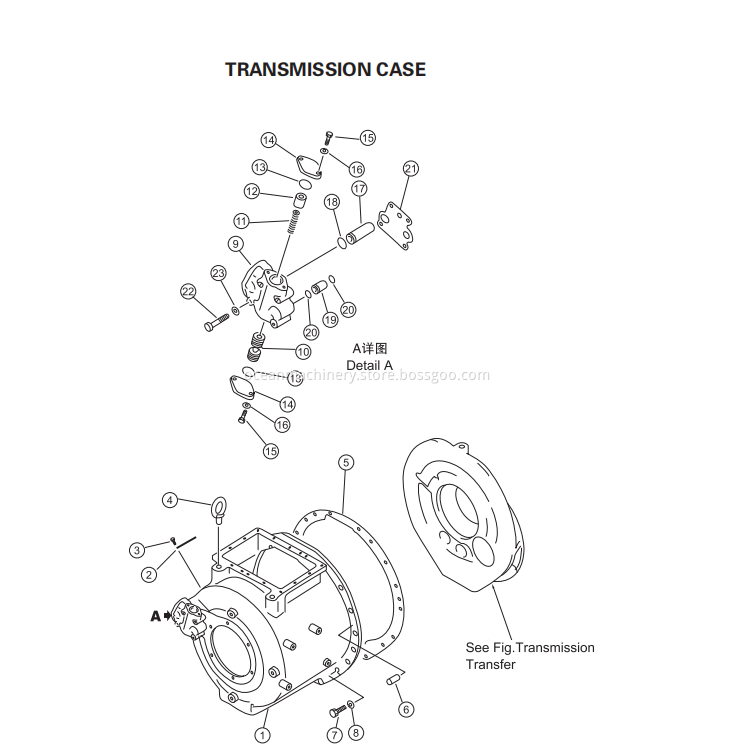

154-15-31000 Transmission assembly
154-15-21111 Ark
09608-05080 Nameplate
04418-03060 RIVET
04530-12440 Lifting screw
154-15-21121 Gasket
04020-01228 Cylindrical pin
01010-51240 Bolt
01602-21236 Washer
154-15-24110 Valve body
175-15-14130 Valve
175-15-14120 Spring
175-15-14141 Guide sleeve
07000-73032 O-ring
175-15-14150 Cover
01010-50825 Bolt
01602-20825 Washer
154-15-34170 Sleeve
07000-73022 O-ring
175-15-44180 Sleeve
07000-72018 O-ring
175-15-14161 Gasket
01010-51065 Bolt
01602-21030 Washer
154-15-32110 Shaft
154-15-32320 Planet carrier
154-15-32470 Gear
154-15-39120 Bearing
09233-05125 Thrust washer
154-15-32530 Shaft
154-15-32460 Gear
154-15-32450 Gear
06007-K516138 Bearing
154-15-32510 Shaft
04260-00635 Steel ball
154-15-32120 Gear
155-15-12620 Gear ring
154-15-31170 Bolster
154-15-22760 Spring
175-15-42780 Spring
154-15-32610 Gear ring
175-15-12713 Friction disk
175-15-42721 Bolster
175-15-42880 Spring
155-15-12892 Piston
154-15-22811 Sealing ring
154-15-31180 Oil cylinder body
145-14-11320 Plug
155-15-12811 Sealing ring
155-15-12770 Pin
155-15-11191 Bolt
155-15-11291 Bolt
145-14-11570 Washer
195-15-12141 Gasket
154-15-32310 Bearing support
GB276-61924 Bearing
154-15-31210 Case
195-15-11230 Plug
07042-20211 Plug
07018-11805 Sealing ring
GB276-6016 Bearing
04077-00125 Retaining ring
195-15-11240 Gasket
07012-50100 Skeleton oil seal
07000-15290 O-ring
 Shantui Sd32 Gearbox Assembly 175 15 00026 JpgShantui Sd22 Bulldozer Gearbox Assembly 154 15 31000 JpgShantui Sd16 Bulldozer Gearbox Assembly 16y 15 00000 JpgShantui Bulldozer Sd13 Gearbox Assembly 10y 15 00023 Jpg
Bulldozer Spare Parts
Bulldozer Spare Parts,Bulldozer Track Shoe,Hydraulic Servo Valve Assy,Hydraulic Pump
Shantui Bulldozer Coupling,Track Link Assembly,Track Adjuster Assembly,Cutting Edges

Gearbox Clutch Friction Discs,Friction Plates Spare Parts,Transmission Clutch Friction Plate,Clutch Friction Plates
