Product Description

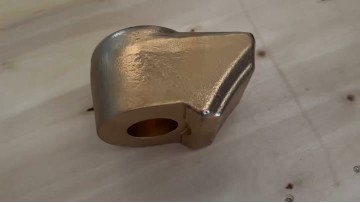

Advantage of VSI Crusher Wear Parts-- high wear resisitance B9100 VSI crusher rotor tip
Application
Our crusher wear parts-- high wear resisitance B9100 VSI crusher rotor tips are equipped with Carbide Tip that protects the rotor of the VSI crusher against wear, mainly used for break stone or into sand, they are widely used in the field of cement.
Reference Size of Rotor Tip Set
Reference Grade of Tungsten Carbide Tip Inbeded in VSI Rotor Tip Raw Material
| Grade | Physical Properties | |||
|
Density g/cm3 |
Coercivity kA/m |
Hardness HRA |
TRS ≥N/mm2 |
|
| YG6 | 14.82-15.05 |
12.5-17.5 13.0-17.0 |
90.5-92.0 | 1720 |
| YG8 | 14.62-14.82 |
10.0-15.0 11.0-15.5 |
89.5-91.0 | 1800 |
| YG8C | 14.6-14.8 | 6.3-9.3 | 87.5-89.0 | 2000 |
| ZE20 | 14.85-15.05 | - | 90.5-91.5 | 2880 |
| ZD10 | 14.85-15.0 | 8.5-12 | 89.4-90.2 | 2200 |
| More | ||||
A: Generally it is 20~30 days if the goods are not in stock, according to the quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How about after-sale service?
A: We provide complete solution and we also dispatch our technicians to assist the erection and using when needed.
