Male Female Fakra Connector

2 year ago

52 0

Changzhou Kingsun New Energy Technology Co., Ltd.

 2 year year

Product details

Features
Impedance 50 Ohm
Specifications according ISO 20860-1 & US-Car 18
Frequency range DC up to 6 GHz
High data rates up to 8 Gbps
Return loss ≥ 18 dB
Temperature range from -40 °C to +105 °C
Mating cycles ≥ 25
13 mechanical and colored codings and one neutral coding
Primary and secondary lock
Stamped parts on separate coils (center contact, support sleeve, connector head plug)

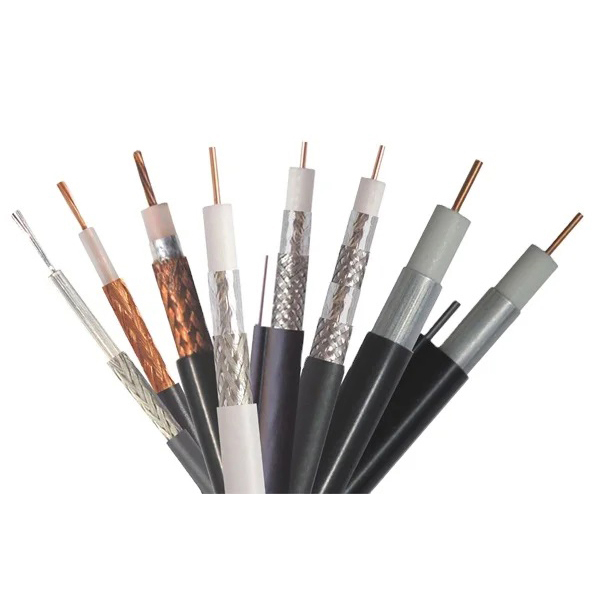

Cable customization

Different types of cables available according to your needs: RG174/RG316/RG58 DACAR302/RTK031/LMR195...

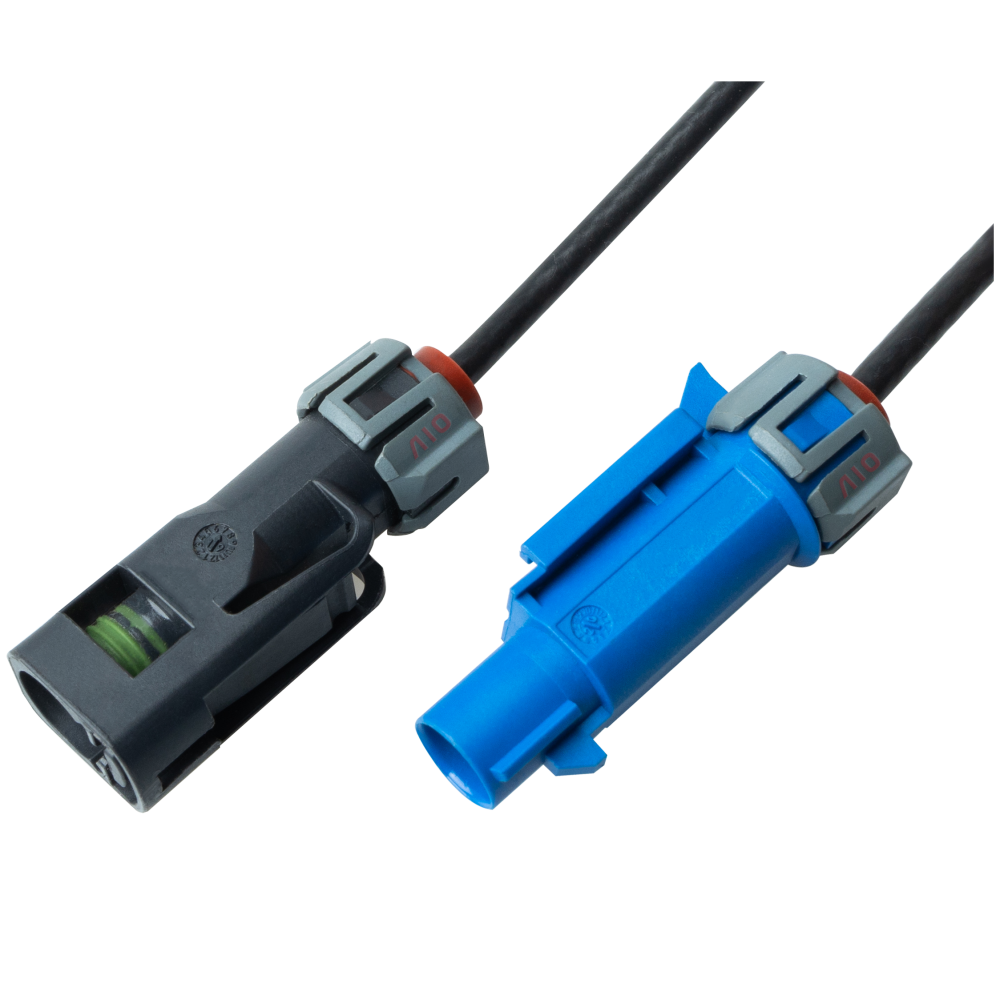

FAKRA Cable Connectors

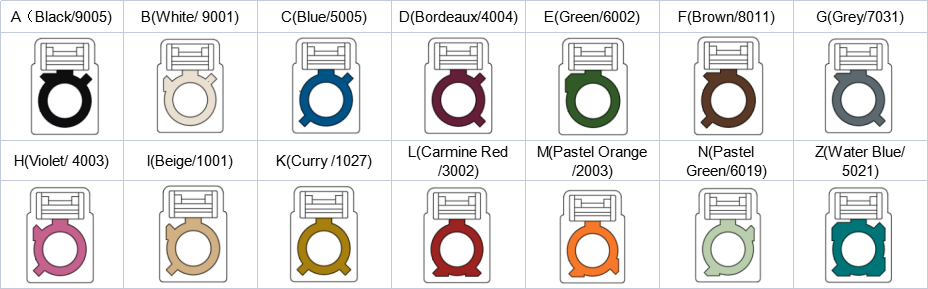

Code/Color Customization

Different types of codes/colors available according to your needs.

Waterproof FAKRA Connectors

Male Female Waterproof Fakra

Changzhou KingSun New Energy Technology Co., Ltd.

FAQ

1. What is the frequency range of FAKRA connectors?

FAKRA connectors are designed to operate in the frequency range of DC to 6 GHz, making them suitable for a wide range of RF applications.

2. What are the main components of a FAKRA connector?

A FAKRA connector typically consists of a plastic housing (color-coded), a metal RF connector (based on the SMB connector), and a locking mechanism to ensure secure connections.

3. What materials are FAKRA connectors made from?

FAKRA connectors are made from durable materials such as high-quality plastic for the housing and metal alloys for the RF connector, ensuring robustness and reliability.
