Timing Belt Conveyor For Pallet Transfer System

2 year ago
40 0
Product details

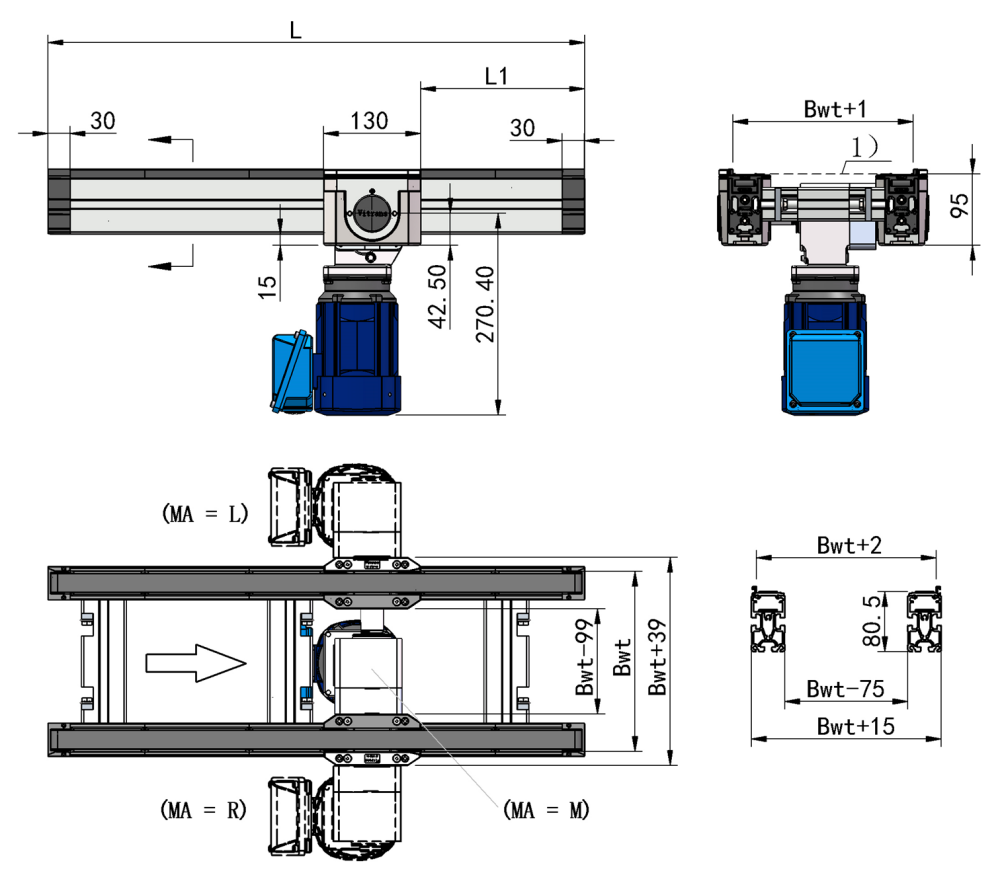

BC2/M Timing Belt Conveyor Design:

Timing Belt Conveyor Design


BC2/M Timing Belt Conveyor Specification:

Transfer medium
Timing belt
Pallet width in transport direction /mm Bwt 160, 240, 320, 400, 480, 640, 800 (160≤Bwt≤800)
Conveyor length /mm L 300≤L≤6000
Extended length /mm LQ 100≤LQ≤5700
Nominal speed /(m/min) V 6, 9, 12, 15, 18
Max.Load /kg
60
Drive method
3 phase motor
Motor mounting method MA L, R, M
Motor mounting direction
0°, 90°, 180°, 270°
Voltage U 220/380 AC
Frequency /Hz f 50
Motor connection AT Terminal box

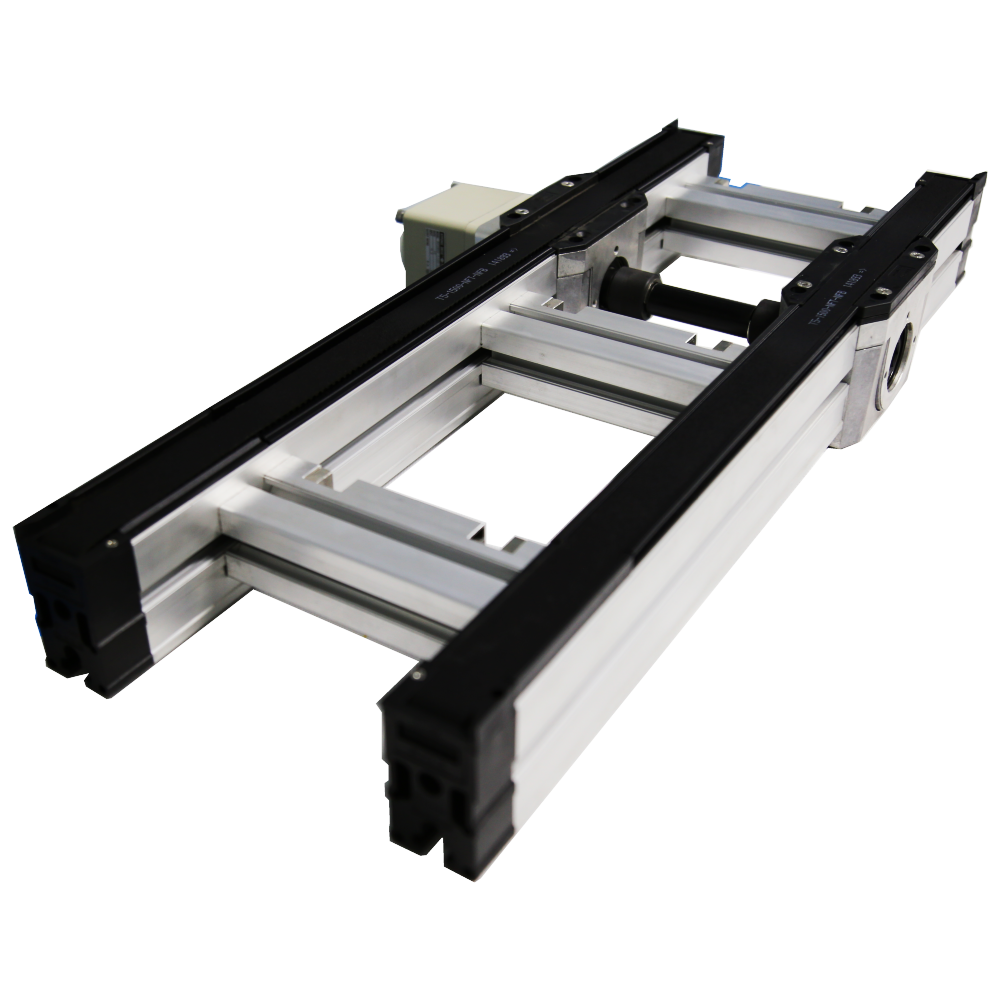

BC2/M Timing Belt Conveyor Structure:

Timing Belt Conveyor Design

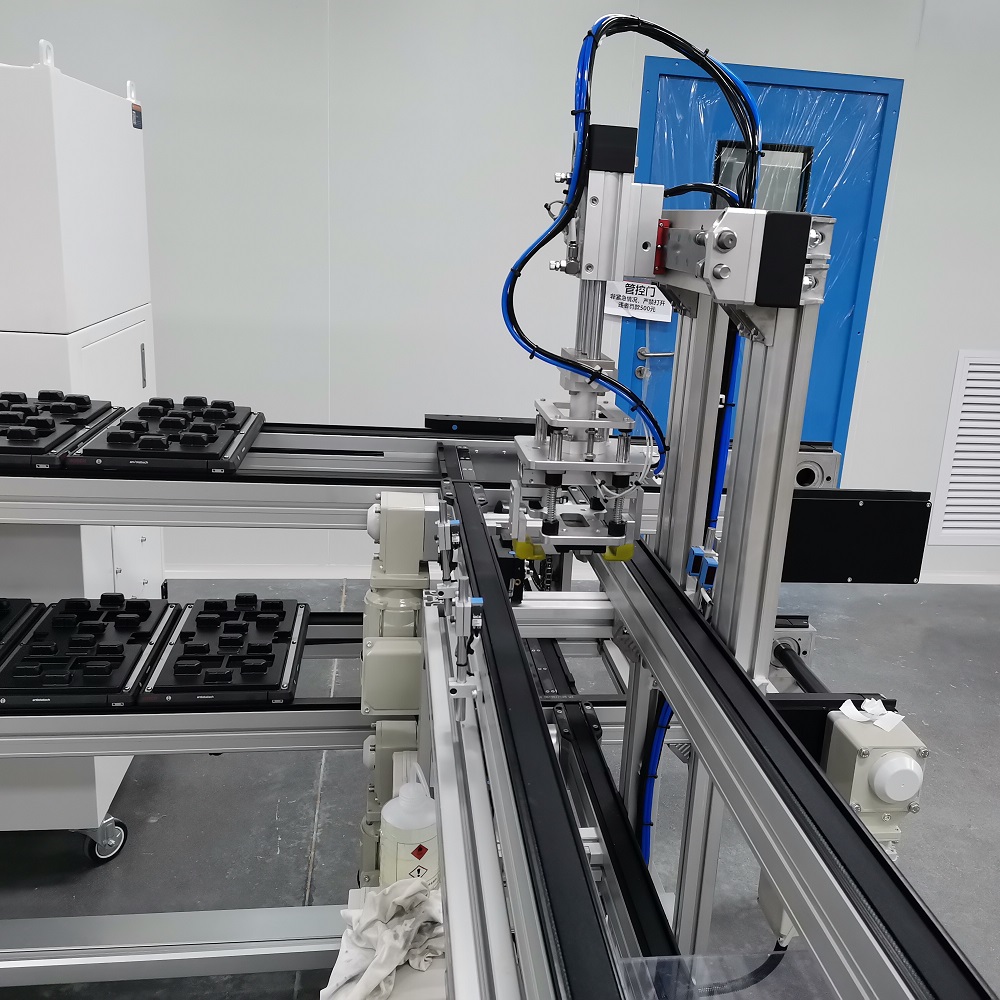

Precision Handling with Timing Belt Conveyor for Pallet Conveyor System

Introducing our advanced Pallet Conveyor System enhanced with a state-of-the-art Timing Belt Conveyor, designed to provide precision handling and optimal synchronization in material transportation. This innovative solution brings efficiency and accuracy to your palletized material handling processes.

Timing Belt Conveyor for Pallet Handling Systems

Key Features:

Accurate Synchronization: The Timing Belt Conveyor ensures precise and synchronized movement of pallets, contributing to accurate positioning and controlled transitions throughout the conveyor system.

High Precision Handling: Benefit from superior precision in material handling, making it ideal for applications where precise alignment and positioning are critical.

Low Maintenance: The timing belt design reduces the need for frequent maintenance, enhancing the overall reliability and longevity of the conveyor system.

Quiet Operation: Enjoy a quieter working environment as the Timing Belt Conveyor operates with reduced noise levels compared to traditional conveyors. This is especially beneficial in settings where noise reduction is a priority.

Modular Configuration: The Pallet Conveyor System, featuring the Timing Belt Conveyor, adopts a modular design, allowing for easy customization and adaptation to specific material handling needs.

Smooth Transitions: The timing belt technology facilitates smooth and gentle transitions, minimizing the risk of damage to pallets and ensuring a continuous flow in the production or assembly line.
Pallet Transfer Conveyor | Timing Belt Conveyor

Applications:

A. Assembly Lines
B. Production Facilities
C. Cleanroom Environments
D. Electronics Manufacturing
Timing Belt Conveyor System

Benefits:

A. Precise Synchronization
B. High Precision Handling
C. Reduced Maintenance
D. Quiet Operation
E. Modular and Customizable
F. Smooth and Gentle Transitions



Upgrade your palletized material handling processes with our Pallet Conveyor System featuring the advanced Timing Belt Conveyor. Experience a new level of precision, reliability, and efficiency in your production or assembly line.
