Centrifugally Ductile Cast Iron Pipe is a kind of pipe made from spherical graphite cast iron by centrifugal spinning process. The pipes, which can convey many fluid media such as water, oil and gas, are widely used in various pipeline projects for metallurgy, mine, water conservancy, petroleum and urban public service utility.

With its high strength, high elongation, corrosion resistance, resistance to shock, easy construction and many other fine features, ductile iron pipe is the best choice in today's world for conveying water and gas safely. Ductile iron, also called nodular iron or spheroidal graphite iron, is characterized by the presence of spheroidal graphite in the resultant castings.
Ductile iron pipes are available in a range of diameters from 80mm to 1600mm and are suitable for both potable water transmission and distribution (in accordance with BS EN 545) and sewerage (in accordance with BS EN 598).
Ductile iron pipes are simple to joint, can be laid in all weather conditions and often without the need for selected backfill. Its high safety factor and ability to accommodate ground movement make it the ideal pipeline material for a wide range of applications.

Products strictly meet the below standards:
ISO 2531 Ductile iron pipes, fittings and accessories for pressure pipelines.
BS EN545 Ductile iron pipes, fittings and accessories and their joints for water pipelines. Requirements and test methods.
BS EN598 Ductile iron pipes, fittings, accessories and their joints for sewage application-requirements and test methods.
ISO 7186 Ductile iron pipes, fittings, accessories and their joints for the construction of drains and sewers outside buildings.
ISO 4179 Ductile iron pipes for pressure and non pressure pipelines-Centrifugal cement mortar lining-general requirements.
ISO 8179 Ductile iron pipes-External zinc coating.
ISO 4633 Rubber Seals – joint rings for water supply, drainage and sewerage pipelines-specs for materials.
ISO 8180 Ductile iron pipes – Polyethylene Sleeve.

Product Specification

All specifications products can be customized according to customer requirements
Product Name	Ductile Iron Pipe
Size	Outside Diameter: 98mm-1255mm Inside Diameter: 80mm-1200mm Wall Thickness: 6mm-153mm Length: 6m, cut to 5.7m, or as required.
Grade	K8, K9, K10, K11, K12, C25, C30, C40, etc.
Standard	ISO2531, EN545, EN598, etc.
Surface	External bitumen coating, or as required.
Internal coating	a). Portland cement mortar lining b). Sulphate Resistant cement mortar lining c). High-Aluminum cement mortar lining d). Fusion bonded epoxy coating e). Liquid epoxy painting f). Black bitumen painting
External coating	a). zinc+bitumen(70microns) painting b). Fusion bonded epoxy coating c). Zinc-aluminum alloy +liquid epoxy painting
Quality Control	100% inspection + professional Lab test
Certification	ISO, CE, BSI, WRAS, SGS, etc.
Package	Standard export package, or as required.
Payment	T/T, L/C, Western Union, etc.
Application	Water supply project, drainage, sewage, irrigation, water pipeline, etc.

DN(mm)	External Diameter	Socket Weight(Kg)	Unit Weight(Kg/m)					Total Weight(Kg) Length=6000mm
Size(mm)			K8	K9	K10	C Class		K8	K9	K10	C Class
						Class	Kg/m
80	98	3.7	12.2	12.2	12.2	C40	9.10	76.8	76.8	76.8	58.30
100	118	4.7	14.9	15.1	15.1	C40	11.12	94.1	95.4	95.4	71.42
150	170	8.5	21.8	22.8	22.8	C40	16.48	139.4	145.4	145.4	107.38
200	222	10.9	28.7	30.6	30.6	C40	22.62	183.6	194.6	194.6	146.62
250	274	15	35.6	40.2	44.3	C40	32.63	228.8	255.8	280.8	210.78
300	326	22.2	45.3	50.8	56.3	C30	43.90	393.3	326.3	326.3	285.60
350	378	26.5	55.9	63.2	69.6	C30	51.88	361.8	405.8	443.8	337.78
400	429	32.5	80	75.5	83.7	C30	60.78	436	485	535	397.18
450	480	41.6	80	89	99	C30	73.30	521.6	575.6	635.6	481.40
500	532	50.6	92.8	104.3	115.6	C30	87.20	607.8	676.8	743.8	573.80
600	635	71.9	122	137.3	152	C30	120.62	803.6	894.6	983.6	795.62
700	738	85.3	155	173.9	193	C25	142.15	1015.2	1129.2	1243.2	938.20
800	842	108.7	192	215.2	239	C25	177.07	1261.1	1400.1	1543.1	1171.12
900	945	140.1	232	260.2	289	C25	197.68	1532.1	1701.1	1874.1	1362.18
1000	1048	174.3	275	309.3	343.2	C25	266.28	1824	2030	2234	1771.98
1200	1265	267.5	374	420.1	466.1	C25	373.88	2511.8	2787.8	3063.8	2510.78

Nominal diameter	Wall Thickness
DN		Pipe				Finttings
DN	Class C	K8	K9	K10	K12	K12	K14
80	4.4	6.0	6.0			7.0	8.1
100	4.4		6.1			7.2	8.4
125	4.5		6.3			7.5	8.8
150	4.5		6.3			7.8	9.1
200	4.7		6.4			8.4	9.8
250	5.5		6.8	7.5	9.0	9.0	10.5
300	6.2	6.4	7.2	8.0	9.6	9.6	11.2
350	6.3	6.8	7.7	8.5	10.2	10.2	11.9
400	6.5	7.2	8.1	9.0	10.8	10.8	12.6
450	6.9	7.6	8.6	9.5	11.4	11.4	13.3
500	7.5	8.0	9.0	10.0	12.0	12.0	14.0
600	8.7	8.8	9.9	11.0	13.2	13.2	15.4
700	8.6	9.6	10.8	12.0	14.4	14.4	16.8
800	9.6	10.4	11.7	13.0	15.6	15.6	18.2
900	11.6	11.2	12.6	14.0	16.8	16.8	19.6
1000	12.6	12.0	13.5	15.0	18.0	18.0	21.0
1200	13.6	13.6	15.3	17.0	20.4	20.4	22.8
1400	15.7	15.2	17.1	19.0	22.8	22.8	26.6
1500	16.7	16.0	18.0	20.0	24.0	24.0	31.0
1600	17.7	18.8	18.9	21.0	25.2	25.2	29.4
1800	19.7	18.4	20.7	23.0	27.6	27.6	32.2
2000	21.8	20.0	22.5	25.0	30.0	30.0	35.0

Mechanical properties

Nominal Size DN	Minimum Tensile Strength, Rm Mpa	Minimum 0.2% Proof Stress, Rp0.2 Mpa	Minimum Elongation After Fracture,A %	Hardness HB
80-1000	≥420	≥300	≥10	≤230
1100-2600			≥7
Note: 1. By Agreement Between Manufacture And Purchaser, The 0.2% Proof Stress (Rp0.2) May Be Measured. It Shall Be Not Less Than: · 270 MPa When A≥12% For DN 40 To DN 1000 Or A≥10% For DN ＞1000; · 300 MPa In Other Cases. 2. DN 40 To DN 1000, The Minimum Elongation After Fracture Shall Be 7% For Thickness Classes Over K12.

Works test pressure

Nominal Size(DN)	Hydrostatic Works Test Pressure (Bar)
80-300	50
350-600	40
700-1000	32
1200-2000	25
2200-2600	18

Thickness of cement lining

DN	Nominal Value	Tolerance 1)	Maximum Crack Width And Radial Displacement
80-300	4	-1.5	0.4
350-600	5	-2	0.5
700-1200	6	-2.5	0.6
1400-2000	9	-3	0.8
1）A Negative Tolerance Only Is Given. Note: Pipe End May Have A Chamfer Of Maximum Length 50 Mm.

Metallic zinc coating
When metallic zinc spray is applied, the mean mass of the zinc per unit area shall be not less than 130g/m2,
with a local minimum of 110 g/m2. The mass of the zinc according to customer’s request is also available.

Bitumen coating
The mean thickness of bitumen coating shall be not less than 70 μm and local minimum thickness shall be not less than 50 μm. The thickness of bitumen coating according to the customer’s request is also available.

Alternative coating

External Coatings

Internal Coating(Linings)

Coating Of The Joint Area

- Metallic Zinc With Finishing Layer, In Accordance With ISO 8179-1;

- Zinc Rich Paint With Finishing Layer, In Accordance With ISO 8179-2;

- Epoxy Coating, In Accordance With EN 14901;

- Polyethylene Sleeve, In Accordance With ISO 8180;

- Alloy Of Zinc And Aluminum With Or Without Other Metals, Having A Minimum Mass Of 400 G/M2, With Finishing Layer;

- Extruded Polyethylene Coating In Accordance With EN 14628;

- Polyurethane Coating In Accordance With EN 15189;

- Cement Mortar Coating In Accordance With EN 15542;

- Adhesive Tape;

- Portland/Blast Furnace Slag/Sulphate/ High Aluminum Cement Mortar, In Accordance With ISO 4179;

- Cement Mortar Lining With Seal Coat, In Accordance With ISO 16132;

- Epoxy Coating, In Accordance With EN 14901;

- Polyurethane Lining In Accordance With EN 15655;

- Epoxy Coating;

- Polyurethane Coating.

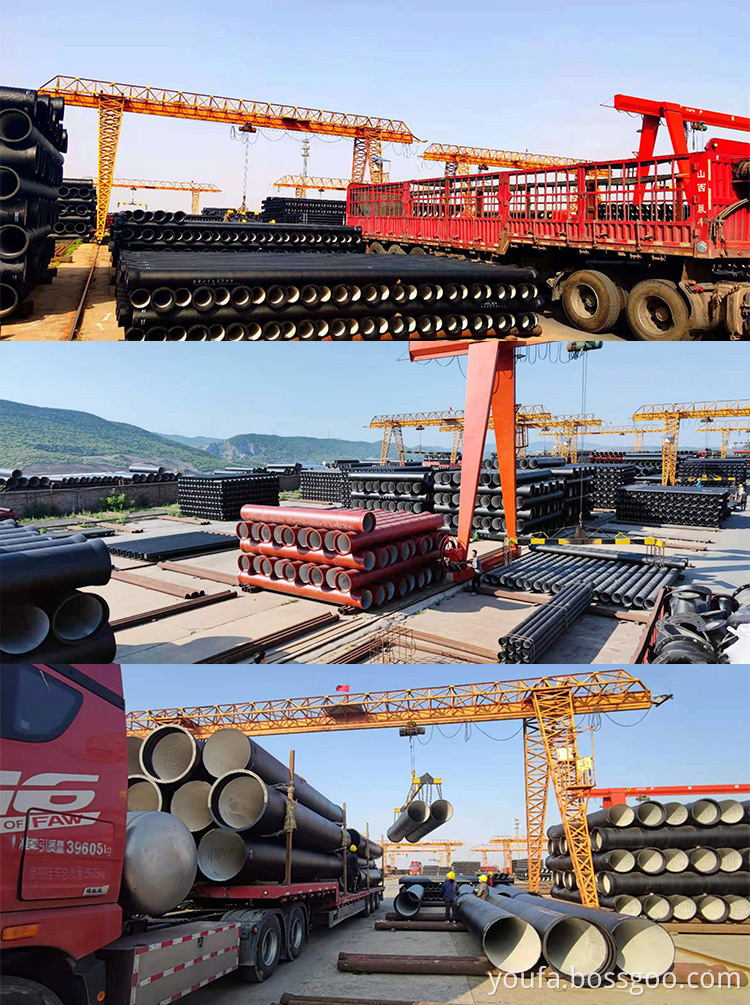

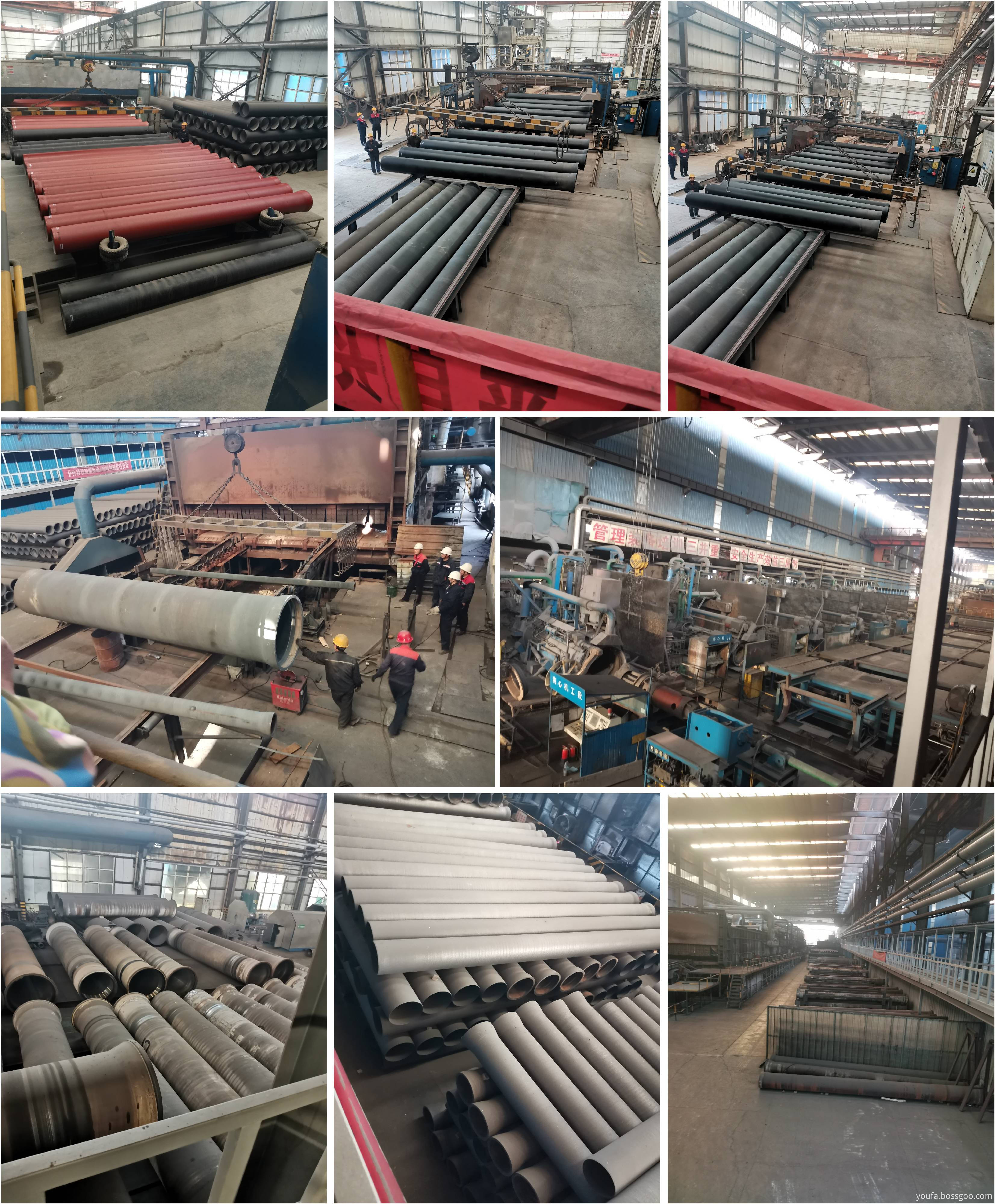

Product Show

Ductile Iron Pipe

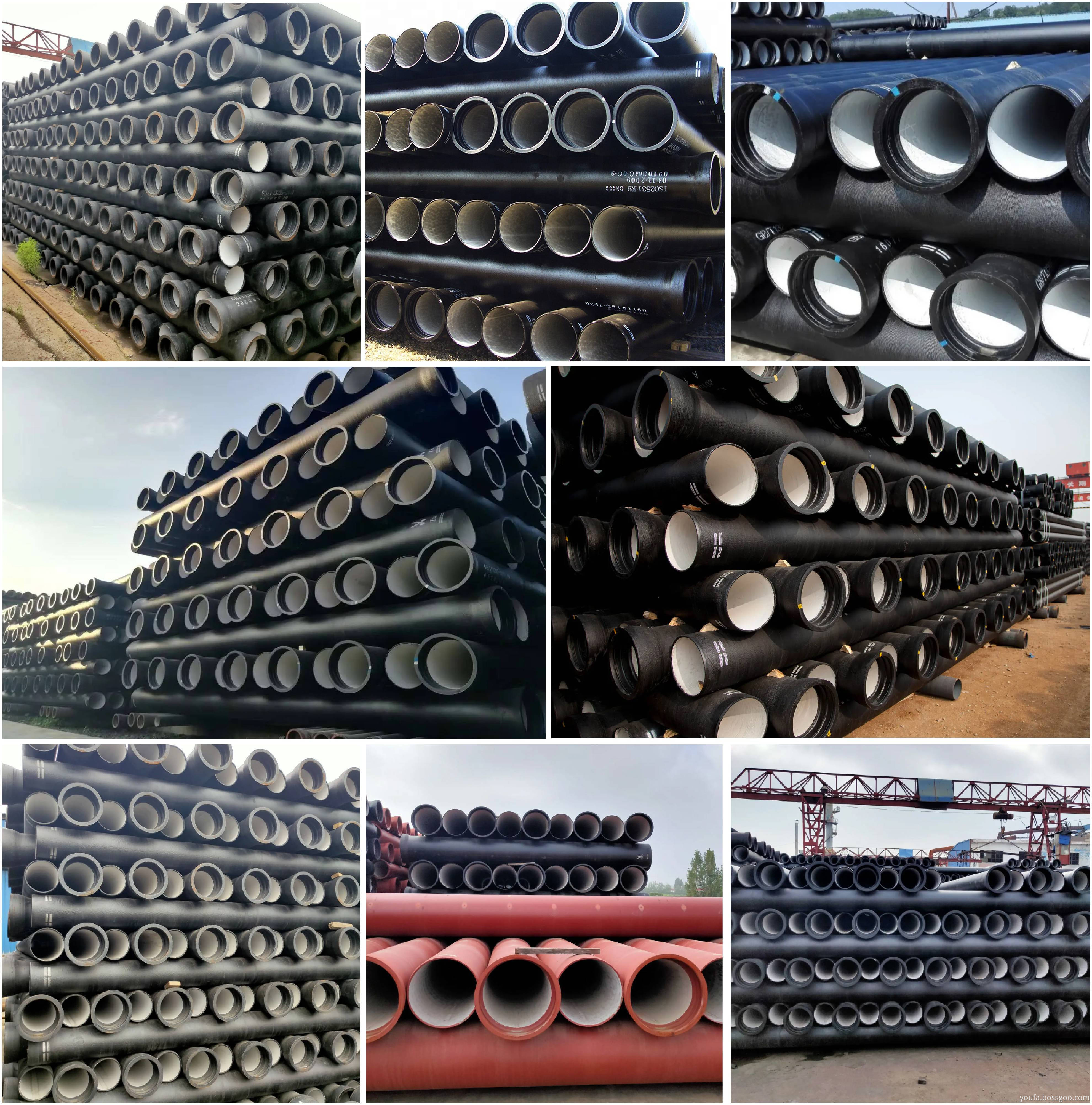

Ductile iron pipe
Ductile iron pipes are available in a range of diameters from 80mm to 1600mm and are suitable for both potable water transmission and distribution (in accordance with BS EN 545) and sewerage (in accordance with BS EN 598).
Ductile iron pipes are simple to joint, can be laid in all weather conditions and often without the need for selected backfill. Its high safety factor and ability to accommodate ground movement make it the ideal pipeline material for a wide range of applications.

Company Profile

Ductile Iron Pipe

Packing & Delivery
DN80-DN300: Usually by bundles;
DN350-DN2000: Usually by bulk;

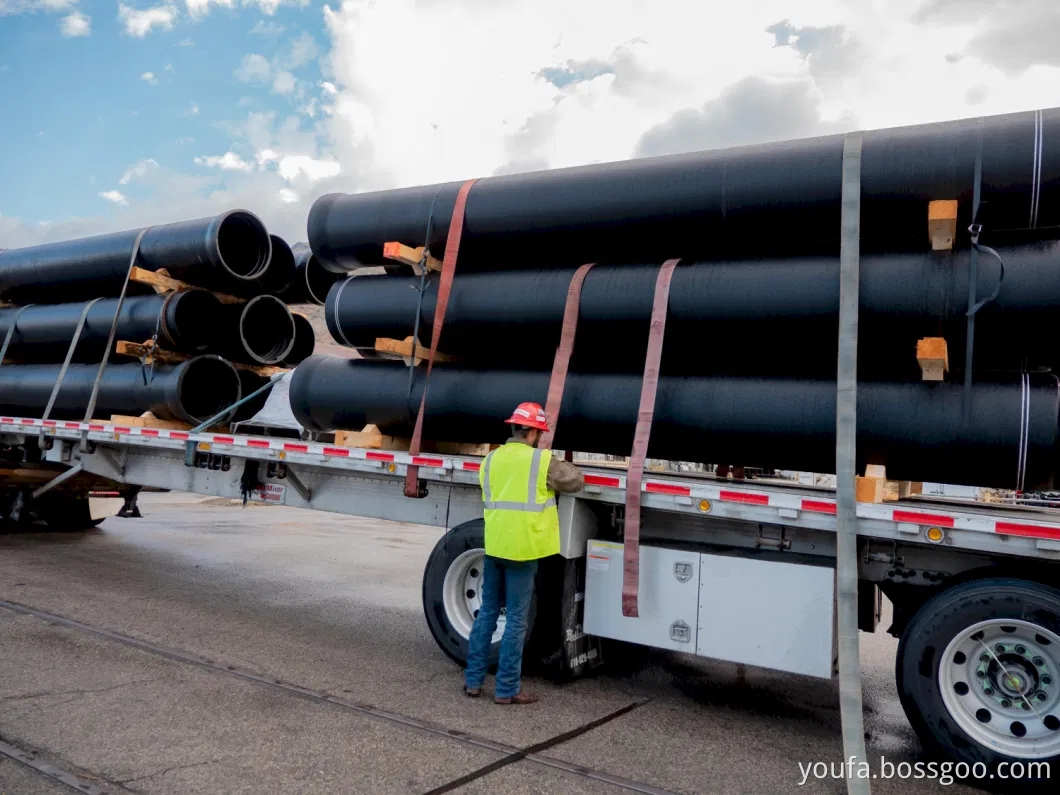

During transportation, the pipes are fixed by timbers, blocks, nails & steel ropes with cushions at the side in possible moving directions;

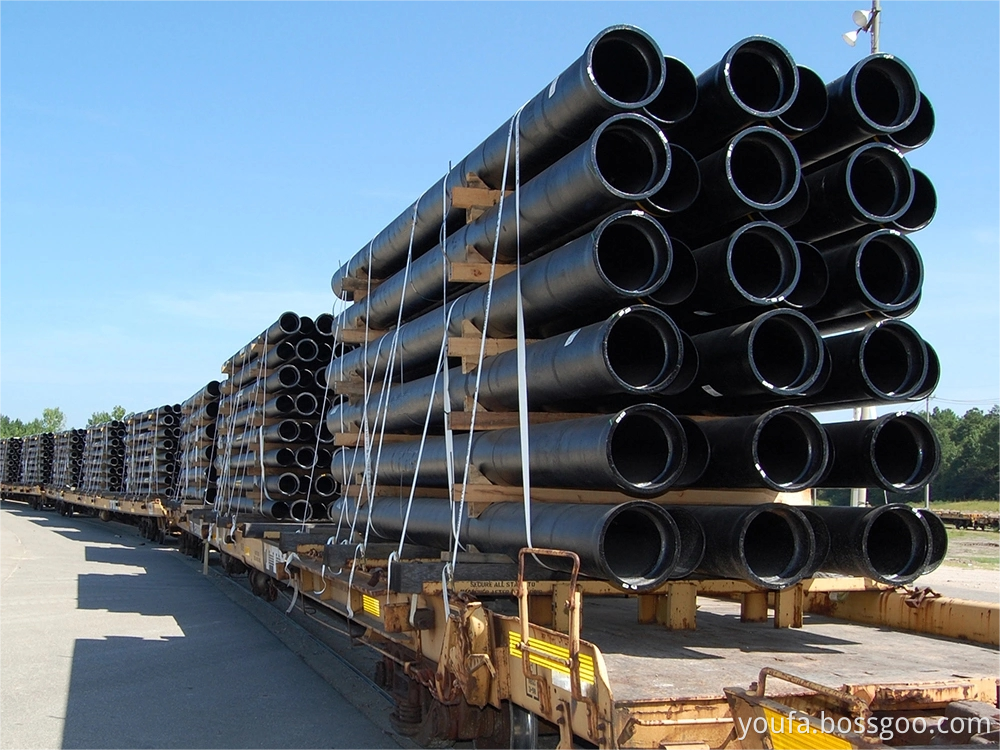

Bulk or containers for shipping, shipment, and trucks or train for inland transport.
We offer different modes of transport depending on the customer's destination: rail transport and ship transport, etc. The Shipping Mark shall consist of: Trade mark, Seller's name, Product name, Applicable standards,Specifications, Package No., Contract No., Heat No., Production date, Weighing method, Net weight, Gross Weight, Consignee and Protection symbols, etc.
