Products Description
This sugar coating machine is mainly used for making pellet, film coating on tablets. It can also be used for making ball shape products or granules, mixing, and polishing, etc.Such as:chocolate polishing, peanut coating, sugar coating,seasoning, producing tapioca pearls, and pelletizing the desiccant & aluminium hydroxide, porcelain ball making, etc.

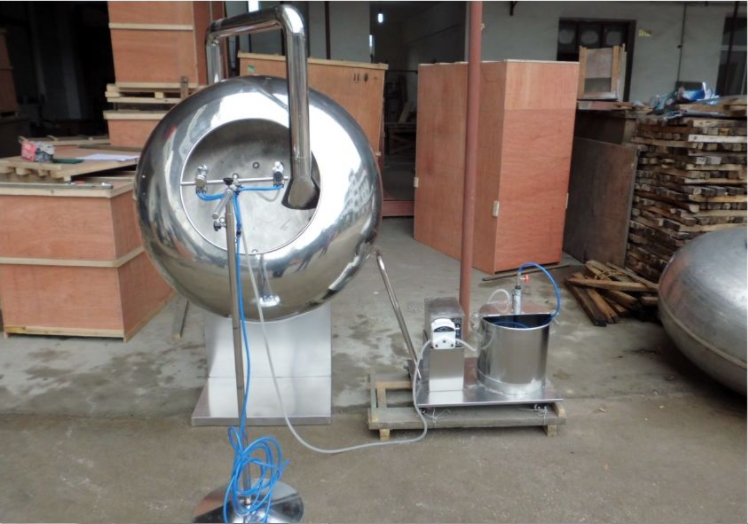

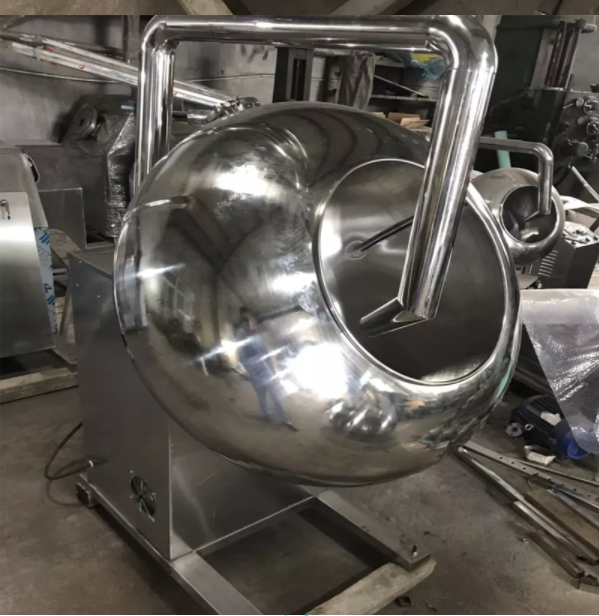

This sugar coating pan consist of main body, worm wheel box, coating pan, heating device,hot air&common blower,electrical equipment, etc. The transmission process that the motor drive the worm wheel and worm via triangle belt to make the coating pan rotate.Then the material revolve up and down in the coating pan, so that even mixing, pelletizing and polishing can be completed well.
Technical Parameters
Model
Coating Drum Dimameter(mm)
Capacity(kg/h)
Rotation Speed(r/min)
Power of motor(Kw)
Power of Fan(Kw)
Power of Heat(Kw)
Overal Size(mm)
Weight(Kg)
TYJ-800
800
30-50/batch
36
1.5
0.12
2.2
1000*800*1430
205
TYJ-1000
1000
50-70/batch
32
1.5
0.12
3
1100*1000*1560
220
Application

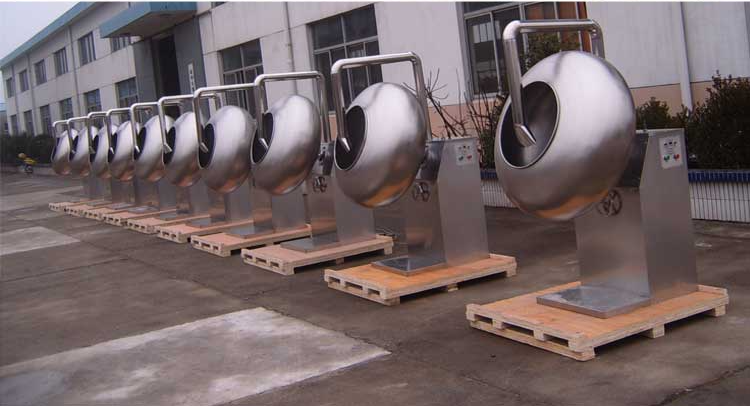

Products Display
