Product details

Carbon steel pipe

Seamless steel pipe is a tubular section or hollow cylinder, usually but not necessarily of circular cross-section, used mainly to convey substances which can flow - liquids and gases (fluids), slurries, powders and masses of small solids.

Hot rolled seamless steel pipe deformation process can be summarized as three stages: extension, perforation and finishing. Hot rolled seamless steel pipes is relative to the cold-rolled, cold rolling is below the recrystallization temperature of the rolling and hot rolled is carried out at above the recrystallization temperature of the rolling. Hot rolled seamless steel pipe can damage the refinement of the crystal grains of the steel, cast microstructure of the steel ingot and eliminate the defects of the microstructure so that the the steel organization compacting, improves the mechanical properties. This improvement is reflected in the rolling direction so that the steel is no longer at a certain extent isotropic; pouring the formation of bubbles, cracks and osteoporosis, under high pressure and temperature can also be welded together.

Hot Rolled Steel Pipes (Seamless Tube) in different size, specifications, grades & thickness as per the client's requirements. The range offered by tubes is available as per the international & national standard and can be available from us at affordable prices. These pipes are used in various application industry like shipbuilding, power plants, oil and gas, automotive, sugar mills and distilleries, cement and construction industries etc.

Product Specification

Out Diameter	13.7mm-914mm
Wall Thickness	2mm-120mm
Length	2m-12m
Producing Standard	American ASME B36.10M, ASTM API 5L, API 5CT, Japanese JIS, German DIN, Chinese GB, BS standard
Steel Grade	ASTM A53, A106, A210, A252, A178, A333, A335, SAE1018, SAE1020, SAE1045 etc; API 5L PSL1: A, B, x42, x46, x52, x56, x60, x65, x70 API 5L PSL2: B, x42, x46, x52, x56, x60, x65, x70, x80 JIS SS400, STPG42, G3454, G3456 etc; DIN St35, St35.8, St37, St42, St45, St52, DIN1626, DIN17175 etc; GB 10#, 20#, 45#, Q235, Q345, Q195, Q215, 16Mn, 27SiMn, 20Cr, 40Cr, 12CrMo, 15CrMo, 30CrMo, 35CrMo, 42CrMo etc; EN S235JR, S275JR, S355JR, S355J0, S355J2
Special specifications	Available according to customer's requirements and quantity.
End Shape	Beveled end, plain end, varnished, or adding plastic caps to protect the two ends as per customer's requirements
Surface treatment	Painted, Oiled, galvanized, phosphate etc
Usage	1.Widely used in the mechanical treatment field, petrochemical industry, transport and construction field 2.Ordinary structural purposes and mechanic structural purposes, for example in construction field, fulcrum bearing etc; 3.The transportation of fluids in the projects and big equipments, for example transport of water, oil, gas etc 4.Can be used in low and medium pressure boiler for the transportation of fluids, for example steam tube, big smoke tube, small smoke tube, generating tube etc
Third party inspection	Welcome you to send a third party inspecting company (BV, SGS etc) to check the quality of our final products.

ASTM A106 Seamless carbon steel tube

ASTM A106/ASME SA106 is the standard specification for seamless carbon steel pipe applied for high temperature services. It includes three grades A, B and C, and common use grade is A106 Grade B. It used in different industries not only for pipeline systems like oil and gas, water, mineral slurry transmission, but also for boiler, construction, structural purposes.

ASTM A106 Grade B pipe is equivalent to ASTM A53 Grade B and API 5L B on chemical position and mechanical properties, in general use carbon steel and yiled strength minimum 240 MPa, tensile strength 415 Mpa.

Description

1. Standards: ASTM A106 (ASME SA106)

2. Products mainly used: apply to bending, curling and similar forming process.

3. The main products of steel / steel grade: Gr.A, Gr.B, Gr.C.

4. Specifications: diameter: 10.3 to 114.3 mm thickness: 0.8 to 12 mm Length: 6 m above, and, in accordance with customer demand, supply and other specifications of steel pipe.

5. Chemical composition and mechanical properties

6. JIS Number and Corrensponding Foreign Standards

Chemical Composition And Mechanical Properties

Grade	Chemical Compositions
Grade	C	Mn	P	S	Si	Cr	Cu	Mo	Ni	V
A106-A	≤0.25	0.27-0.93	≤0.035	≤0.035	≥0.10	≤0.40	≤0.40	≤0.15	≤0.40	≤0.08
A106-B	≤0.30	0.29-1.06	≤0.035	≤0.035	≥0.10	≤0.40	≤0.40	≤0.15	≤0.40	≤0.08
A106-C	≤0.35	0.29-1.06	≤0.035	≤0.035	≥0.10	≤0.40	≤0.40	≤0.15	≤0.40	≤0.08
Grade	Mechanical Properties
Grade	Tensile Strength(Mpa)			Yield Strength(Mpa)			Elongation(%)
A106-A	≥330			≥205			30
A106-B	≥415			≥240			30
A106-C	≥485			≥275			30

API 5L ASTM A53 A106 Standard Wall Thickness
DN	Diameter	SCH40 (6m/5.8m)		SCH80(6m/5.8m)		SCH160(6m/5.8m)
INCH	(mm)	Wall Thickness (mm)	Unit Weight (kg/piece)	Wall Thickness (mm)	Unit Weight (kg/piece)	Wall Thickness (mm)	Unit Weight (kg/piece)
1/4"	13.7	2.24	3.79	3.02	4.80
3/8"	17.1	2.31	5.04	3.20	6.60
1/2"	21.3	2.77	7.62	3.73	9.72	4.78	11.7
3/4"	26.7	2.87	10.14	3.91	13.2	5.56	17.4
1"	33.4	3.38	15.00	4.55	19.44	6.35	25.44
1-1/4"	42.2	3.56	20.34	4.85	26.82	6.35	33.66
1-1/2"	48.3	3.68	24.30	5.08	32.46	7.14	43.5
2"	60.3	3.91	32.64	5.54	44.88	8.74	66.66
2-1/2"	73.0	5.16	51.78	7.01	68.46	9.53	89.52
3"	88.9	5.49	67.74	7.62	91.62	11.13	128.1
3-1/2"	101.6	5.74	81.42	8.08	111.78
4"	114.3	6.02	96.42	8.56	133.92	13.49	201.24
5"	141.3	6.55	130.62	9.53	185.82	15.88	294.66
6"	168.3	7.11	169.56	10.97	255.36	18.26	405.36
8"	219.1	8.18	255.3	12.70	387.84	23.01	667.62
10"	273.0	9.27	361.86	15.09	576.06	28.58	1033.98
12"	323.8	10.31	478.38	17.48	792.48	33.32	1432.56

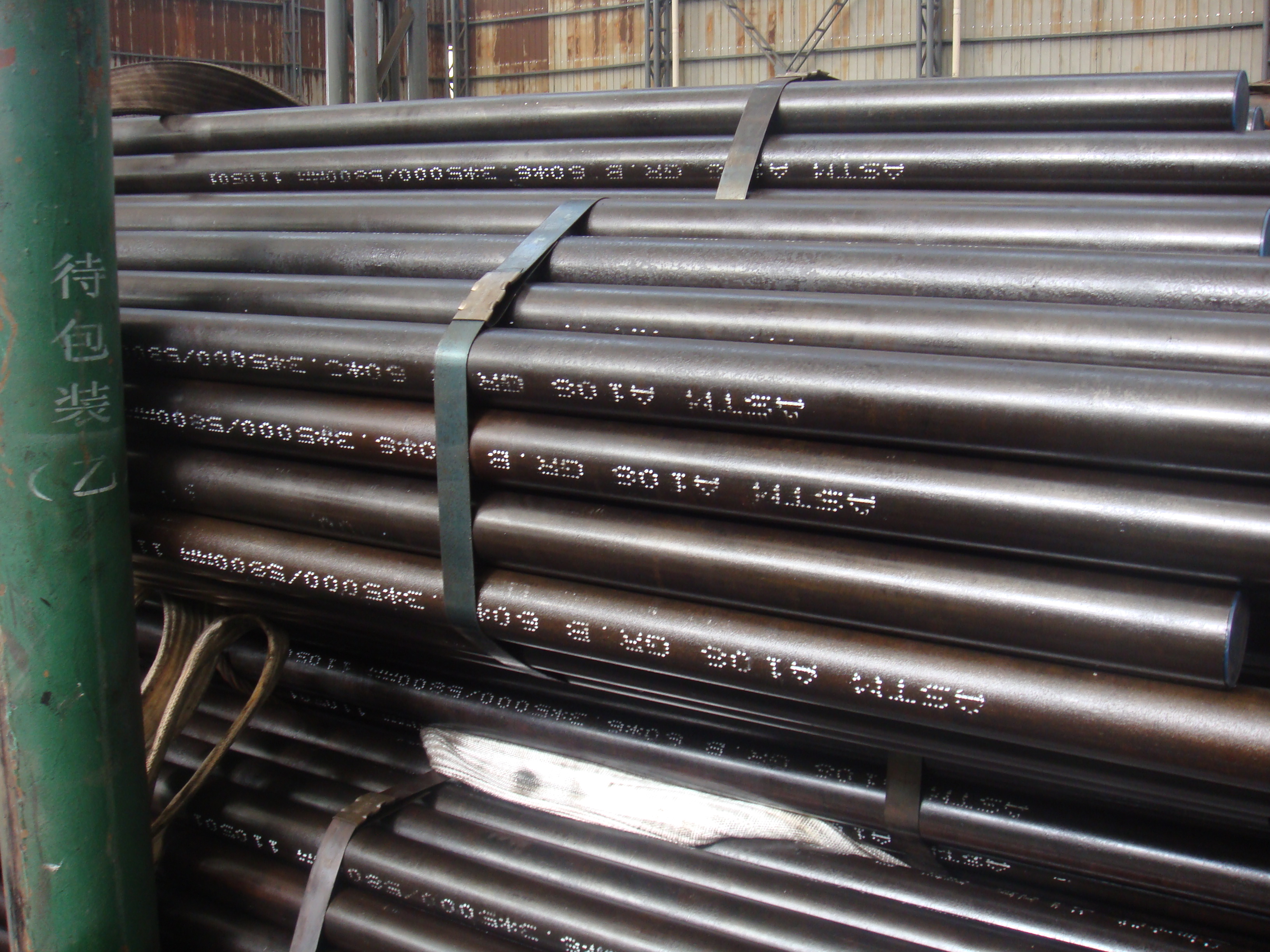

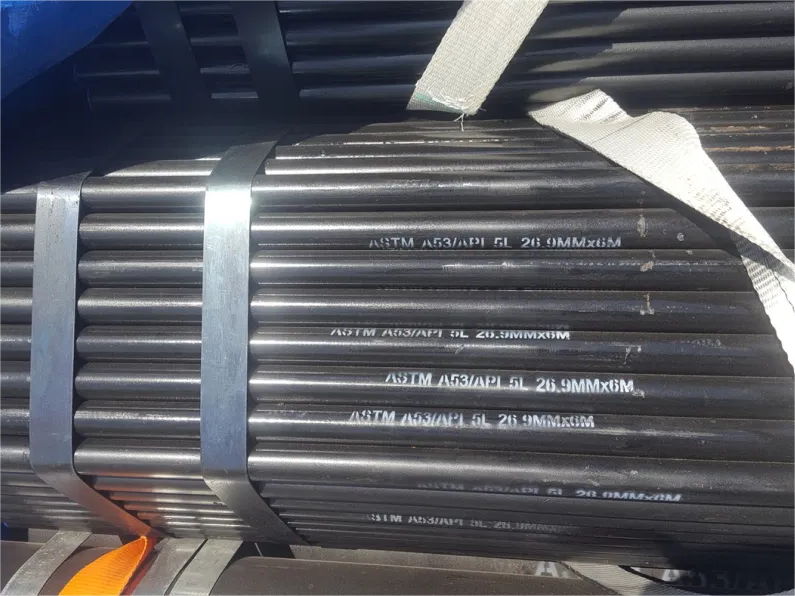

Product Display

We can produce different sizes, thicknesses, widths and materials according to your requirements

Seamless Steel Pipe

Application

Carbon steel pipe and tube are used in high-pressure conditions. They are highly resistant to shock and vibration, making it ideal to transport fluids. Carbon steel pipes are widely used in a number of industries, such as construction material, buidlings, bridges, transporting water and sewage, oil and gas industries, boiler and condenser tubes, high-pressure applications, and chemical processing.

- Construction material / bridges

- Transporting water and sewage

- Oil and gas industries

- Boiler and condenser tubes

- High-pressure applications

- Chemical processing

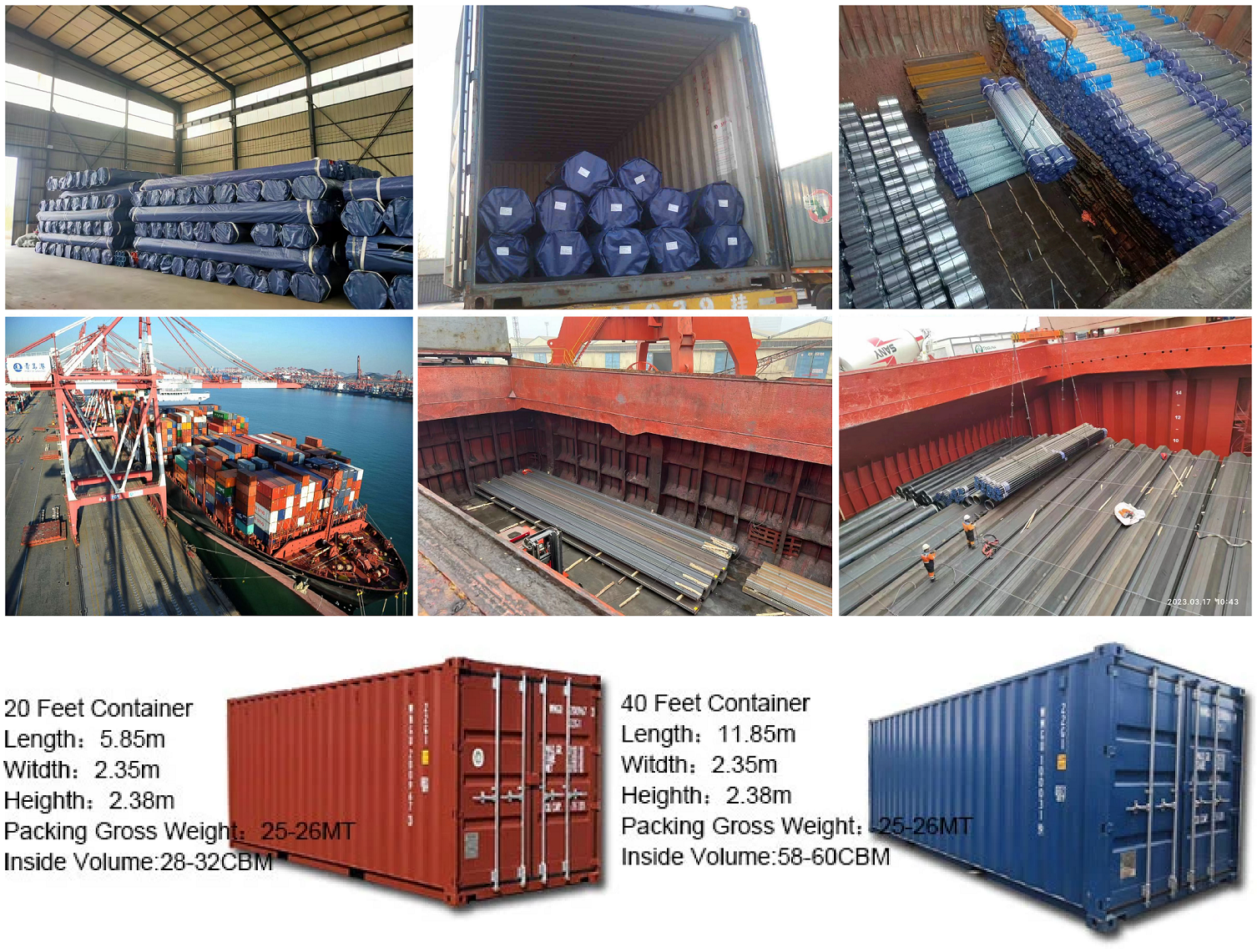

Packaging And Transportation

1) Packaging: 3 layers of packing. Inside is craft paper, Middle is water plastic film and outside GI steel sheet to be covered by steel strips with lock, with inner coil sleeve or as customers' requirements.

2) Shipping: We have long-term cooperation with many experienced shipping companies and will find the most suitable mode of transportation for you.

3) Trade terms: FOB/CIF/CFR

4) Shipping port: Qingdao/Tianjin/Shanghai

5) Shipment: A: Length: ≤6m, loaded in 20GP Container. B: Length: ≤12m, loaded in 40GP Container.

Remark: Size of 20GP Container (inside: 5898*2352*2393mm); Size of 40GP Container (inside: 12032*2352*2393mm); Size of 40HQ Container (inside: 12032*2352*2698mm).

6) Delivery time: Normal size: 7-15days send from warehouse directly. Special size: 15-30days custom made for you.
