Handheld Thermal Camera 25Hz Temperature Detector
JRTIT-5 Handheld thermal camera with 1024 pixels (32*32) thermal imaging resolution and 25Hz Refresh Rate, is an outdoor infrared thermal imaging thermometer that can capture high-definition imaging at night.This temperature detector has wide temperature range -4°F ~ 752°F(-20-400°C), and small size 60*120*210mm, so that it's welcomed for law-enforcing department. It is already widely used in circuit maintenance, pipeline detection, anti-peep-watching, pet search, line maintenance, night vision, automobile fault detection and other fields.
Technical Specifications:
Product Model: JRTIT-5(b240321YQ24-1)
Thermal imaging resolution: 1024 pixels (32*32)
Electronic shutter: None
Visible light camera: 2 million pixels
Display mode: Thermal imaging, Thermal mixing, Digital camera
Color palette: Iron red, rainbow, black and white
Field of View (FOV) : 33°horizontal
Thermal imaging sensitivity: 150mk
Save image format: bitmap (BMP) image
Temperature range: -20℃ to 400℃
Frame rate: ≤9Hz
Basic accuracy: 0 ° C to 400 ° C Accuracy: ±1.8% or ±1.8 ° C,
-20 to -0.9℃ Accuracy: ±3℃ test conditions, emissivity: 0.95
Ambient temperature: 25±2℃
Emissivity: 0.10-0.99 Custom adjustment
Measurement resolution: 0.1℃/F
Response time: 150ms
Wavelength range: 8~14μm
Equipment size: 60*120*210mm
Display type: 2.4 "TFT LCD
Display resolution: 320*240 pixels
Battery: 3.7V/2600mAh
Automatic shutdown function: Yes
Certification: CE
Memory card: 8GB Mini TF card
Operating temperature: -10℃ to 45℃,14F to 113F
Drop resistance test: Designed to be 1 m, (3.28 ft)
Standard: Charging head, manual, data cable, 8GB Mini TF card
Handheld Infrared Thermal imager Camera Advantages

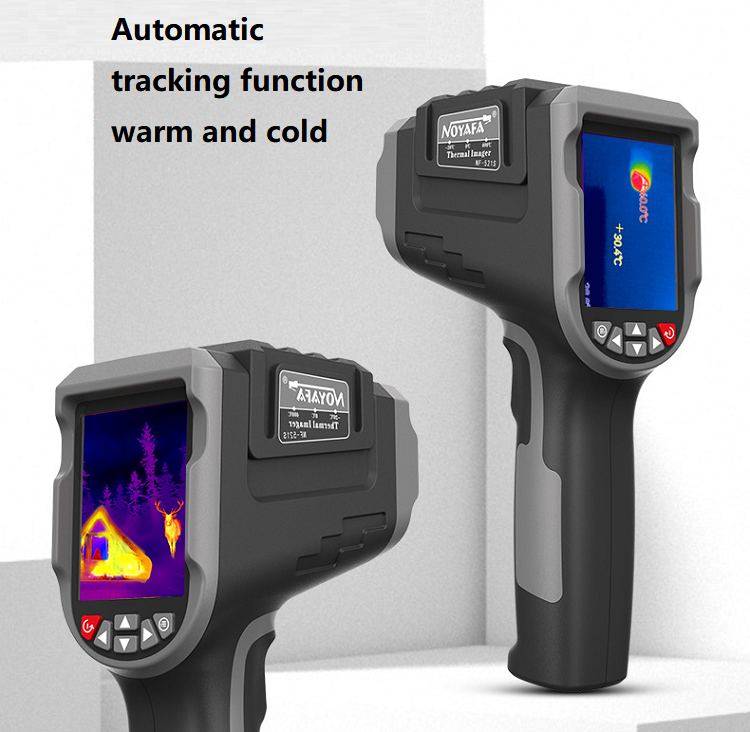

* Automatic tracking function warm and cold
How to use the Handheld Thermal Imagery Camera?

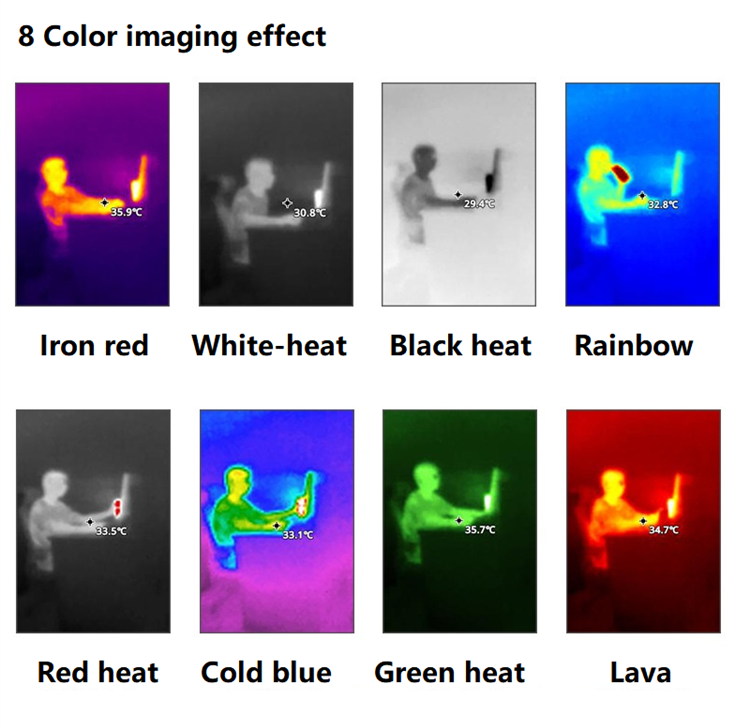

8 color palettes for different scenes to choose different modes
