Product details

Wire Braided Flexible Hose Pipe

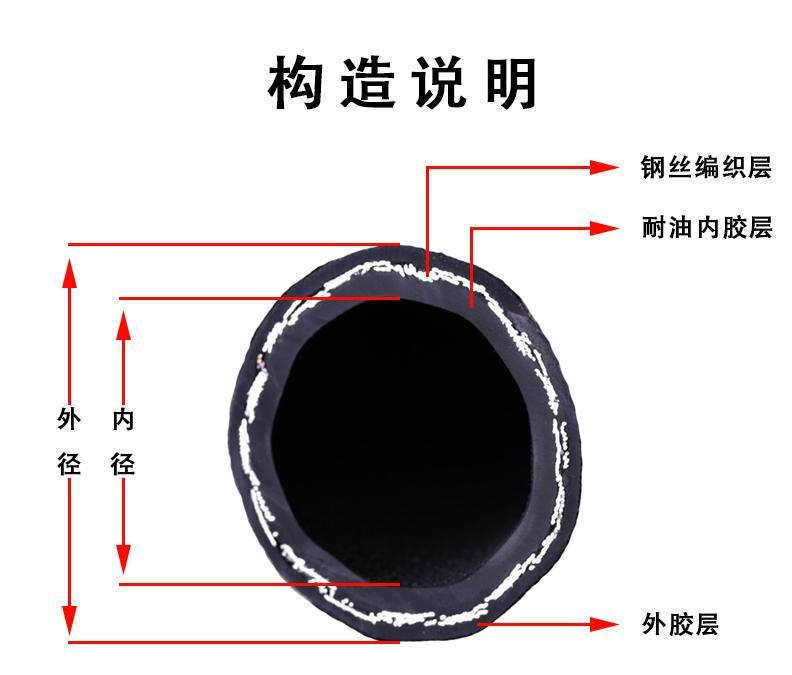

Structure: synthetic rubber tube, 1 to 3 layers with wire braided reinforcement, and the coverlayer is made of synthetic rubber which is well resistant to weathering.
Application: high quality hydraulic hose rubber is widely used into petroleum base and water base of hydraulic system.Temperature range: -40℃ to 100℃
Standard: GB/T3683 IS01436
Property: Steel Wire Braided Hydraulic Rubber Hose under hydraulic systems of engineering mechanism, and its bearing strength ishigher than type A605.
Appearance: black, mill finish and wove

SAE100 R1AT Hydraulic Hose / flexible steel wire reinforced hose /Spiral Pipe/Oil Hose

SAE 100 R1 steel wire reinforced hydraulic hose is suitable for hydraulic lines and usual industrial systems. It can bear higher working pressure than other rubber hoses thanks to its high tensile braided steel wire reinforcement. It is composed of three parts: tube, reinforcement and cover. The tube is made from oil resistant synthetic rubber, making the hose have excellent performance in delivering oils. The reinforcement is made from one layer of high tensile braided steel wire, making the hose have outstanding high pressure resistance. The cover is made from high quality synthetic rubber, making the hose resistant to abrasion, corrosion, weather, ozone, aging, sunlight and cut. Therefore, it has longer service life.

High Pressure Rubber Hose pipe

Hose Mark	Inner diameter I.D	Steel wire layer Outer diameter B.D	Outside diameter of hose 0.D		Work stress W.P	Blasting Pressure B.P	Minimum Bend Bend radius B.R	Reference weight W.T	Length
	Inner diameter I.D	Steel wire layer Outer diameter B.D	A type	AT type (max)	Work stress W.P	Blasting Pressure B.P	Minimum Bend Bend radius B.R	Reference weight W.T	Length
	mm	mm	mm	mm	MPa	MPa	mm	kg/m	m
905A-5Ⅰ-21.0	5.0 +0.4 -0.5	9.5±0.5	12.7±0.8	12.5	21	84	90	0.25	20，50
905A-6Ⅰ-19.2	6.3 +0.6 -0.2	11.2±0.5	15.9±0.8	14.1	19.2	77	100	0.31	20，50
905A-8Ⅰ-17.5	7.9 +0.6 -0.2	12.7±0.6	17.5±0.8	15.7	17.5	70	115	0.38	20，50
905A-10Ⅰ-15.7	9.5 +0.6 -0.2	15.1±0.6	19.8±0.8	18.1	15.7	63	130	0.45	20，50
905A-13Ⅰ-14.0	12.7 +0.8 -0.4	18.3±0.8	23.0±0.8	21.5	14	56	180	0.55	20，50
905A-16Ⅰ-10.5	15.9 +0.8 -0.5	21.4±0.8	26.2±0.8	24.7	10.5	42	200	0.63	20，50
905A-19Ⅰ-8.7	19.0 +0.8 -0.4	25.4±0.8	30.2±0.8	28.6	8.7	35	240	0.77	20，50
905A-25Ⅰ-7.0	25.0 +1.4 -0.0	33.3±0.8	38.0±1.2	36.6	7	28	320	1.06	20，50
905A-32Ⅰ-4.3	32.0 +1.0 -0.6	40.5±1.1	46.0±14	44.8	4.3	17.5	420	1.45	20，50
905A-5Ⅱ-35.0	5.0 +0.4 -0.5	11.2±0.5	15.9±0.8	14.1	35	140	90	0.37	20，50
905A-6Ⅱ-35.0	6.3 +0.6 -0.2	12.7±0.6	17.5±0.8	15.7	35	140	100	0.42	20，50
905A-8Ⅱ-29.7	7.9 +0.6 -0.2	14.3±0.6	19.1±0.8	17.3	29.7	119	115	0.51	20，50
905A-10Ⅱ-28.0	9.5 +0.6 -0.2	16.7±0.6	21.4±0.8	19.7	28	112	130	0.6	20，50
905A-13Ⅱ-24.5	12.7 +0.8 -0.4	19.8±0.8	24.6±0.8	23.1	24.5	98	180	0.7	20，50
905A-16Ⅱ-19.2	15.9 +0.8 -0.5	23.0±0.8	27.8±0.8	26.3	19.2	77	200	0.86	20，50
905A-19Ⅱ-15.7	19.0 +0.8 -0.4	27.0±0.8	31.8±0.8	30.2	15.7	63	240	1.04	20，50
905A-25Ⅱ-14.0	25.0 +1.4 -0.0	35.0±0.8	39.7±1.2	38.9	14	56	320	1.42	20，50
905A-32Ⅱ-11.3	32.0 +1.0 -0.6	44.5±1.1	50.8±14	49.6	11.3	45.5	420	2.23	20，50

Shaanxi Yanchang Petroleum Northwest Rubber Co., Ltd. is a state-owned enterprise reorganized from the former Northwest Rubber General Factory and its subordinate Northwest Kaidi Company, which is the largest and strongest rubber enterprise in Northwest China with comprehensive strength.
The company has dozens of production equipment and testing instruments imported from abroad, with advanced production technology and testing means, and its technical center has become a provincial scientific research and technology center. The company passed the ISO9001:2000 and GJB9001A-2001 quality system certification in March 2003, and was awarded the first-class quality inspection organization by China Petroleum and Chemical Industry Association.
