Coffe powder WPV200 packing machine

Coffe powder WPV200 packing machine

4 year ago

74 0

Shanghai WeeShine Machinery Co., Ltd.

 4 year year

Product details

SHANGHAI WEESHINE VERTICAL AUTOMATIIC PACKAGING MACHINE

Products Description

Model	WPV250
Suitable Bag Type	Pillow Bag , Gusseted Bag , Linked Bag,Quad Seal
Bag Sizes	(W) 100-250mm (L)100-370mm
Film Width	200-520mm
Packing Speed	10-65Bags/min
Powder Supply	AC220V , 50-60Hz , 4.5KW
Compressed Air Cost	6-8kg/m³, 0.45m³/min
Application	Granular materias, such as candy, chips, snacks, biscuit, puffed food, nuts, dried fruit, frozen food, tea leaf etc. Powder materias, such as flour, milk powder, milk tea powder, spice powder,coffee powder, chili powder etc.
Weight	600kg
Dimension	(L) 1350mm * (W) 1200mm * (H) 1550mm

Main Features

1.Equipped with safety protection system, company with hygiene requirements.
2.Use intelligent temperature controller to ensure the artistic and neat seal.
3.With technical parameters storage function, no need to reset while products and packages changing.
4.Equipped with a fault display system to help timely troubleshooting.
5.Form into pillow bag, gusseted bag, linked bag, quad seal bag according to customer requirements.
6.Use PLC servo system, pneumatic control system and touch screen as a core control unit, maximize the whole machine's control precision, reliability and intelligentized level.
7.Combine with weigher system, conveyor feeding and discharging, date printing equipment to be a complete packaging line.
8. According to the requirements of customers, different materials are equipped with different measuring equipment.Such as granular material will be provide to a multi-head weigher; powder material will be provide to a auger lifter.

Application

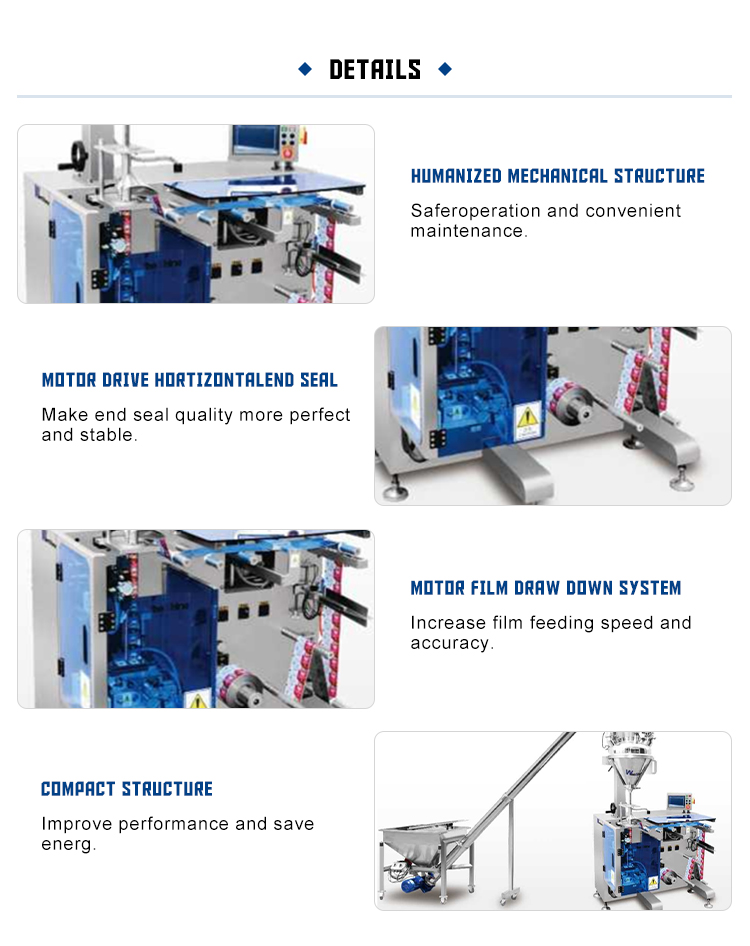

Details Images

Bag Forming Device

Film Pulling Belt

Vertical Sealing

Back Side Of The Film Inlet

Date Code Printer

Horizontal Sealing & Cutting

Outlet

Touch Screen

Electrical Part

Optional Equipments

14 Multi-head Weigher

Bucket Elevator

Platform

Auger Lifter

Auger Filling

Cup Filling

Conveyor

Check Weigher

Rotary Table

Packing & Delivery

Company Profile

About Us

1.A manufacturer of automatic packaging machinery and packaging production line, also automatic conveying systems.

2.With a well-educated excellent technician team has more than 16+ years of experience.
3.With our own factory located in Shanghai, can provide OEM, ODM to our quality customers.
4.Workers have rich experience in comissioning and assembly at domestic and abroad.
5.Provide pre-sale and after-sale services for customers all over the world.
6.Our sales markets in Europe, Southeast Asia, Middle East and others more than 50+ countries.
7.Mainly focus on producing automatic packaging and conveyor system for different kinds of granule strip flaky materials.
8.Applications for nuts, chocolates, candies, biscuits, potato chips, dry fruits, seeds, puffed food, quick frozen products, pet food, baby snacks, medicine etc.
-and powder products, such as flour, milk, rice, coffee powder, spices, seasonings, detergent powder, sugar, salt etc.
9.Provide customized roll film, premade pouch and cans packaging solutions and all life support.

10.Weeshine's packaging solutions will bring you extraordinary experience, to reach win-win cooperation.

Why Choose Us

FAQ

1.How do I know the packing machine model is suitable for my product?
Weeshine: Please advise all the below details of your product and we will check for you.

(1.)Product details
(2.).Bag shape
(3.) Bag size for each weight bag: Film width, bag width & bag length
(4.) Filling weight per bag
(5.)Packing film material
(6.) Production capacity per hour.
(7.) Other requirements

2. How about the delivery time?
Weeshine: All our machines are tailor-made as different customers have different requirements, delivery will be within 15 working
days for the small packing machines. It takes longer time for the large-scale machine.

3. Can you offer some video or pictures of the packing machine?
Weeshine: Yes, of course. We also could help you to test your product on our packing machine and record a video for your reference
if you could send some samples to us.

4. Are you factory or trading company?
Weeshine: We are the factory, and especially R&D, manufacture and sell various packing machines. We have engaged in the packing R&D and production over 16+years.

5. How can we make sure about the machine quality after we make the payment?
Weeshine: We will send you the pictures and videos for you to check the quality, you are welcome to check the quality by yourself before shipping as well.
