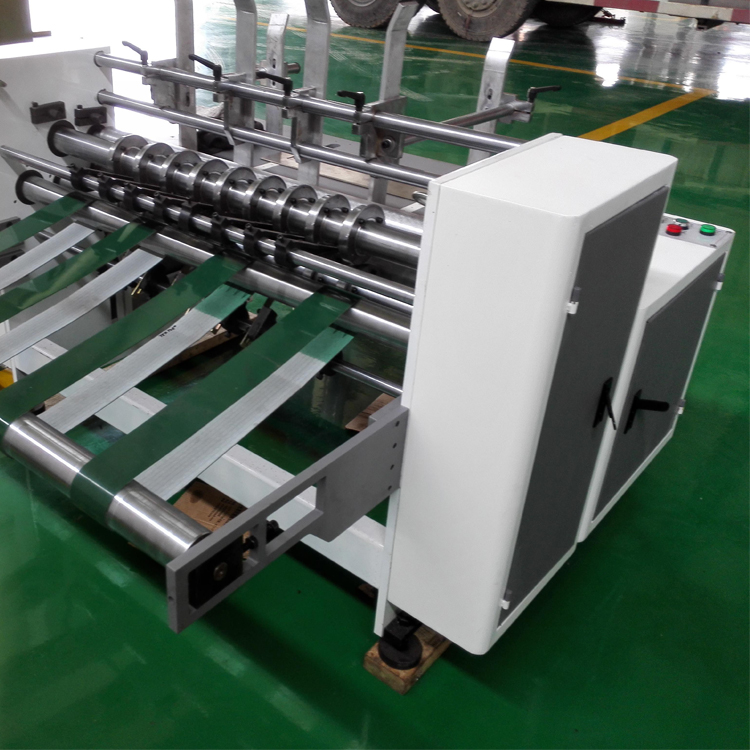

Choose the corrugated paperboard which you want to process, adjust the side feeding baffle (1 in Picture A) . Adjustment method : loose the screws in circle of below picture, move the two side feeding baffles (1 in Picture A) right or left , adjust the distance between two side baffles according to the length of paperboard , after finishing adjustment , tight the screw and fix the baffles .
When the length of paperboard is big , can move the front feeding baffle (3 in Picture A) right or left. Adjustment method : loose the screws in circle of below picture, move the two front feeding baffles (3 in Picture A), adjust the front feeding baffles to the suitable positions according to the length of paperboard , after finishing adjustment , tight the screw and fix the baffles .
|
机械最高速度 Machine max speed |
120 张/分钟 120 pieces/min |
|
最大进纸尺寸 （长×宽） Max feeding size (L×W) |
1000mm×300mm，1200x600mm,1400x600mm |
|
最小进纸尺寸 （长×宽） Min feeding size (L×W) |
100mm×75mm |
|
开槽间距 Min slotting distance |
45 mm |
|
开槽数量 Slotting number |
九组开槽刀 9 groups of slotting knives |
|
切槽宽度 Slotting width |
3.5mm 5mm 7mm (根据纸板厚度任选一) (Choose one according to the thickness of paperboard) |
|
外形尺寸 （长×宽×高） Dimension (Length*Width*Height) |
1500mm×1450mm×1300mm |

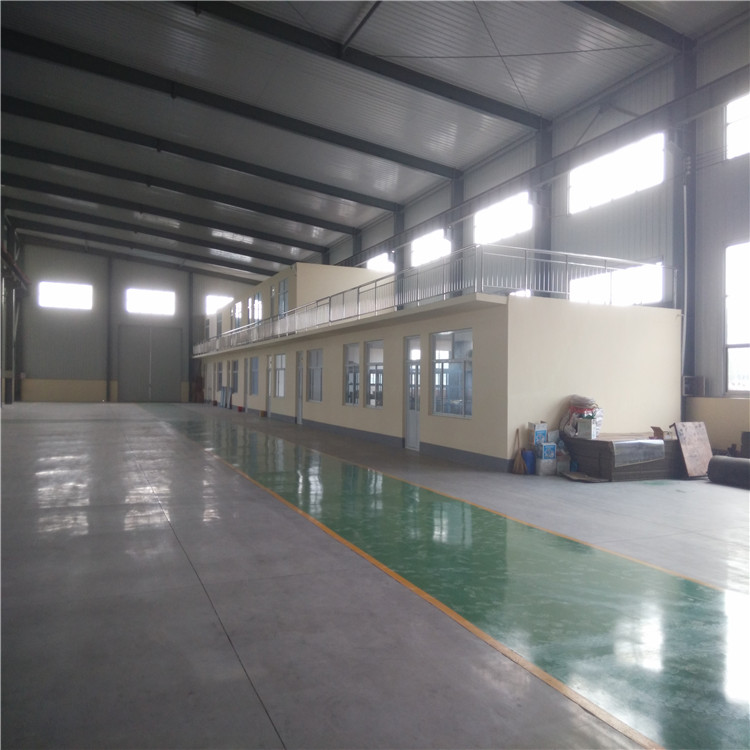

Factory picture
