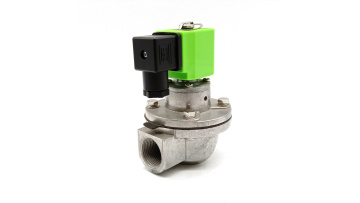

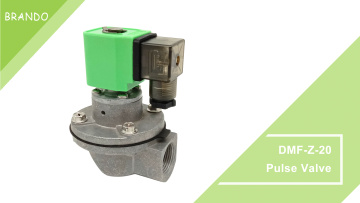

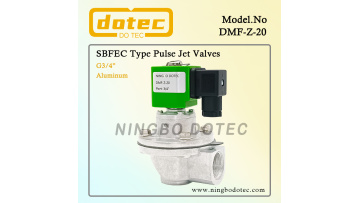

3/4'' BFEC Right Angle Pulse Jet Valve DMF-Z-20
This is DMF-Z-20 BFEC Pulse Jet Valve; 3/4'' inlet and outlet threaded port size; NBR diaphragm; 24V DC, 110V AC, 120V AC, 220V AC, 230V AC (50/60Hz) voltages for you to choose; other voltages can be customized.

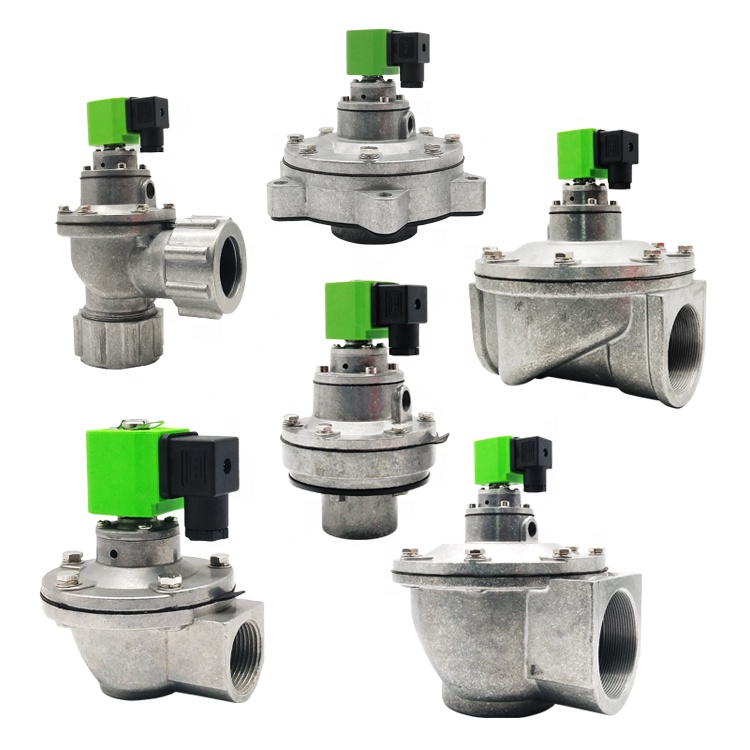

SBFEC Type Pulse Jet Valve:

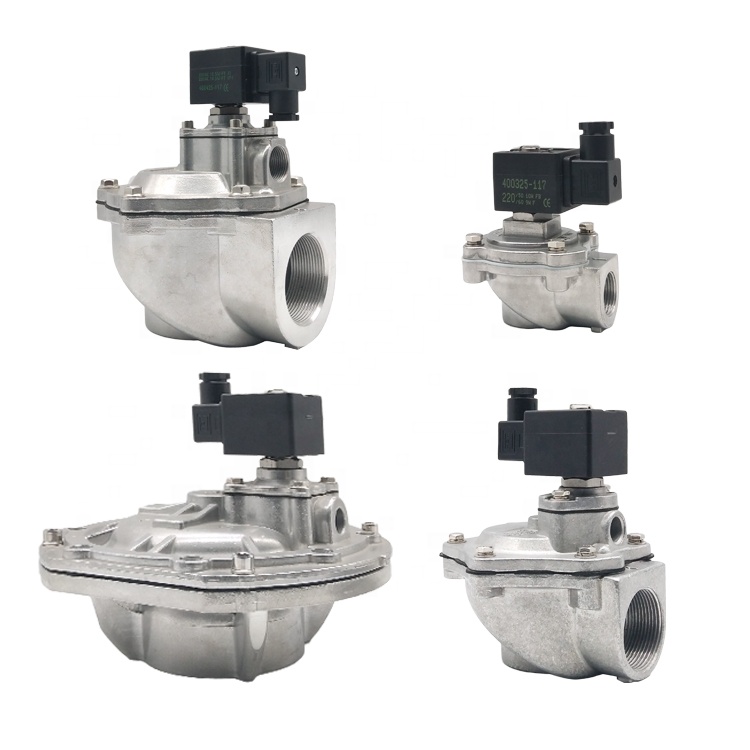

1. Right Angle Pulse Jet Valve: DMF-Z-20, DMF-Z-25, DMF-Z-40S, DMF-Z-50S, DMF-Z-62S, DMF-Z-76S, DMF-Z-102S
2. Quick Mount Pulse Jet Valve: DMF-ZL-B, DMF-ZM-20, DMF-ZM-25, DMF-ZM-40S
3. Immersion Pulse Jet Valve: DMF-Y-25, DMF-Y-40S, DMF-Y-50S, DMF-Y-62S, DMF-Y-76S, DMF-Y-102S
4. Straight Through Pulse Jet Valve: DMF-T-20, DMF-T-25S, DMF-T-40S, DMF-T-50S, DMF-T-62S
5. Flanged Pulse Jet Valve: DMF-ZF-25, DMF-ZF-40S
Technical data of DMF Series Right Angle Pulse Jet Valve:
|
Model
|
Nominal diametrer
|
Number of diaphragms
|
Inlet
|
Outlet
|
Weight (kg)
|
|
|
mm
|
inch
|
|||||
|
DMF-Z-20
|
Φ20
|
3/4''
|
1
|
G3/4''
|
G3/4''
|
0.65
|
|
DMF-Z-25
|
Φ25
|
1'''
|
1
|
G1''
|
G1''
|
0.8
|
|
DMF-Z-40S
|
Φ40
|
1 1/2''
|
2
|
G1 1/2''
|
G1 1/2''
|
1.4
|
|
DMF-Z-50S
|
Φ50
|
2''
|
2
|
G 2''
|
G2
|
2.4
|
|
DMF-Z-62S
|
Φ62
|
2 1/2''
|
2
|
G2 1/2''
|
G2 1/2''
|
3.5
|
|
DMF-Z-76S
|
Φ76
|
3''
|
2
|
G3''
|
G3''
|
4.3
|
|
DMF-Z-90S
|
Φ90
|
3 1/2''
|
2
|
G3 1/2''
|
G3 1/2''
|
5.75
|
|
DMF-Z-102S
|
Φ102
|
4''
|
2
|
G4''
|
G4''
|
7.3
|
|
DMF-ZL-B
|
Φ20
|
3/4''
|
1
|
G3/4''
|
Φ27
|
0.75
|

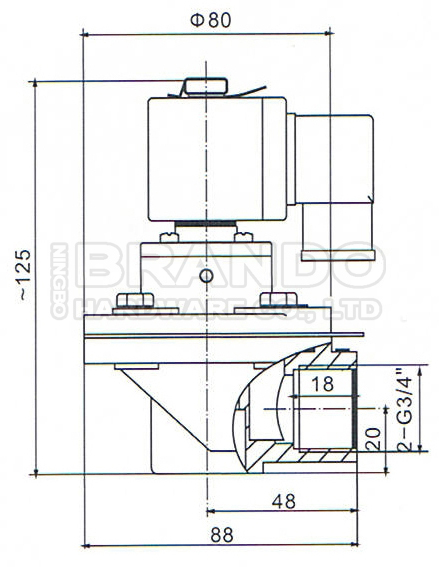

Main dimension of DMF-Z-20 3/4'' BFEC Pulse Jet Valve:
List of All DMF Series BFEC Pulse Jet Valves:
|
Thread Valve
|
3/4''
|
1''
|
1.5''
|
2''
|
2.5''
|
3''
|
4''
|
|
DMF-Z-20
|
DMF-Z-25
|
DMF-Z-40S
|
DMF-Z-50S
|
DMF-Z-62S
|
DMF-Z-76S
|
DMF-Z-102S
|
|
|
Quick Mount Valve
|
3/4''
|
Inlet φ27
|
1''
|
1.5''
|
|||
|
DMF-ZM-20
|
DMF-ZL-B
|
DMF-ZM-25
|
DMF-ZM-40S
|
||||
|
Flange Valve
|
1''
|
1.5''
|
|||||
|
DMF-ZF-25
|
DMF-ZF-40S
|
||||||
|
Embedded Valve
|
1''
|
1.5''
|
Outlet φ62mm
|
Outlet φ75
|
Outlet φ89
|
Outlet φ114
|
Outlet φ102
|
|
DMF-Y-25
|
DMF-Y-40S
|
DMF-Y-50S
|
DMF-Y-62S
|
DMF-Y-76S
|
DMF-Y-102S
|
DMF-Y-102SA
|
|
Brando Supply:

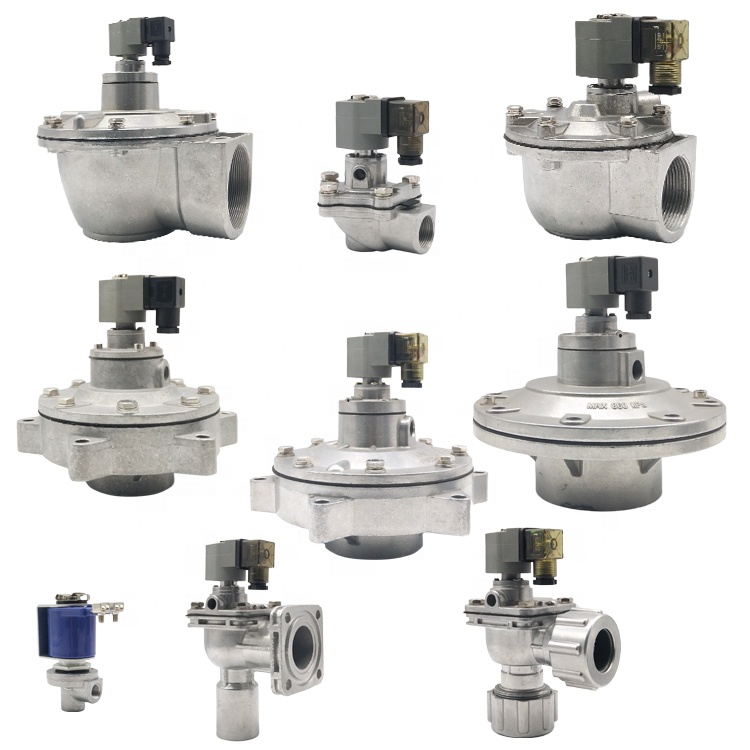

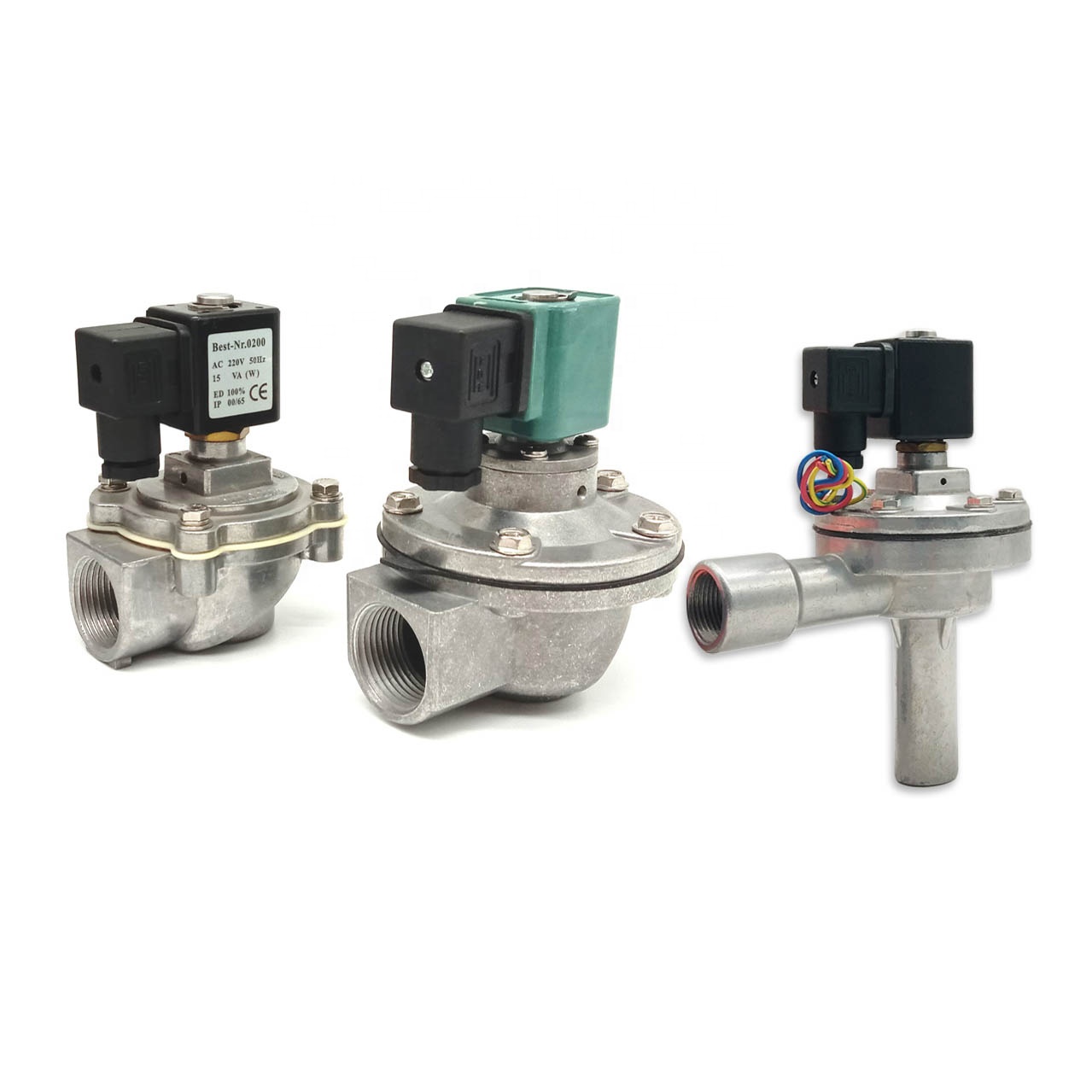

*SBFEC Type Pulse Jet Valve *Goyen Type Pulse Jet Valve *ASCO Type Pulse Jet Valve *Other Dust Collector Valve

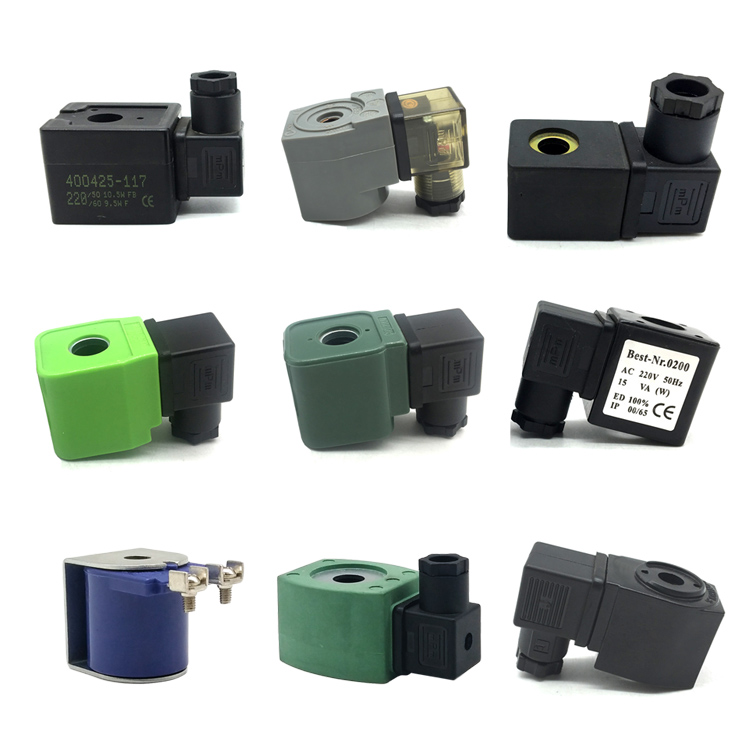

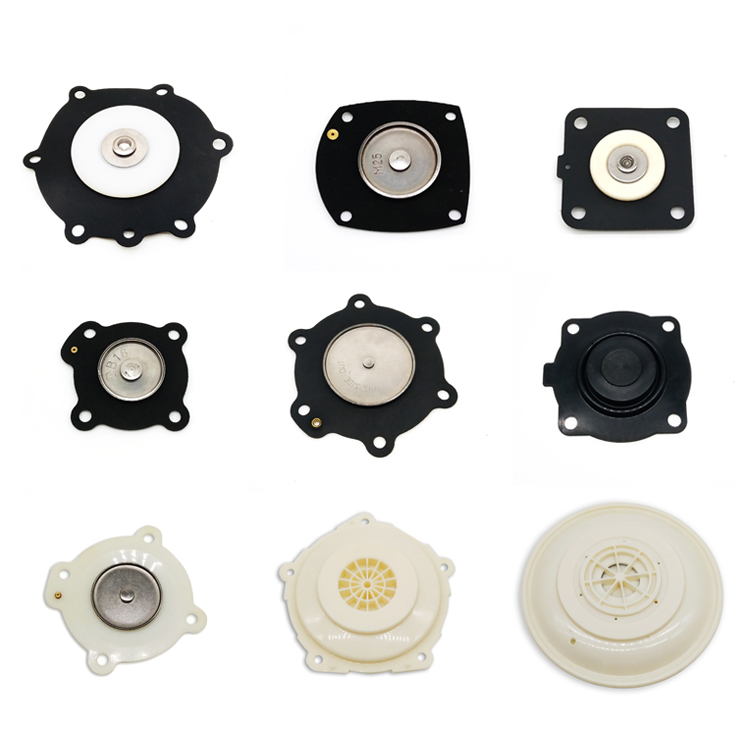

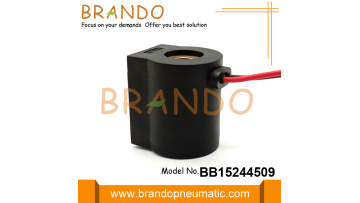

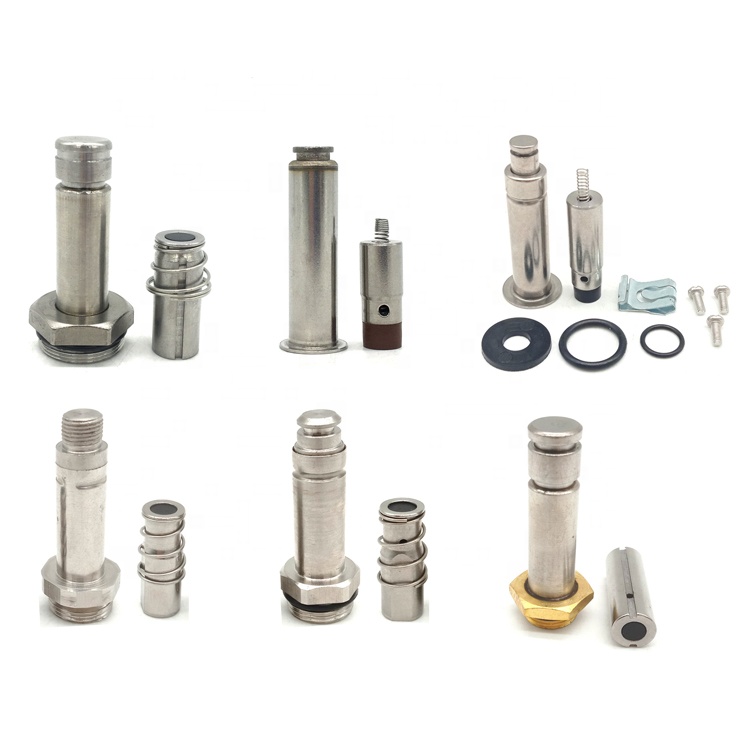

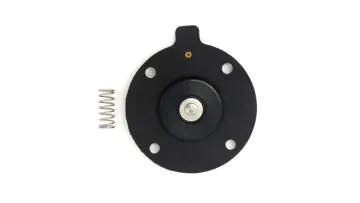

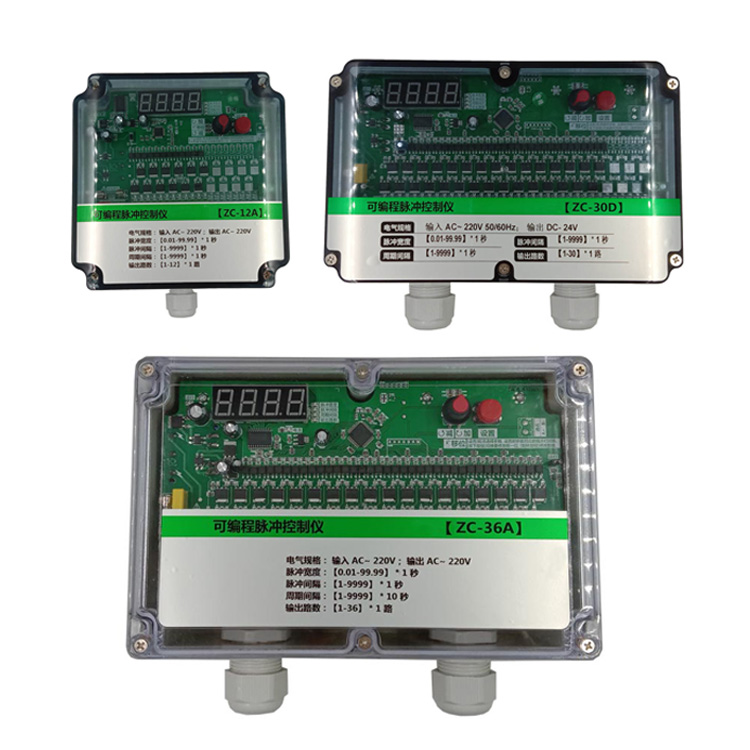

*Solenoid Valve Coil *Solenoid Armature/Stem *Diaphragm Repair Kit *Pulse Controller
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
