Product details

Plastic PVC pipe extrusion machine line

Description:

Zhangjiagang Sevenstars Machinery mainly produce Plastic Pipe Making Machine,Plastic Profile Extrusion Machine,Plastic Board Sheet Extrusion Machine,Plastic Auxiliary Machinery.

There are three types of PVC pipe production lines for different capacity for same diameters pipes.

They are as below:

1.PVC one cavity production line

--one cavity PVC pipe extrusion line

Φ20-Φ630 series PVC pipe extrusion machine line is mainly used in the manufacture of plastic PVC

pipes with various diameters and wall thickness used in the industries such as agricultural and

constructional plumbing,cable laying etc. This line is composed of conical twin screw extruder,Vacuum

calibration tank,haul off,motors,cutter and stacker etc. The extruder and haul off methods are two-claw,

three-claw four-claw,six-claw,eight-claw,ten-claw,twelve claw etc. You may choose saw blade cutting

type or planetary cutting type. It is aditionaly attached with length counter and intensifying device.

This line with reliable performance and high production eficiency. Our company can also manufacture

special pipe production lines,e.g. spiral silencing pipe and core foaming pipe according to your

requirements.

2.PVC double-pipe production line

--two cavities PVC pipe extrusion line

The production line is developed with the advanced technology of west Europe by our company. The

main machine is SJSZ55/120 or SJSZ65/132 conical twin screw extruder is equipped with double-tube

single control stainless steel spraying calibration,it avoids waste condition when one tube is adjusted

and the other one is affected. The auto single-control double drawing machine and cuting machine are

combined with the front double calibration technology to make operation more flexible let you enjoy

economic benefit which is brought by separate-control double tube extruding.

3.PVC four cavities production line

--four cavities PVC pipe extrusion line

Four cavities PVC electrical tube,water supply pipeextrusion line can extruder four pipes at same time on

one machine.This line can save investment cost in factory buiding and production,which increase the

capacity a lot and reduce production time.SJSZ65 conical twin-screw extruder can easily reach 5.5-6.5

ton/per day,the production speed take 16mm as example can get more than 8-10m/min.

The whole line is composed of conical twin-screw extruder 65mm,4 cavity mould,4 cavity coling

calibration tank,4 station haul off,4 station cutter and 4 station tipping table.

Parameters of PVC pipe machines:

Model/Item	Pipe range	Extruder	Max output	Max speed	Total power
PVC-50*2	16-50mm	SJSZ65/132	250kg/h	10 m/min	85 kw
PVC-63	16-63mm	SJSZ51/105	150 kg/h	10 m/min	60 kw
PVC-110	50-110mm	SJSZ55/110	180 kg/h	10 m/min	70 kw
PVC-160	63-160mm	SJSZ65/132	300 kg/h	5 m/min	90 kw
PVC-250	110-250mm	SJSZ80/156	400 kg/h	3.5 m/min	120 kw
PVC-315	160-315mm	SJSZ80/156	400 kg/h	3 m/min	160 kw
PVC-450	250-450mm	SJSZ92/188	700 kg/h	1.5 m/min	200 kw
PVC-630	315-630mm	SJSZ92/188	700 kg/h	0.9 m/min	230 kw

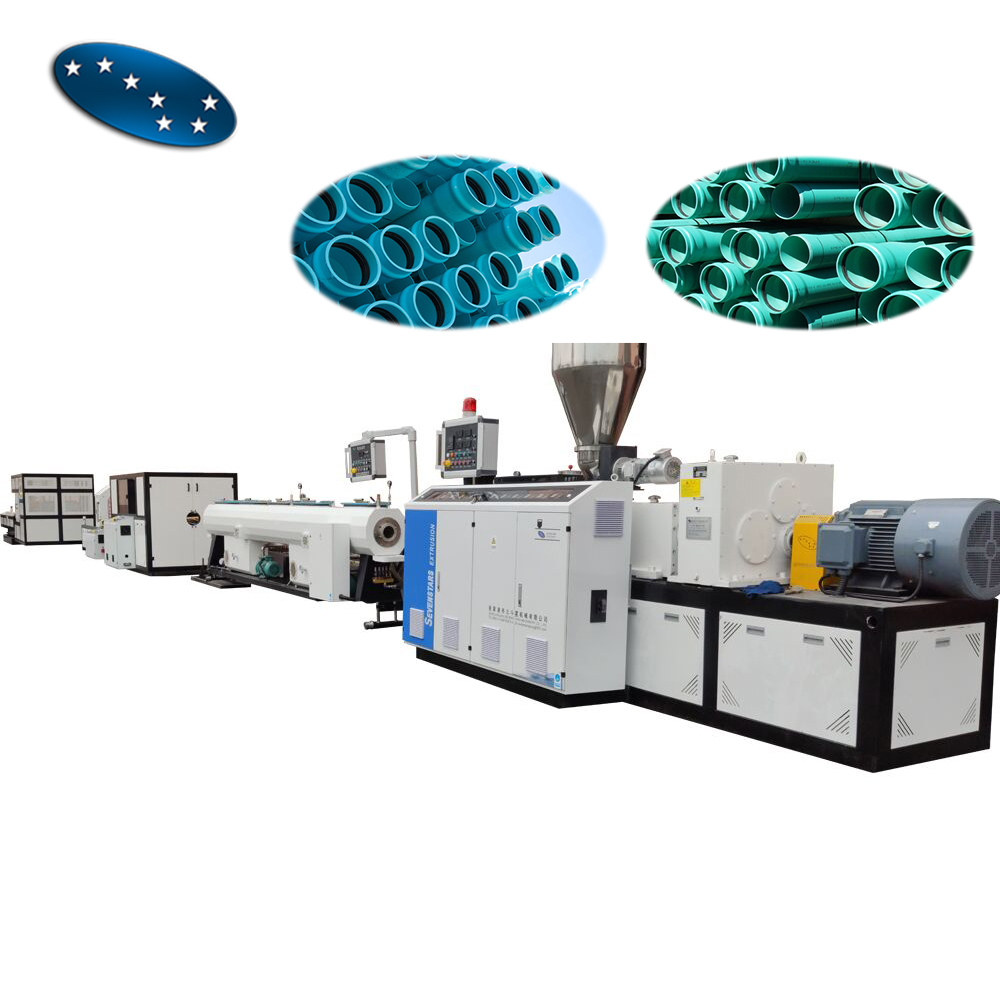

PVC pipe production line with belling machine

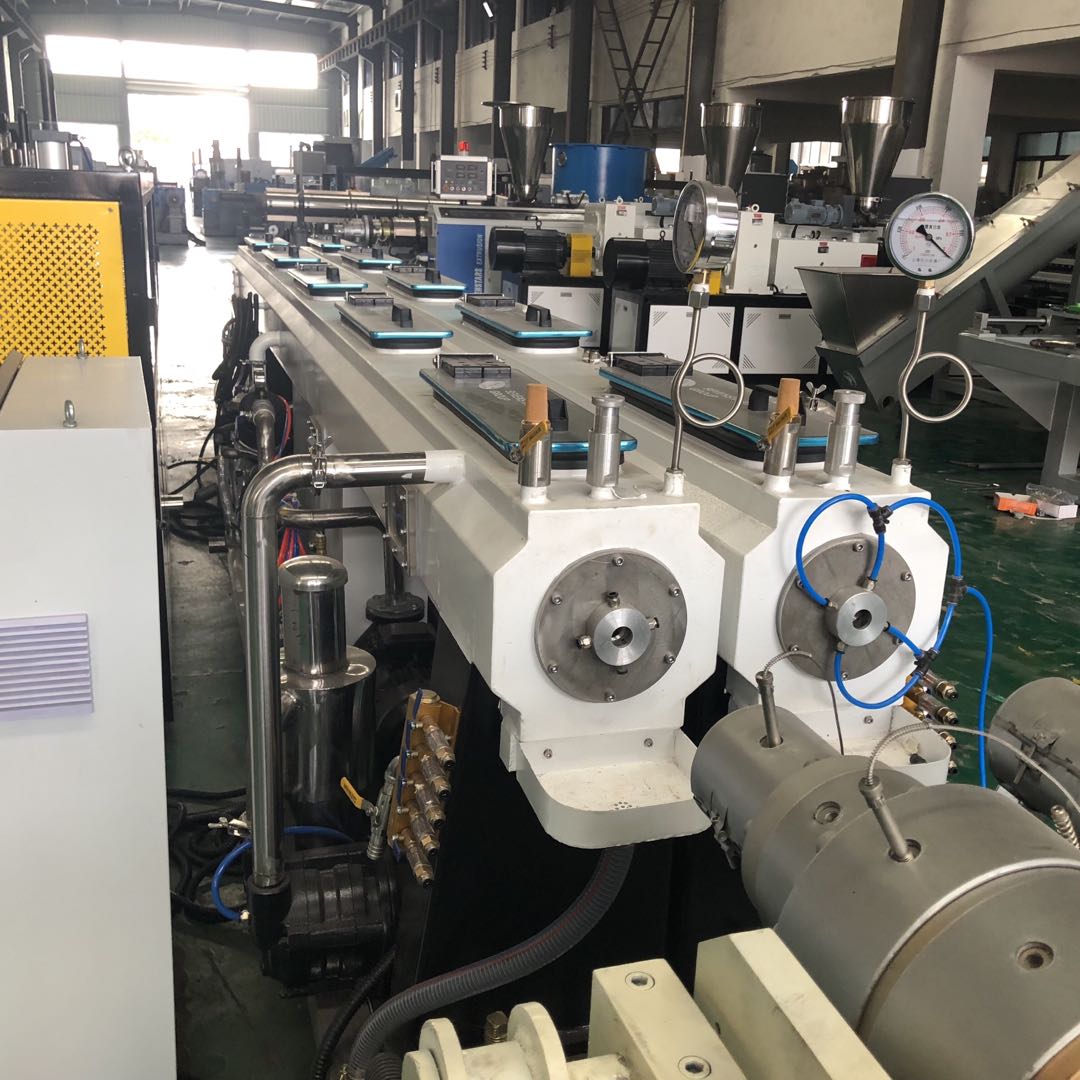

Double cavity PVC pipe extrusion line

Four cavity PVC pipe production line
