Name
|

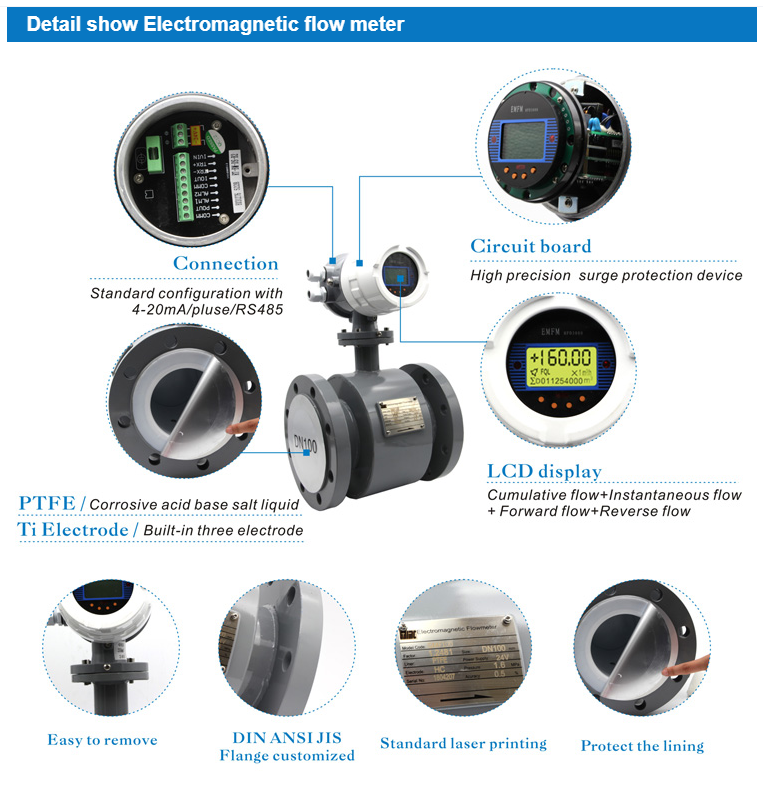

Electromagnetic Flowmeter
|
|
Model
|
CXLD
|
|
Nominal diameter
|
3-3000mm
|
|
Velocity range
|
0-10m/s
|
|
Degree of accuracy
|
±0.5%R,±1%R
|
|
Medium conductivity
|
≥5μS/cm,Actual conductivity≥20μS/cm
|
|
Nominal pressure
|
0.6MPa/1.0Mpa/1.6MPa/2.5MPa/4.0MPa
|
|
Ambient Temperature Ranges
|
fission –10~+60℃
|
|
Lining Material
|
Chloroprene rubber (CR),80℃
Polytetrafluoroethylene (PTFE/F4),120℃ Fluorinated ethylene propylene (FEP/F46),140℃ PFA,180℃ Polyurethane(PU),80℃ |
|
Electrode Material
|
316L Stainless Steel, Hastelloy C, Ti, Ta, Pt
|
|
Output signal
|
Current (4-20 mA) , pulse , frequency
|
|
Serial communications
|
RS-485, support standard Mudbus protocol; GPRS
|
|
Flange standard
|
GB, ANSI150, DIN
|
|
Power supply
|
220VAC/24VDC/Lithium battery
|
|
Protection class
|
IP65/IP67/IP68
|
|
Electirical interface
|
M20*1.5 Intemal thread(NPT thread is optional)
|
If you are interested in the product, contact 2bvideo.com for more information for more information
