Product details

Anum Sheet 3003 Parameters 3003 aluminum plate is a typical Al-Mn alloy, has good formability, corrosion resistance and weldability It is commonly used in the production of lightweight battery car shell, cooking utensils, food storage devices, cans on the transport equipment, Warehouse Slotted Pipe
Slotted Pipe

Aluminum alloy model	Aluminum Sheet 3 3003 aluminium alloy & Alumi003
Material state that can be produced	O,H12,H14,H16H18,H19,H22,H24 H26,H28,H112
Thickness（mm）	0.2-500
Width（mm）	20-2650
Length（mm）	500-16000
Typical Application	Silo, antenna pot material, power battery case, car heat shield, etc.

3003 Aluminum Sheet/Plate Advantage 3003-H14 Aluminum Sheet – (ASTM B209, QQ-A-250/2) Excellent weldability and formability, with good corrosion resistance makes 3003 Aluminum Sheet a popular and economical choice. 3003 Aluminum Sheet has a smooth, semi-shiny finish and is popular for many applications, including: fuel tanks, food & chemical handling, trailer siding & roofing, etc. Mill Finish – Not Polished Non-magnetic, Brinell = 40, Tensile = 22,000, Yield = 21,000 (+/-) The reason this metal is widely used is because it is affordable and strong. Compared to the 1100 series of alloys, 3003 aluminum is 20 percent stronger. This is due to it being integrated with 1.20 percent manganese. It is considered a pure aluminum and is frequently used in various applications, such as for storage tanks, tool boxes, walkways, truck beds, decorative trim and chemical equipment. It can also be used to create fan blades, siding, trailer components, kitchen equipment, cooking utensils and for signage applications LSAW Steel Pipe

3003 Aluminum Sheet Features: FEATURES: Excellent at resisting moisture and strong for its light weight. WORKABLE: Welds well with the proper equipment. Easy to Drill, Machine, Shear and Form. USES: Skinning Frames, Truck Beds, Tool Boxes, Trays, Drip Pans, Ornamental Work, Etc. 3003 aluminum has a lot of great characteristics that make it a popular choice. Other than being weldable and corrosion-resistant, it also has a surface that has a highly polished finish, making it an attractive choice. Although thin, it cannot be bent easily, instead requiring special tools to do so. Aluminum Sheet 3003 H14 Bare is an excellent choice for chemical equipment and general sheet metal projects due to its superior corrosion resistance and good workability. Aluminum 3003 H14 bare sheet works well in fabrication and decorative architectural uses because it is highly workable, formable, and weldable, while being capable of withstanding outdoor weather.um Slotted Pipe

Application: With the excellent rust proof property, 3003 aluminum sheets are appropriate to be used in humid environments like refrigerators or air conditioners ducts, mechanical parts, or external packing. 3003 aluminum sheets are also widely applied to ships/vessels, vehicles, automobile and inserter welding assemblies, fireproof pressure vessels, refrigeration equipment, television tower, drilling equipment, transport and communication facilities, missile elements, plate armors and so on.

Performance：

1) Good corrosion resistance and moderate strength.;

2) Excellent weldability, formability, and machinability;

PRODUCTNAME	ALLOYS NUMBER	TEMPER	THICKNESS（MM）	WIDTH（MM）	LENGTH（MM）	APPLICATION
3003 Aluminum sheet /Plate	3003	O,H12,H14,H16H18,H19,H22,H24,H26,H28,H32,H34 H36,H38	0.2-7.0	100-2200	600-6000	Power battery shell, phone shell and so on

ASTM Standards:ASTM B209 and ASME SB209 ASTMB209–This specification covers aluminum and aluminum alloy flat sheet,coiled sheet, and plate in various alloys. 3003 aluminium alloy & Aluminum Sheet 3003 Chemical Composition

European Standard	OLD	WNr	UNS	ISO	USA (AA)	GERMANY (DIN)
AW-AlCu4Mg1	AU4G1	3.0517	A93003	AlCu4Mg	3003	AlCuMg2

ASME SFA5.3 (E3003)	ASTM B234	ASTM B345	AWS A5.3 (E3003)	QQ A-200/1
ASTM B209	ASTM B241	ASTM B404	MIL A-52174	QQ A-225/2
ASTM B210	ASTM B247	ASTM B483	MIL E-15597 (MIL-3003)	QQ A-250/2
ASTM B211	ASTM B313	ASTM B491	MIL P-25995	QQ A-430
ASTM B221	ASTM B316	ASTM B547	MIL S-12875	QQ WW-T-700/2

Metal Ratio of 3003 aluminum alloy (%)
Si	0.6
Fe	0.7
Cu	0.05-0.20
Mn	1.0-1.5
Zn	0.1
Ti	0.15
Other	0.1
Al	remain

Aluminium 3003 Sheet & Plates Equivalent Grades :

European Standard	OLD	WNr	UNS	ISO	USA (AA)	GERMANY (DIN)
AW-AlCu4Mg1	AU4G1	3.0517	A93003	AlCu4Mg	3003	AlCuMg2

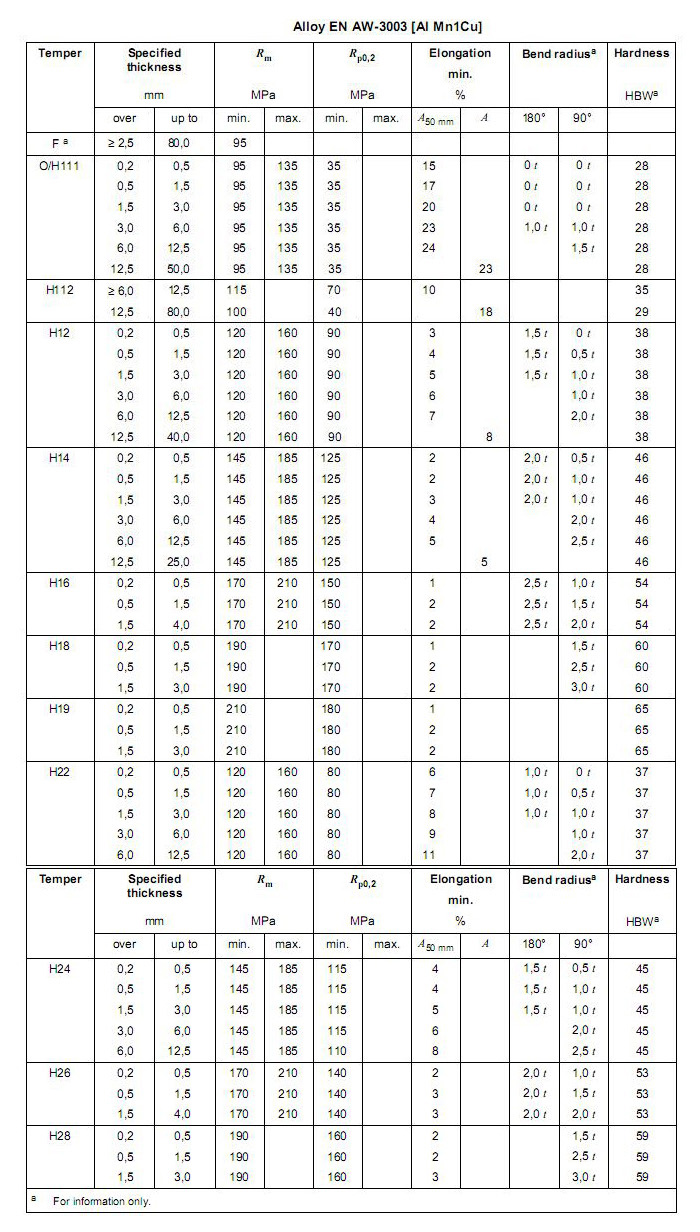

Mechanical Properties of Aluminium 3003 Plates

Material	Condition	Tensile Strength (ksi min)	Yield Strength (ksi min)	Elongation % in 2″ 0.064 plate	Min 90° Cold Bend Radius for 0.064″ Thick
3003-0 plate 0.064″ thick	3003-0	14-19	5	25	0
3003-H12 plate 0.064″ thick	3003-H12	17-23	12	6	0
3003-H14 plate 0.064″ thick	3003-H14	20-26	17	5	0
3003-H16 plate 0.064″ thick	3003-H16	24-30	21	4	1/2 – 1 1/2 T
3003- plate 0.064″ thick	3003-H18	27 min	24	4	1 1/2 -3T

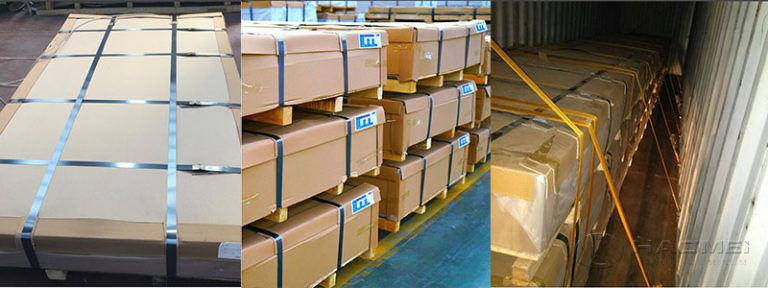

Standard export packing with wooden cases or wooden pallets as required by clients. Aluminum sheet, plate and coil products are wrapped by plastic films and brown papers. There are two kinds of packaging, which is eye to wall or eye to sky. Generally speaking, there are 2 tons in one package, and loading 18-22 tons in 1×20′ container, and 20-24 tons in 1×40′ container.
