Application:
With the excellent rust proof property, 3003 aluminum sheets/coils are appropriate to be used in humid environments like refrigerators or air conditioners ducts, mechanical parts, or external packing.
3003 aluminum coils are also widely applied to ships/vessels, vehicles, automobile and inserter welding assemblies, fireproof pressure vessels, refrigeration equipment, television tower, drilling equipment, transport and communication facilities, missile elements, plate armors and so on.
Performance：
1) Good corrosion resistance and moderate strength.;
2) Excellent weldability, formability, and machinability.
| PRODUCTNAME | ALLOYS NUMBER | TEMPER | THICKNESS（MM） | WIDTH（MM） | LENGTH（MM） | APPLICATION |
| 3003 Aluminum Coil | 3003 |
O,H12,H14,H16H18,H19,H22,H24,H26,H28,H32,H34 H36,H38 |
0.2-7.0 | 20-2200 | 600-6000 | Bottle cap, beverage bottle cap, cosmetic cap and so on |
Mechanical Properties
Mechanical property requirements for annealed product (O temper) as specified in ASTM B209 and ASME SB209
| Thickness (inch) | Yield Strength Min. (ksi) |
Tensile Strength (ksi) |
Elongation (%) Min. |
Bend Diameter Factor,N |
|
| Min. | Max. | ||||
| 0.006 – 0.019 | 5.0 | 14.0 | 19.0 | 14 | 0 |
| 0.008 – 0.012 | 5.0 | 14.0 | 19.0 | 18 | 0 |
| 0.013 – 0.031 | 5.0 | 14.0 | 19.0 | 20 | 0 |
| 0.032 – 0.050 | 5.0 | 14.0 | 19.0 | 23 | 0 |
| 0.051 – 0.249 | 5.0 | 14.0 | 19.0 | 25 | 0 |
| 0.250 – 3.00 | 5.0 | 14.0 | 19.0 | 23 | - |
Mechanical property requirements for strain hardened H12 temper (¼ hard) as specified in ASTM B209 and ASME SB209
| Thickness (inch) | Yield Strength Min. (ksi) |
Tensile Strength (ksi) |
Elongation (%) Min. |
Bend Diameter Factor,N |
|
| Min. | Max. | ||||
| 0.017 – 0.019 | 12.0 | 17.0 | 23.0 | 3 | 0 |
| 0.020 – 0.031 | 12.0 | 17.0 | 23.0 | 4 | 0 |
| 0.032 – 0.050 | 12.0 | 17.0 | 23.0 | 5 | 0 |
| 0.051 – 0.113 | 12.0 | 17.0 | 23.0 | 6 | 0 |
| 0.114 – 0.161 | 12.0 | 17.0 | 23.0 | 7 | 0 |
| 0.162 – 0.249 | 12.0 | 17.0 | 23.0 | 8 | 0 |
| 0.250 – 0.499 | 12.0 | 17.0 | 23.0 | 9 | - |
| 0.500 – 2.000 | 12.0 | 17.0 | 23.0 | 10 | - |
Mechanical property requirements for strain hardened H14 temper (½ hard) as specified in ASTM B209 and ASME SB209
| Thickness (inch) | Yield Strength Min. (ksi) |
Tensile Strength (ksi) |
Elongation (%) Min. |
Bend Diameter Factor,N |
|
| Min. | Max. | ||||
| 0.009 – 0.012 | 17.0 | 20.0 | 26.0 | 1 | 0 |
| 0.013 – 0.019 | 17.0 | 20.0 | 26.0 | 2 | 0 |
| 0.020 – 0.031 | 17.0 | 20.0 | 26.0 | 3 | 0 |
| 0.032 – 0.050 | 17.0 | 20.0 | 26.0 | 4 | 0 |
| 0.051 – 0.113 | 17.0 | 20.0 | 26.0 | 5 | 0 |
| 0.114 – 0.161 | 17.0 | 20.0 | 26.0 | 6 | 2 |
| 0.162 – 0.249 | 17.0 | 20.0 | 26.0 | 7 | 2 |
| 0.250 – 0.499 | 17.0 | 20.0 | 26.0 | 8 | - |
| 0.500 – 1.000 | 17.0 | 20.0 | 26.0 | 10 | - |
Physical Properties
Physical properties for Alloy 3003
| Property | 3003 Data |
| Density, lb/in3 | 0.099 |
| Modulus of Elasticity, psi | 10.0 x 106 |
| Coefficient of Thermal Expansion, 68-212˚F, /˚F | 12.9 x 10-6 |
| Thermal Conductivity, Btu/ft hr ˚F | 112 |
| Specific Heat, Btu/lb ˚F | 0.213 |
| Electrical Resistivity, Microohm-in | 1.374 |
Chemical composition is percent maximum unless shown as a range or a minimum.
Source: Aluminum Standards and Data – The Aluminum Association, Inc.
Information presented as a guide for reference purposes only and is not intended to be used for product design or application.
ASTMB209，EN573，EN485
ASTMB209–This specification covers aluminum and aluminum alloy flat sheet,coiled sheet, and plate in various alloys
Casing
BS EN 573–This specification covers aluminium and aluminium alloys–chemical composition and form of products.
BS EN 485–This specification sets out the mechanical properties of wrought aluminium amd wrought aluminium alloy sheet, strip and plate for general engineering applications

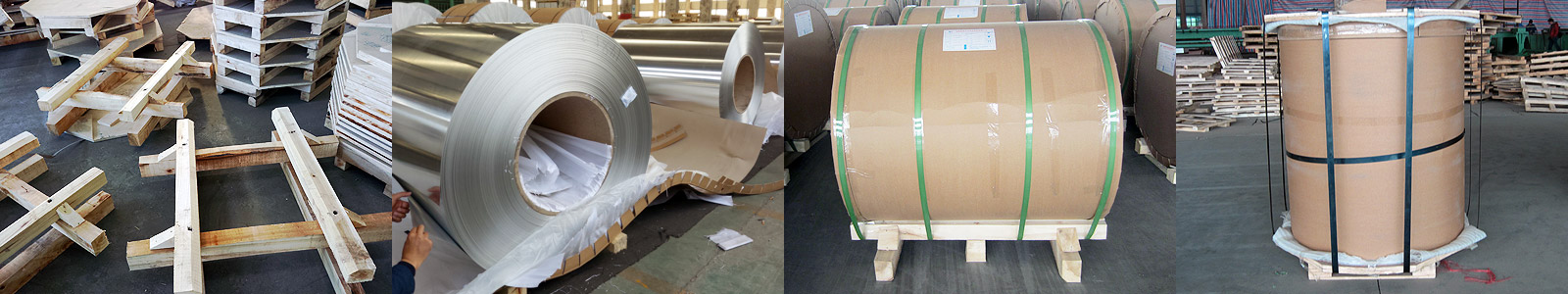

Packing Details : Standard export package.
Aluminium Sheet of packaging meet the export standard. Plastic film and brown paper can be covered at customers’ need. wooden case or wooden pallet is adopted to protect products from damage during the delivery.
| Packing : Export wooden pallets, craft paper, anti-blushing agent. |
| The inner size of container is below: |
| 20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM,23MTS |
| 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM,27MTS |
| 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM,27MTS |
If you are interested in the product, contact 2bvideo.com for more information for more information
