Product Introduction:

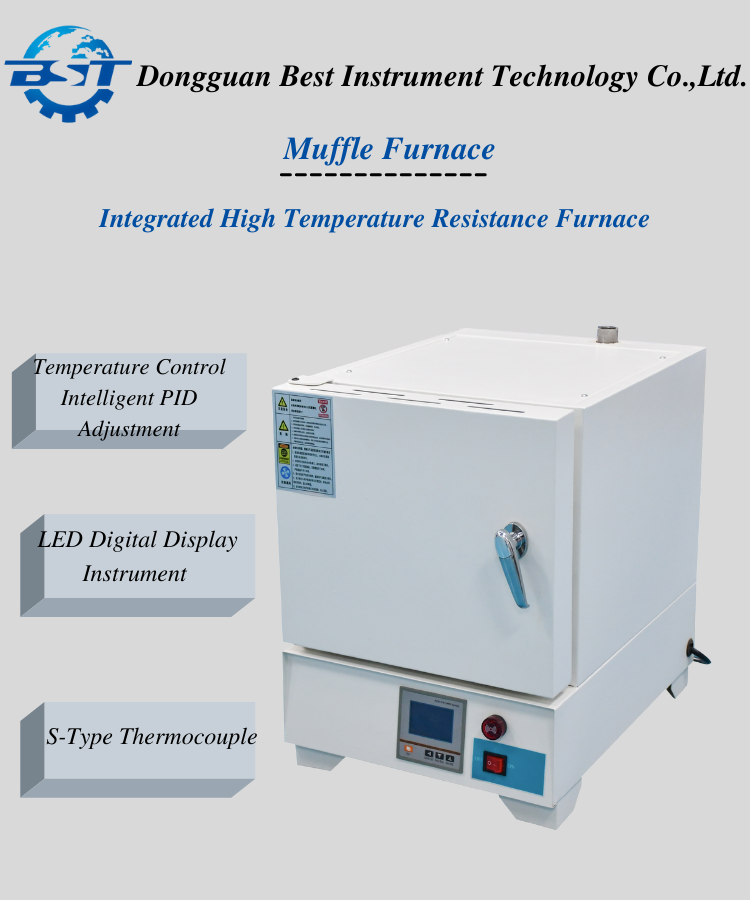

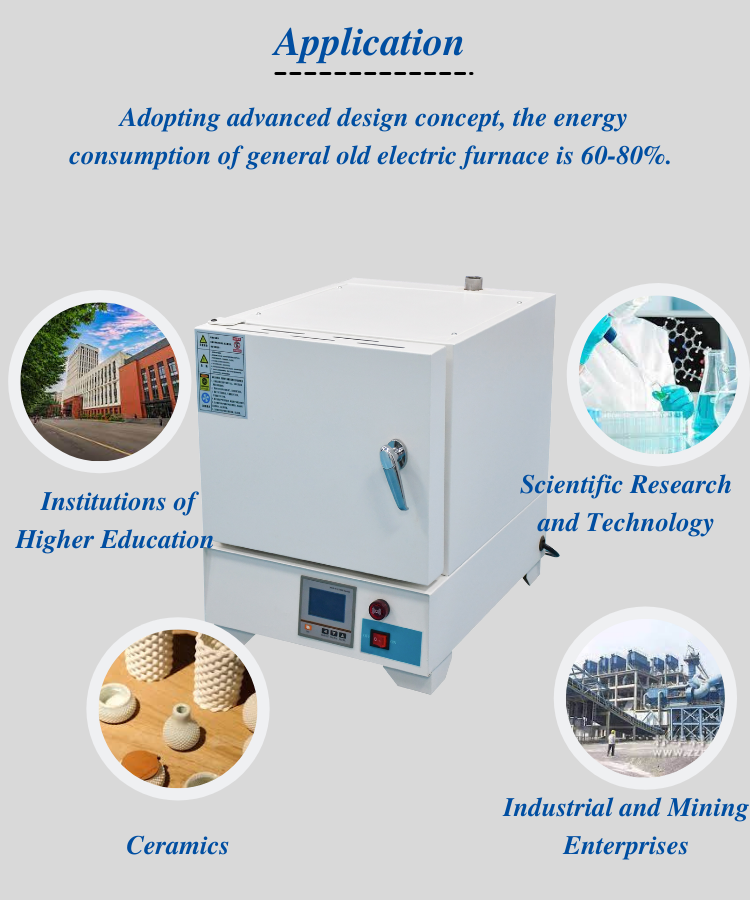

Digital display box type high temperature ash furnace, also known as muffle furnace, can be used for chemical analysis, physical determination and general small steel heat treatment in laboratories of industrial and mining enterprises and scientific research institutes.
Features:
The shell of this series of electric furnace is made of thin steel plate by flapping welding and drawing, and the inner lining is rectangular integral lining made of silicon carbide refractory material. The heating element made of helical iron chrome aluminum alloy wire is threaded into the upper, lower, left and right grooves of the inner furnace lining. The furnace is sealed structure. The furnace mouth brick and door brick are made of light refractory material. The insulation layer between the furnace and the shell is made of refractory fiber and expanded perlite products. The appearance is made of cold plate processing, and the surface is bright and smooth with electrostatic spraying.
Parameters:
|
Type |
BST-HF-1000 |
|
Temperature Range |
100℃-1000℃ |
|
Volatility |
±2℃ |
|
Display accuracy |
1℃ |
|
Furnace size |
80*120*200mm |
|
Heating rate |
Average≤10℃/min |
|
Total power |
2.5KW |
|
Power |
220V, 50Hz |
|
Furnace shell material |
The outer box shell is made of high-quality cold plate, treated with phosphoric acid film salt, and sprayed at high temperature, and the color is computer gray |
|
Furnace material |
Using high aluminum inner tank, good wear resistance, high temperature furnace up and down, left and right sides heat up |
|
Insulation method |
Thermal insulation brick and thermal insulation cotton |
|
Temperature measurement port |
The thermocouple enters from above the rear of the furnace |
|
Terminal |
The heating wire terminal is located at the bottom of the furnace body |
|
Controller |
Located under the furnace body, built-in control system, compensating wire connected to the furnace body |
|
Heating element |
High temperature resistance wire |
|
Standard packaging |
Wooden box |
|
Temperature measurement |
K - metric nickel - chromium - nickel - silicon thermocouple |
|
Control System |
PID adjustment, display accuracy 1℃ |
|
Complete sets of electrical appliances |
Adopt brand contactor, cooling fan, solid state relay |
|
Time system |
Working time can be set, constant temperature time arrives, automatic shutdown |
|
Over temperature protection |
Built - in two - level over temperature protection device, double insurance. Over-temperature alarm, over-temperature cut-off |
|
Operation mode |
Full range adjustable constant temperature, constant operation |
|
After-sales service |
A. Responsible for remote technical guidance to users B. Provide equipment spare parts and accessories in time C. Provide technical consultation and support during the use of equipment D. Respond immediately within 8 working days after receiving customer failure notification |
