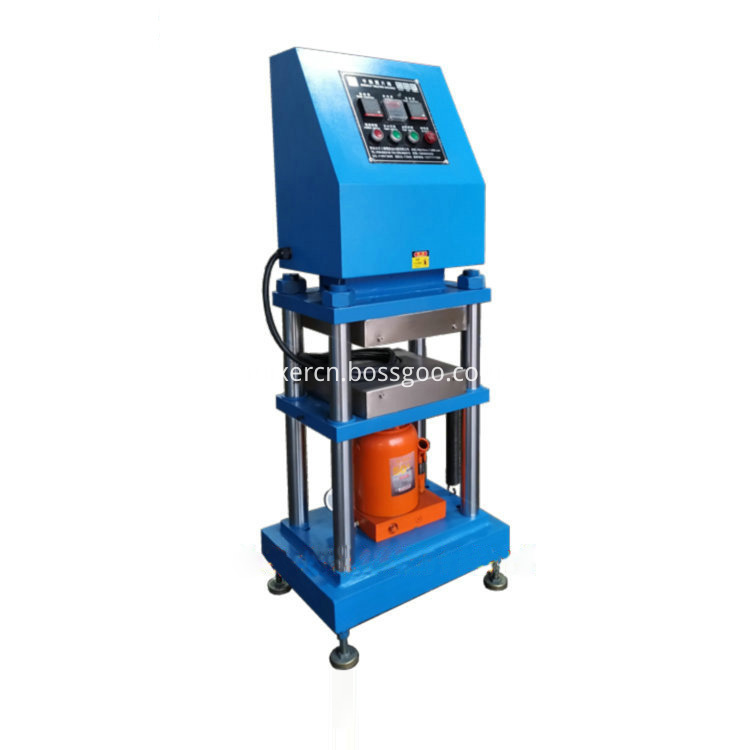

The raw materials are placed in the mold and sandwiched between the electric heating plates of the machine to apply pressure and temperature, forming the raw materials for testing and serving as the basis for mass production of ingredients in the factory.
1. Capacity: 0-20T adjustable, parallelism adjustable
2. Working temperature range: adjustable between room temperature+10~300 ℃ (standard configuration temperature)
High temperature has been tested at room temperature -300 ℃ -500 ℃ -760 ℃ (three levels)
3. The total pressure acting on the flat plate should reach at least 20KN,
4. Plate area: 225mm * 225mm (area can be customized according to needs)
Working area (uniformly heated surface or actual heated surface): 225mm * 225mm,
5. High oil pressure: 20T, the oil pressure system is not prone to oil leakage, and the flat plate is not prone to rusting. The surface is covered with stainless steel plate treatment, and hard chrome plating can also be chosen.
6. Pressure plate rising speed: about 5mm/s, an additional 10 mm/s.
7. The large lifting space of the pressure plate is 70mm.
8. Hydraulic system: hydraulic jack
9. Cylinder stroke: Max 80mm
10. Cylinder speed: 9mm/s
11. Pressure gauge: 0-350kg/sq.cm
12. Volume: (W) × D × H) 400 × four hundred and fifty × 1000 mm
13. Power supply: 5 Å, AC380V, 10A
14. Weight: Approximately 185kg
Dongguan Zhenggong Electromechanical Equipment Technology Co., Ltd. was founded in 1988 in Dongguan, Guangdong. Its main products Small open mill, Small internal mixer, Small tablet press, small vulcanization machine, Small extruder, and various customized laboratory mixer rubber and plastic mechanical equipment. Established the Taiwan Joint Venture Business License in 2009, after more than 30 years of research and development and creation. It has been located in Houjie Town, Dongguan City, Chinese Mainland Province, mainland China.
