Product details

100 mic Milky White Blank Bopet Stencil Film

The blank mylar film with high tensile strength, it can be bend without broken. The blank stencil mylar sheet is high temperature resistant, food safe, ECO-Friendly, dimension stability. It is normally be used for stencil template. such as coffee stencil, cake stencil, wall painting stencil, furniture stencil, airbrush painting stencil, etc.

Polyester Film is made from Polyethylene terephthalate by casting & Biaxially oriented

Class E insulation (120) - High mechanical strength and excellent dielectric property.

It is suitable for electrical insulation, such as slot insulation, Interphase insulation and liner insulation in electric motor,
wrapping insulation for coils and cables, as well as producing insulating flexible composite material.
Specification
Nominal thickness(mm):0.1, 0.125, 0.15, 0.19, 0.25 , 0.350
Nominal width(mm):1000, on request

Features
•High temperature resistance
•High dimensional stability
•white or Milky color
•Easy coating property
•Dielectric
•Moisture proof

•Low transmittance

milky white pet film, opaque white polyester film, white polyester film, vmpet film, metallized polyester film for sale, we are professional polyester film plant

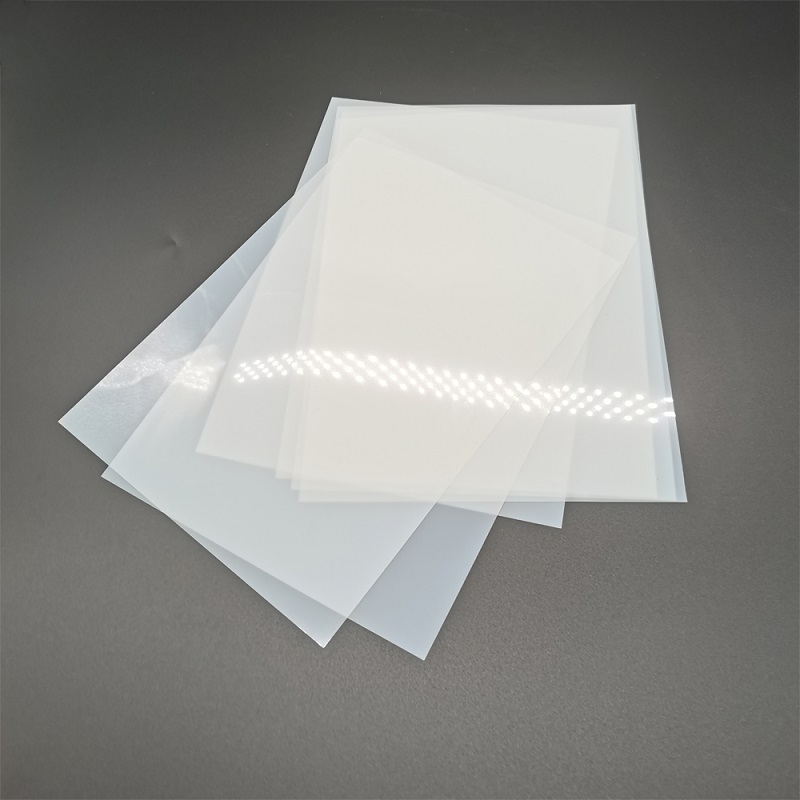

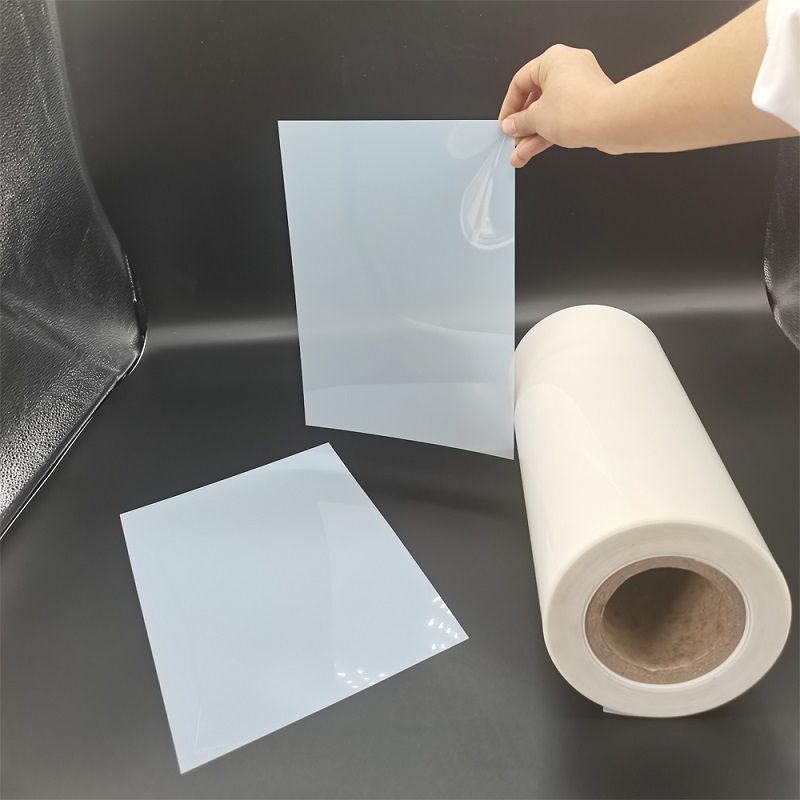

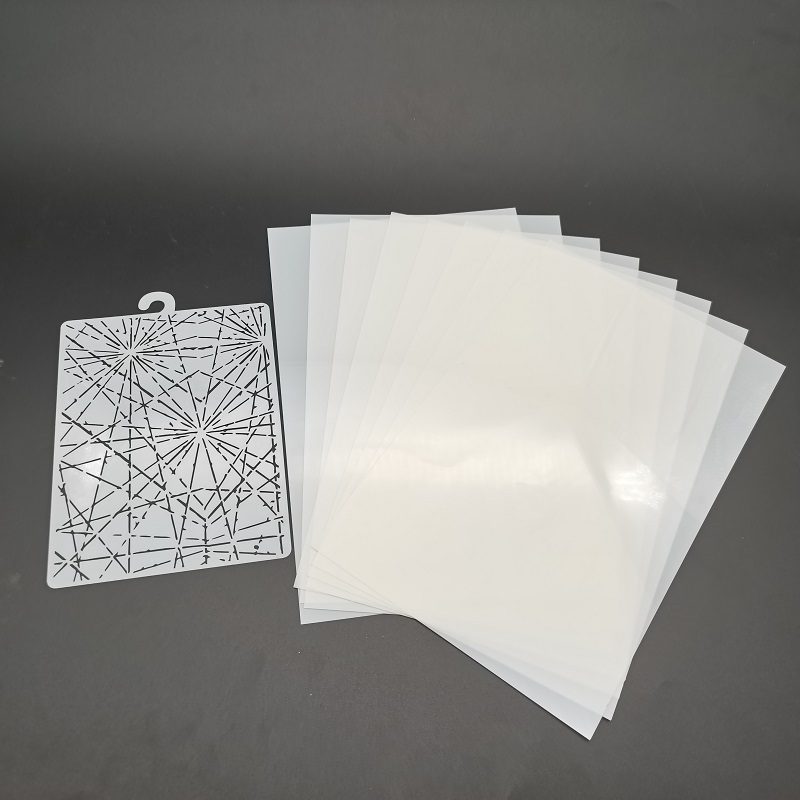

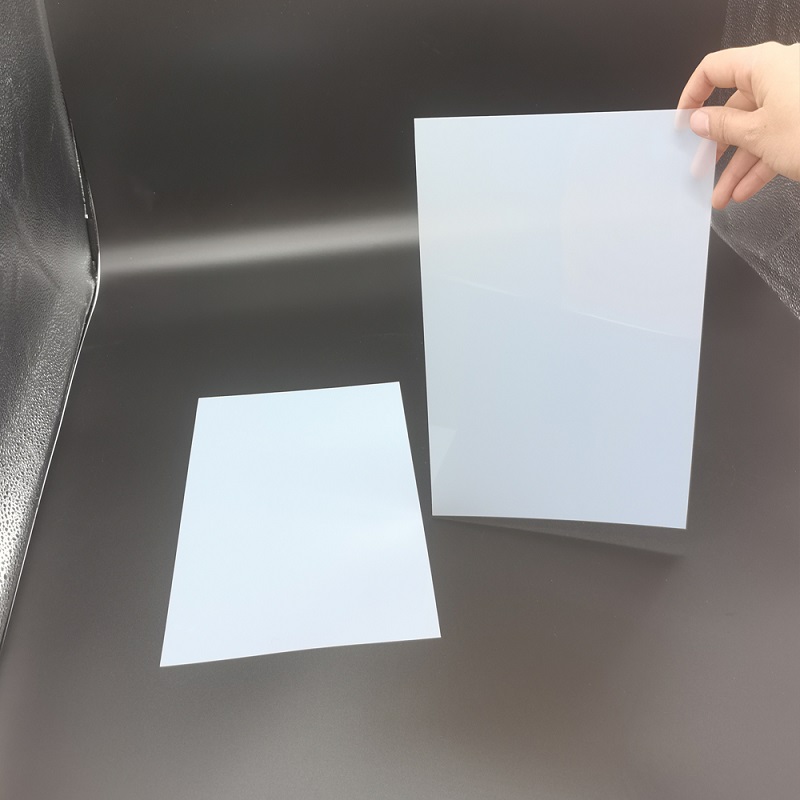

Photo of Product:

Technical Data Sheet:

Item		Unit	Value						Test condition
Thickness		Um	100	125	150	188	200	250	GB/T13542.1-2009
Tensile strength	MD	Mpa	196	179	180	182	182	171	GB/T13542.2-2009
Tensile strength	TD	Mpa	200	190	205	193	195	177	GB/T13542.2-2009
Elongation at break	MD	%	131	137	165	170	176	185	GB/T13542.2-2009
Elongation at break	TD	%	100	114	112	110	106	115	GB/T13542.2-2009
Heat shrinkage	MD	%	1.5	1.5	1.5	1.5	1.5	1.5	GB/T13542.2-2009
Heat shrinkage	TD	%	0.5	0.5	0.5	0.6	0.7	0.5	GB/T13542.2-2009
Haze		%	25	28	42.3	44.6	46.5	55.1	GB/T2410-2008
Electrical strength		V/um	123	105	97	87	80	72	GB/T13542.2-2009
Volume resistivity		Ω.m	1.3X1015						GB/T13542.2-2009
Dielectric loss tangent(50Hz)			2.5X10-3						GB/T13542.2-2009
Relative dielectric constant (50HZ)			3.4						GB/T13542.2-2009
