Product details

The elastomer is made of 2024 aluminum alloy with colorless anodizing treatment; the strain gauge material is imported from the United States and Japan with rubber sealing treatment, which is suitable for various working environments, simple structure and convenient installation; It is suitable for various electronic weighing equipment such as electronic pricing scale and electroni

Features:

Range: 10-120KG

Suitable for various electronic weighing equipment such as electronic pricing scales and electronic platform scales

Material: Aluminum alloy material, colorless anodizing treatment;

Appearance: Silicone rubber seal, colorless anodizing treatment of elastomer

Recommended platform size: 250 * 350mm

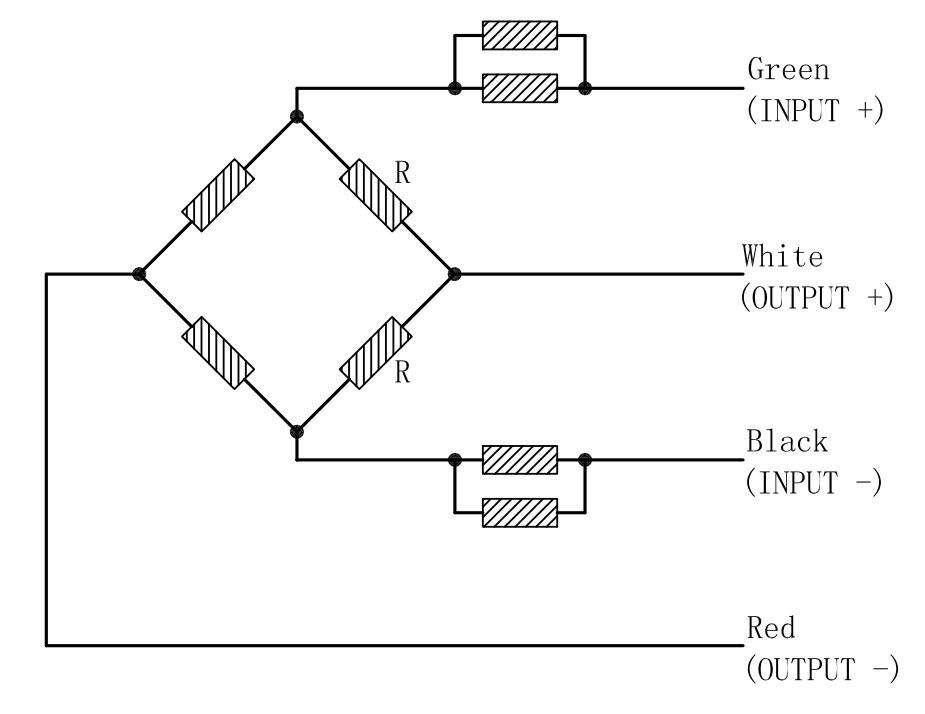

Connection mode

Nh1a3

Specification

PARAMETERS
Sensor Range	KG	10-120	Rated load
accuracy class		C2&C3
Comprehensive error	FS	±0.03% & ±0.017%	Comprehensive error
sensitivity	mv/v	2.0±0.2	Rated output
Zero point output	FS	±1%	Zero balance
creep	%FS/30min	±0.02	Creep
Temperature Effect On Zero	%FS/10℃	±0.02	Temp.effect on zero
temperature effect on sensitivity	%FS/10℃	±0.02	Temp.effect on span
Nonlinear	FS	±0.02	Non-Linearity
lag	FS	±0.02	Hysteresis
repeatability	FS	±0.02	Repeatability
Impedance	Ω	350±5	Input resistance
Output Impedance	Ω	405±10	output resistance
insulation resistance	MΩ	≥5000(100V)	Insulation resistance
Temperature compensation range	℃	-10-40	Compensated temp.range
Operating temperature range	℃	-35-65	Use temp.range
Excitation	V	5-12（DC）	Excitation voltage
Safe overload range	%	150	Safe overload
protection grade		IP65	Defend grade
wire	m	1.5米Φ4屏蔽线	Cable

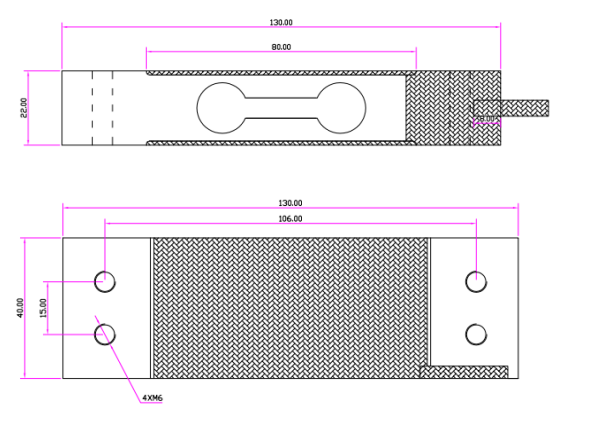

Dimension
