Product details

Versatile Strength Measurement with the NH-3B1 Load Cell

The NH-3B1 Pull and Press Type Sensor stands ready to tackle all your force measurement needs, acting as a Load Cell Tension Compression sensor that can take on both pulling and pushing forces across a spectrum of tasks.

Compact and Mighty: The NH-3B1's Strengths

This load cell's ability to handle dual forces sets it apart, making it incredibly useful for those who need one device that does it all, much like how Miniature Load Cells offer versatility in a small package.

Adaptable Range: The NH-3B1 is as versatile as Small Load Cells, perfect for lighter tension loads and well-suited for heavier compression needs, providing flexibility across industries.

Rugged and Accurate:

Strong Makeup: Built to endure the rigors of industrial environments, the NH-3B1 rivals even the toughest Mini Load Cells in durability, assuring you of reliable performance under any condition.Technology You Can Trust: With its strain gauge core, the NH-3B1 ensures accurate force readings, making it as dependable as it is robust.

Where the NH-3B1 Makes a Difference

Thanks to its dynamic capabilities, the NH-3B1 is ideal for several applications:

Critical Weight Measurement: Accurate weight monitoring is essential in lifting applications, and the NH-3B1 delivers, whether it's on a crane scale or a hoist system.
Material Testing: Just like Miniature Load Cells, the NH-3B1 can precisely measure the tensile and compressive properties of materials in labs.
Detailed Force Assessment: In systems where monitoring cable tension is key or when simulating forces is required, the NH-3B1 provides the necessary precision and durability.Make your measuring processes simpler and more integrated by choosing the NH-3B1, a sensor that brings the compact utility of Mini Load Cells to larger applications, all while delivering the accuracy needed for critical tension and compression measurements.

The NH-3B1 tension link weighing sensor is an ideal choice for lifting and measuring under various weighing conditions, suitable for various applications such as cable and traction tension, cranes and crane scales, and tension verification systems. This pressure sensor has multiple ranges to choose from.

Features:

Range: 50-300KG

Suitable for various tensile testing equipment

Structure: Aluminum alloy material, thin-walled blind hole structure;

Appearance: Silicone rubber seal, colorless anodizing treatment of elastomer

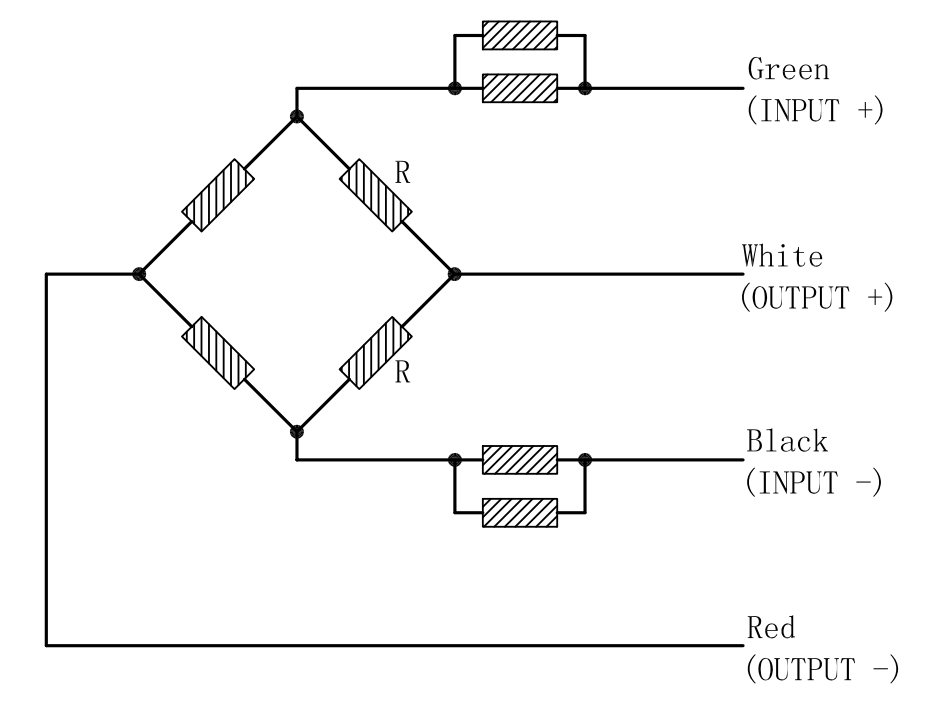

Connection mode

Specification

PARAMETERS
Sensor Range	KG	50-300	Rated load
Accuracy level
Comprehensive error	FS	0.0003	Comprehensive error
sensitivity	mv/v	1.5±0.2	Rated output
Zero point output	FS	±1%	Zero balance
creep	%FS/30min	±0.024	Creep
Zero temperature effect	%FS/10℃	±0.023	Temp.effect on zero
Sensitivity temperature influence	%FS/10℃	±0.03	Temp.effect on span
Input impedance	Ω	1000±5	Input resistance
Output impedance	Ω	1150±50	output resistance
insulation resistance	MΩ	≥5000(100V)	Insulation resistance
Temperature compensation range	℃	-10-40	Compensated temp.range
Operating temperature range	℃	-35-65	Use temp.range
Excitation voltage	V	5-12（DC）	Excitation voltage
Safe overload range	%	150	Safe overload
Protection level		IP65	Defend grade
wire	m	0.5米4色排线	Cable

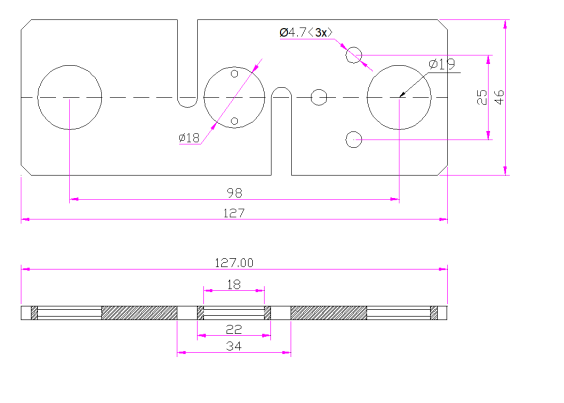

Dimension

NH3B1.1

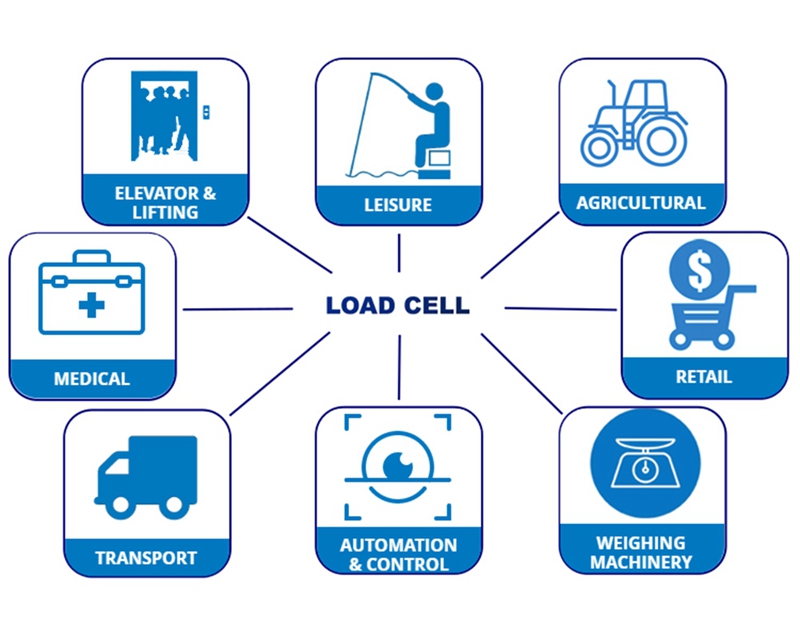

Application Scenario

06d9ab2162ff29e3f655c534c20f3c65_d6d6d7f73ef16bbbddda0b201d
