Product details

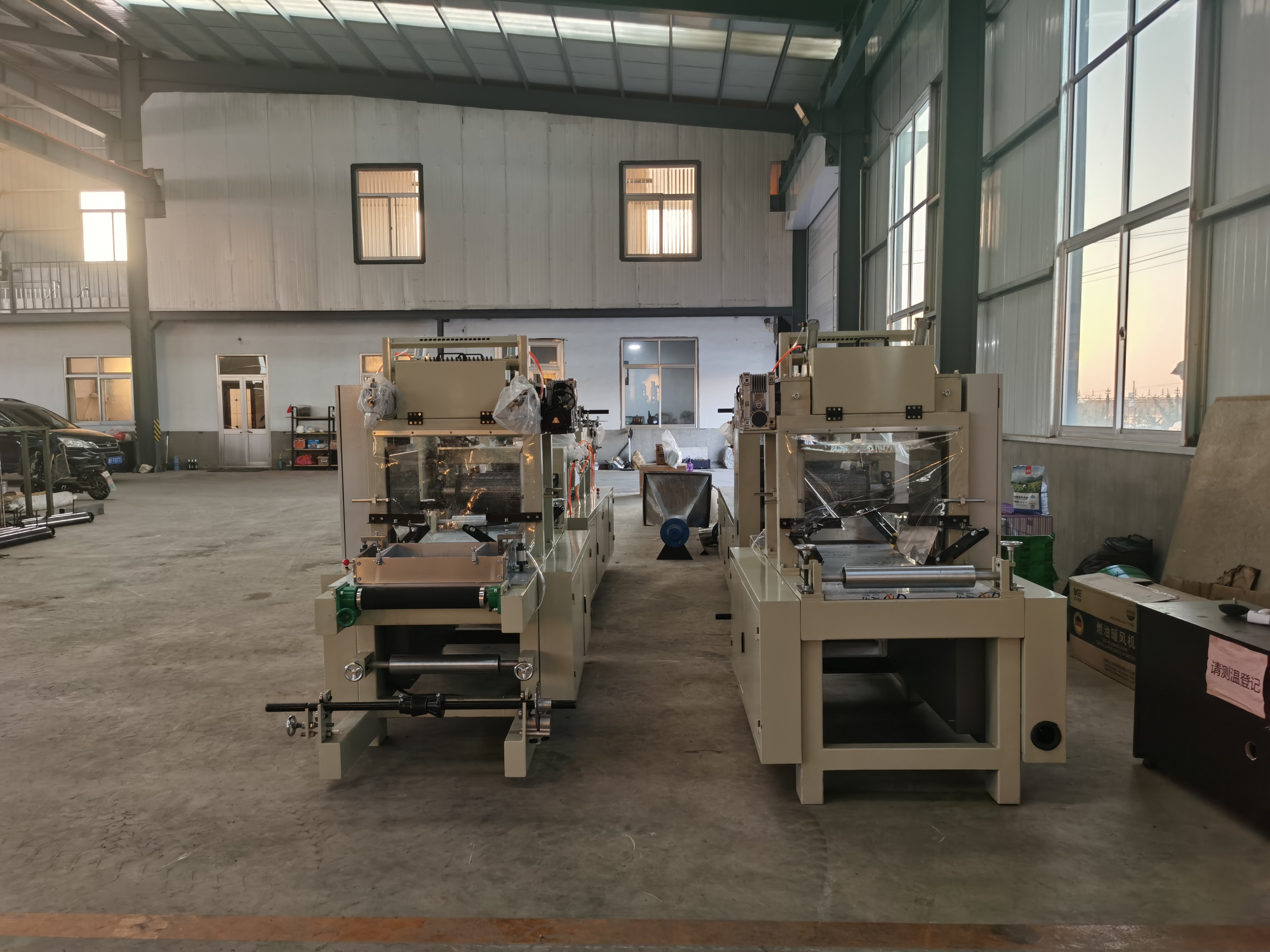

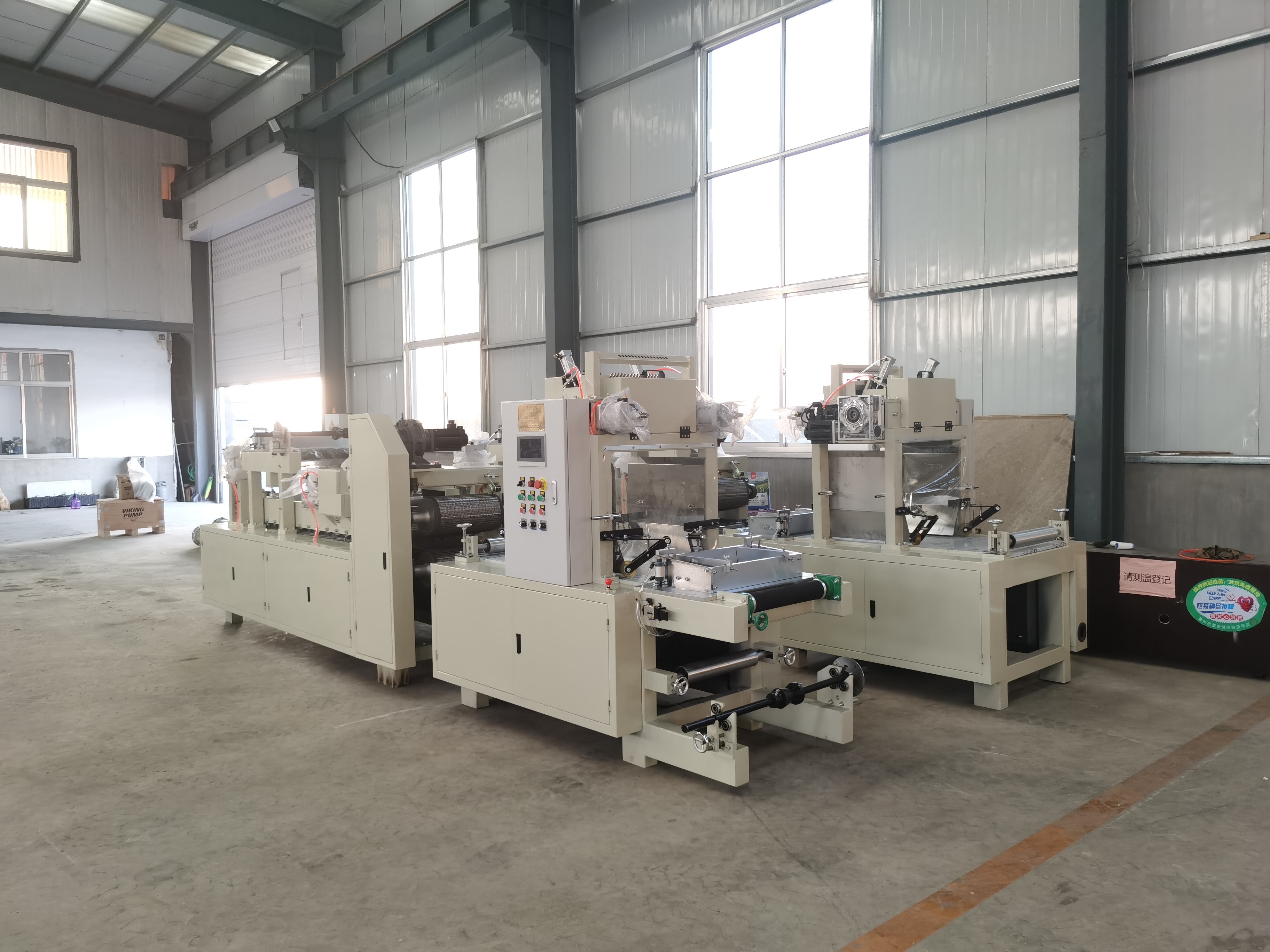

SMC sheet machine is a machine used to manufacture SMC (sheet molded plastic) sheets. SMC sheet is a composite material sheet composed of glass fiber reinforced resin and other additives, which has excellent mechanical and corrosion resistance. The SMC sheet machine mainly consists of resin mixing system, glass fiber cutting system, sheet forming system, and heating system. The resin mixing system is used to mix resin with other additives

Uniform mixing, the glass fiber cutting system is used to cut the glass fiber into appropriate lengths of fibers, and the sheet forming system is used to layer the resin mixture and glass fiber, and shape the sheet through heating and pressure setting.

SMC sheet metal machines have the advantages of high production efficiency, stable product quality, and simple operation, and are widely evaluated in fields such as automotive, aerospace, and construction.

Our company produces Automatic Carbon Fiber Cutting Machines and Ceramic Fiber Machines also Composite Material Cutting Machine. Welcome to consult!

一、 Product overview

At present, in the production process of FRP composite SMC, in order to avoid dust and odor pollution to the environment, in order to improve the production efficiency, we specially developed and designed a set of new production test system for SMC sheet.

二、Main technical parameters

order number	project	parameter
1	outline dimension	Length * width * height, 8500 * 1100 * 1700mm
2	Maximum effective width	300mm
3	Complete machine material	carbon steel
4	Host running speed	3-15m / min (servo drive speed regulation) speed is continuously adjustable
5	Fiber cutter Set of 2	Yarn length 25.4mm (servo drive speed regulation) Yarn length 12.7mm (servo drive speed regulation)
6	Heating configuration	The glue groove and the compaction area can be heated
7	Immaculate configuration	Pre-dip-bubble + compaction device
8	Fiberglass cutting rate	100%
9	The weight of the machine	3000kg
10	High-speed disperser size	20007002200mm
11	Disperser weight	800kg
12	Tank size	Diameter 700mm and height 610mm
13	Tank weight	64 kg of 2 pieces

Stainless steel vertical mixing tank.Sheet plastic production equipment.SMC Sheet material machine.
