Tungsten carbide bar is a sintered metallurgical product of powder form. It is manufactured in vacuum or Hydrogen reduction furnace with refractory tungsten material (WC) micron powder as the main ingredient and Cobalt (Co), Nickel (Ni) or Molybdenum (Mo) as the binder. It has many excellent characteristics such as high hardness and strength, good wear and corrosion resistance and salient stability under high temperature (even at 500 ºC it is essentially unchanged and at 1000 ºC it is still of high hardness).
Cemented Carbide Rods for PCB Tools
|
Type |
Diameter(mm) |
Tolerance(mm) |
Length(mm) |
Tolerance(mm) |
|
BΦ3.21×38.5 |
3.21 |
0/+0.02 |
38.5 |
-0.10/+0.2 |
|
BΦ3.22×40 |
3.22 |
0/+0.04 |
40 |
0/+0.5 |
|
BΦ3.22×45 |
3.22 |
0/+0.04 |
45 |
0/+0.5 |
|
BΦ3.25×50 |
3.25 |
0/+0.05 |
50 |
0/+0.5 |
|
BΦ3.25×38.7 |
3.25 |
0/+0.05 |
38.7 |
-0.20/+0.3 |
|
BΦ3.5×38.5 |
3.5 |
+0.05/0.25 |
38.5 |
±0.20 |
|
BΦ4.0×38.5 |
4.0 |
+0.05/0.25 |
38.5 |
±0.20 |
|
BΦ4.5×38.5 |
4.5 |
+0.05/0.25 |
38.5 |
±0.20 |
|
BΦ5.0×38.5 |
5.0 |
+0.05/0.25 |
38.5 |
±0.20 |
|
BΦ5.5×38.5 |
5.5 |
+0.05/0.25 |
38.5 |
±0.20 |
|
BΦ6.0×38.5 |
6.0 |
+0.05/0.25 |
38.5 |
±0.20 |
|
BΦ6.5×38.5 |
6.5 |
+0.05/0.25 |
38.5 |
±0.20 |
|
BΦ1.2×110 |
1.2 |
0/+0.2 |
110 |
0/+2 |
|
BΦ1.35×110 |
1.35 |
0/+0.2 |
110 |
0/+2 |
|
BΦ1.5×110 |
1.5 |
0/+0.2 |
110 |
0/+2 |
|
BΦ1.8×110 |
1.8 |
0/+0.2 |
110 |
0/+2 |
|
BΦ2.0×110 |
2.0 |
0/+0.2 |
110 |
0/+2 |
If you are looking for high-quality products in the field of high-pressure roller press machines, look no further than Zigong Tianyi Industry Co., Ltd. Contact us today to learn more about our products and how we can help you with your specific needs.
If you are interested in the product, contact 2bvideo.com for more information for more information
The information of 2bvideo.com limited shown above is provided by the user or collected on the network. Video 2B does not guarantee the authenticity,accuracy and legitimacy of 2bvideo.com limited information. Video 2B does not involve legal relationships and disputes between users arising from transactions other than secured transactions on this website. Disputes shall be settled by you through negotiation. If you are the person in charge or relevant employee of this enterprise, if you find that the enterprise information is incorrect or want to manage thiscompany, please contact us jacklee1558@gmail.com, after you claim the enterprise, you can obtain management permission, publish supplyand demand information, bring consulting orders, and remove page advertisements.
Main Product:
HPGR Hard Alloy Pins,
Carbide Button,

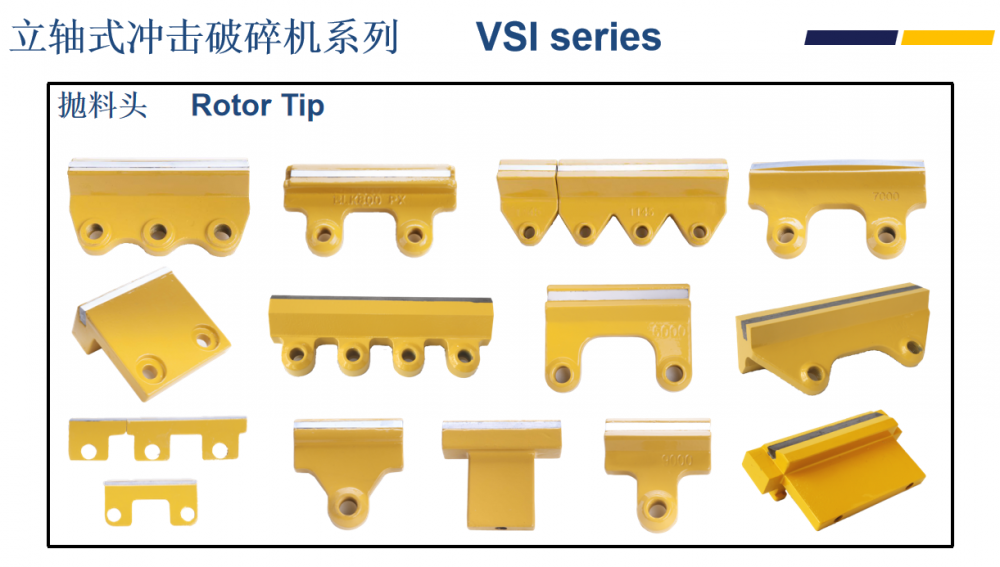

Rotor Tip Set,
