Description:
Timing Belt Pulley is generally made of 45# steel, aluminum alloy, cast iron, cast aluminum, brass and other materials. It consists of three parts: rim, spoke and hub. The inner holes are available in the form of round, D-shaped holes and tapered holes. Surface treatments include natural oxidation, blackening, galvanizing, color galvanizing and high-frequency quenching.
As a mechanism for transmitting the rotational power generated by the motor, synchronous pulley and synchronous belt are generally widely used in design. The transmission and transmission functions are achieved through the engagement between the timing belt pulley and the timing belt teeth.
Trapezoidal teeth timing belt pulley is the most widely used and is divided into various series:
MXL/XXL/XL/L/H/XH/XXH:
|
Type |
bw |
hg |
Y+1.5° |
rb |
rt |
2k |
|
MXL |
0.84±0.05 |
0.69 |
20 |
0.35 |
0.13 |
0.508 |
|
XXL |
1.14±0.05 |
0.84 |
25 |
0.35 |
0.30 |
0.508 |
|
XL |
1.32±0.05 |
1.65 |
25 |
0.41 |
0.64 |
|
|
L |
3.05±0.10 |
2.67 |
20 |
1.19 |
1.17 |
0.706 |
|
H |
4.19±0.13 |
3.05 |
20 |
1.60 |
1.6 |
1.372 |
|
XH |
7.90±0.15 |
7.14 |
20 |
1.98 |
2.39 |
2.794 |
|
XXH |
12.17±0.18 |
10.31 |
20 |
3.96 |
3.18 |
3.048 |
Features:
1. Precise positioning: The tooth design of the trapezoidal teeth timing belt pulley is derived from gears, which can provide precise positioning capabilities. This makes them very useful in applications that require accurate transmission and positioning, such as machine tools, textile machinery, household appliances, commercial equipment, and camshaft transmission in engines.
2. Efficient transmission: The trapezoidal teeth timing belt pulley matches the tooth shape of the timing belt to provide positive toothing, similar to a chain or gear transmission. This forward gearing can provide higher transmission efficiency and reduce energy loss.
Application:
Conveyor belts, forklifts, packaging machines, inkjet printers, lifts, freezers, fans, wire cutting machines, printing presses, gripping robots, vending machines, coding machines, punching machines, rewinders and other mechanical equipment.

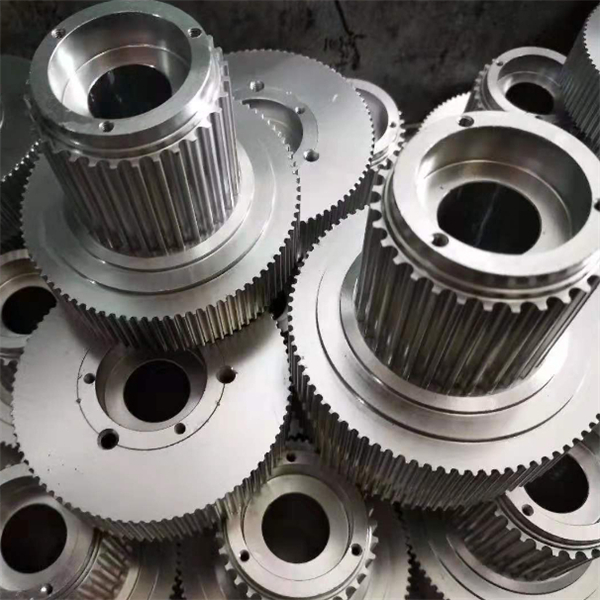

Photos:
